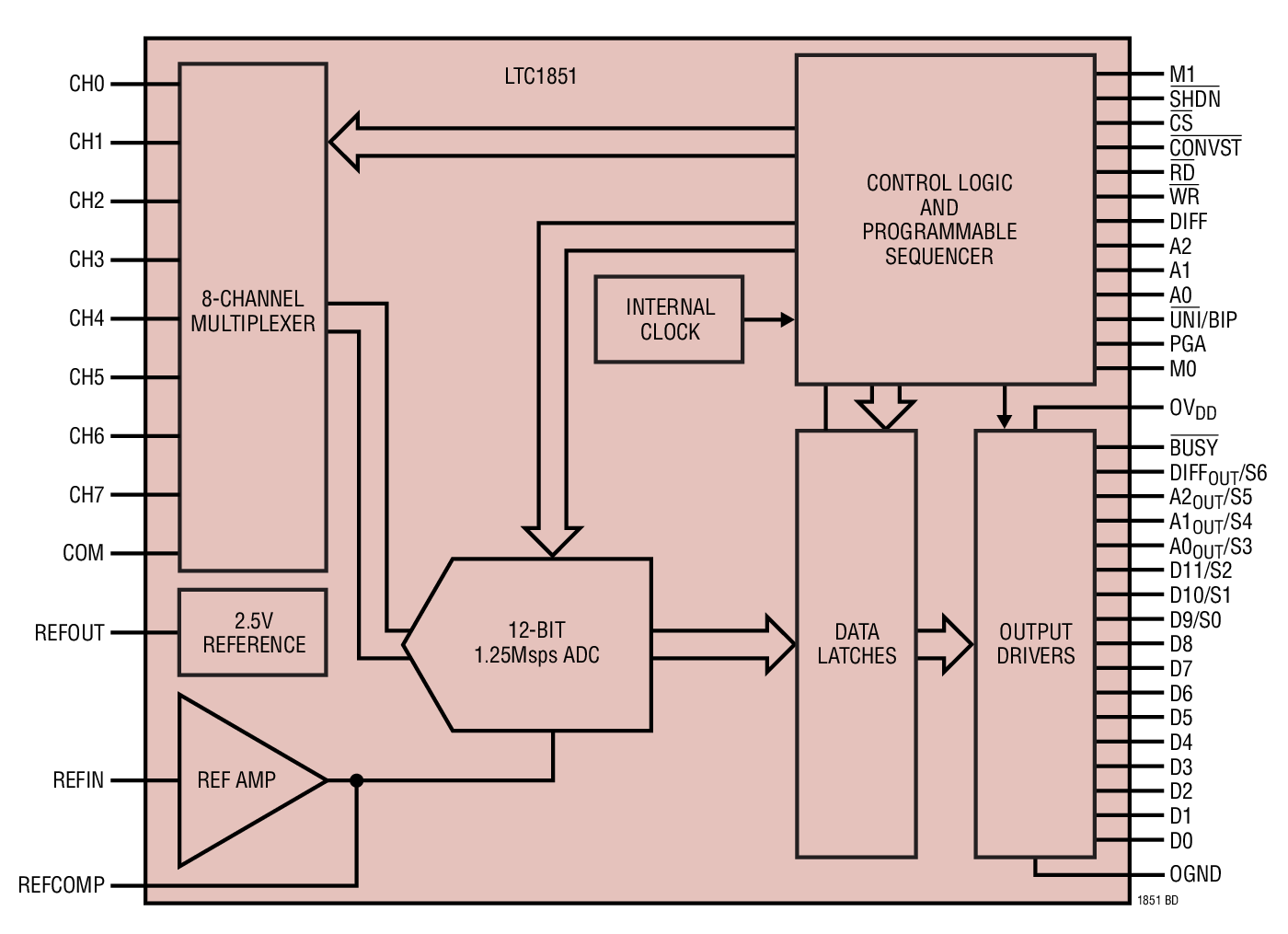

LTC1850典型应用图例一

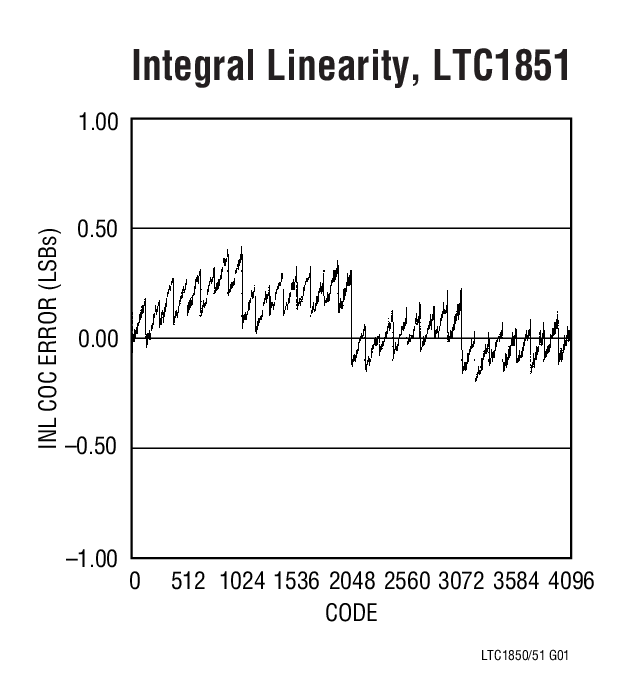

LTC1850典型应用图例二
LTC1850 - 封装图解:

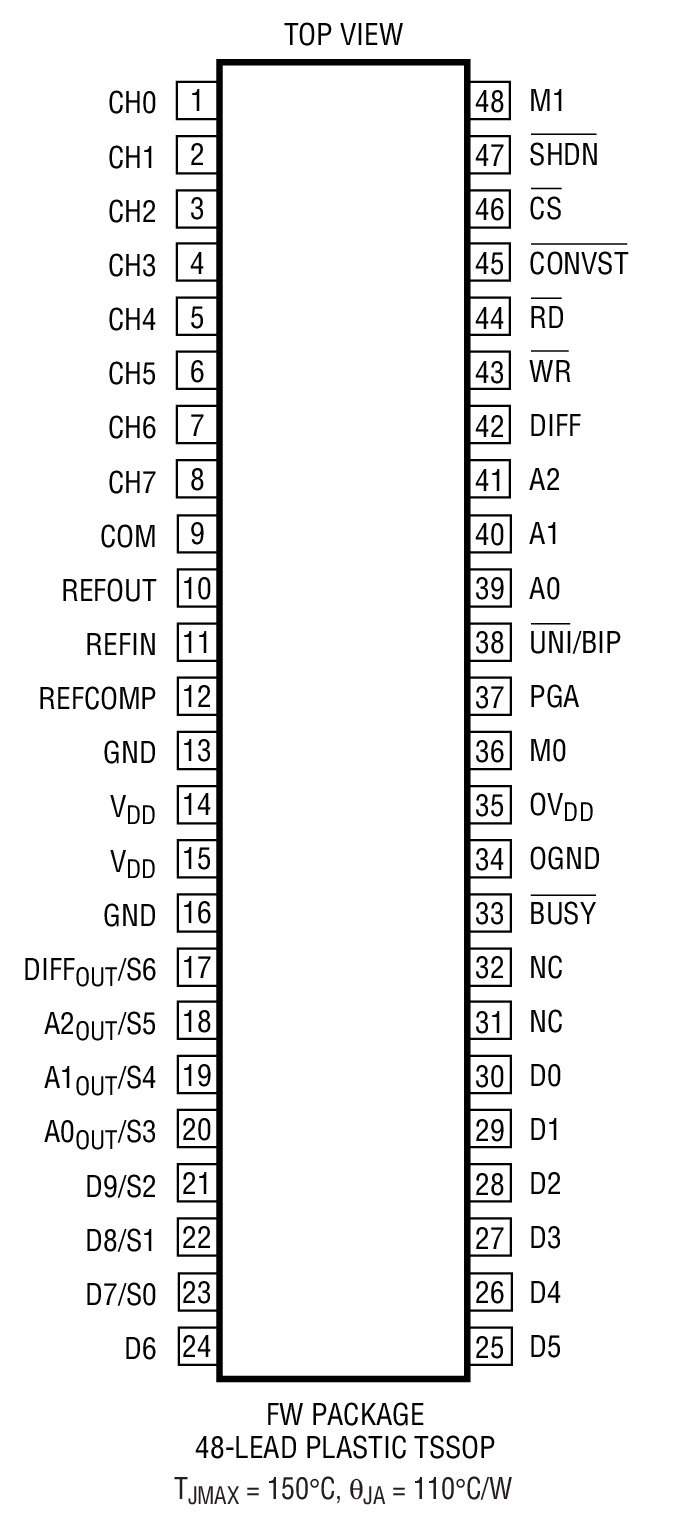

LTC1850封装图解一

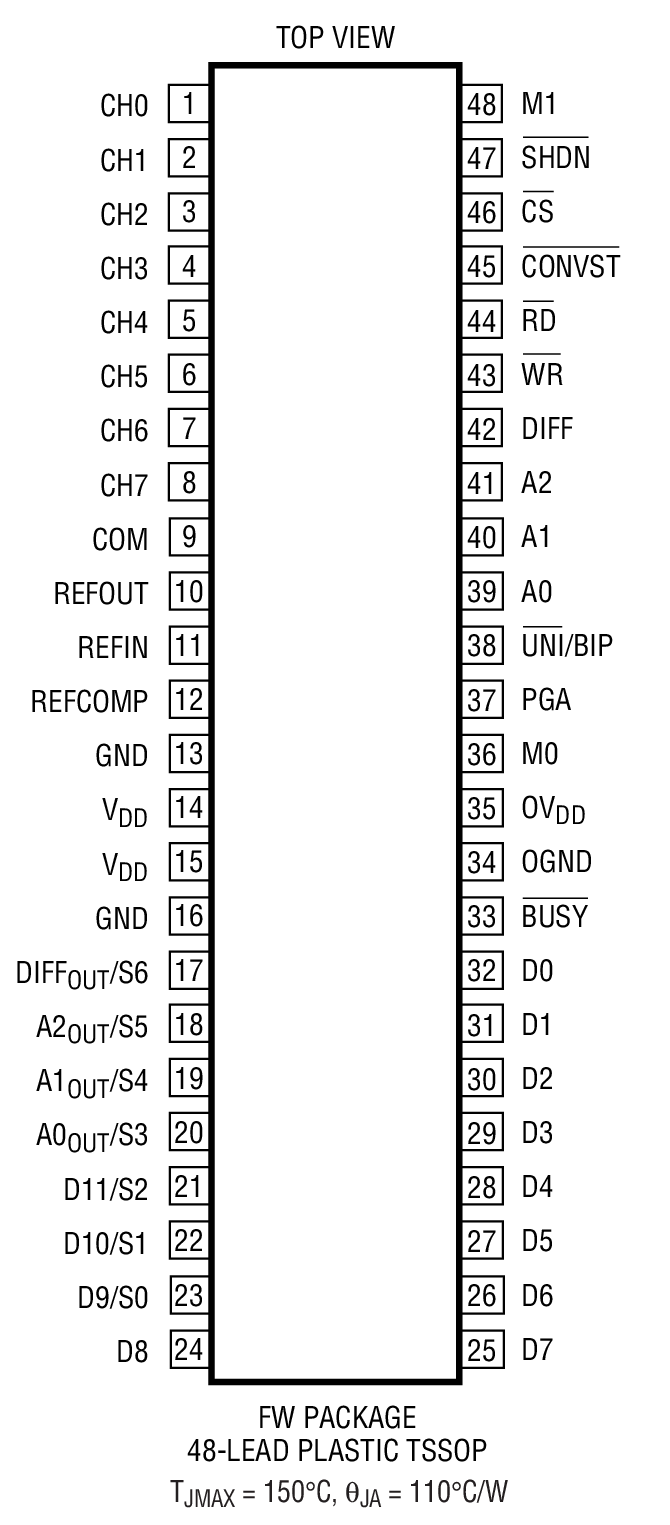

LTC1850封装图解二
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC1850介绍
LTC1850 - LTC1850是8-Channel, 10-Bit/12-Bit, 1.25Msps Sampling ADCs

LTC1850是Linear公司的一款通用型 SAR ADC产品,LTC1850是8-Channel, 10-Bit/12-Bit, 1.25Msps Sampling ADCs,本站介绍了LTC1850的封装应用图解、特点和优点、功能等,并给出了与LTC1850相关的凌力尔特元器件型号供参考。

LTC1850 - 8-Channel, 10-Bit/12-Bit, 1.25Msps Sampling ADCs

LTC1850 - 8-Channel, 10-Bit/12-Bit, 1.25Msps Sampling ADCs - Linear Technology(凌力尔特)

功能描述

The 10-bit LTC1850 and 12-bit LTC1851 are complete 8-channel data acquisition systems. They include a flexible 8-channel multiplexer, a 1.25Msps successive approximation analog-to-digital converter with sample-and-hold, an internal 2.5V reference and reference buffer amplifier, and a parallel output interface. The multiplexer can be configured for single-ended or differential inputs, two gain ranges and unipolar or bipolar operation.

The ADCs have a scan mode that will repeatedly cycle through all 8 multiplexer channels and can also be programmed with a sequence of up to 16 addresses and configurations that can be scanned in succession. The sequence memory can also be read back. The reference and buffer amplifier provide pin strappable ranges of 4.096V, 2.5V and 2.048V. The parallel output includes the 10-bit or 12-bit conversion result plus the 4-bit multiplexer address. The digital outputs are powered from a separate supply allowing for easy interface to 3V digital logic. Typical power consumption is 40mW at 1.25Msps from a single 5V supply.

特点
  • Flexible 8-Channel Multiplexer
  • Single-Ended or Differential Inputs
  • Two Gain Ranges Plus Unipolar and Bipolar Operation
  • 1.25Msps Sampling Rate
  • Single 5V Supply and 40mW Power Dissipation
  • Scan Mode and Programmable Sequencer
  • Pin Compatible 10-Bit LTC1850 and 12-Bit LTC1851
  • True Differential Inputs Reject Common Mode Noise
  • Internal 2.5V Reference
  • Parallel Output Includes MUX Address
  • Easy Interface to 3V Logic
  • Nap and Sleep Shutdown Modes
  • 应用
  • High Speed Data Acquisition
  • Test and Measurement
  • Imaging Systems
  • Telecommunications
  • Industrial Process Control
  • Spectrum Analysis
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1850CFW TSSOP-48 C $8.00 $5.95
    LTC1850CFW#PBF TSSOP-48 C $8.00 $5.95
    LTC1850CFW#TR TSSOP-48 C $6.07
    LTC1850CFW#TRPBF TSSOP-48 C $6.07
    LTC1850IFW TSSOP-48 I $9.25 $6.85
    LTC1850IFW#PBF TSSOP-48 I $9.25 $6.85
    LTC1850IFW#TR TSSOP-48 I $6.97
    LTC1850IFW#TRPBF TSSOP-48 I $6.97
