当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC3410B
LTC3410B技术文档下载：
LTC3410B技术文档产品手册下载
LTC3410B - 典型应用图例：

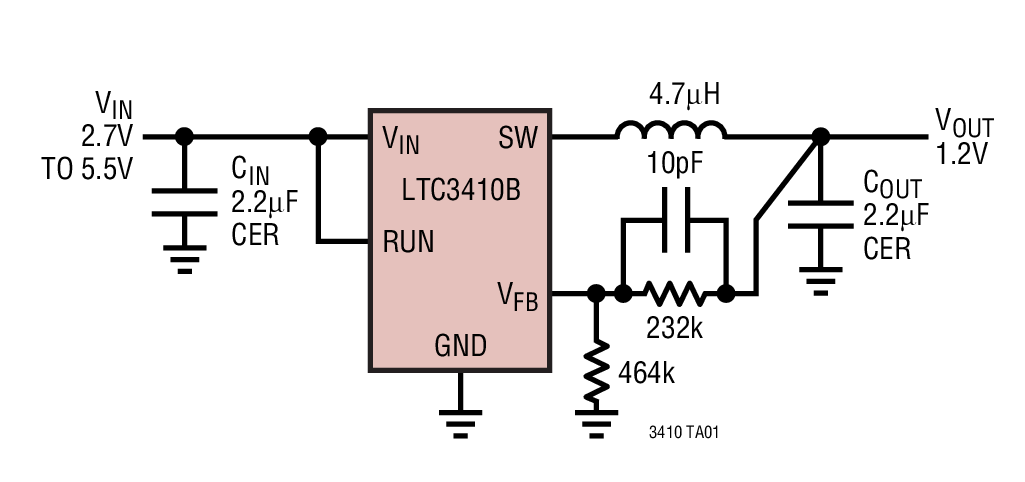

LTC3410B典型应用图例一

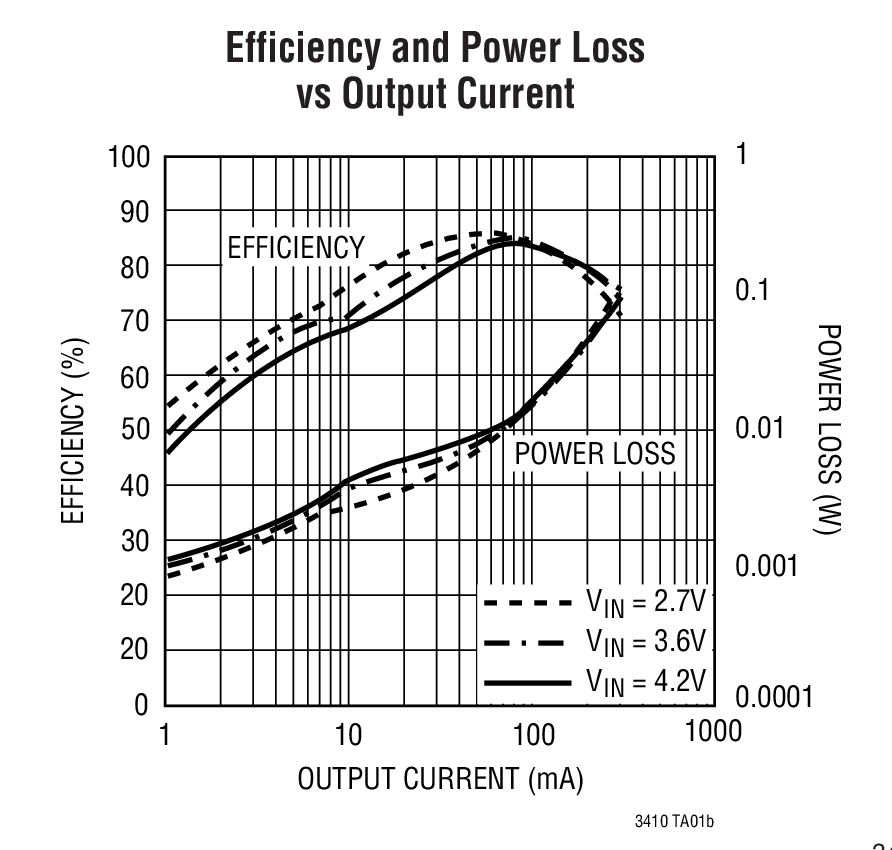

LTC3410B典型应用图例二
LTC3410B - 封装图解：

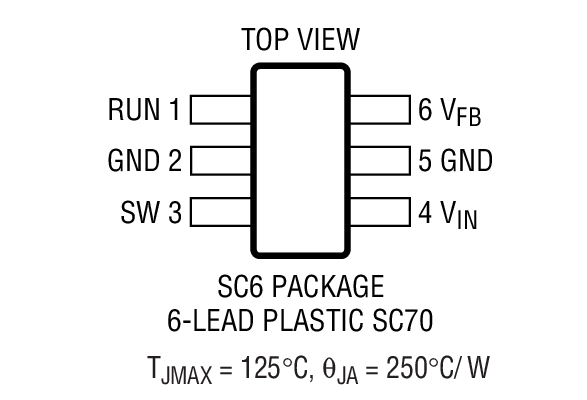

LTC3410B封装图解一

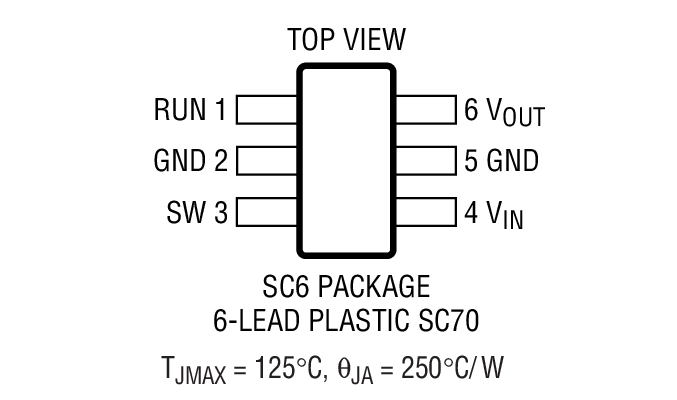

LTC3410B封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC3410B介绍

LTC3410B - LTC3410B是2.25MHz, 300mA Synchronous Step-Down Regulator in SC70

LTC3410B是LINEAR凌力尔特公司的一款内部开关电源降压产品，LTC3410B是LTC3410B是2.25MHz, 300mA Synchronous Step-Down Regulator in SC70，本站介绍了LTC3410B的封装应用图解、特点和优点、功能等，并给出了与LTC3410B相关的LINEAR元器件型号供参考。

LTC3410B - LTC3410B是2.25MHz, 300mA Synchronous Step-Down Regulator in SC70 - 内部开关电源降压 - 电源管理 - 凌力尔特

LTC3410B - 2.25MHz, 300mA Synchronous Step-Down Regulator in SC70

LTC3410B - 2.25MHz, 300mA Synchronous Step-Down Regulator in SC70 - Linear Technology（凌力尔特）

功能描述

The LTC3410B is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is avaible in adjustable and fixed output voltage versions.Supply current during operation is only 200?A, dropping to <1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3410 ideally suited for single Li-Ion battery-powered applications.

100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM pulse skipping mode operation provides very low output ripple voltage for noise sensitive applications.Switching frequency is internally set at 2.25MHz, allowing the use of small surface mount inductors and capacitors. The LTC3410B is specifically designed to work well with ceramic output capacitors, achieving very low output voltage ripple and a small PCB footprint.

The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.8V feedback reference voltage. The LTC3410B is available in a tiny, low profile SC70 package.

特点
  • High Efficiency: Up to 96%
  • 300mA Output Current at VIN = 3V
  • 380mA Minimum Peak Switch Current
  • 2.5V to 5.5V Input Voltage Range
  • 2.25MHz Constant Frequency Operation
  • No Schottky Diode Required
  • Low Dropout Operation: 100% Duty Cycle
  • Stable with Ceramic Capacitors
  • 0.8V Reference Allows Low Output Voltages
  • Shutdown Mode Draws < 1μA Supply Current
  • ±2% Output Voltage Accuracy
  • Current Mode Operation for Excellent Line andLoad Transient Response
  • Overtemperature Protected
  • Available in Low Profile SC70 Package
    • 应用
  • Cellular Telephones
  • Personal Information Appliances
  • Wireless and DSL Modems
  • Digital Still Cameras
  • MP3 Players
  • Portable Instruments
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC3410BESC6-1.2#PBF SC-70 E $2.21
    LTC3410BESC6-1.2#TR SC-70 E $2.21 $1.56
    LTC3410BESC6-1.2#TRM SC-70 E $2.21 $1.61
    LTC3410BESC6-1.2#TRMPBF SC-70 E $2.21 $1.61
    LTC3410BESC6-1.2#TRPBF SC-70 E $2.21 $1.56
    LTC3410BESC6-1.5#PBF SC-70 E $2.21
    LTC3410BESC6-1.5#TR SC-70 E $2.21 $1.56
    LTC3410BESC6-1.5#TRM SC-70 E $2.21 $1.61
    LTC3410BESC6-1.5#TRMPBF SC-70 E $2.21 $1.61
    LTC3410BESC6-1.5#TRPBF SC-70 E $2.21 $1.56
    LTC3410BESC6-1.8#PBF SC-70 E $2.21
    LTC3410BESC6-1.8#TR SC-70 E $2.21 $1.56
    LTC3410BESC6-1.8#TRM SC-70 E $2.21 $1.61
    LTC3410BESC6-1.8#TRMPBF SC-70 E $2.21 $1.61
    LTC3410BESC6-1.8#TRPBF SC-70 E $2.21 $1.56
    LTC3410BESC6-1.875#PBF SC-70 E $2.21
    LTC3410BESC6-1.875#TR SC-70 E $2.21 $1.56
    LTC3410BESC6-1.875#TRM SC-70 E $2.21 $1.61
    LTC3410BESC6-1.875#TRMPBF SC-70 E $2.21 $1.61
    LTC3410BESC6-1.875#TRPBF SC-70 E $2.21 $1.56
    LTC3410BESC6#PBF SC-70 E $2.21
    LTC3410BESC6#TR SC-70 E $2.21 $1.56
    LTC3410BESC6#TRM SC-70 E $2.21 $1.58
    LTC3410BESC6#TRMPBF SC-70 E $2.21 $1.58
    LTC3410BESC6#TRPBF SC-70 E $2.21 $1.56
