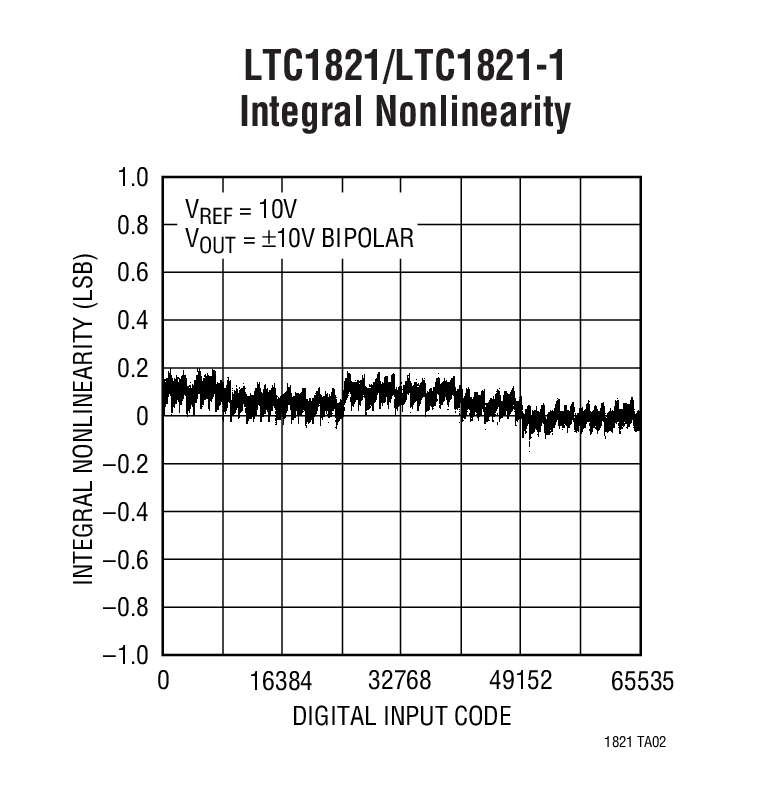

LTC1821B典型应用图例一

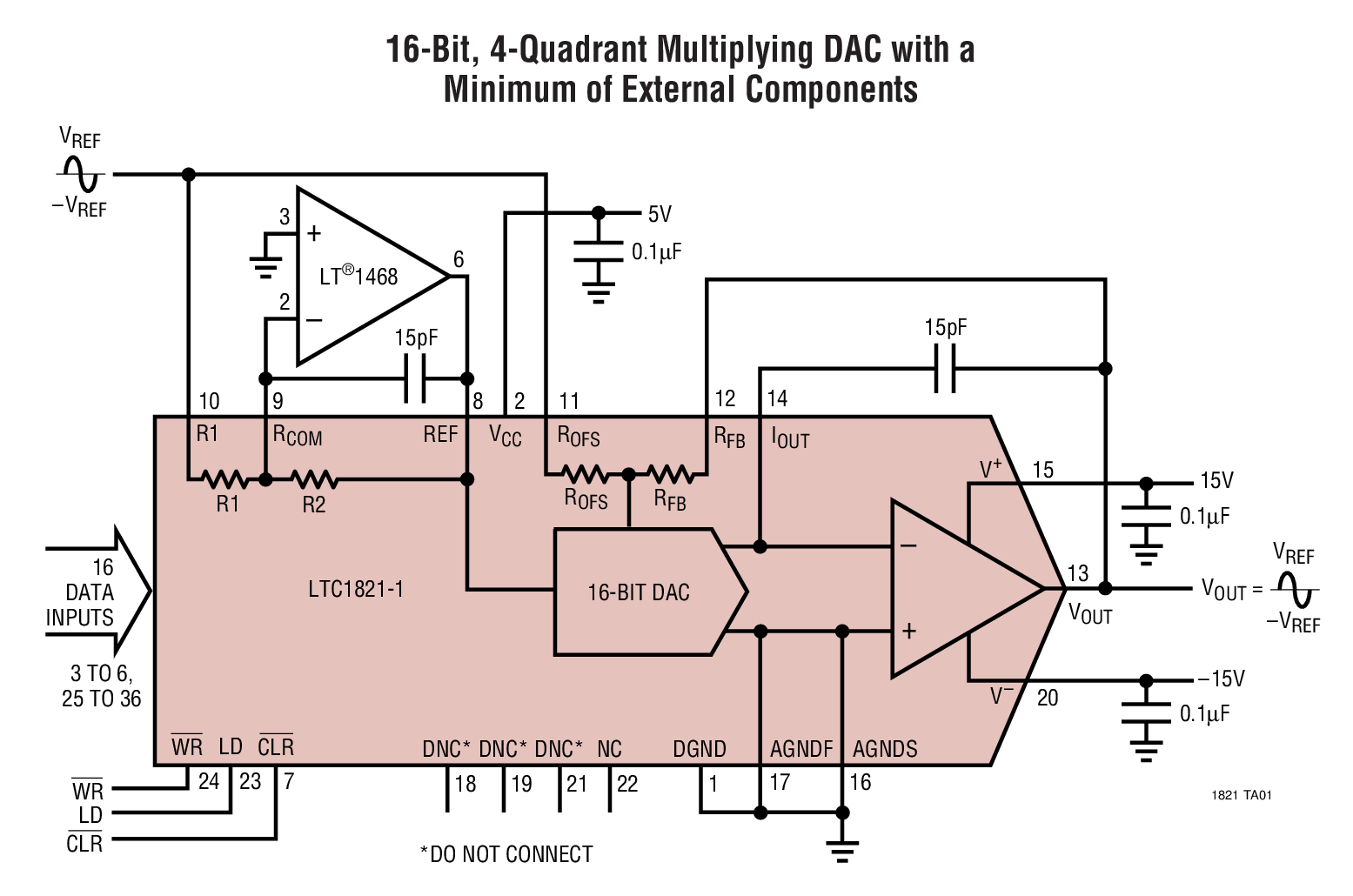

LTC1821B典型应用图例二
LTC1821B - 封装图解：
LTC1821B封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1821B介绍

LTC1821B - LTC1821B是16-Bit, Ultra Precise, Fast Settling VOUT DAC

LTC1821B是LINEAR凌力尔特公司的一款电压输出 DAC产品，LTC1821B是LTC1821B是16-Bit, Ultra Precise, Fast Settling VOUT DAC，本站介绍了LTC1821B的封装应用图解、特点和优点、功能等，并给出了与LTC1821B相关的LINEAR元器件型号供参考。

LTC1821B - LTC1821B是16-Bit, Ultra Precise, Fast Settling VOUT DAC - 电压输出 DAC - 数据转换 - 凌力尔特

LTC1821B - 16-Bit, Ultra Precise, Fast Settling VOUT DAC

LTC1821 - 16-Bit, Ultra Precise, Fast Settling VOUT DAC - Linear Technology（凌力尔特）

功能描述
The LTC1821 is a parallel input 16-bit multiplying voltage output DAC that operates from analog supply voltages of ±5V up to ±15V. INL and DNL are accurate to 1LSB over the industrial temperature range in both unipolar 0V to 10V and bipolar ±10V modes. Precise 16-bit bipolar ±10V outputs are achieved with on-chip 4-quadrant multiplication resistors. The LTC1821 is available in a 36-lead SSOP package and is specified over the industrial temperature range.

The device includes an internal deglitcher circuit that reduces the glitch impulse to less than 2nV•s (typ). The LTC1821 settles to 1LBS in 2µs with a full-scale 10V step. The combination of fast, precise settling and ultra low glitch make the LTC1821 ideal for precision industrial control applications.

The asynchronous CLR pin resets the LTC1821 to zero scale and resets the LTC1821-1 to midscale.

特点
  • 2µs Settling to 0.0015% for 10V Step
  • 1LSB Max DNL and INL Over Industrial Temperature Range
  • On-Chip 4-Quadrant Resistors Allow Precise 0V to 10V, 0V to –10V or ±10V Outputs
  • Low Glitch Impulse: 2nV•s
  • 36-Lead SSOP Package
  • Power-On Reset
  • Asynchronous Clear Pin LTC1821: Reset to Zero Scale LTC1821-1: Reset to Midscale
  • Low Noise: 13nV/ Rt.Hz
    • 应用
  • Precision Instrumentation
  • Process Control and Industrial Automation
  • Direct Digital Waveform Generation
  • Software-Controlled Gain Adjustment
  • Automatic Test Equipment
