LTC1821A - 16-Bit, Ultra Precise, Fast Settling V_OUT DAC

LTC1821 - 16-Bit, Ultra Precise, Fast Settling V_OUT DAC - Linear Technology（凌力尔特）

功能描述

The LTC1821 is a parallel input 16-bit multiplying voltage output DAC that operates from analog supply voltages of ±5V up to ±15V. INL and DNL are accurate to 1LSB over the industrial temperature range in both unipolar 0V to 10V and bipolar ±10V modes. Precise 16-bit bipolar ±10V outputs are achieved with on-chip 4-quadrant multiplication resistors. The LTC1821 is available in a 36-lead SSOP package and is specified over the industrial temperature range.

The device includes an internal deglitcher circuit that reduces the glitch impulse to less than 2nV•s (typ). The LTC1821 settles to 1LBS in 2µs with a full-scale 10V step. The combination of fast, precise settling and ultra low glitch make the LTC1821 ideal for precision industrial control applications.

The asynchronous CLR pin resets the LTC1821 to zero scale and resets the LTC1821-1 to midscale.

特点

2µs Settling to 0.0015% for 10V Step

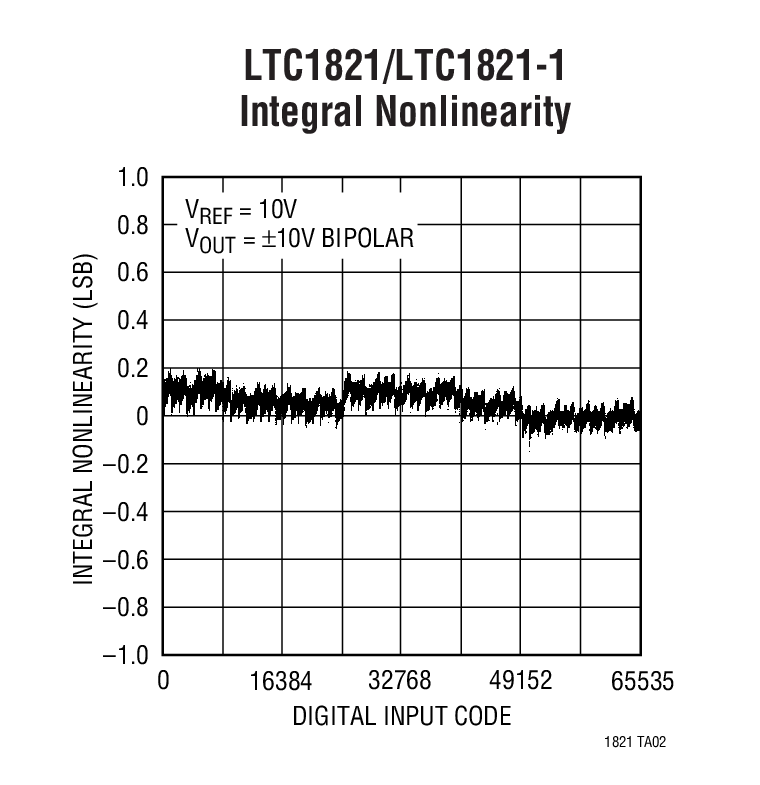

1LSB Max DNL and INL Over Industrial Temperature Range

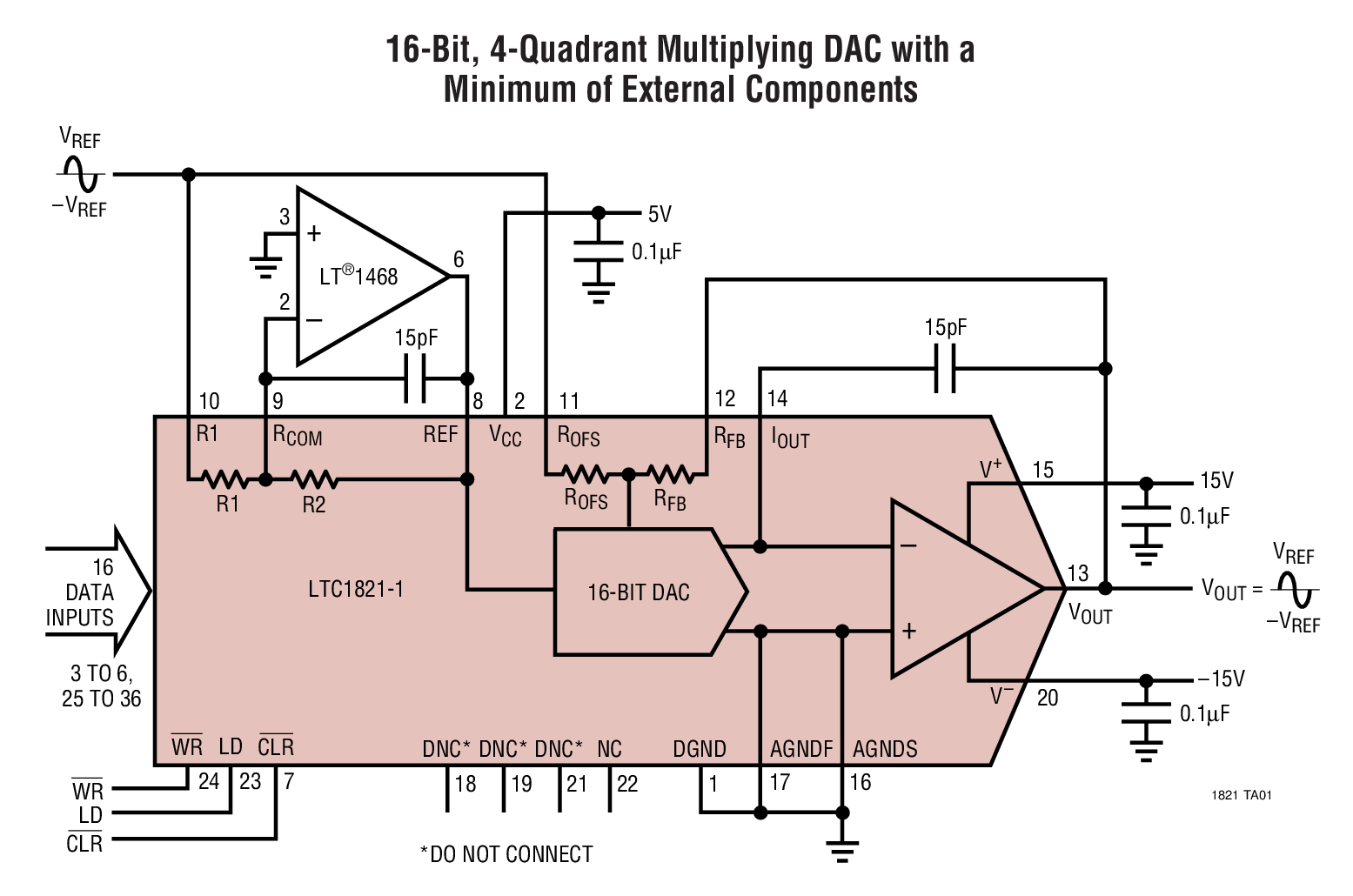

On-Chip 4-Quadrant Resistors Allow Precise 0V to 10V, 0V to –10V or ±10V Outputs

Low Glitch Impulse: 2nV•s

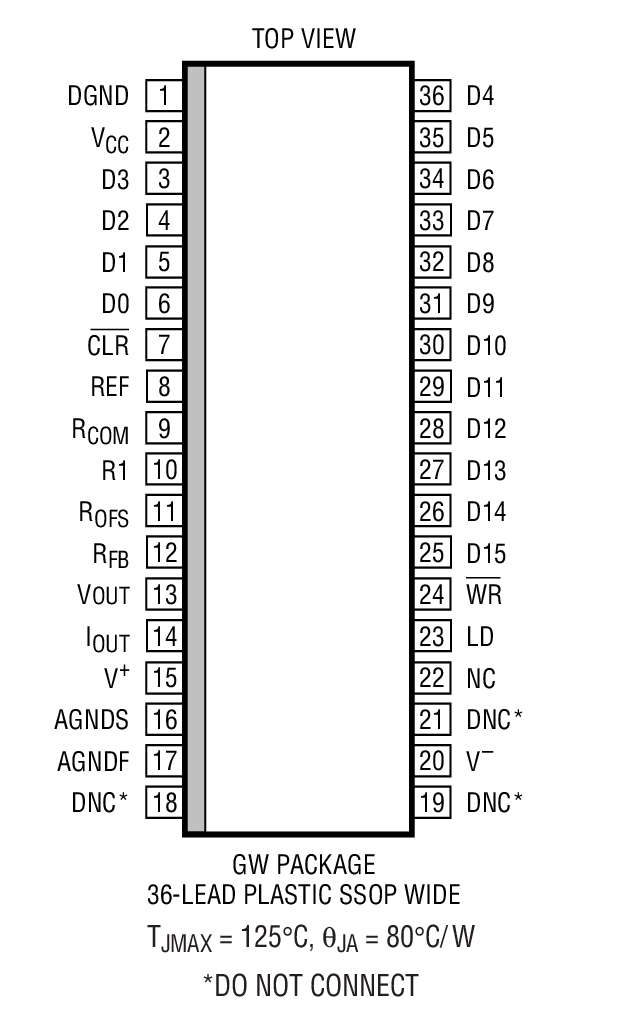

36-Lead SSOP Package

Power-On Reset

Asynchronous Clear Pin LTC1821: Reset to Zero Scale LTC1821-1: Reset to Midscale

Low Noise: 13nV/ Rt.Hz

应用

Precision Instrumentation

Process Control and Industrial Automation

Direct Digital Waveform Generation

Software-Controlled Gain Adjustment

Automatic Test Equipment

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1821-1ACGW	SSOP-36	C	$58.10	$41.00
LTC1821-1ACGW#PBF	SSOP-36	C	$58.10	$41.00
LTC1821-1ACGW#TR	SSOP-36	C		$41.10
LTC1821-1ACGW#TRPBF	SSOP-36	C		$41.10
LTC1821-1AIGW	SSOP-36	I	$63.75	$45.00
LTC1821-1AIGW#PBF	SSOP-36	I	$63.75	$45.00
LTC1821-1AIGW#TR	SSOP-36	I		$45.10
LTC1821-1AIGW#TRPBF	SSOP-36	I		$45.10
LTC1821-1BCGW	SSOP-36	C	$42.40	$29.95
LTC1821-1BCGW#PBF	SSOP-36	C	$42.40	$29.95
LTC1821-1BCGW#TR	SSOP-36	C		$30.05
LTC1821-1BCGW#TRPBF	SSOP-36	C		$30.05
LTC1821-1BIGW	SSOP-36	I	$46.65	$32.95
LTC1821-1BIGW#PBF	SSOP-36	I	$46.65	$32.95
LTC1821-1BIGW#TR	SSOP-36	I		$33.05
LTC1821-1BIGW#TRPBF	SSOP-36	I		$33.05
LTC1821ACGW	SSOP-36	C	$58.10	$41.00
LTC1821ACGW#PBF	SSOP-36	C	$58.10	$41.00
LTC1821ACGW#TR	SSOP-36	C		$41.10
LTC1821ACGW#TRPBF	SSOP-36	C		$41.10
LTC1821AIGW	SSOP-36	I	$63.75	$45.00
LTC1821AIGW#PBF	SSOP-36	I	$63.75	$45.00
LTC1821AIGW#TR	SSOP-36	I		$45.10
LTC1821AIGW#TRPBF	SSOP-36	I		$45.10
LTC1821BCGW	SSOP-36	C	$42.40	$29.95
LTC1821BCGW#PBF	SSOP-36	C	$42.40	$29.95
LTC1821BCGW#TR	SSOP-36	C		$30.05
LTC1821BCGW#TRPBF	SSOP-36	C		$30.05
LTC1821BIGW	SSOP-36	I	$46.65	$32.95
LTC1821BIGW#PBF	SSOP-36	I	$46.65	$32.95
LTC1821BIGW#TR	SSOP-36	I		$33.05
LTC1821BIGW#TRPBF	SSOP-36	I		$33.05
