LTC1706-63 - 5-Bit VID Voltage Programmer for Sun CPUs

LTC1706-63 - 5-Bit VID Voltage Programmer for Sun CPUs - Linear Technology（凌力尔特）

功能描述

The LTC1706-63 is a precision, digitally programmed, resistive ladder which adjusts the output of any 0.6V referenced regulator. Depending on the state of the five VID inputs, an output voltage between 1.025V and 1.4125V is programmed in 12.5mV increments.

The LTC1706-63 is designed specifically to program an entire family of Linear Technology DC/DC converters with on board 0.6V references. Please see the related parts list at the end of the data sheet.

For a 2-phase synchronous controller with on-board LTC1706-63, see the LTC3819.

特点

Programs Regulator Output Voltage Range from 1.025V to 1.4125V in 12.5mV Steps

Programs a Wide Range of Linear Technology DC/DC Converters with a 0.6V Reference

±0.35% Accurate Output Voltage

Built-In 40k Pull-Up Resistors on VID Inputs

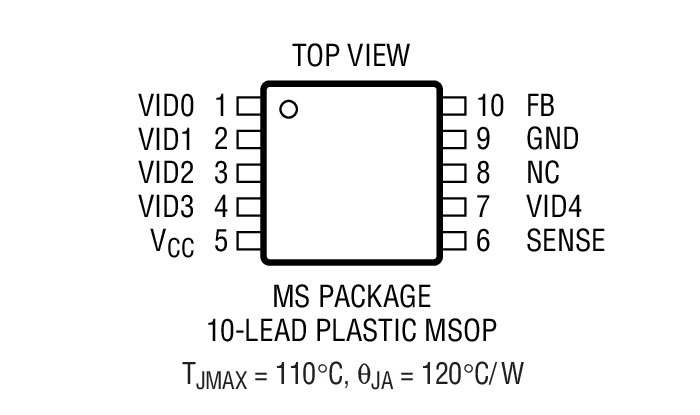

Available in MSOP-10 Package

应用

SunTM Processor Power Supply

Workstations and Servers

Large Memory Array Supply
