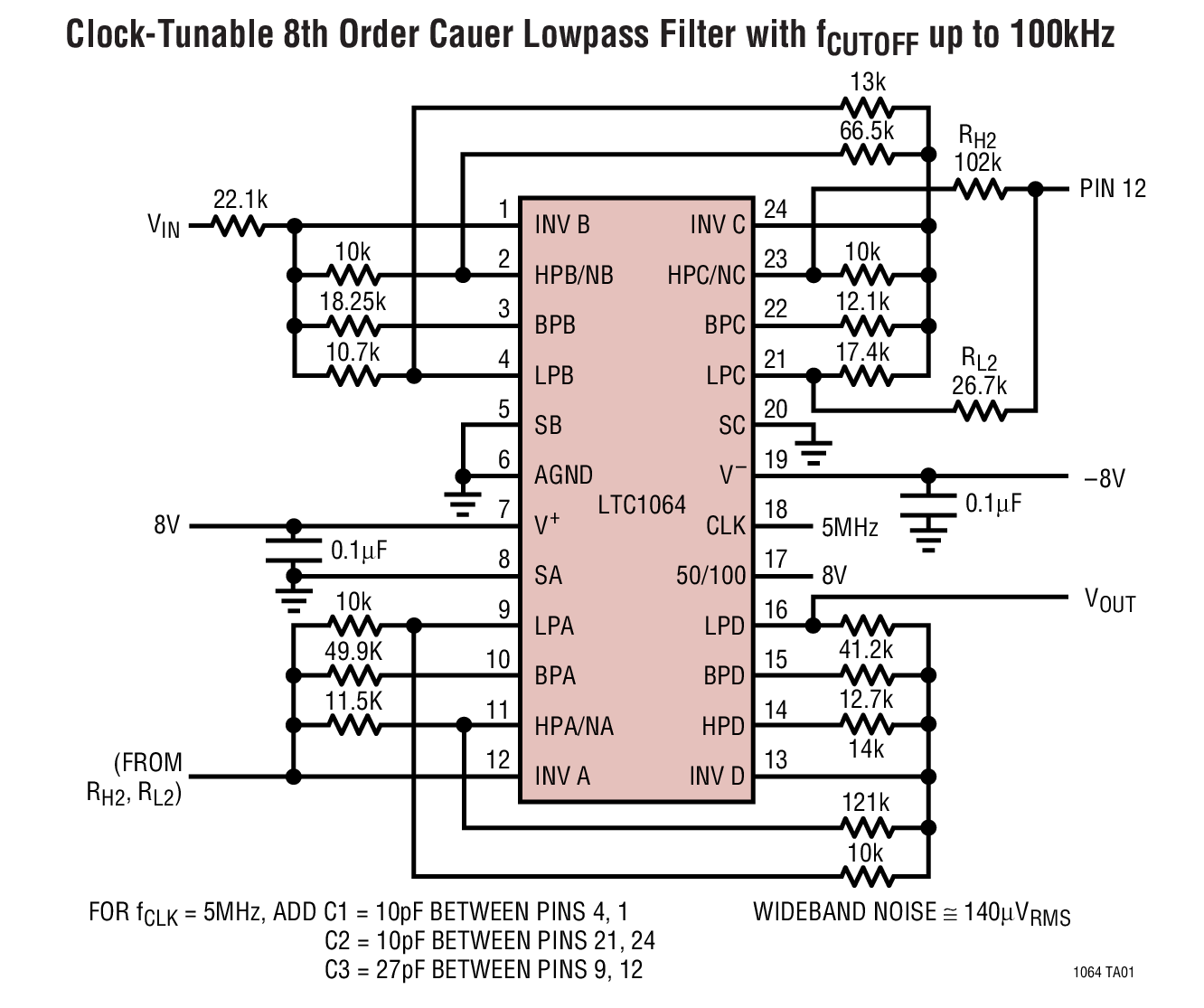

LTC1064典型应用图例一

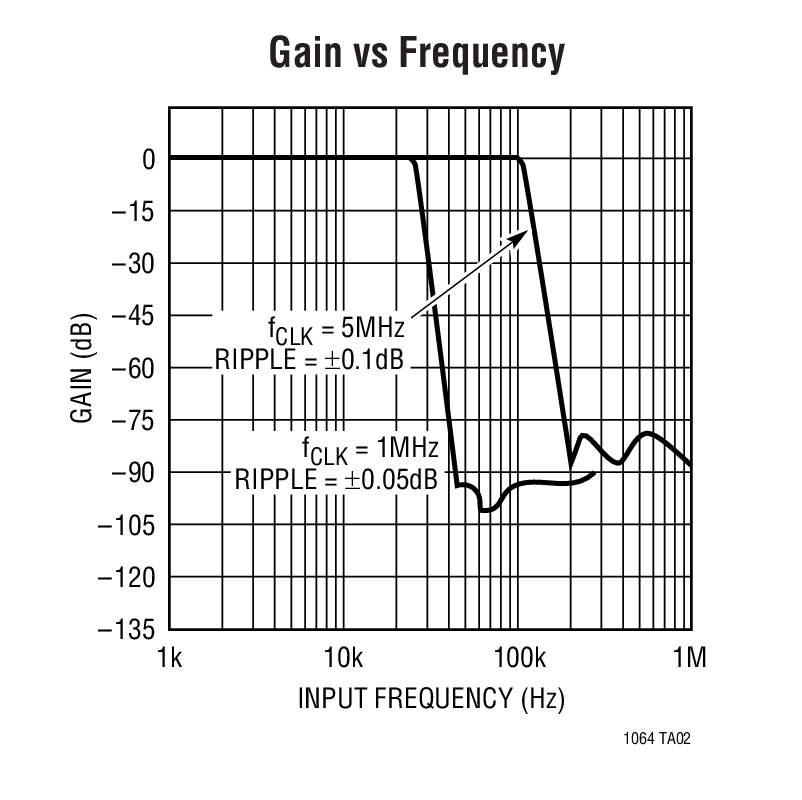

LTC1064典型应用图例二
LTC1064 - 封装图解:

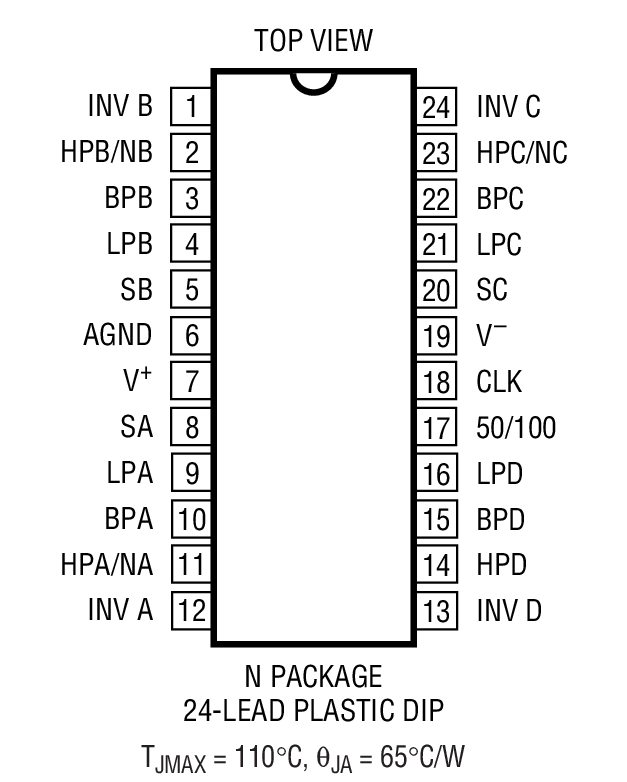

LTC1064封装图解一

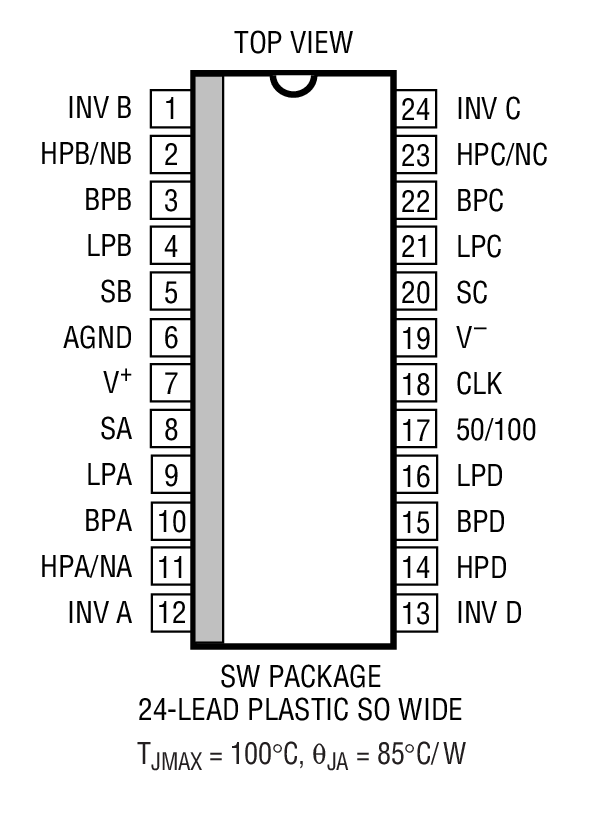

LTC1064封装图解二
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC1064介绍
LTC1064 - LTC1064是Low Noise, Fast, Quad Universal Filter Building Block

LTC1064是Linear公司的一款滤波器单元式部件产品,LTC1064是Low Noise, Fast, Quad Universal Filter Building Block,本站介绍了LTC1064的封装应用图解、特点和优点、功能等,并给出了与LTC1064相关的凌力尔特元器件型号供参考。

LTC1064 - Low Noise, Fast, Quad Universal Filter Building Block

LTC1064 - Low Noise, Fast, Quad Universal Filter Building Block - Linear Technology(凌力尔特)

功能描述

The LTC1064 consists of four high speed, low noise switched-capacitor filter building blocks. Each filter building block, together with an external clock and three to five resistors can provide various 2nd order functions like lowpass, highpass, bandpass and notch. The center frequency of each 2nd order function can be tuned with an external clock, or a clock and resistor ratio. For Q ≤ 5, the center frequency range is from 0.1Hz to 100kHz. For Q ≤ 3, the center frequency range can be extended to 140kHz. Up to 8th order filters can be realized by cascading all four 2nd order sections. Any classical filter realization (such as Butterworth, Cauer, Bessel and Chebyshev) can be formed.

A customized monolithic version of the LTC1064 including internal thin film resistors can be obtained for high volume applications. Consult LTC Marketing for details.

特点
  • Four Filters in a 0.3 Inch Wide Package
  • Maximum Center Frequency: 140kHz
  • Customized Version with Internal Resistors Available
  • One Half the Noise of the LTC1059/LTC1060/ LTC1061 Devices
  • Maximum Clock Frequency: 7MHz
  • Clock-to-Center Frequency Ratio of 50:1 and 100:1 Simultaneously Available
  • Power Supplies: ±2.375V to ±8V
  • Low Offsets
  • Low Harmonic Distortion
  • Available in 24-Pin DIP and SO Wide Packages
  • 应用
  • Anti-Aliasing Filters
  • Wide Frequency Range Tracking Filters
  • Spectral Analysis
  • Loop Filters
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1064CN N-24 C $10.00 $8.10
    LTC1064CN#PBF N-24 C $10.00 $8.10
    LTC1064CSW SW-24 C $12.00 $9.45
    LTC1064CSW#PBF SW-24 C $12.00 $9.45
    LTC1064CSW#TR SW-24 C $9.55
    LTC1064CSW#TRPBF SW-24 C $9.55
