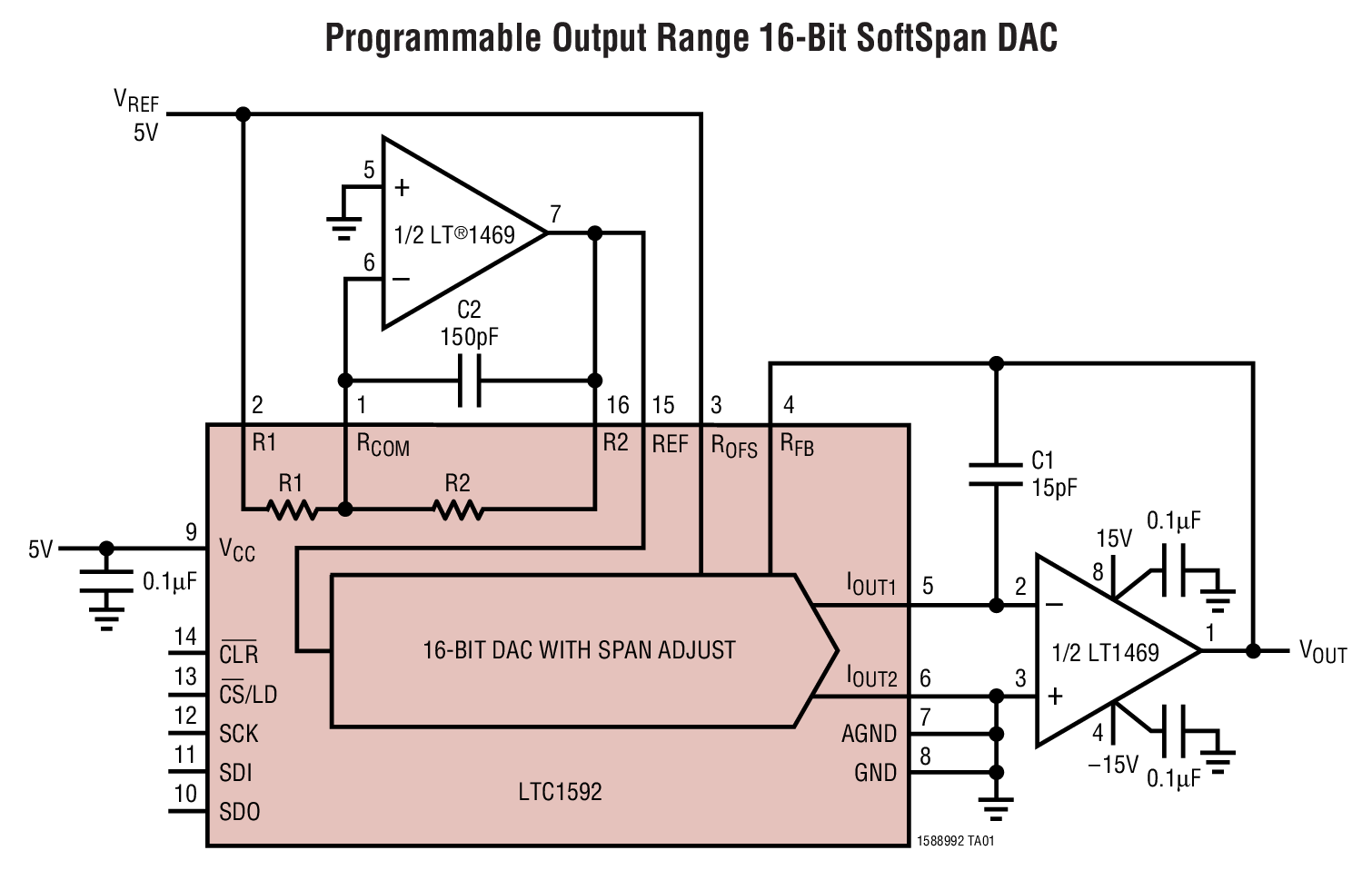

LTC1588典型应用图例一

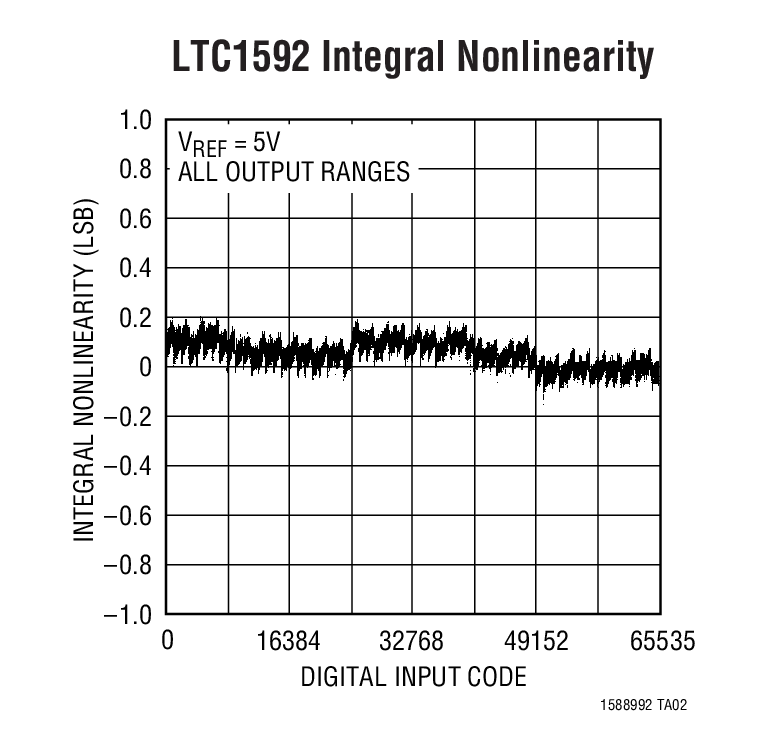

LTC1588典型应用图例二
LTC1588 - 封装图解：

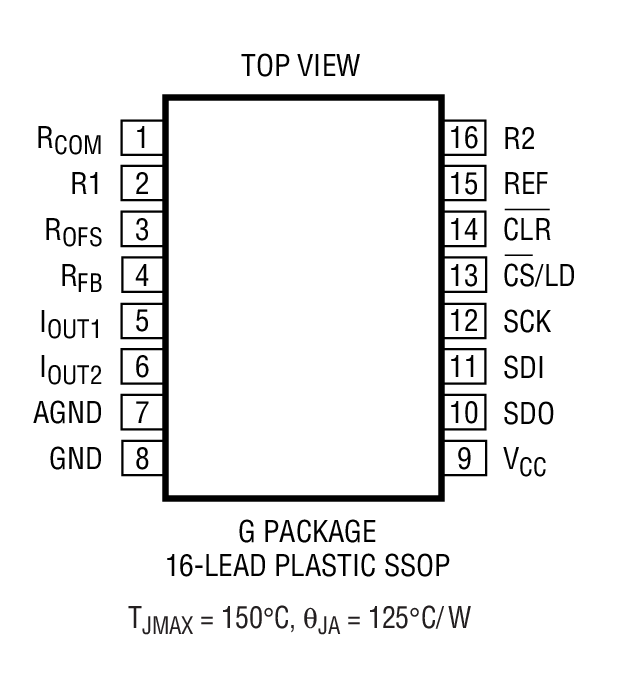

LTC1588封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1588介绍

LTC1588 - LTC1588是12-Bit SoftSpan DAC with Programmable Output Range

LTC1588是LINEAR凌力尔特公司的一款电流输出 DAC产品，LTC1588是LTC1588是12-Bit SoftSpan DAC with Programmable Output Range，本站介绍了LTC1588的封装应用图解、特点和优点、功能等，并给出了与LTC1588相关的LINEAR元器件型号供参考。

LTC1588 - LTC1588是12-Bit SoftSpan DAC with Programmable Output Range - 电流输出 DAC - 数据转换 - 凌力尔特

LTC1588 - 12-Bit SoftSpan DAC with Programmable Output Range

LTC1588 - 12-Bit SoftSpan DAC with Programmable Output Range - Linear Technology（凌力尔特）

功能描述

The LTC1588/LTC1589/LTC1592 are serial input 12-/14- /16-bit multiplying current output DACs that operates from a single 5V supply. These SoftSpan? DACs can be software-programmed for either unipolar or bipolar mode through a 3-wire SPI interface. In either mode, the voltage output range can also be software-programmed. Two output ranges in unipolar mode and four output ranges in bipolar mode are available.

INL and DNL are accurate to 1LSB over the industrial temperature range in both unipolar and bipolar modes. True 16-bit 4-quadrant multiplication is achieved with on-chip four quadrant multiplication resistors. The LTC1588/LTC1589/LTC1592 are available in a 16-lead SSOP package.

These devices include an internal deglitcher circuit that reduces the glitch impulse to less than 2nV-s (typ).

The asynchronous clear pin resets the LTC1588/LTC1589/ LTC1592 to 0V in unipolar or bipolar mode.

?

特点
  • Six Programmable Output RangesUnipolar Mode: 0V to 5V, 0V to 10VBipolar Mode: ±5V, ±10V, ±2.5V,2.5V to 7.5V
  • 1LSB Max DNL and INL Over the Industrial Temperature Range
  • Glitch Impulse < 2nV-s
  • 16-Lead SSOP Package
  • Power-On Reset to 0V
  • Asynchronous Clear to 0V for All Ranges
    • 应用
  • Process Control and Industrial Automation
  • Precision Instrumentation
  • Direct Digital Waveform Generation
  • Software-Controlled Gain Adjustment
  • Automatic Test Equipment
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1588CG SSOP-16 C $7.30 $5.95
    LTC1588CG#PBF SSOP-16 C $7.30 $5.95
    LTC1588CG#TR SSOP-16 C $6.01
    LTC1588CG#TRPBF SSOP-16 C $6.01
    LTC1588IG SSOP-16 I $8.60 $7.00
    LTC1588IG#PBF SSOP-16 I $8.60 $7.00
    LTC1588IG#TR SSOP-16 I $7.06
    LTC1588IG#TRPBF SSOP-16 I $7.06
