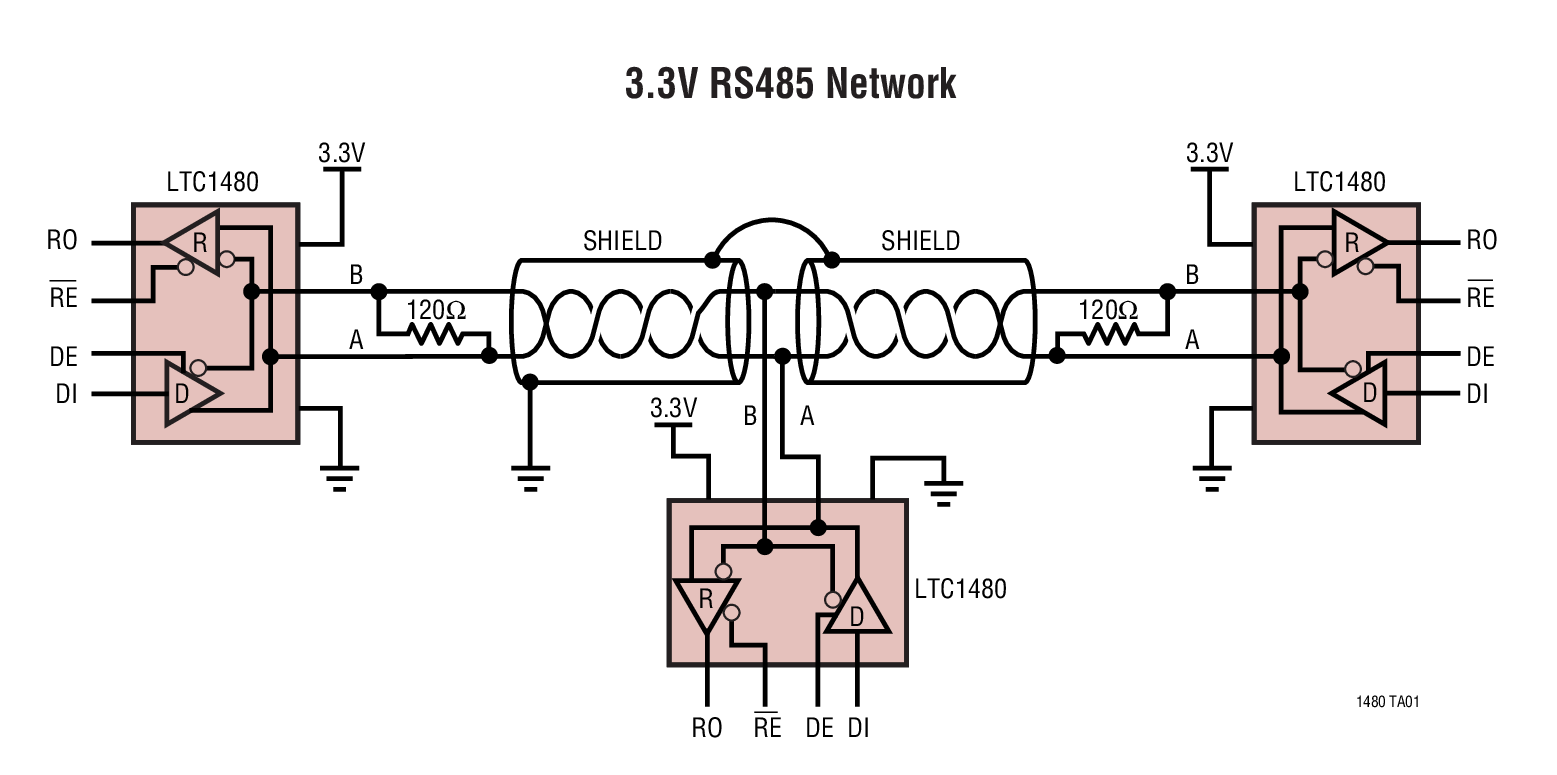

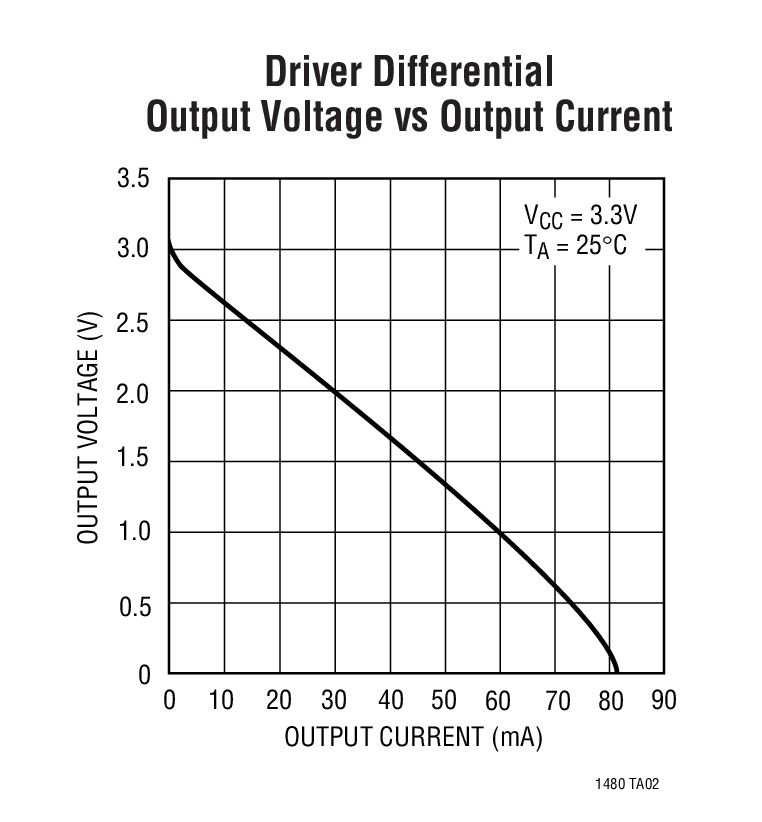

LTC1480 - 典型应用图例：
LTC1480典型应用图例一
LTC1480典型应用图例二

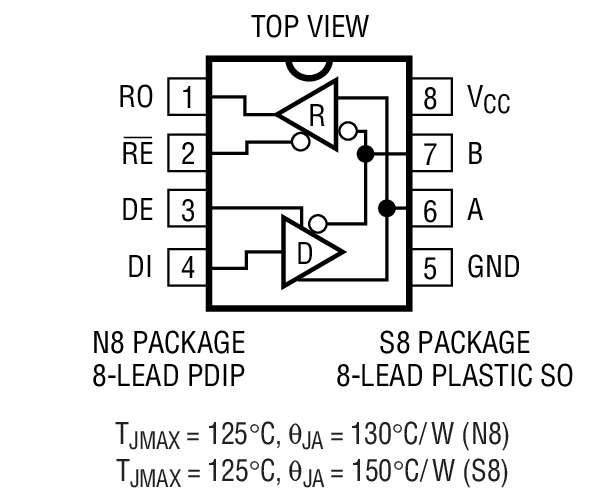

LTC1480 - 封装图解：
LTC1480封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1480介绍

LTC1480 - LTC1480是3.3V Ultra-Low Power RS485 Transceiver

LTC1480是LINEAR凌力尔特公司的一款RS485 / RS422 收发器产品，LTC1480是LTC1480是3.3V Ultra-Low Power RS485 Transceiver，本站介绍了LTC1480的封装应用图解、特点和优点、功能等，并给出了与LTC1480相关的LINEAR元器件型号供参考。

LTC1480 - LTC1480是3.3V Ultra-Low Power RS485 Transceiver - RS485 / RS422 收发器 - 接口器件 - 凌力尔特

LTC1480 - 3.3V Ultra-Low Power RS485 Transceiver

LTC1480 - 3.3V Ultra-Low Power RS485 Transceiver - Linear Technology（凌力尔特）

功能描述

The LTC1480 is an ultralow power differential line transceiver which provides full RS485 compatibility while operating from a single 3.3V supply. It is designed for data transmission standard RS485 applications with extended common mode range (12V to -7V). It also meets the requirements of RS422 and features high speed operation up to 2.5Mb/s. The CMOS design offers significant power savings without sacrificing ruggedness against overload or ESD damage. Typical quiescent current is only 300μA while operating and 1μA in shutdown.

The driver and receiver feature three-state outputs, with the driver outputs maintaining high impedance over the entire common mode range. Excessive power dissipation caused by bus contention or faults is prevented by a thermal shutdown circuit which forces the driver outputs into a high impedance state. The receiver has a fail-safe feature which guarantees a high output state when the inputs are left open.

The LTC1480 is fully specified over the commercial and extended industrial temperature range. The LTC1480 is available in 8-pin SO and DIP packages.

特点
  • True RS485 from a Single 3.3V Supply
  • Low Power: ICC = 500μA Max with Driver Disabled
  • ICC = 600μA Max with Driver Enabled, No Load
  • 1μA Quiescent in Shutdown Mode
  • -7V to 12V Common Mode Range Permits ±7V Ground Difference Between Devices on the Data Line
  • Thermal Shutdown Protection
  • Power Up/Down Glitch-Free Driver Outputs Permit Live Insertion or Removal of Transceiver
  • Driver Maintains High Impedance in Three-State or with the Power Off
  • Up to 32 Transceivers on the Bus
  • 50ns Typical Driver Propagation Delays with 10ns Skew
  • Pin Compatible with the LTC485
  • Available in 8-Lead DIP and SO Packages
    • 应用
  • Battery-Powered RS485/RS422 Applications
  • Low Power RS485/RS422 Transceiver
  • Level Translator
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1480CN8 N-8 C $3.15 $2.55
    LTC1480CN8#PBF N-8 C $3.15 $2.55
    LTC1480CS8 SO-8 C $3.40 $2.70
    LTC1480CS8#PBF SO-8 C $3.40 $2.70
    LTC1480CS8#TR SO-8 C $2.76
    LTC1480CS8#TRPBF SO-8 C $2.76
    LTC1480IN8 N-8 I $3.85 $3.00
    LTC1480IN8#PBF N-8 I $3.85 $3.00
    LTC1480IS8 SO-8 I $4.40 $3.50
    LTC1480IS8#PBF SO-8 I $4.40 $3.50
    LTC1480IS8#TR SO-8 I $3.56
    LTC1480IS8#TRPBF SO-8 I $3.56
