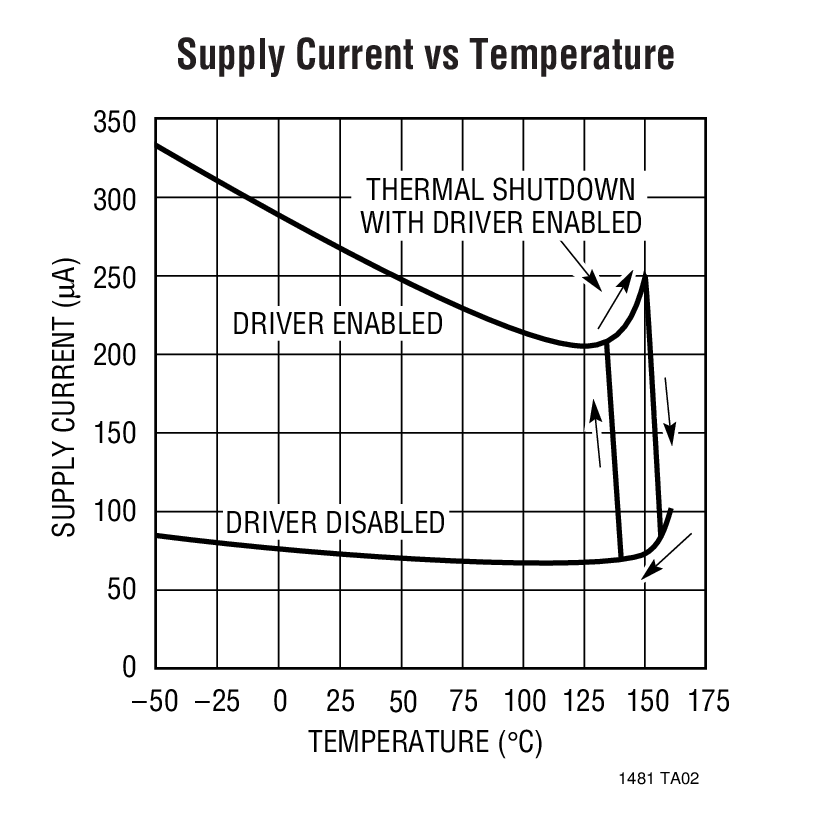

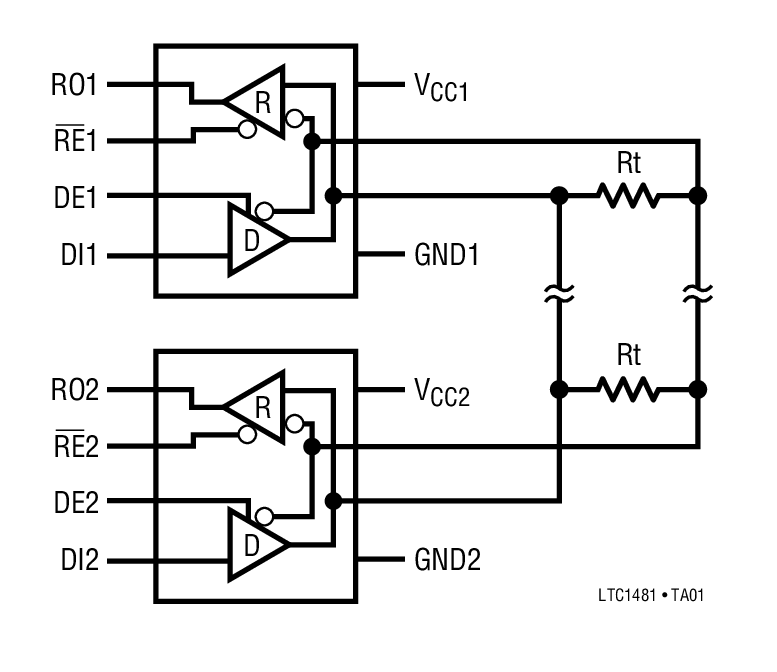

LTC1481 - 典型应用图例：
LTC1481典型应用图例一
LTC1481典型应用图例二

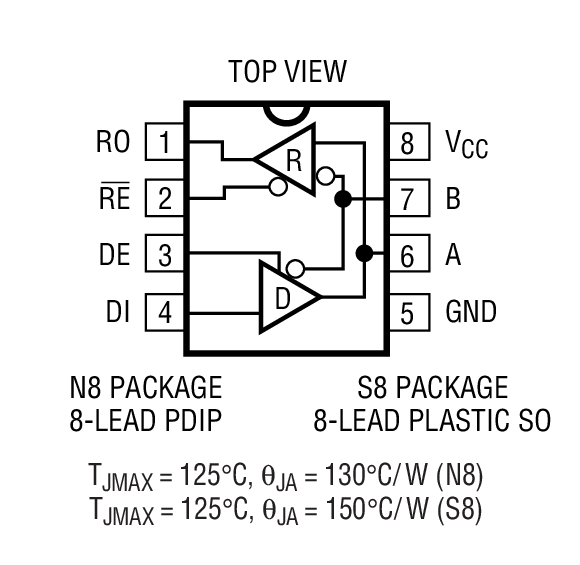

LTC1481 - 封装图解：
LTC1481封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1481介绍

LTC1481 - LTC1481是Ultra-Low Power RS485 Transceiver with Shutdown

LTC1481是LINEAR凌力尔特公司的一款RS485 / RS422 收发器产品，LTC1481是LTC1481是Ultra-Low Power RS485 Transceiver with Shutdown，本站介绍了LTC1481的封装应用图解、特点和优点、功能等，并给出了与LTC1481相关的LINEAR元器件型号供参考。

LTC1481 - LTC1481是Ultra-Low Power RS485 Transceiver with Shutdown - RS485 / RS422 收发器 - 接口器件 - 凌力尔特

LTC1481 - Ultra-Low Power RS485 Transceiver with Shutdown

LTC1481 - Ultra-Low Power RS485 Transceiver with Shutdown - Linear Technology（凌力尔特）

功能描述

The LTC?1481 is an ultralow power differential line transceiver designed for data transmission standard RS485 applications. It will also meet the requirements of RS422. The CMOS design offers significant power savings over its bipolar counterparts without sacrificing ruggedness against overload or ESD damage. Typical quiescent current is only 80μA while operating and less than 1μA in shutdown.

The driver and receiver feature three-state outputs, with the driver outputs maintaining high impedance over the entire common mode range. Excessive power dissipation caused by bus contention or faults is prevented by a thermal shutdown circuit which forces the driver outputs into a high impedance state. The receiver has a fail-safe feature which guarantees a high output state when the inputs are left open.

The LTC1481 is fully specified over the commercial and extended industrial temperature range and is available in 8-pin PDIP and SO packages.

特点
  • Low Power: Icc = 120μA Max with Driver Disabled
  • Drivers/Receivers Have ±10kV ESD Protection
  • 1µA Quiescent Current in Shutdown Mode
  • High Speed: Up to 2.5Mbits/s Data Rate
  • Icc = 500µA Max with Driver Enabled, No Load
  • Single 5V Supply
  • -7V to 12V Common-Mode Range Permits ?7V Ground Difference Between Devices on the Data Line
  • Thermal Shutdown Protection
  • Power Up/Down Glitch-Free Driver Outputs Permit Live Insertion or Removal of Transceiver
  • Driver Maintains High Impedance in Three-State or with the Power Off
  • Up to 32 Transceivers on the Bus
  • 30ns Typical Driver Propagation Delays with 5ns Skew
  • Pin Compatible with the LTC485
    • 应用
  • Battery-Powered RS485/RS422 Applications
  • Low Power RS485/RS422 Transceiver
  • Level Translator
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1481CN8 N-8 C $1.85 $1.45
    LTC1481CN8#PBF N-8 C $1.85 $1.45
    LTC1481CS8 SO-8 C $2.25 $1.80
    LTC1481CS8#PBF SO-8 C $2.25 $1.80
    LTC1481CS8#TR SO-8 C $1.86
    LTC1481CS8#TRPBF SO-8 C $1.86
    LTC1481IN8 N-8 I $2.40 $1.95
    LTC1481IN8#PBF N-8 I $2.40 $1.95
    LTC1481IS8 SO-8 I $2.90 $2.35
    LTC1481IS8#PBF SO-8 I $2.90 $2.35
    LTC1481IS8#TR SO-8 I $2.41
    LTC1481IS8#TRPBF SO-8 I $2.41
