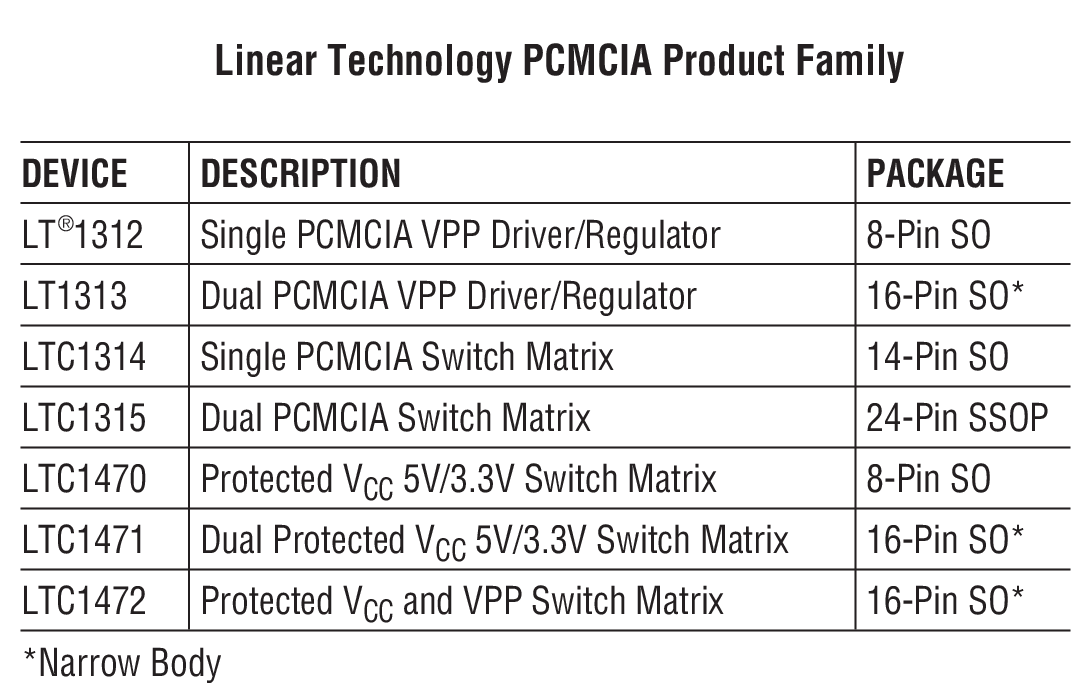

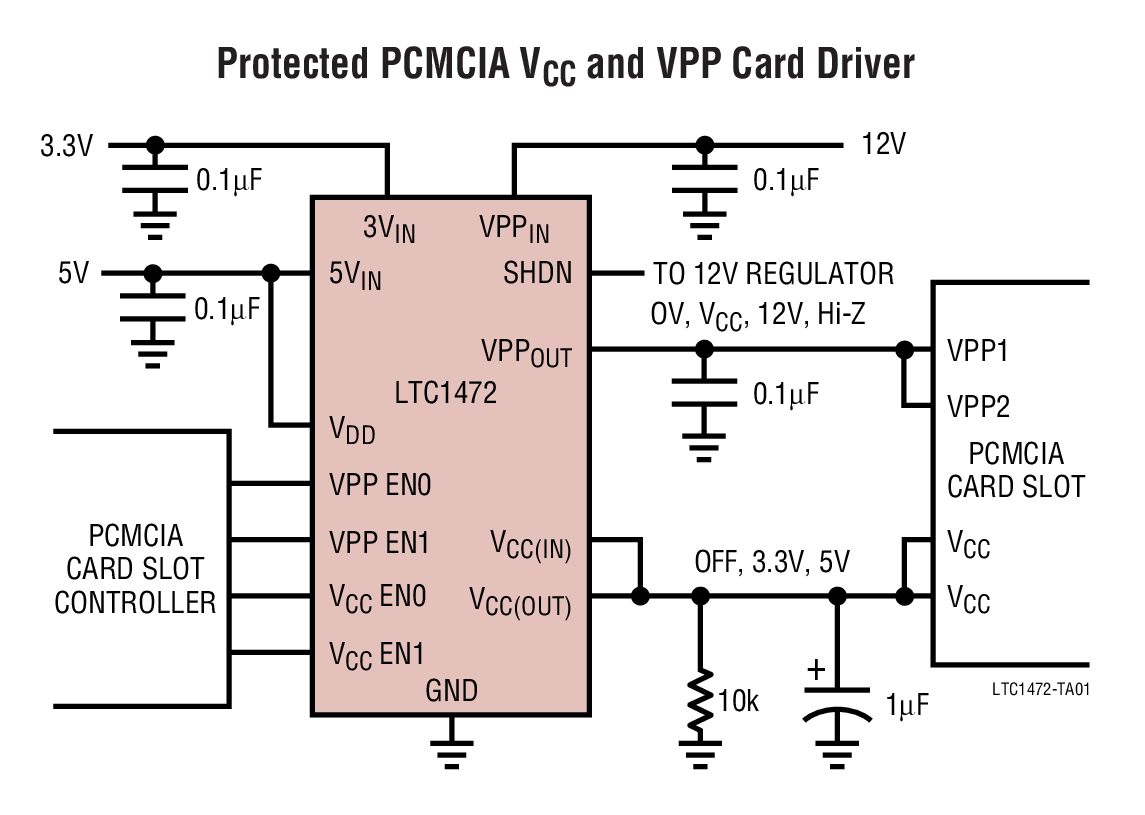

LTC1472 - 典型应用图例：

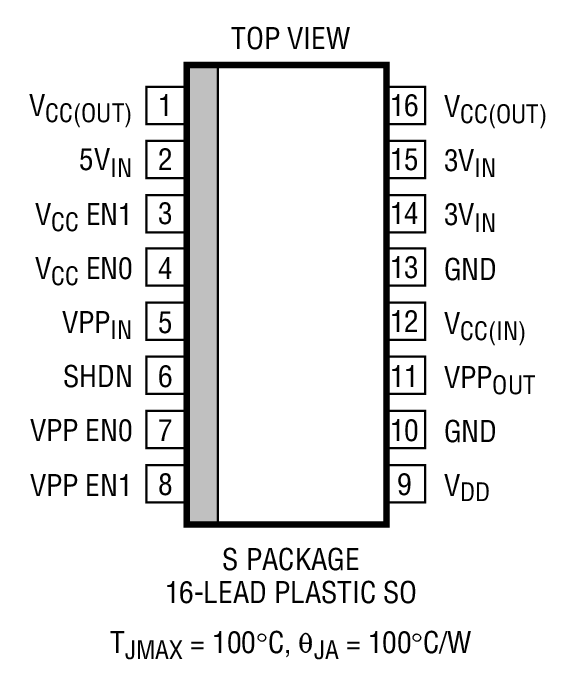

LTC1472 - 封装图解：

LTC1472 - LTC1472是Protected PCMCIA V_CC and VPP Switching Matrix

LTC1472是Linear公司的一款PCMCIA 开关和驱动器产品，LTC1472是Protected PCMCIA V_CC and VPP Switching Matrix，本站介绍了LTC1472的封装应用图解、特点和优点、功能等，并给出了与LTC1472相关的凌力尔特元器件型号供参考。

LTC1472 - Protected PCMCIA V_CC and VPP Switching Matrix

LTC1472 - Protected PCMCIA V_CC and VPP Switching Matrix - Linear Technology（凌力尔特）

功能描述

The LTC1472 switching matrix routes power to both the VCC and VPP power supply pins of the PCMCIA compatible card socket. The VCC output of the LTC1472 is switched between three operating states: OFF, 3.3V, and 5V. The VPP output is switched between four operating states: 0V, VCC, 12V, and Hi-Z. The output voltages are selected by two sets of digital inputs which are compatible with industry standard PC Card controllers (see Truth Tables). The Vcc output of the LTC1472 can supply up to 1A of current and the VPP output up to 120mA. Both switches have built-in SafeSlot? current limiting and thermal shutdown to protect the card, socket and power supply against accidental short-circuit conditions. The LTC1472 is designed to conserve power by automatically dropping to 1μA standby current when the two outputs are switched OFF. A shutdown pin is provided which holds the external 12V regulator in standby mode except when required for VPP power. The LTC1472 is available in 16-pin SO.

特点

Both VCC and VPP Switching in a Single Package

Built-In Current Limit and Thermal Shutdown

16-Pin (Narrow) SOIC Package

Inrush Current Limited (Drives 150μF Loads)

Continuous 12V Power Not Required

Extremely Low RDS(ON) NMOS Switches

Guaranteed 1A VCC Current and 120mA VPP Current

1μA Quiescent Current in Standby

No External Components Required

Compatible with Industry Standard Controllers

Break-Before-Make Switching
