LTC2286 - LTC2286是Dual 10-Bit, 25Msps Low Noise 3V ADC
LTC2286是Linear公司的一款高速 ADC产品，LTC2286是Dual 10-Bit, 25Msps Low Noise 3V ADC，本站介绍了LTC2286的封装应用图解、特点和优点、功能等，并给出了与LTC2286相关的凌力尔特元器件型号供参考。
LTC2286 - Dual 10-Bit, 25Msps Low Noise 3V ADC
LTC2286 - Dual 10-Bit, 25Msps Low Noise 3V ADC - Linear Technology（凌力尔特）
功能描述

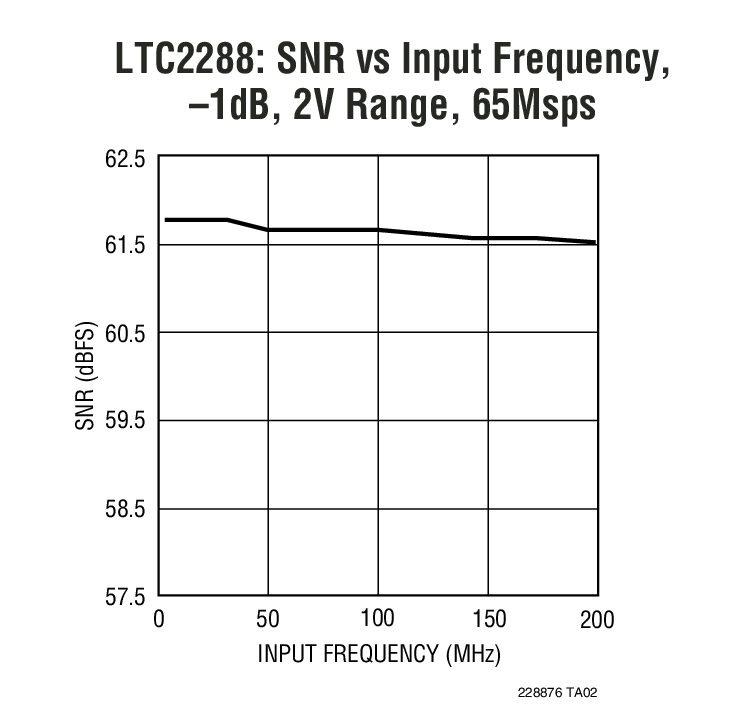

The LTC2288/LTC2287/LTC2286 are 10-bit 65Msps/ 40Msps/25Msps, low noise dual 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2288/LTC2287/LTC2286 are perfect for demanding imaging and communications applications with AC performance that includes 61.8dB SNR and 85dB SFDR for signals at the Nyquist frequency.
DC specs include ±0.1LSB INL (typ), ±0.05LSB DNL (typ) and ±0.6 LSB INL, ±0.5 LSB DNL over temperature. The transition noise is a low 0.07LSBRMS.
A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic. An optional multiplexer allows both channels to share one digital output bus.
A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
?
特点

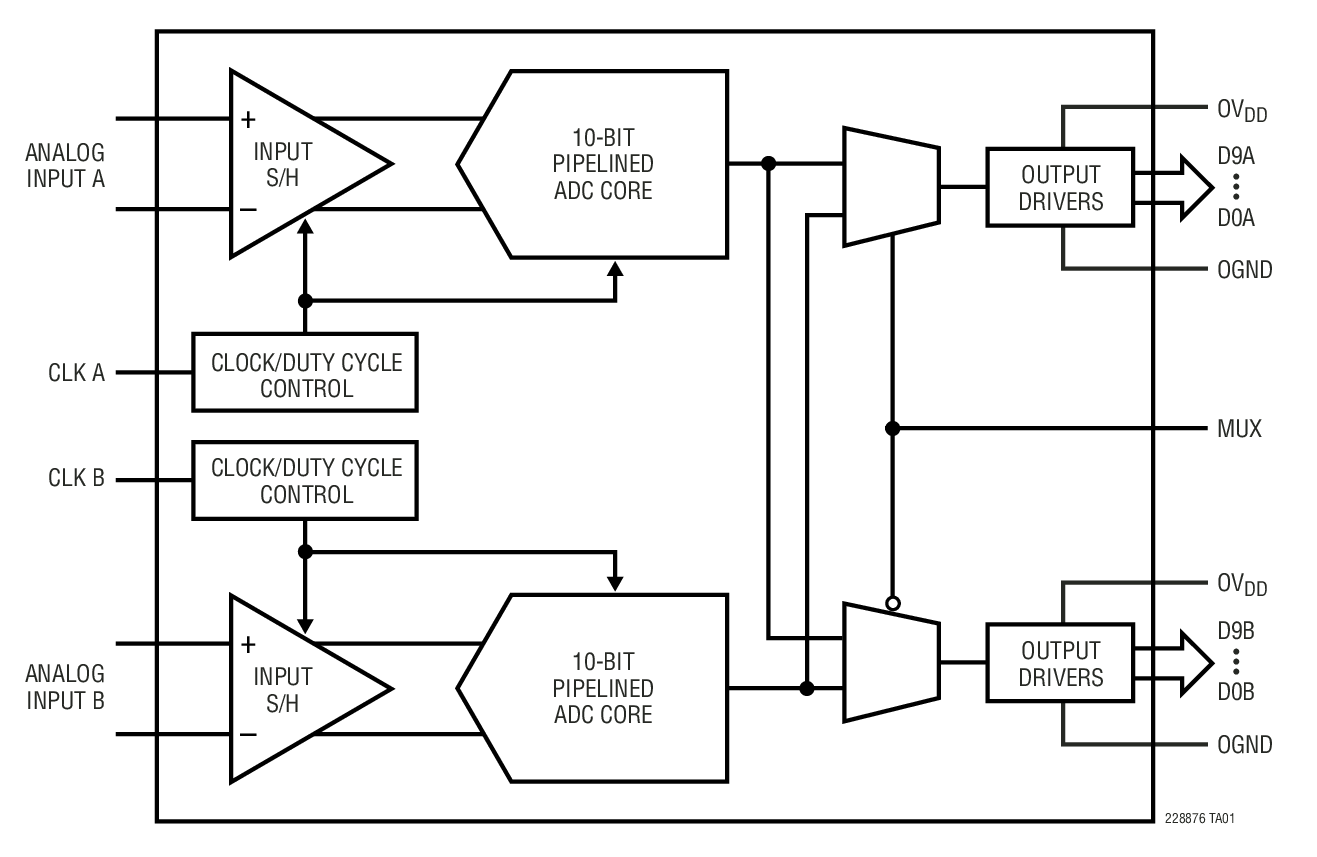

Integrated Dual 10-Bit ADCs Sample Rate: 65Msps/40Msps/25Msps Single 3V Supply (2.7V to 3.4V) Low Power: 400mW/235mW/150mW 61.8dB SNR 85dB SFDR 110dB Channel Isolation at 100MHz Multiplexed or Separate Data Bus Flexible Input: 1VP-P to 2VP-P Range 575MHz Full Power Bandwidth S/H Clock Duty Cycle Stabilizer Shutdown and Nap Modes Pin Compatible Family Pin Compatible Family105Msps: LTC2282 (12-Bit), LTC2280 (10-Bit)80Msps: LTC2294 (12-Bit), LTC2289 (10-Bit)65Msps: LTC2293 (12-Bit), LTC2288 (10-Bit)40Msps: LTC2292 (12-Bit), LTC2287 (10-Bit)25Msps: LTC2291 (12-Bit), LTC2286 (10-Bit) 64-Pin (9mm × 9mm) QFN Package应用
Wireless and Wired Broadband Communication Imaging Systems Spectral Analysis Portable Instrumentation以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LTC2286CUP | 9x9 QFN-64 | C | $7.00 | $5.25 |
| LTC2286CUP#PBF | 9x9 QFN-64 | C | $7.00 | $5.25 |
| LTC2286CUP#TR | 9x9 QFN-64 | C | | $5.35 |
| LTC2286CUP#TRPBF | 9x9 QFN-64 | C | | $5.35 |
| LTC2286IUP | 9x9 QFN-64 | I | $8.40 | $6.30 |
| LTC2286IUP#PBF | 9x9 QFN-64 | I | $8.40 | $6.30 |
| LTC2286IUP#TR | 9x9 QFN-64 | I | | $6.40 |
| LTC2286IUP#TRPBF | 9x9 QFN-64 | I | | $6.40 |
