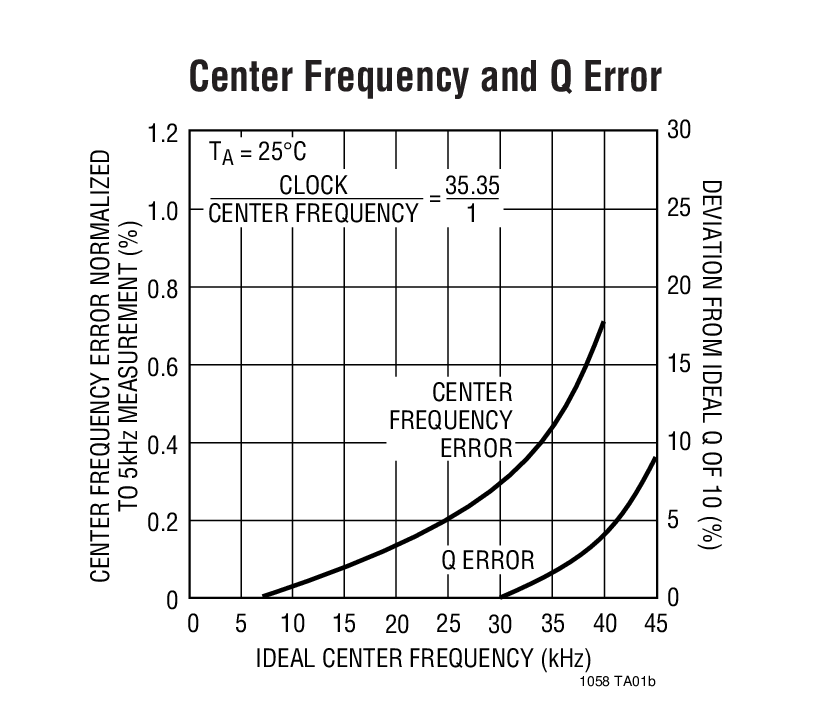

LTC1059典型应用图例一

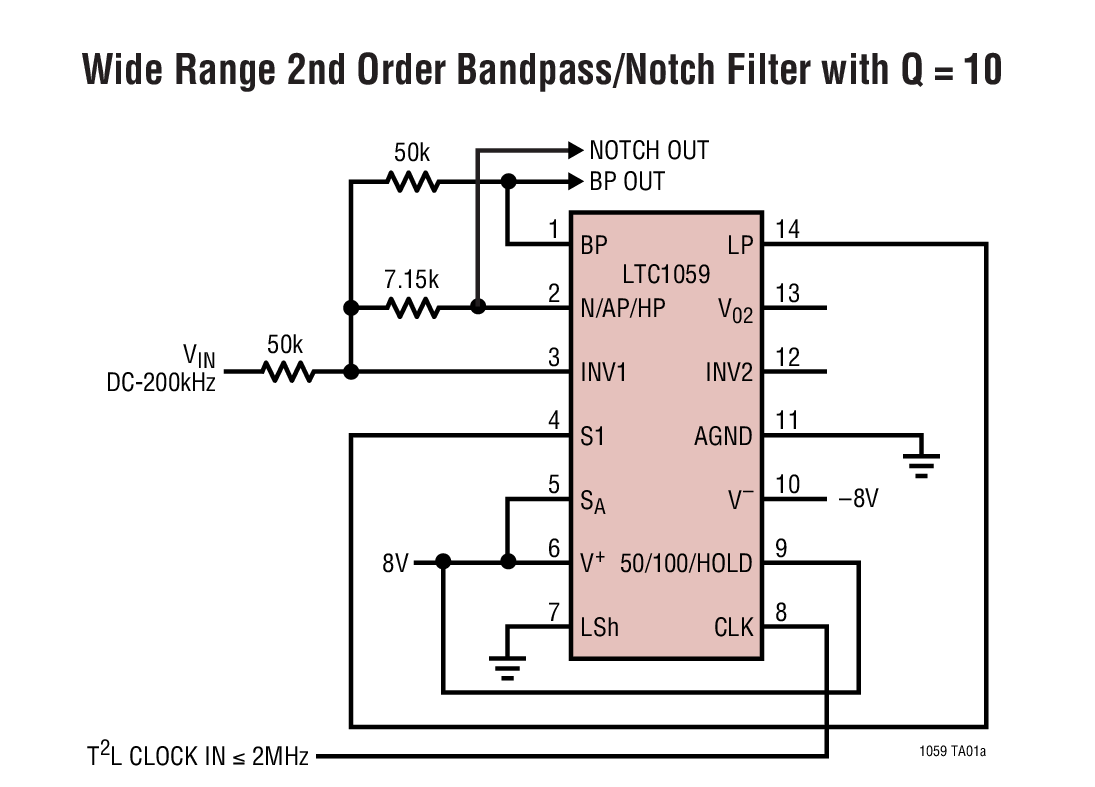

LTC1059典型应用图例二
LTC1059 - 封装图解：

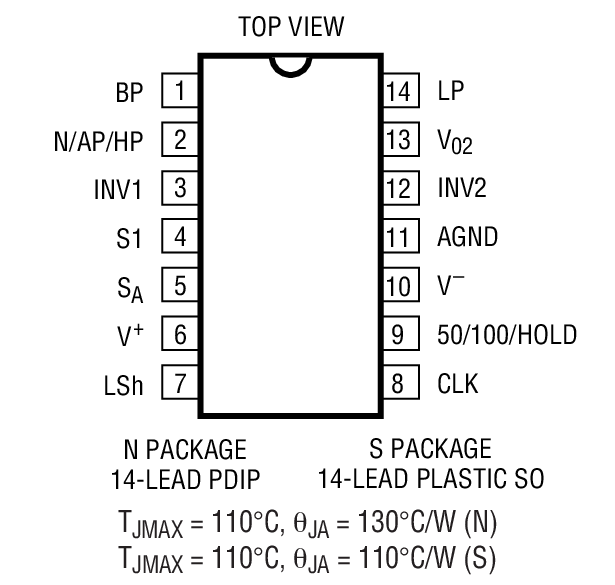

LTC1059封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1059介绍

LTC1059 - LTC1059是High Performance Switched Capacitor Universal Filter

LTC1059是LINEAR凌力尔特公司的一款滤波器单元式部件产品，LTC1059是LTC1059是High Performance Switched Capacitor Universal Filter，本站介绍了LTC1059的封装应用图解、特点和优点、功能等，并给出了与LTC1059相关的LINEAR元器件型号供参考。

LTC1059 - LTC1059是High Performance Switched Capacitor Universal Filter - 滤波器单元式部件 - 信号调理 - 凌力尔特

LTC1059 - High Performance Switched Capacitor Universal Filter

LTC1059 - High Performance Switched Capacitor Universal Filter - Linear Technology（凌力尔特）

功能描述

The LTC?1059 consists of a general purpose, high performance, active filter building block and an uncommitted op amp. The filter building block together with an external clock and 2 to 5 resistors can produce various 2nd order functions which are available at its three output pins. Two out of three always provide lowpass and bandpass functions while the third output pin can produce notch or highpass or allpass. The center frequency of these functions can be tuned from 0.1Hz to 40kHz and is dependent on an external clock or an external clock and a resistor ratio. The filter can handle input frequencies up to 100kHz. The uncommitted op amp can be used to obtain additional allpass and notch functions, for gain adjustment or forcascading techniques.

Higher than 2nd order filter functions can be obtained by cascading the LTC1059 with the LTC1060 dual universal filter or the LTC1061 triple universal filter. Any classical filter realization (such as Butterworth, Cauer, Bessel and Chebyshev) can be formed.

The LTC1059 can be operated with single or dual supplies ranging from ?2.37V to ?8V (or 4.74V to 16V single supply).

The LTC1059 is manufactured by using Linear Technology’s enhanced LTCMOS silicon gate process.

特点
  • All Filter Parameters Guaranteed over Temperature
  • Wide Center Frequency Range (0.1Hz to 40kHz)
  • Low Noise Wide Dynamic Range
  • Guaranteed Operation for ?2.37V and ±5V Supply
  • Low Power Consumption
  • Guaranteed Clock-to-Center Frequency Accuracy of 0.8% (LTC1059A)
  • Guaranteed Low Offset Voltages over Temperature
  • Very Low Center Frequency and Q Tempco
  • Clock Input T²L or CMOS Compatible
  • Separate Highpass (or Notch or Allpass), Bandpass, Lowpass Outputs
    • 应用
  • Sinewave Oscillators
  • Sweepable Bandpass/Notch Filters
  • Full Audio Frequency Filters
  • Tracking Filters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1059CN N-14 C $3.75 $3.10
    LTC1059CN#PBF N-14 C $3.75 $3.10
    LTC1059CS SO-14 C $4.20 $3.30
    LTC1059CS#PBF SO-14 C $4.20 $3.30
    LTC1059CS#TR SO-14 C $3.36
    LTC1059CS#TRPBF SO-14 C $3.36
