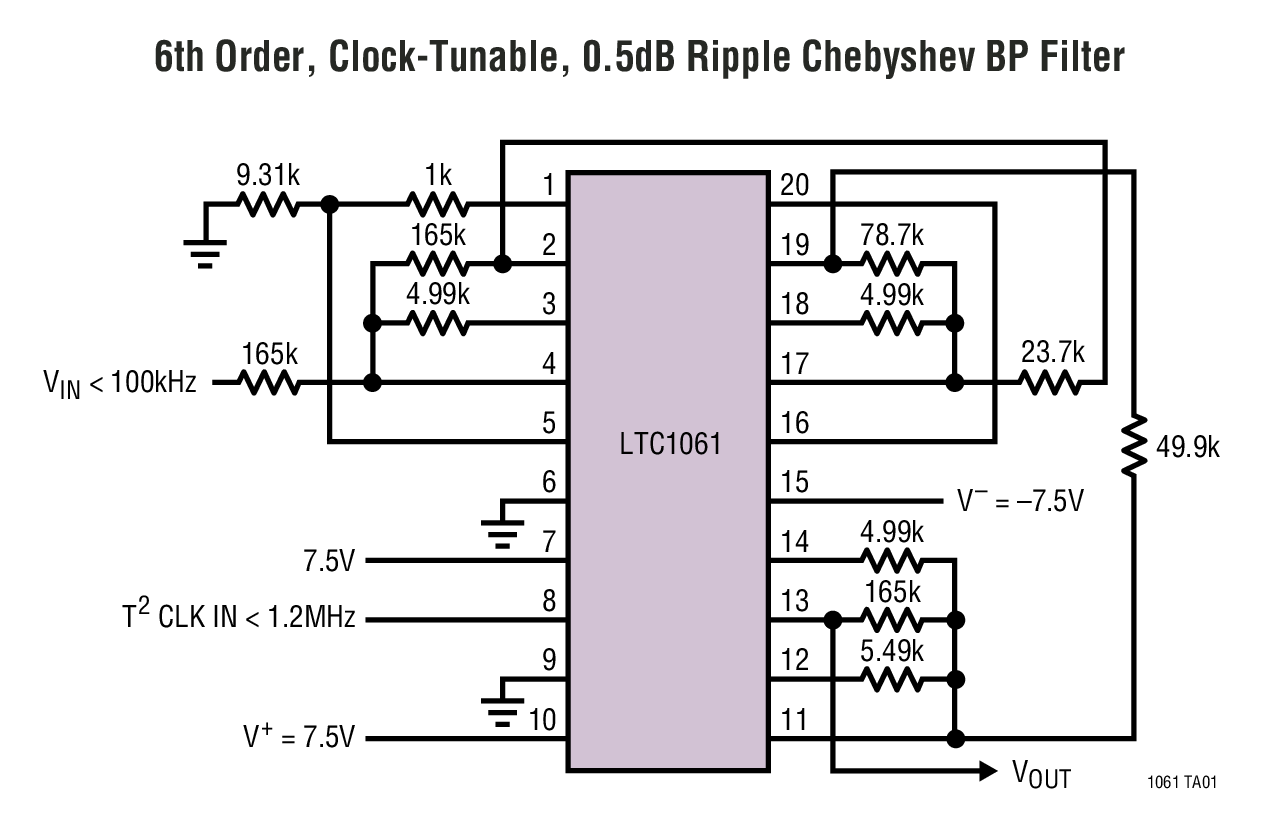

LTC1061典型应用图例一

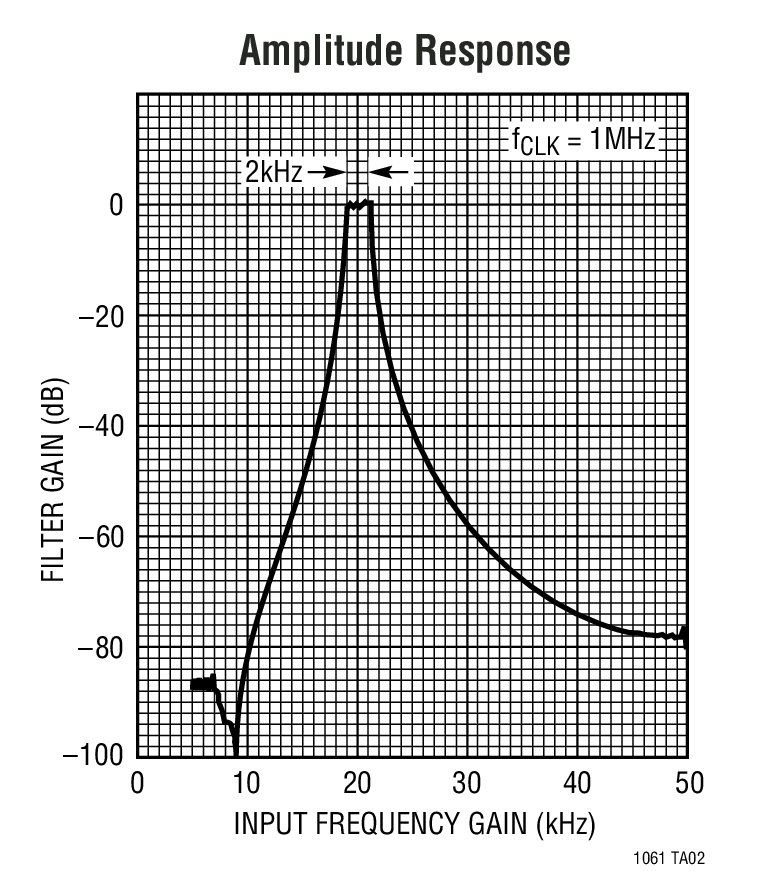

LTC1061典型应用图例二
LTC1061 - 封装图解：

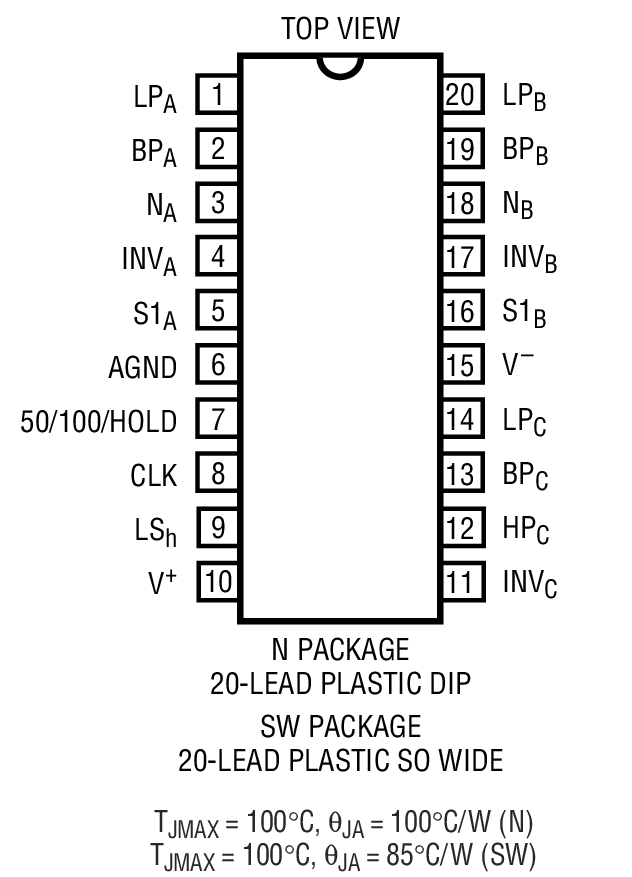

LTC1061封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1061介绍

LTC1061 - LTC1061是High Performance TripleUniversal Filter Building Block

LTC1061是LINEAR凌力尔特公司的一款滤波器单元式部件产品，LTC1061是LTC1061是High Performance TripleUniversal Filter Building Block，本站介绍了LTC1061的封装应用图解、特点和优点、功能等，并给出了与LTC1061相关的LINEAR元器件型号供参考。

LTC1061 - LTC1061是High Performance TripleUniversal Filter Building Block - 滤波器单元式部件 - 信号调理 - 凌力尔特

LTC1061 - High Performance TripleUniversal Filter Building Block

LTC1061 - High Performance TripleUniversal Filter Building Block - Linear Technology（凌力尔特）

功能描述

The LTC1061 consists of three high performance, universal filter building blocks. Each filter building block together with an external clock and 2 to 5 resistors can produce various second order functions which are available at its three output pins. Two out of three always provide lowpass and bandpass functions while the third output pin can produce highpass or notch or allpass. The center frequency of these functions can be tuned from 0.1Hz to 35kHz and is dependent on an external clock or an external clock and a resistor ratio.

The LTC1061 can be used with single or dual supplies ranging from ±2.37V to ±8V (or 4.74V to 16V). When the filter operates with supplies of ±5V and above, it can handle input frequencies up to 100kHz.

The LTC1061 is compatible with the LTC1059 single universal filter and the LTC1060 dual. Higher than 6th order functions can be obtained by cascading the LTC1061 with the LTC1059 or LTC1060. Any classical filter realization? can be obtained.

?

特点
  • Three filters in a single package
  • Up to 6th Order Filter Functions
  • Center Frequency Range up to 35kHz
  • fo X Q Product up to 1MHz
  • Guaranteed Center Frequency and Q Accuracy Over Temperature
  • Guaranteed Low Offset Voltages Over Temperature
  • 90dB Signal-to-Noise Ratio
  • Filter Operates from Single 4.7V Supply and up to ±8V Supplies
  • Guaranteed Filter Specifications with ±5V Supply and ±2.37V Supply
  • Low Power Consumption with Single 5V Supply
  • Clock Inputs T2L and CMOS Compatible
  • Available in 20-Pin DIP and 20-Pin SO Wide Package
    • 应用
  • High Order, Wide Frequency Range Bandpass, Lowpass, Notch Filters
  • Low Power Consumption, Single 5V Supply, Clock-Tunable Filters
  • Tracking Filters
  • Antialiasing Filters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1061ACN N-20 C $16.65 $13.90
    LTC1061ACN#PBF N-20 C $16.65 $13.90
    LTC1061CN N-20 C $9.15 $7.45
    LTC1061CN#PBF N-20 C $9.15 $7.45
    LTC1061CSW SW-20 C $9.60 $7.90
    LTC1061CSW#PBF SW-20 C $9.60 $7.90
    LTC1061CSW#TR SW-20 C $8.00
    LTC1061CSW#TRPBF SW-20 C $8.00
