当前位置:Linear公司 > > 凌力尔特芯片 >> LT6556
LT6556技术文档下载:
LT6556技术文档产品手册下载
LT6556 - 典型应用图例:

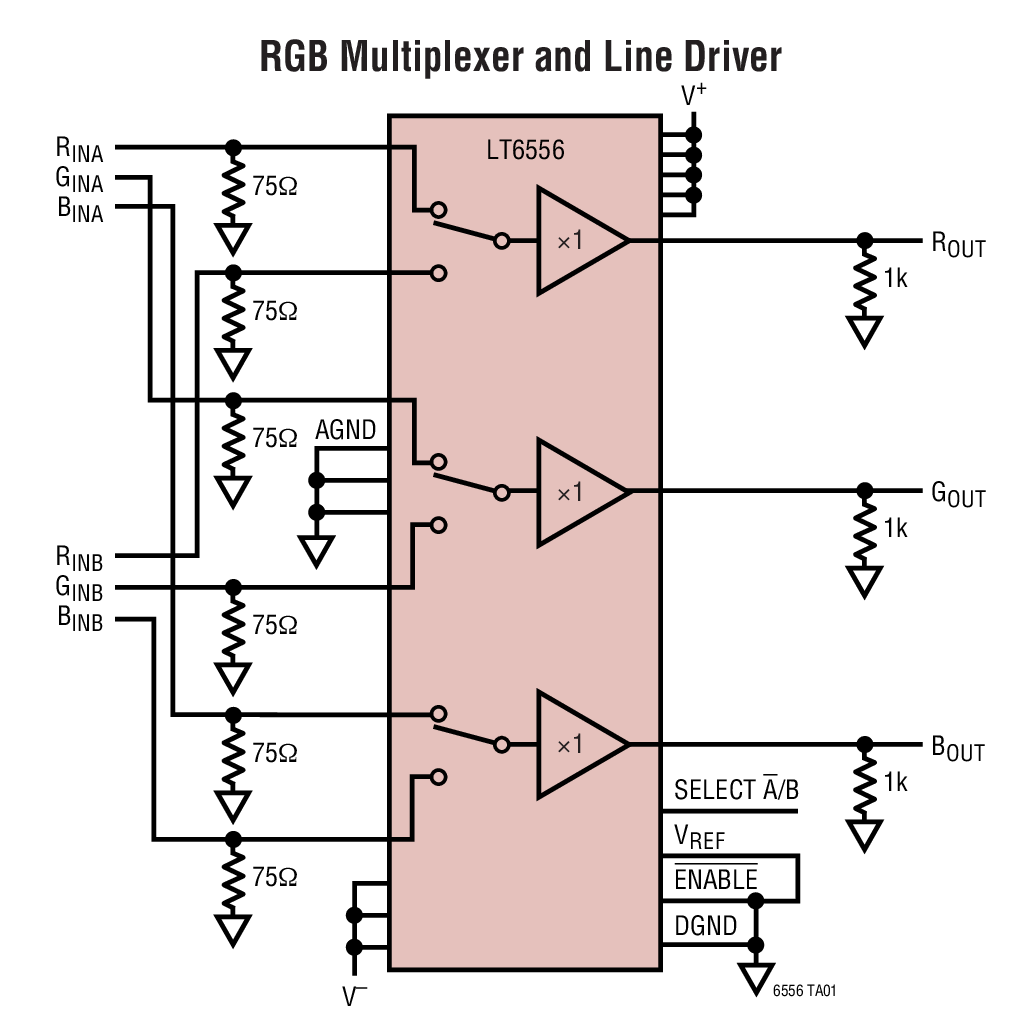

LT6556典型应用图例一

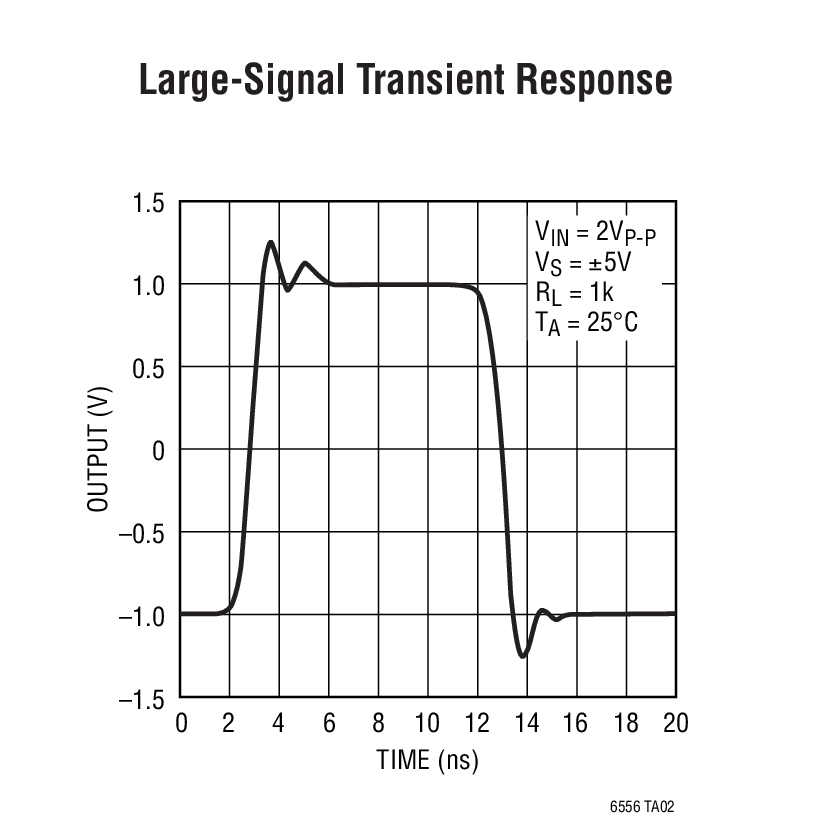

LT6556典型应用图例二
LT6556 - 封装图解:

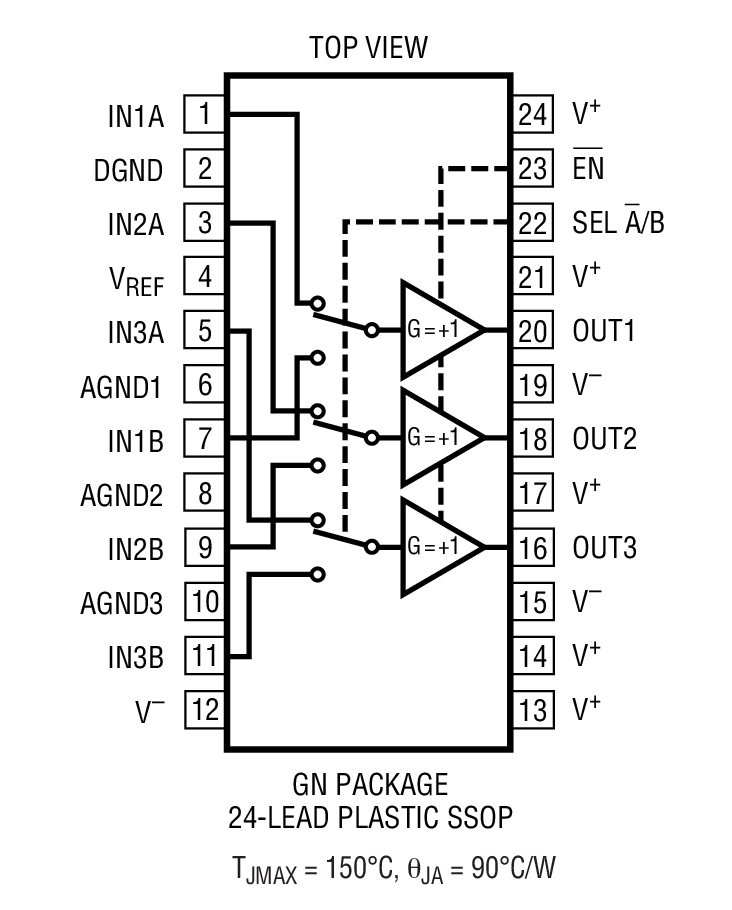

LT6556封装图解一

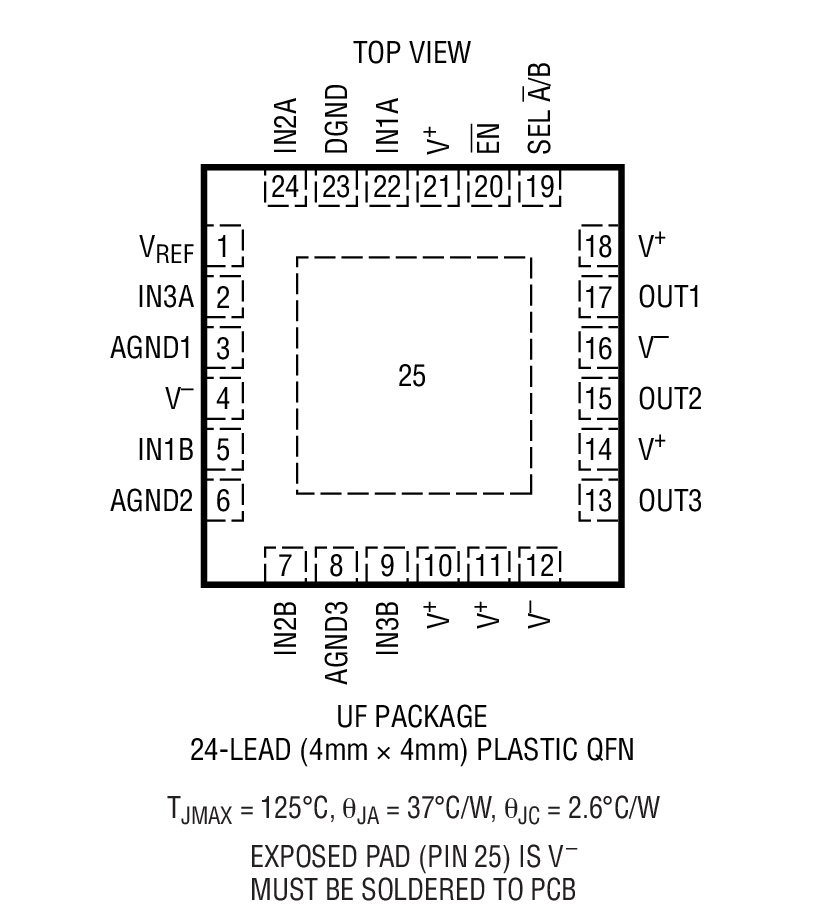

LT6556封装图解二
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LT6556介绍
LT6556 - LT6556是750MHz Gain of 1 Triple 2:1Video Multiplexer

LT6556是Linear公司的一款视频功能产品,LT6556是750MHz Gain of 1 Triple 2:1Video Multiplexer,本站介绍了LT6556的封装应用图解、特点和优点、功能等,并给出了与LT6556相关的凌力尔特元器件型号供参考。

LT6556 - 750MHz Gain of 1 Triple 2:1Video Multiplexer

LT6556 - 750MHz Gain of 1 Triple 2:1Video Multiplexer - Linear Technology(凌力尔特)

功能描述
The LT6556 is a high speed triple 2:1 video multiplexer with an internally fixed gain of 1. The individual buffers are optimized for performance with a 1k load and feature a 2VP-P -3dB bandwidth of 450MHz, making them ideal for driving very high resolution video signals. Separate power supply pins for each amplifi er boost channel separation to 72dB, allowing the LT6556 to excel in many high speed applications.

While the performance of the LT6556 is optimized for dual supply operation, it can also be operated with a single supply as low as 4.5V. Using dual 5V supplies, each amplifier draws only 9.5mA. When disabled, the amplifiers draw less than 330µA and the outputs become high impedance. For applications requiring a fi xed gain of 2, refer to the LT6555 datasheet.

The LT6556 is available in 24-lead SSOP and ultra-compact 24-lead QFN packages.

特点
  • 750MHz -3dB Small Signal Bandwidth
  • 450MHz -3dB 2VP-P Large-Signal Bandwidth
  • 120MHz ±0.1dB Bandwidth
  • High Slew Rate: 2100V/μs
  • Fixed Gain of 1; No External Resistors Required
  • 72dB Channel Separation at 10MHz
  • 52dB Channel Separation at 100MHz
  • -84dBc 2nd Harmonic Distortion at 10MHz, 2VP-P
  • -87dBc 3rd Harmonic Distortion at 10MHz, 2VP-P
  • Low Supply Current: 9.5mA per Amplifi er
  • 6.5ns 0.1% Settling Time for 2V Step
  • ISS ≤ 330μA per Amplifier When Disabled
  • Differential Gain of 0.033%, Differential Phase of 0.022°
  • Wide Supply Range: ±2.25V (4.5V) to ±6V (12V)
  • Available in 24-Lead SSOP and 24-Lead QFN Packages
  • 应用
  • RGB Buffers
  • UXGA Video Multiplexing
  • LCD Projectors
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT6556CGN SSOP-24 C $3.90 $2.75
    LT6556CGN#PBF SSOP-24 C $3.90 $2.75
    LT6556CGN#TR SSOP-24 C $2.81
    LT6556CGN#TRPBF SSOP-24 C $2.81
    LT6556CUF 4x4 QFN-24 C $3.90 $2.75
    LT6556CUF#PBF 4x4 QFN-24 C $3.90 $2.75
    LT6556CUF#TR 4x4 QFN-24 C $2.81
    LT6556CUF#TRPBF 4x4 QFN-24 C $2.81
    LT6556IGN SSOP-24 I $4.50 $3.15
    LT6556IGN#PBF SSOP-24 I $4.50 $3.15
    LT6556IGN#TR SSOP-24 I $3.21
    LT6556IGN#TRPBF SSOP-24 I $3.21
    LT6556IUF 4x4 QFN-24 I $4.50 $3.15
    LT6556IUF#PBF 4x4 QFN-24 I $4.50 $3.15
    LT6556IUF#TR 4x4 QFN-24 I $3.21
    LT6556IUF#TRPBF 4x4 QFN-24 I $3.21
