当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LT6010

LT6010技术文档下载：

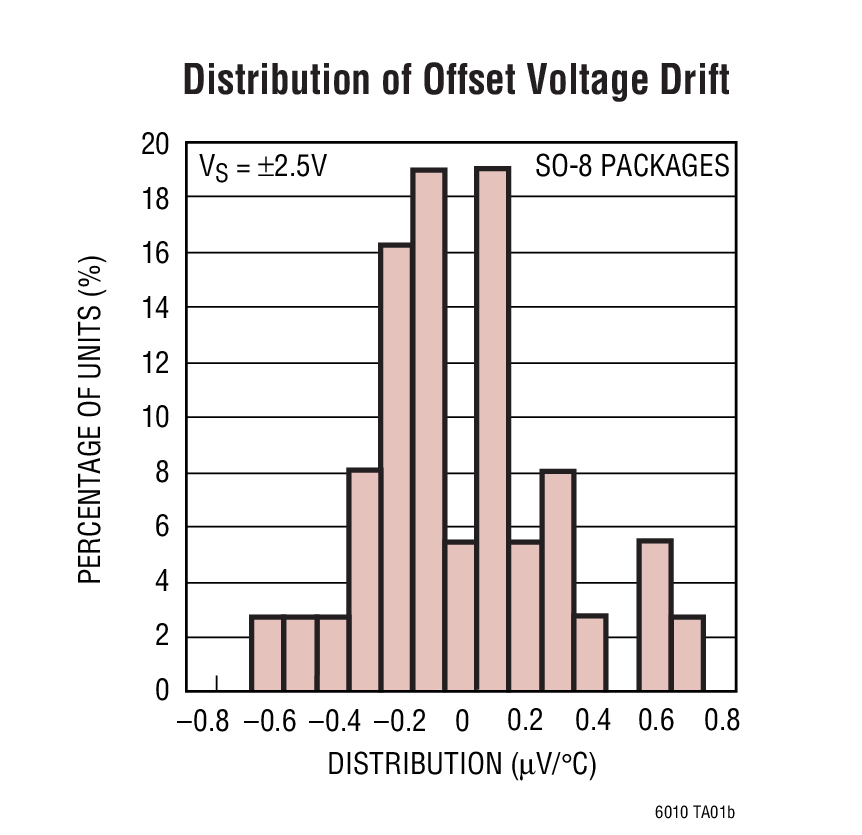

LT6010 - 典型应用图例：

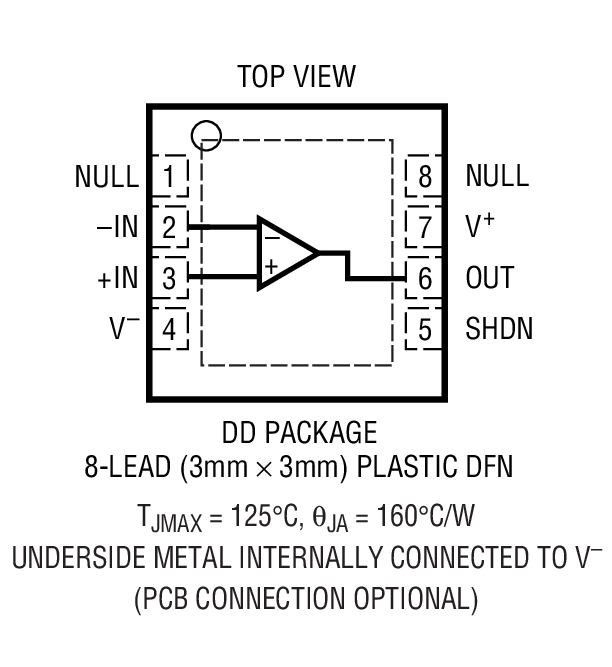

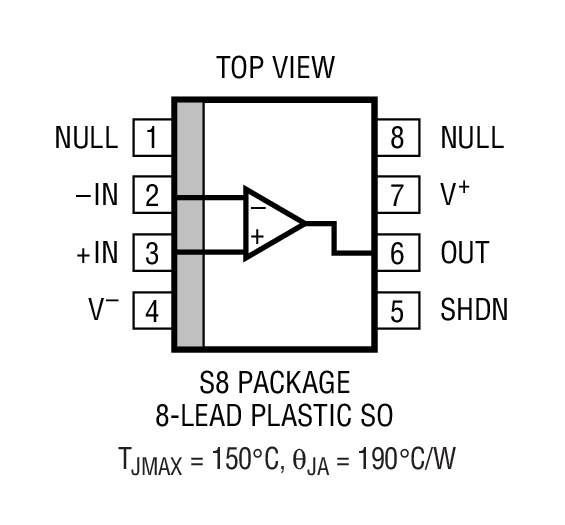

LT6010 - 封装图解：

LINEAR凌力尔特芯片：

LT6010 - LT6010是135μA, 14nV/rtHz, Rail-to-Rail Output Precision Op Amp with Shutdown

LT6010是LINEAR凌力尔特公司的一款精准放大器产品，LT6010是LT6010是135μA, 14nV/rtHz, Rail-to-Rail Output Precision Op Amp with Shutdown，本站介绍了LT6010的封装应用图解、特点和优点、功能等，并给出了与LT6010相关的LINEAR元器件型号供参考。

LT6010 - LT6010是135μA, 14nV/rtHz, Rail-to-Rail Output Precision Op Amp with Shutdown - 精准放大器 - 信号调理 - 凌力尔特

LT6010 - 135μA, 14nV/rtHz, Rail-to-Rail Output Precision Op Amp with Shutdown

LT6010 - 135μA, 14nV/rtHz, Rail-to-Rail Output Precision Op Amp with Shutdown - Linear Technology（凌力尔特）

功能描述

The LT6010 op amp combines low noise and high precision input performance with low power consumption and rail-to-rail output swing.

Input offset voltage is trimmed to less than 35µV. The low drift and excellent long-term stability guarantee a high accuracy over temperature and over time. The 110pA maximum input bias current and 120dB minimum voltage gain further maintain this precision over operating conditions.

The LT6010 works on any power supply voltage from 2.7V to 36V, and draws only 135µA of supply current on a 5V supply. A power saving shutdown feature reduces supply current to 12µA. The output voltage swings to within 40mV of either supply rail, making the amplifier a good choice for low voltage single supply operation.

The LT6010 is fully specified at 5V and ±15V supplies and from –40°C to 85°C. The device is available in SO-8 and space-saving 3mm x 3mm DFN packages. This op amp is also available in dual (LT6011) and quad (LT6012) packages.

特点

35µV Maximum Offset Voltage

110pA Maximum Input Bias Current

135µA Supply Current

Rail-to-Rail Output Swing

12µA Supply Current in Shutdown

120dB Minimum Voltage Gain (VS = ±15V)

0.8µV/°C Maximum VOS Drift

14nV/rtHz Input Noise Voltage

2.7V to ±18V Supply Voltage Operation

Operating Temperature Range: –40°C to 85°C

Space Saving 3mm x 3mm DFN Package

应用

Thermocouple Amplifiers

Precision Photo Diode Amplifiers

Instrumentation Amplifiers

Battery-Powered Precision Systems

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT6010ACDD	3x3 DFN-8	C	$2.20	$1.80
LT6010ACDD#PBF	3x3 DFN-8	C	$2.20	$1.80
LT6010ACDD#TR	3x3 DFN-8	C		$1.86
LT6010ACDD#TRPBF	3x3 DFN-8	C		$1.86
LT6010ACS8	SO-8	C	$2.00	$1.65
LT6010ACS8#PBF	SO-8	C	$2.00	$1.65
LT6010ACS8#TR	SO-8	C		$1.71
LT6010ACS8#TRPBF	SO-8	C		$1.71
LT6010AIDD	3x3 DFN-8	I	$2.65	$2.20
LT6010AIDD#PBF	3x3 DFN-8	I	$2.65	$2.20
LT6010AIDD#TR	3x3 DFN-8	I		$2.26
LT6010AIDD#TRPBF	3x3 DFN-8	I		$2.26
LT6010AIS8	SO-8	I	$2.40	$1.95
LT6010AIS8#PBF	SO-8	I	$2.40	$1.95
LT6010AIS8#TR	SO-8	I		$2.01
LT6010AIS8#TRPBF	SO-8	I		$2.01
LT6010CDD	3x3 DFN-8	C	$1.65	$1.30
LT6010CDD#PBF	3x3 DFN-8	C	$1.65	$1.30
LT6010CDD#TR	3x3 DFN-8	C		$1.36
LT6010CDD#TRPBF	3x3 DFN-8	C		$1.36
LT6010CS8	SO-8	C	$1.45	$1.10
LT6010CS8#PBF	SO-8	C	$1.45	$1.10
LT6010CS8#TRPBF	SO-8	C		$1.16
LT6010IDD	3x3 DFN-8	I	$1.95	$1.60
LT6010IDD#PBF	3x3 DFN-8	I	$1.95	$1.60
LT6010IDD#TR	3x3 DFN-8	I		$1.66
LT6010IDD#TRPBF	3x3 DFN-8	I		$1.66
LT6010IS8	SO-8	I	$1.70	$1.35
LT6010IS8#PBF	SO-8	I	$1.70	$1.35
LT6010IS8#TR	SO-8	I		$1.41
LT6010IS8#TRPBF	SO-8	I		$1.41
