LT5500 - 1.8GHz to 2.7GHz Receiver Front End

LT5500 - 1.8GHz to 2.7GHz Receiver Front End - Linear Technology（凌力尔特）

功能描述

The LT5500 is a receiver front end IC designed for low voltage operation and is compatible with the LTC family of WLAN products. The chip contains a low noise amplifier (LNA), a Mixer and an LO buffer. The IC is designed to operate over a power supply voltage range from 1.8V to 5.25V.

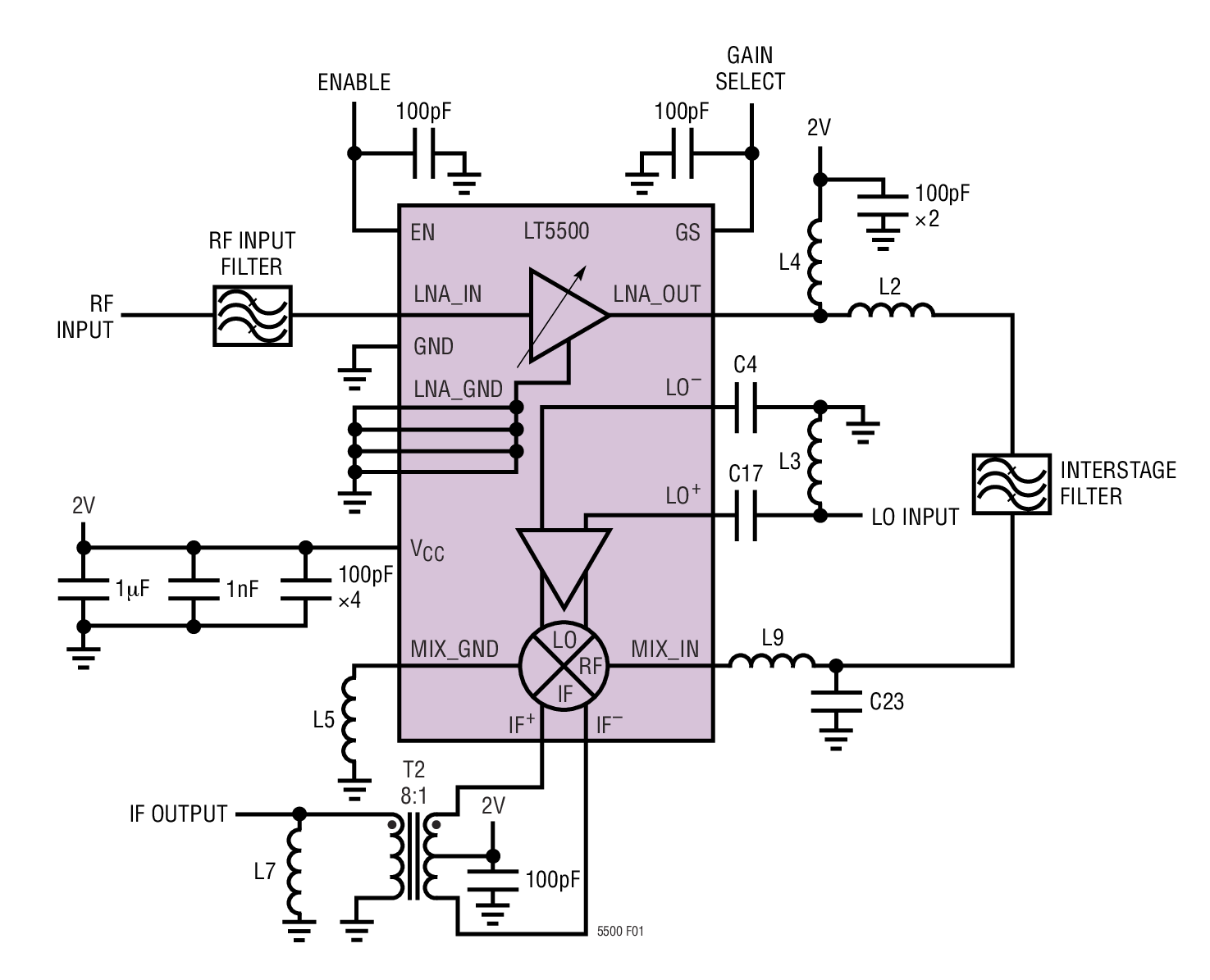

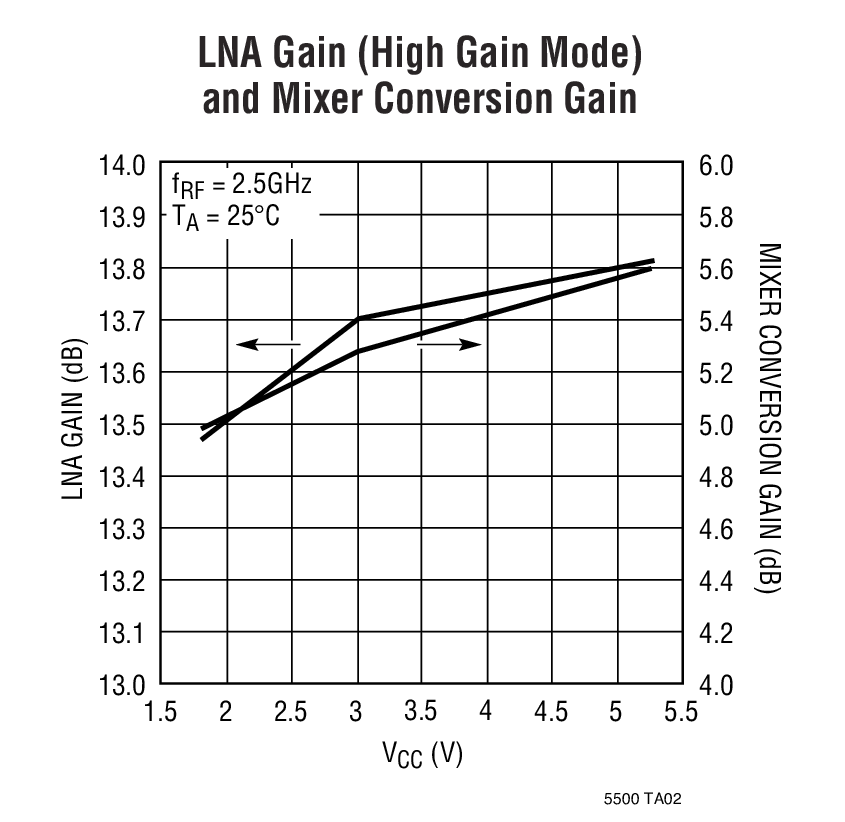

The LNA can be set to either high gain or low gain mode. At 2.5GHz, the high gain mode provides 13.5dB gain and a noise figure (NF) of 4dB. The LNA in low gain mode provides –14dB gain and an IIP3 of +8dBm at 2.5GHz.

The mixer has 5dB of conversion gain and an IIP3 of –2.5dBm at 2.5GHz, with –10dBm LO input power.

特点

1.8V to 5.25V Supply

Dual LNA Gain Setting: +13.5dB/ –14dB at 2.5GHz

Double-Balanced Mixer

Internal LO Buffer

LNA Input Internally Matched

Low Supply Current: 23mA

Low Shutdown Current: 2µA

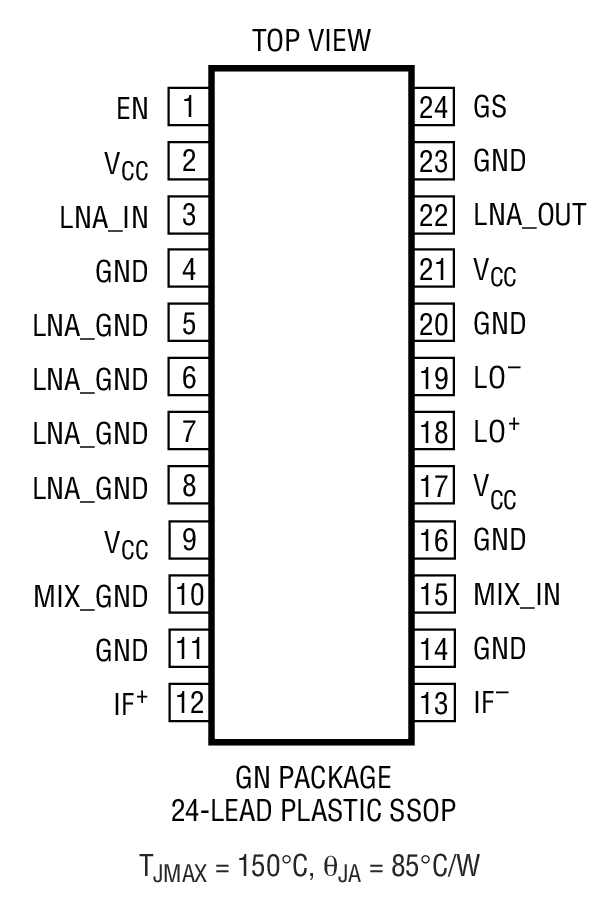

24-Lead Narrow SSOP Package

应用

IEEE 802.11 and 802.11b DSSS and FHSS
