当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LT2079
LT2079技术文档下载：
LT2079技术文档产品手册下载
LT2079 - 典型应用图例：

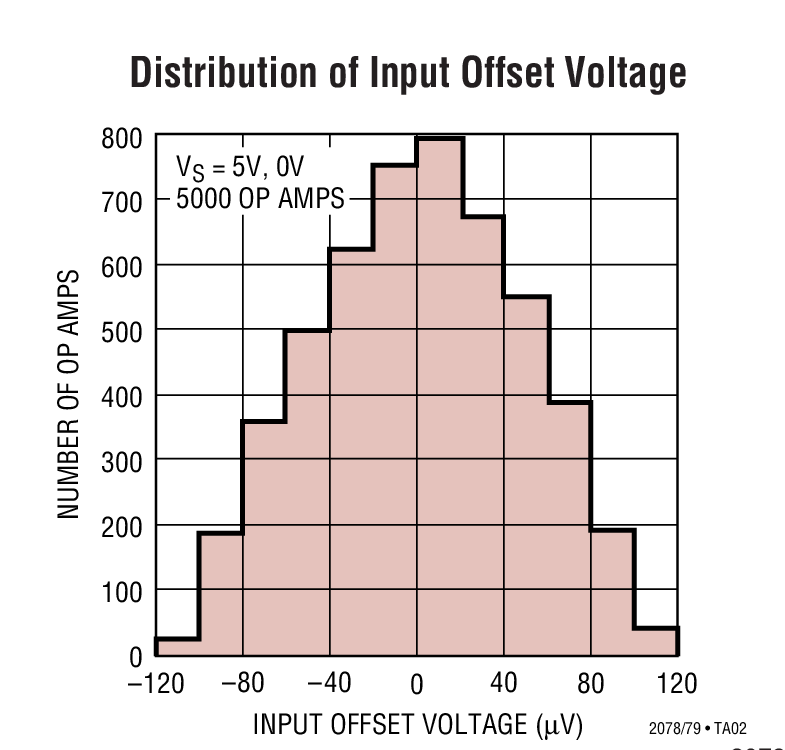

LT2079典型应用图例一

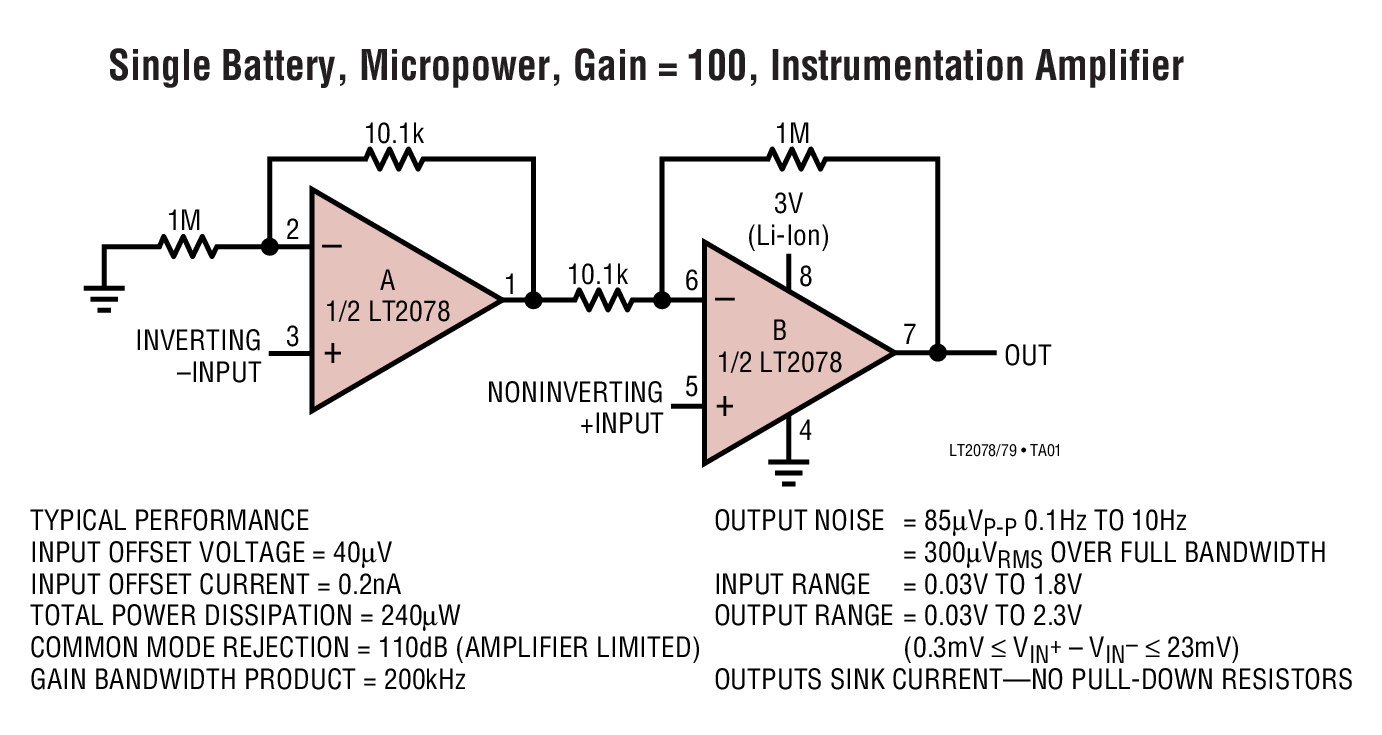

LT2079典型应用图例二
LT2079 - 封装图解：

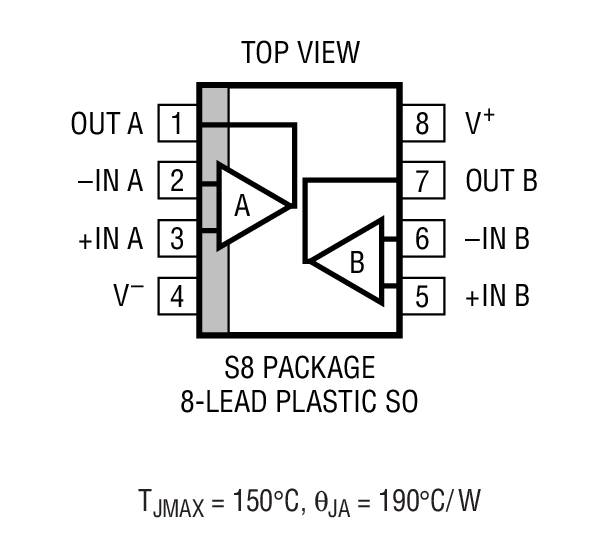

LT2079封装图解一

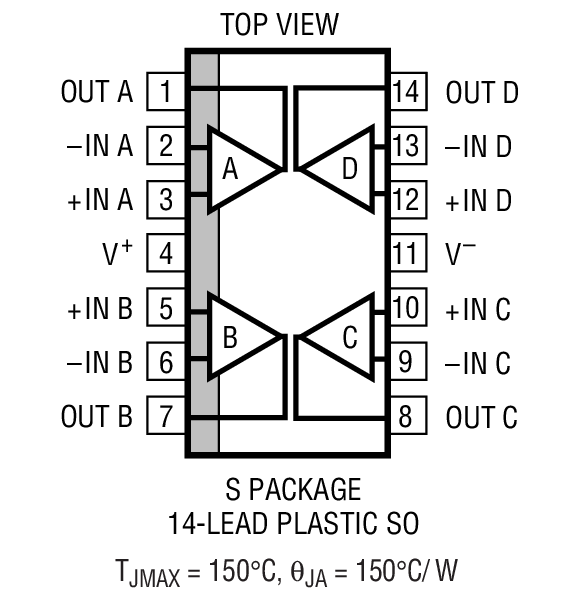

LT2079封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT2079介绍

LT2079 - LT2079是Micropower, Quad, Single Supply, Precision Op Amps

LT2079是LINEAR凌力尔特公司的一款精准放大器产品，LT2079是LT2079是Micropower, Quad, Single Supply, Precision Op Amps，本站介绍了LT2079的封装应用图解、特点和优点、功能等，并给出了与LT2079相关的LINEAR元器件型号供参考。

LT2079 - LT2079是Micropower, Quad, Single Supply, Precision Op Amps - 精准放大器 - 信号调理 - 凌力尔特

LT2079 - Micropower, Quad, Single Supply, Precision Op Amps

LT2079 - Micropower, Quad, Single Supply, Precision Op Amps - Linear Technology（凌力尔特）

功能描述

The LT2078 is a micropower dual op amp in 8-pin small outline, standard surface mount package, and LT2079 is a micropower quad op amp offered in the standard 14-pin surface mount package. Both devices are optimized for single supply operation at 5V. ±15V specifications are also provided.

Micropower performance of competing devices is achieved at the expense of seriously degrading precision, noise, speed and output drive specifications. The design effort of the LT2078/LT2079 was concentrated on reducing supply current without sacrificing other parameters. The offset voltage achieved is the lowest on any dual or quad nonchopper stabilized op ampmicropower or otherwise. Offset current, voltage and current noise, slew rate and gain bandwidth product are all two to ten times better than on previous micropower op amps.

Both the LT2078/LT2079 can be operated from a single supply (as low as one lithium cell or two NiCd batteries). The input range goes below ground. The all NPN output stage swings to within a few millivolts of ground while sinking currentno power consuming pull-down resistors are needed. For applications requiring DIP packages refer to the LT1078/LT1079.

特点
  • Supply Current per Amplifier: 50μA Max
  • Offset Voltage: 70μV Max
  • Offset Current: 250pA Max
  • Voltage Noise: 0.6μVP-P, 0.1Hz to 10Hz
  • Current Noise: 3pAP-P, 0.1Hz to 10Hz
  • Offset Voltage Drift: 0.4μV/°C
  • Gain Bandwidth Product: 200kHz
  • Slew Rate: 0.07V/μs
  • Single Supply OperationInput Voltage Range Includes GroundOutput Swings to Ground while Sinking CurrentNo Pull-Down Resistors Needed
  • Output Sources and Sinks 5mA Load Current
  • SO Package with Standard Pinout
    • 应用
  • Battery or Solar-Powered SystemsPortable InstrumentationRemote Sensor AmplifierSatellite Circuitry
  • Micropower Sample-and-Hold
  • Thermocouple Amplifier
  • Micropower Filters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT2079ACS SO-14 C $10.95 $9.05
    LT2079ACS#PBF SO-14 C $10.95 $9.05
    LT2079ACS#TR SO-14 C $9.11
    LT2079ACS#TRPBF SO-14 C $9.11
    LT2079AIS SO-14 I $12.75 $10.55
    LT2079AIS#PBF SO-14 I $12.75 $10.55
    LT2079AIS#TR SO-14 I $10.61
    LT2079AIS#TRPBF SO-14 I $10.61
    LT2079CS SO-14 C $7.20 $5.95
    LT2079CS#PBF SO-14 C $7.20 $5.95
    LT2079CS#TR SO-14 C $6.01
    LT2079CS#TRPBF SO-14 C $6.01
    LT2079IS SO-14 I $9.20 $7.60
    LT2079IS#PBF SO-14 I $9.20 $7.60
    LT2079IS#TR SO-14 I $7.66
    LT2079IS#TRPBF SO-14 I $7.66
