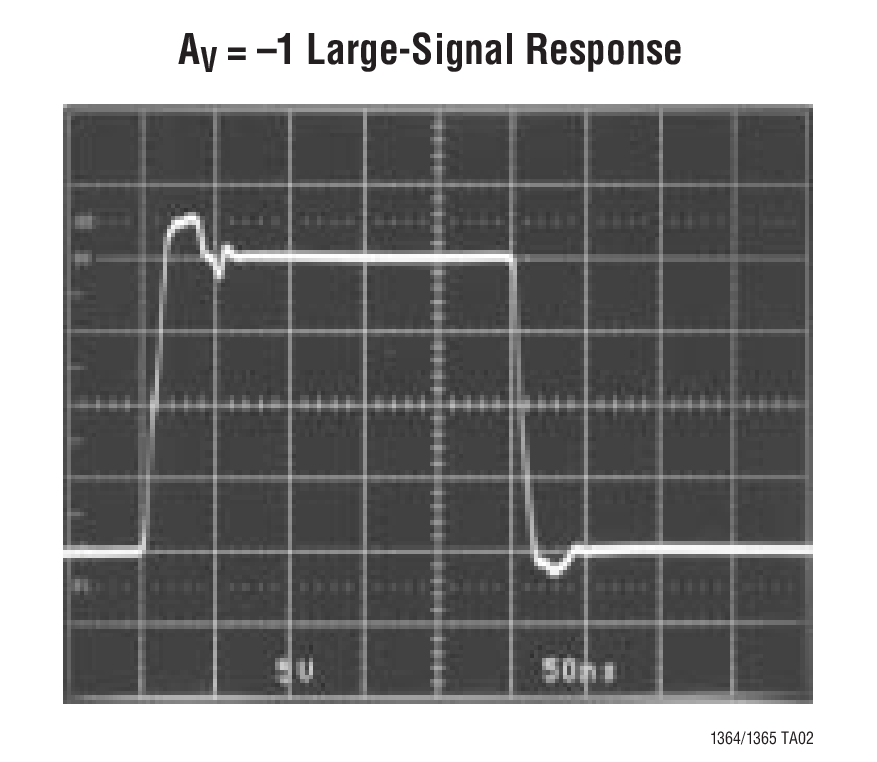

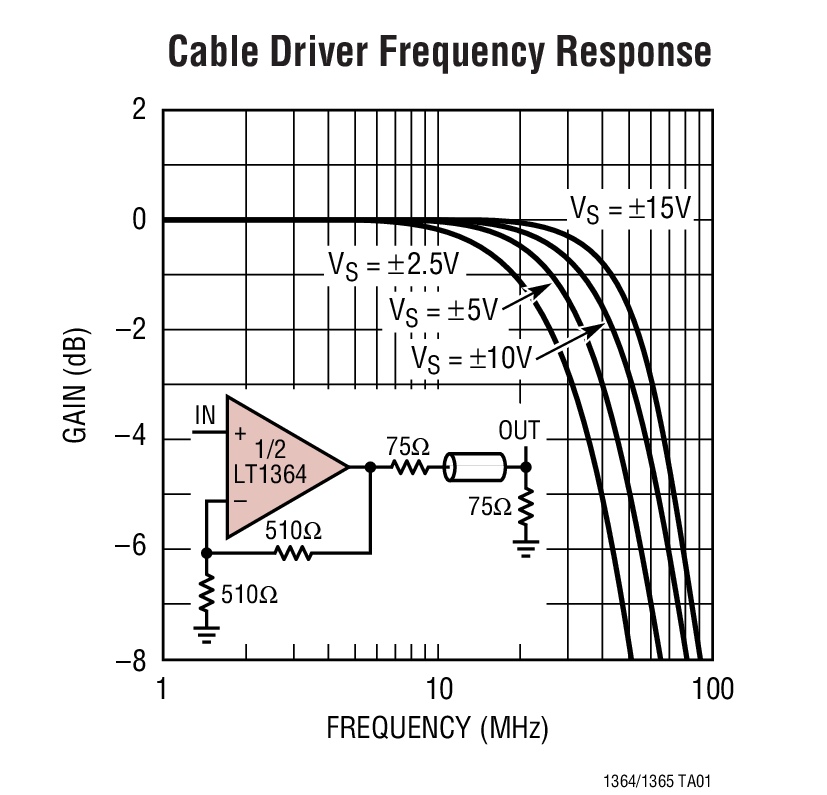

LT1364 - 典型应用图例：

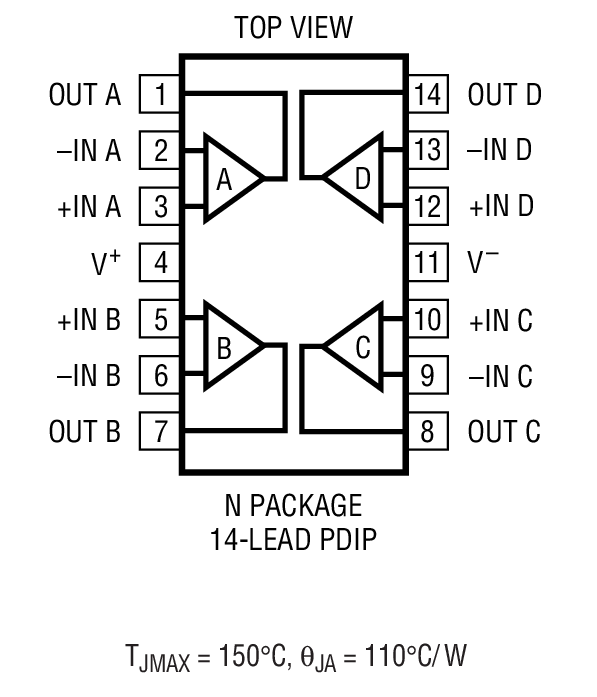

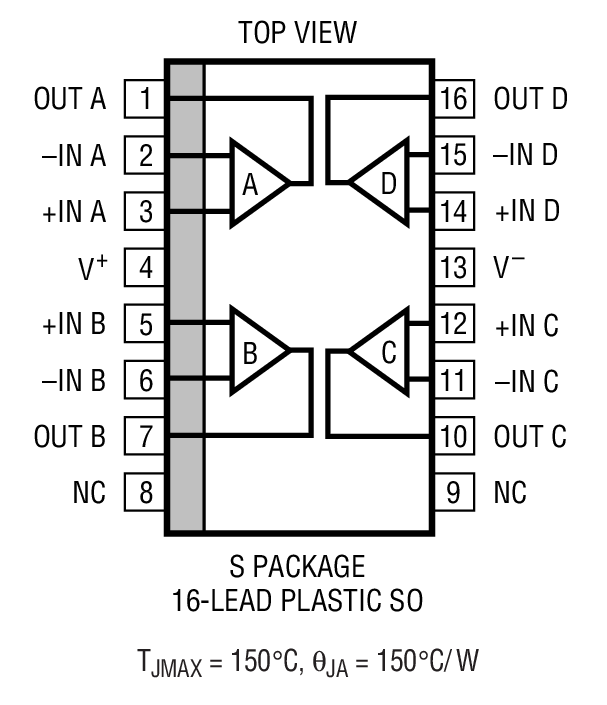

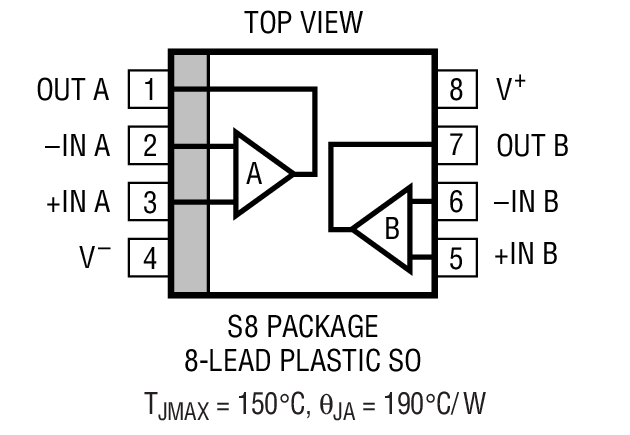

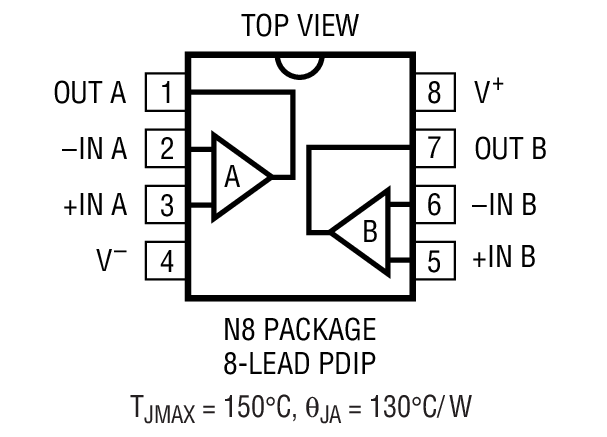

LT1364 - 封装图解：

LT1364 - LT1364是Dual and Quad 70MHz, 1000V/µs Op Amps

LT1364是Linear公司的一款高速放大器产品，LT1364是Dual and Quad 70MHz, 1000V/µs Op Amps，本站介绍了LT1364的封装应用图解、特点和优点、功能等，并给出了与LT1364相关的凌力尔特元器件型号供参考。

LT1364 - Dual and Quad 70MHz, 1000V/µs Op Amps

LT1364 - Dual and Quad 70MHz, 1000V/µs Op Amps - Linear Technology（凌力尔特）

功能描述

The LT1364/LT1365 are dual and quad high speed operational amplifiers with outstanding AC and DC performance. The amplifiers feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The high slew rate and single stage design provide excellent settling characteristics which make the circuit an ideal choice for data acquisition systems. Each output drives a 150 Ohms load to ±7.5V with ±15V supplies and to ±3.4V on ±5V supplies. The amplifiers are stable with any capacitive load making them useful in buffer or cable driving applications. The LT1364/LT1365 are members of a family of fast, high performance amplifiers using this unique topology and employing Linear Technology Corporation’s advanced bipolar complementary processing. For a single amplifier version of the LT1364/LT1365 see the LT1363 data sheet. For 50MHz devices with 4mA supply currents see the LT1360 through LT1362 data sheets. For lower supply current amplifiers see the LT1354 to LT1359 data sheets. Singles, duals, and quads of each amplifier are available.

特点

70MHz Gain-Bandwidth

1000V/µs Slew Rate

7.5mA Maximum Supply Current per Amplifier

Unity Gain Stable

C-Load™ Op Amp Drives All Capacitive Loads

9nV/ rt Hz Input Noise Voltage

1.5mV Maximum Input Offset Voltage

2µA Maximum Input Bias Current

350nA Maximum Input Offset Current

50mA Minimum Output Current

±7.5V Minimum Output Swing into 150 ohms
