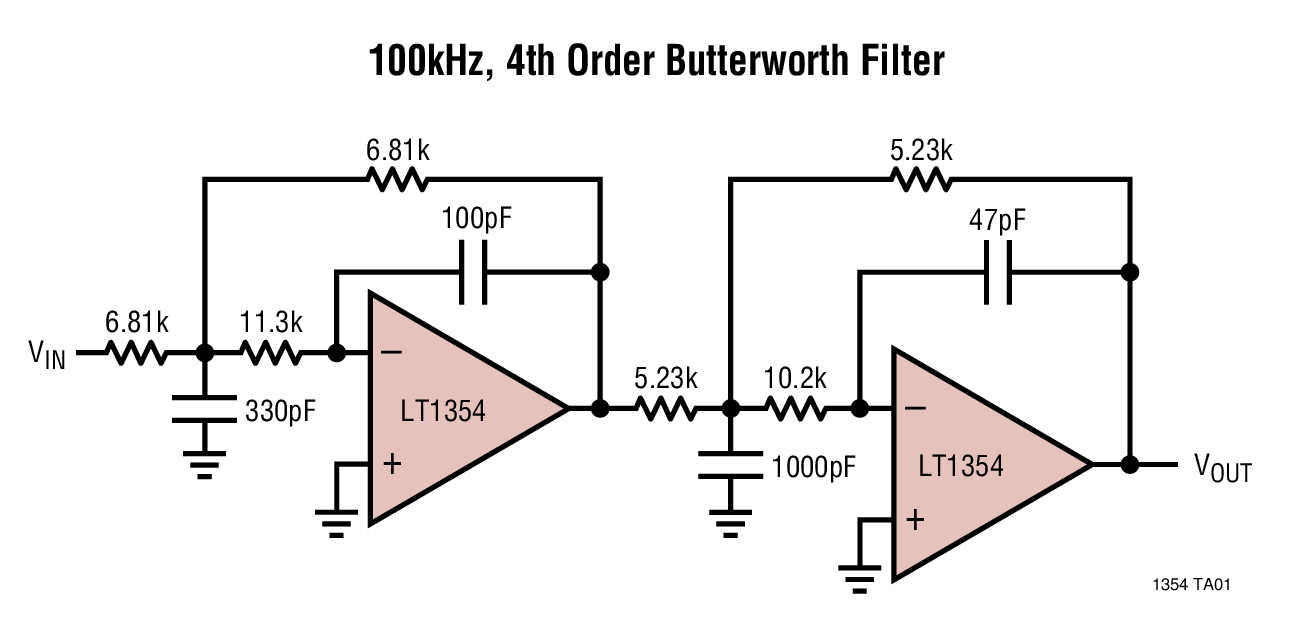

LT1354典型应用图例一

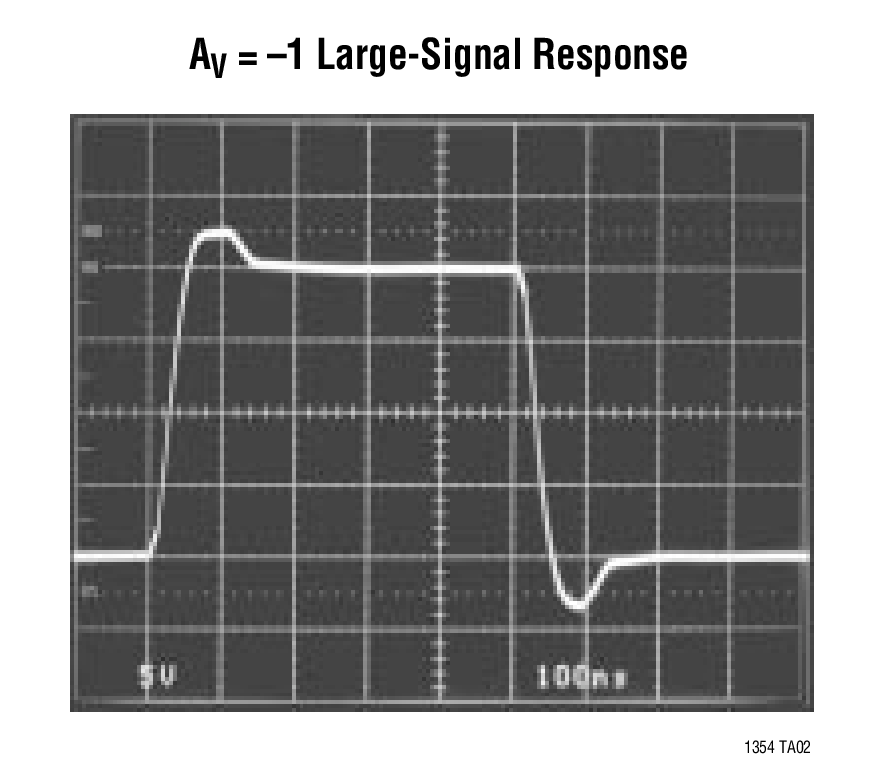

LT1354典型应用图例二
LT1354 - 封装图解：

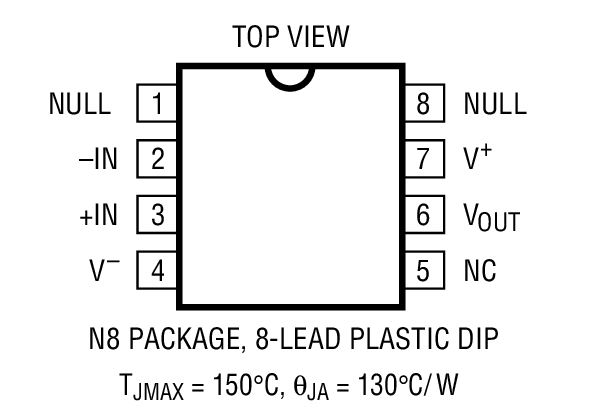

LT1354封装图解一

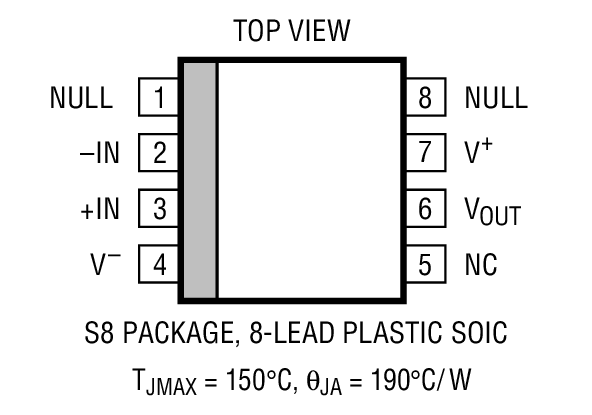

LT1354封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1354介绍

LT1354 - LT1354是12MHz, 400V/μs Op Amp

LT1354是LINEAR凌力尔特公司的一款低功率放大器产品，LT1354是LT1354是12MHz, 400V/μs Op Amp，本站介绍了LT1354的封装应用图解、特点和优点、功能等，并给出了与LT1354相关的LINEAR元器件型号供参考。

LT1354 - LT1354是12MHz, 400V/μs Op Amp - 低功率放大器 - 信号调理 - 凌力尔特

LT1354 - 12MHz, 400V/μs Op Amp

LT1354 - 12MHz, 400V/μs Op Amp - Linear Technology（凌力尔特）

功能描述

The LT1354 is a low power, high speed, high slew rate operational amplifier with outstanding AC and DC performance. The LT1354 has much lower supply current, lower input offset voltage, lower input bias current, and higher DC gain than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with the slewing characteristics of a current feedback amplifier. The amplifier is a single gain stage with outstanding settling characteristics which makes the circuit an ideal choice for data acquisition systems. The output drives a 500 ohms load to ±12V with ±15V supplies and a 150 ohms load to ±2.5V on ±5V supplies. The amplifier is also stable with any capacitive load which makes it useful in buffer or cable driver applications.

The LT1354 is a member of a family of fast, high performance amplifiers using this unique topology and employing Linear Technology Corporation’s advanced bipolar complementary processing. For dual and quad amplifier versions of the LT1354 see the LT1355/LT1356 data sheet. For higher bandwidth devices with higher supply current see the LT1357 through LT1365 data sheets. Singles, duals, and quads of each amplifier are available.

特点
  • 12MHz Gain-Bandwidth
  • 400V/µs Slew Rate
  • 1.25mA Maximum Supply Current
  • Unity Gain Stable
  • C-Load™ Op Amp Drives All Capacitive Loads
  • 10nV/rt Hz Input Noise Voltage
  • 800µV Maximum Input Offset Voltage
  • 300nA Maximum Input Bias Current
  • 70nA Maximum Input Offset Current
  • 12V/mV Minimum DC Gain, RL=1k
  • 230ns Settling Time to 0.1%, 10V Step
  • 280ns Settling Time to 0.01%, 10V Step
  • ±12.5V Minimum Output Swing into 500 ohms
  • ±2.5V Minimum Output Swing into 150 ohms
  • Specified at ±2.5V, ±5V, and ±15V
    • 应用
  • Wideband Amplifiers
  • Buffers
  • Active Filters
  • Data Acquisition Systems
  • Photodiode Amplifiers
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1354CN8 N-8 C $2.83 $2.30
    LT1354CN8#PBF N-8 C $2.83 $2.30
    LT1354CS8 SO-8 C $3.17 $2.55
    LT1354CS8#PBF SO-8 C $3.17 $2.55
    LT1354CS8#TR SO-8 C $2.61
    LT1354CS8#TRPBF SO-8 C $2.61
    LT1354IS8 SO-8 I $3.70 $3.05
    LT1354IS8#PBF SO-8 I $3.70 $3.05
    LT1354IS8#TR SO-8 I $3.11
    LT1354IS8#TRPBF SO-8 I $3.11
