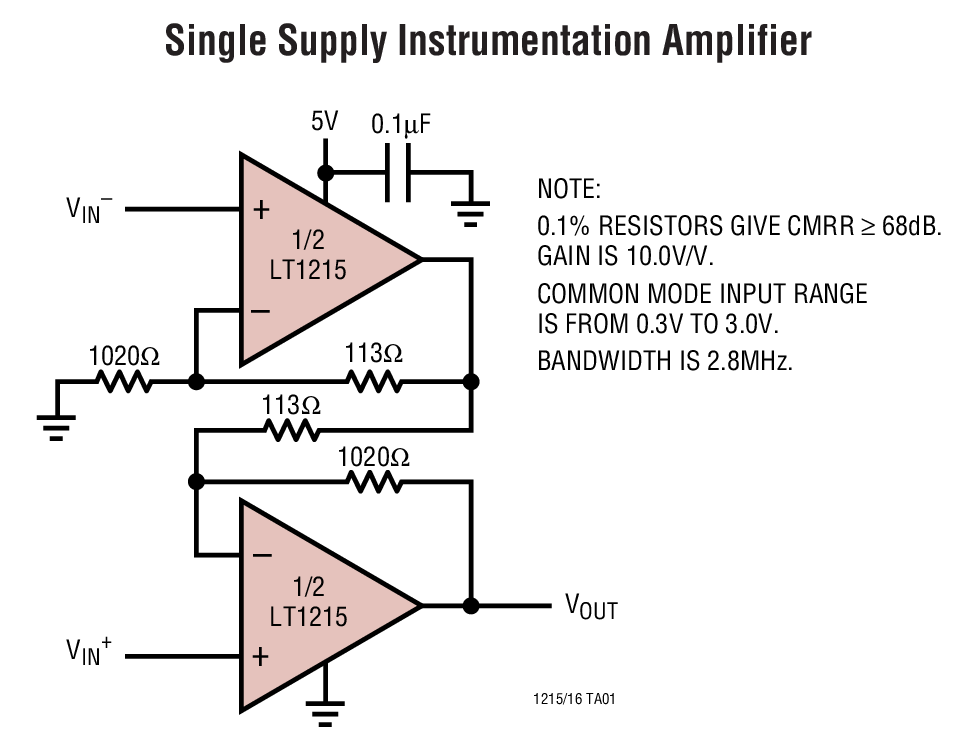

LT1215典型应用图例一

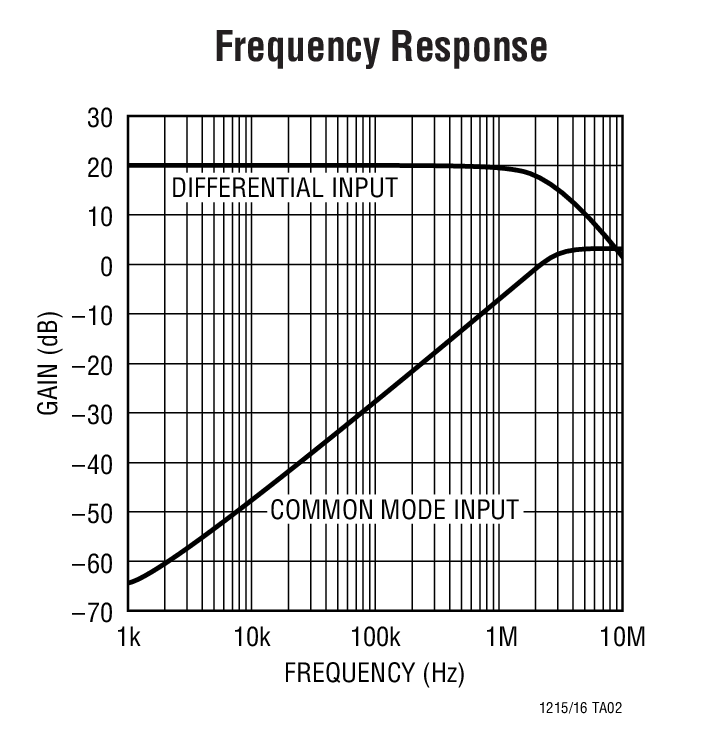

LT1215典型应用图例二
LT1215 - 封装图解：

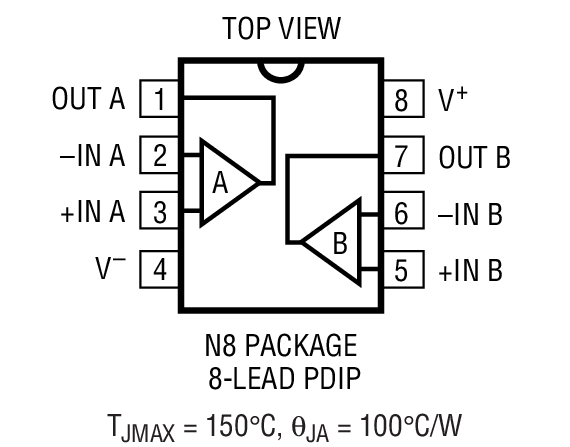

LT1215封装图解一

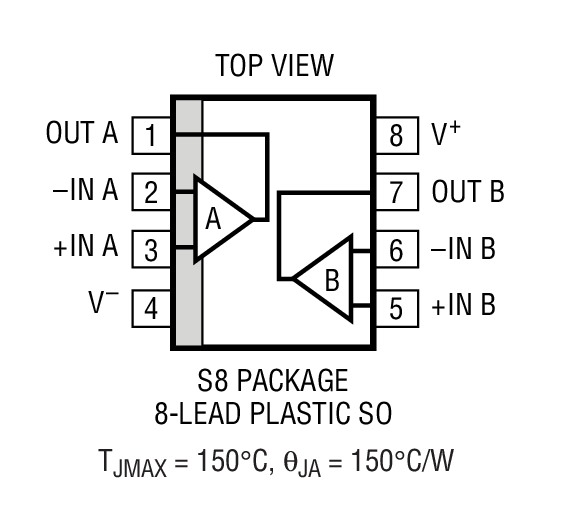

LT1215封装图解二
LT1215封装图解三

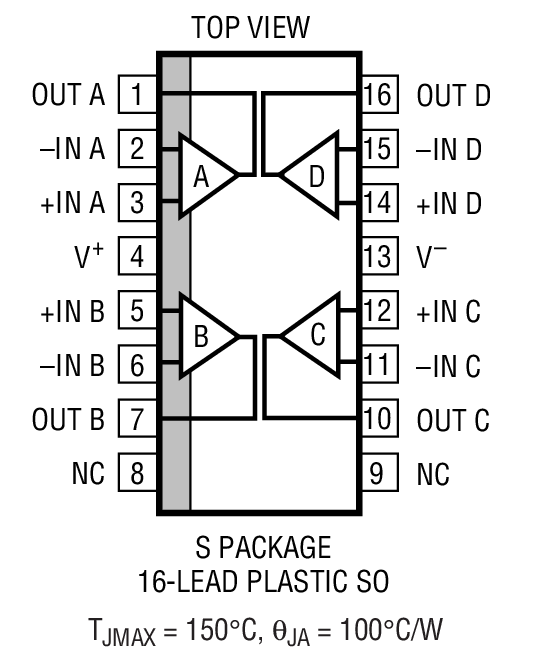

LT1215封装图解四
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1215介绍

LT1215 - LT1215是23MHz, 50V/μs, Single Supply Dual and QuadPrecision Op Amps

LT1215是LINEAR凌力尔特公司的一款精准放大器产品，LT1215是LT1215是23MHz, 50V/μs, Single Supply Dual and QuadPrecision Op Amps，本站介绍了LT1215的封装应用图解、特点和优点、功能等，并给出了与LT1215相关的LINEAR元器件型号供参考。

LT1215 - LT1215是23MHz, 50V/μs, Single Supply Dual and QuadPrecision Op Amps - 精准放大器 - 信号调理 - 凌力尔特

LT1215 - 23MHz, 50V/μs, Single Supply Dual and QuadPrecision Op Amps

LT1215 - 23MHz, 50V/μs, Single Supply Dual and QuadPrecision Op Amps - Linear Technology（凌力尔特）

功能描述

Most H (Metal Can), J (Ceramic), and K (Metal Can) Packages from Linear Technology Are Now Obsolete

Download complete datasheet for Details

The LT1215 is a dual, single supply precision op amp with a 23MHz gain-bandwidth product and a 50V/µs slew rate. The LT1216 is a quad version of the same amplifier. The DC precision of the LT1215/LT1216 eliminates trims in most systems while providing high frequency performance not usually found in single supply amplifiers.

The LT1215/LT1216 will operate on any supply greater than 2.5V and less than 36V total. These amplifiers are specified on single 3.3V, single 5V and ±15V supplies, and only require 5mA of quiescent supply current per amplifier. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The minimum output drive is 30mA, ideal for driving low impedance loads.

特点
  • Slew Rate: 50V/µs Typ
  • Gain-Bandwidth Product: 23MHz Typ
  • Fast Settling to 0.01%2V Step to 200µV: 250ns Typ10V Step to 1mV: 480ns Typ
  • Excellent DC Precision in All PackagesInput Offset Voltage: 450µV MaxInput Offset Voltage Drift: 10µV/°C
  • Single Supply OperationInput Voltage Range Includes GroundOutput Swings to Ground While Sinking Current
  • Low Input Noise Voltage: 12.5nV/rtHz Typ
  • Low Input Noise Current: 0.5pA/rtHz Typ
  • Specified on 3.3V, 5V and ±15V
  • Large Output Drive Current: 30mA Min
  • Low Supply Current per Amplifier: 6.6mA Max
  • Dual in 8-Pin DIP and SO-8
  • Quad in 14-Pin DIP and NARROW SO-16
    • 应用
  • 2.5V Full-Scale 12-Bit Systems:VOS ­ </=0.75 LSB
  • 10V Full-Scale 16-Bit Systems:VOS ­ </=3 LSB
  • Active Filters
  • Photo Diode Amplifiers
  • DAC Current to Voltage Amplifiers
  • Battery-Powered Systems
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1215ACN8 N-8 C $6.58 $5.35
    LT1215ACN8#PBF N-8 C $6.58 $5.35
    LT1215CN8 N-8 C $3.25 $2.85
    LT1215CN8#PBF N-8 C $3.25 $2.85
    LT1215CS8 SO-8 C $3.45 $3.02
    LT1215CS8#PBF SO-8 C $3.45 $3.02
    LT1215CS8#TR SO-8 C $3.07
    LT1215CS8#TRPBF SO-8 C $3.07
