LT1209是Quad 45MHz, 400V/μs Op Amps

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LT1209

LT1209技术文档下载：

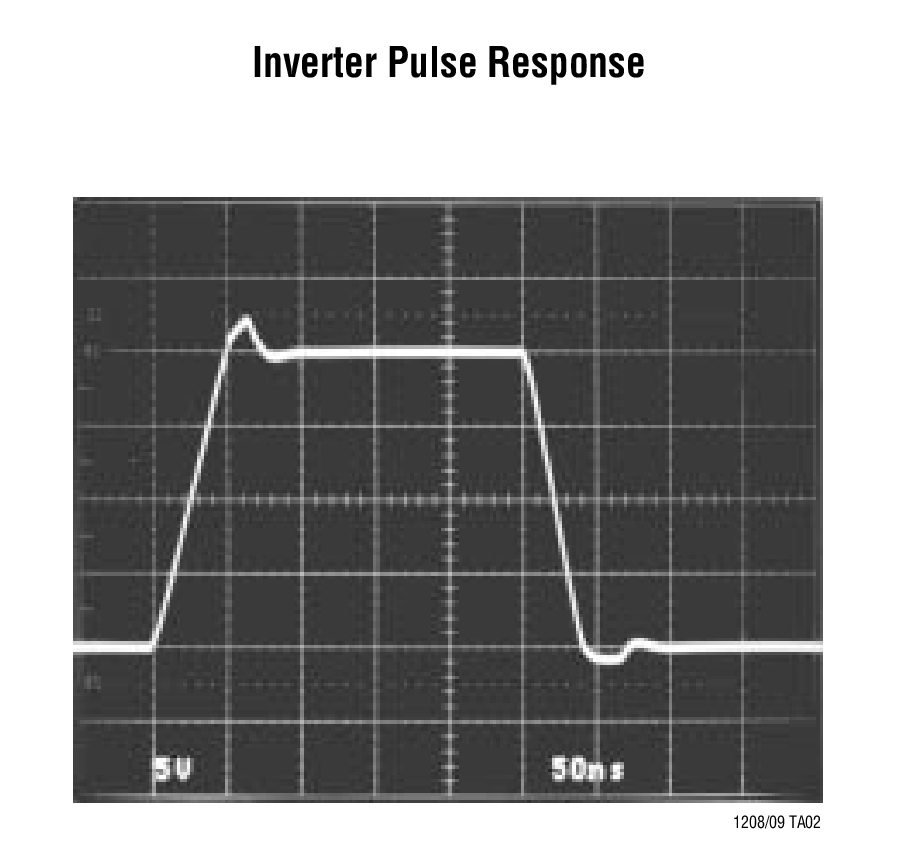

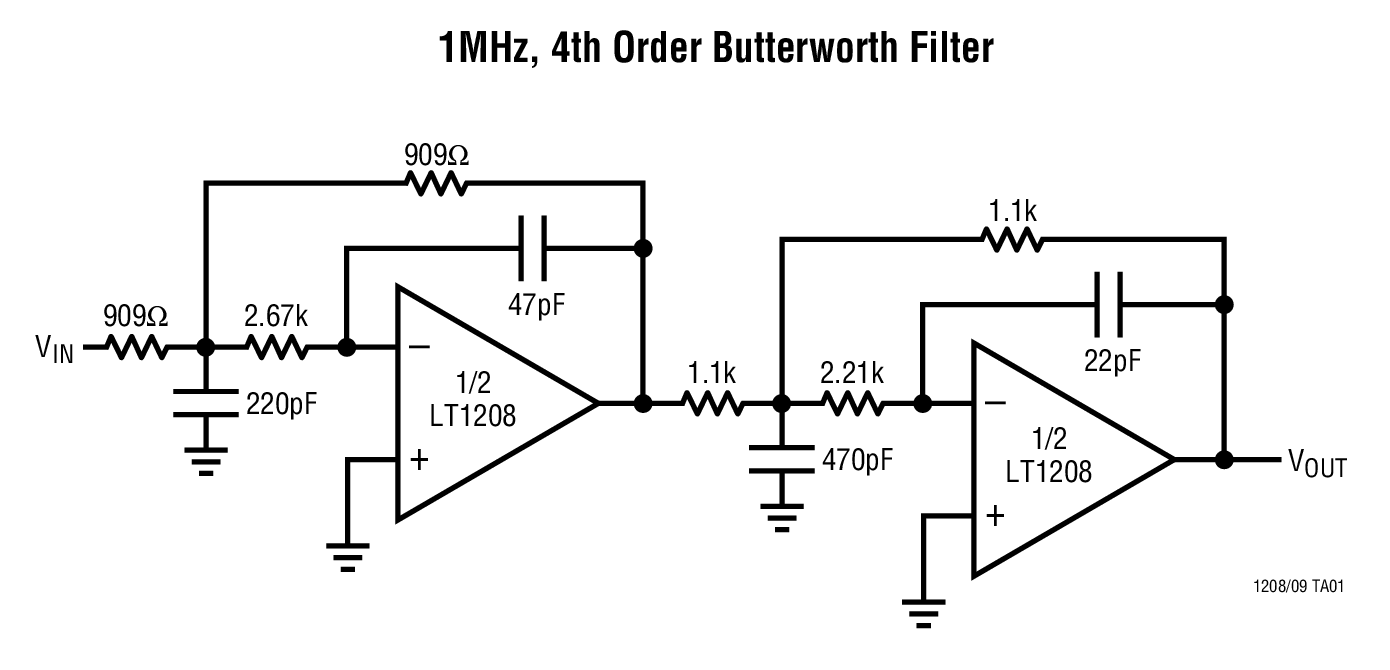

LT1209 - 典型应用图例：

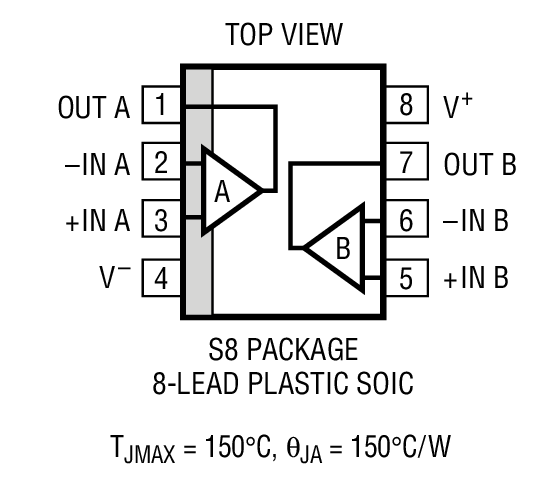

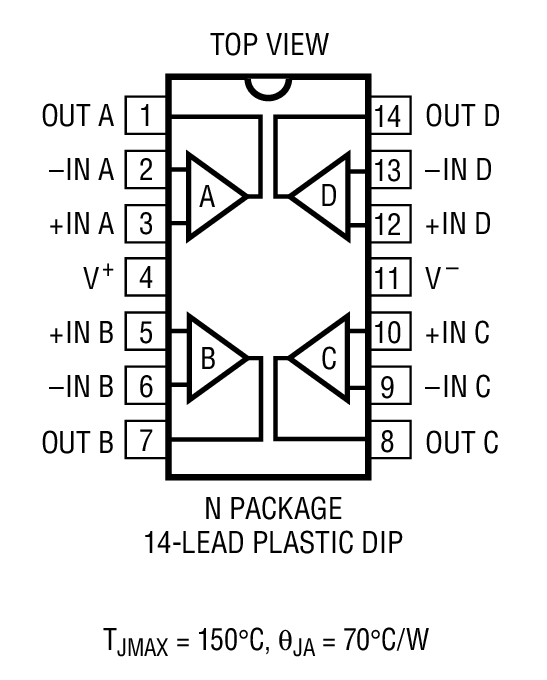

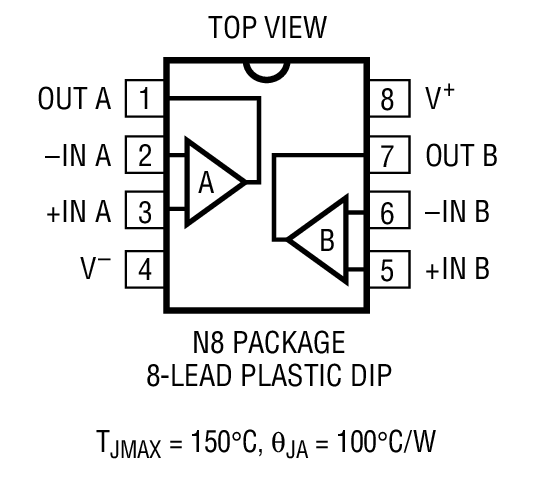

LT1209 - 封装图解：

LT1209 - LT1209是Quad 45MHz, 400V/μs Op Amps

LT1209是Linear公司的一款高速放大器产品，LT1209是Quad 45MHz, 400V/μs Op Amps，本站介绍了LT1209的封装应用图解、特点和优点、功能等，并给出了与LT1209相关的凌力尔特元器件型号供参考。

LT1209 - Quad 45MHz, 400V/μs Op Amps

LT1209 - Quad 45MHz, 400V/μs Op Amps - Linear Technology（凌力尔特）

功能描述

The LT1208/LT1209 are dual and quad very high speed operational amplifiers with excellent DC performance.The LT1208/LT1209 feature reduced input offset voltage and higher DC gain than devices with comparable bandwidth and slew rate. Each amplifier is a single gain stage with outstanding settling characteristics. The fast settling time makes the circuit an ideal choice for data acquisition systems. Each output is capable of driving a 500 ohms load to ±12V with ±15V supplies and a 150 ohms load to ±3V on ±5V supplies. The amplifiers are also capable of driving large capacitive loads which make them useful in buffer or cable driver applications.The LT1208/LT1209 are members of a family of fast, high performance amplifiers that employ Linear Technology Corporation’s advanced bipolar complementary processing.

特点

45MHz Gain-Bandwidth

400V/µs Slew Rate

Unity-Gain Stable

7V/mV DC Gain, RL = 500 ohms

3mV Maximum Input Offset Voltage

±12V Minimum Output Swing into 500 ohms

Wide Supply Range: ±2.5V to ±15V

7mA Supply Current per Amplifier

90ns Settling Time to 0.1%, 10V Step

Drives All Capacitive Loads
