LT1192 - Ultra High Speed Operational Amplifier

LT1192 - Ultra High Speed Operational Amplifier - Linear Technology（凌力尔特）

功能描述

Most H (Metal Can), J (Ceramic), and K (Metal Can) Packages from Linear Technology Are Now Obsolete

Download complete datasheet for Details

The LT1192 is a video operational amplifier optimized for operation on ±5V and a single 5V supply. Unlike many high speed amplifiers, this amplifier features high open-loop gain, over 100dB, and the ability to drive heavy loads to a full-power bandwidth of 20MHz at 7VP-P. In addition to its very fast slew rate, the LT1192 has a high gain bandwidth of 350MHz and is compensated for a closed-loop gain of 5 or greater.

Because the LT1192 is a true operational amplifier, it is an ideal choice for wideband signal conditioning, active filters, and applications requiring speed, accuracy and low cost.

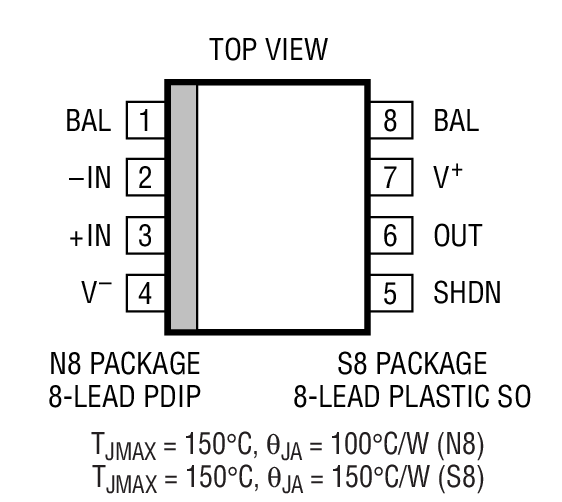

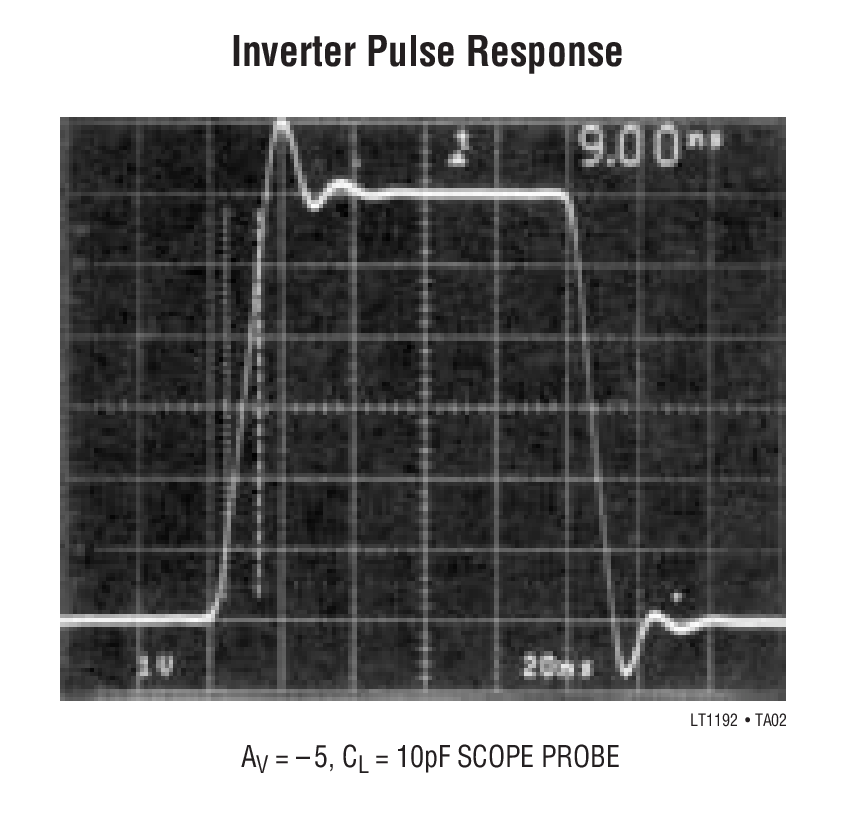

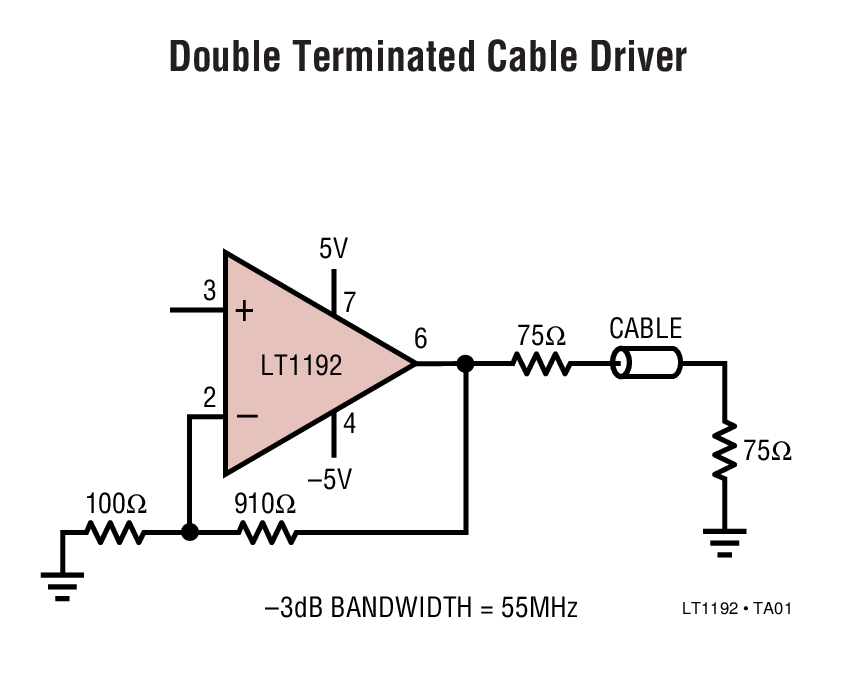

The LT1192 is available in 8-pin PDIP and SO packages with standard pinouts. The normally unused Pin 5 is used for a shutdown feature that shuts off the output and reduces power dissipation to a mere 15mW.

特点

Gain Bandwidth Product, AV=+5 350MHz

Slew Rate 450V/µs

Low Cost

Output Current ±50mA

Settling Time 90ns to 0.1%

Differential Gain Error 0.1% (RL = 1k ohms )

Differential Phase Error 0.01° (RL = 1k ohms )

High Open Loop Gain 125V/mV Min

Single Supply +5V Operation

Output Shutdown
