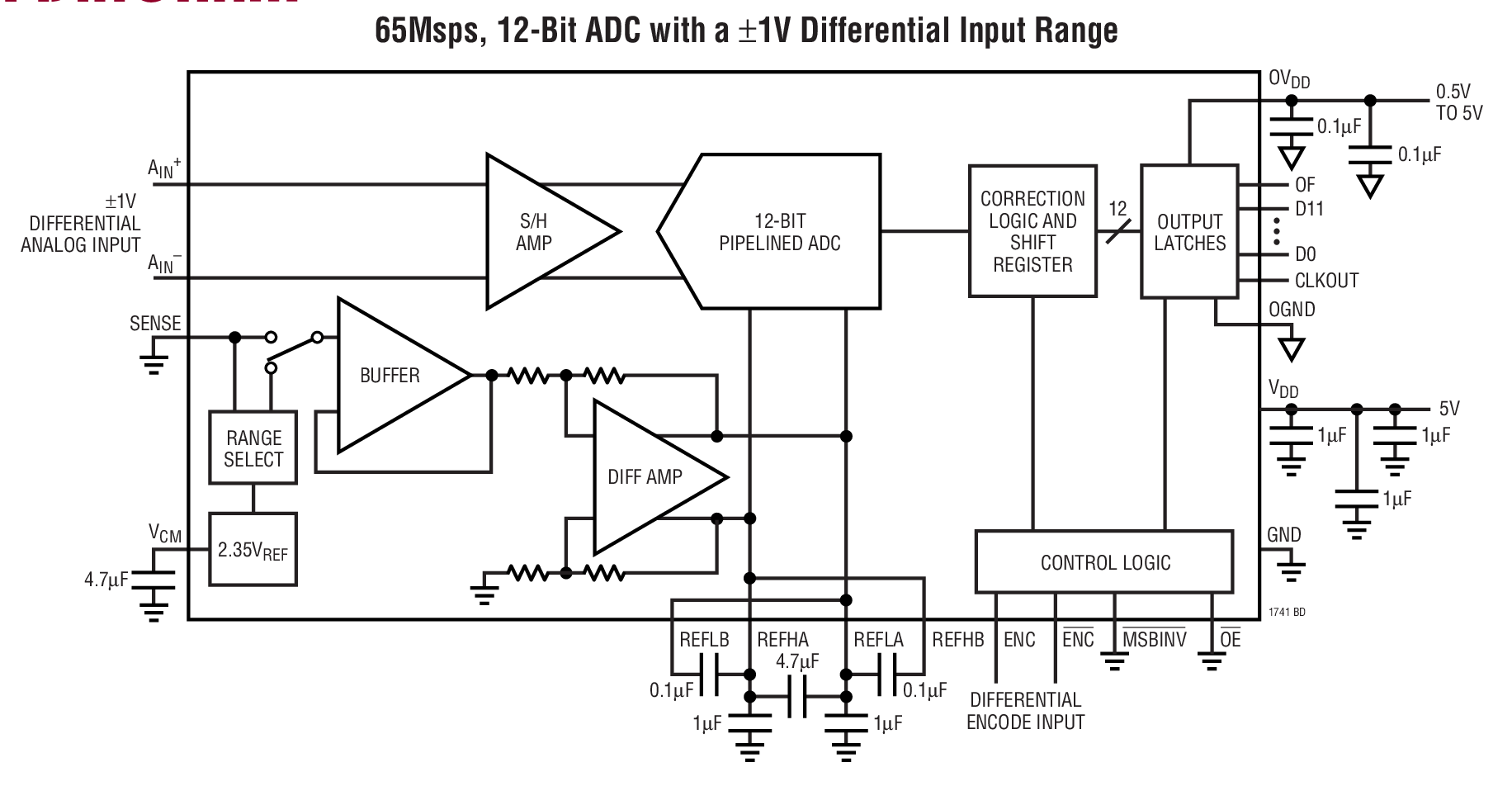

LTC1741 - 典型应用图例：
LTC1741典型应用图例一

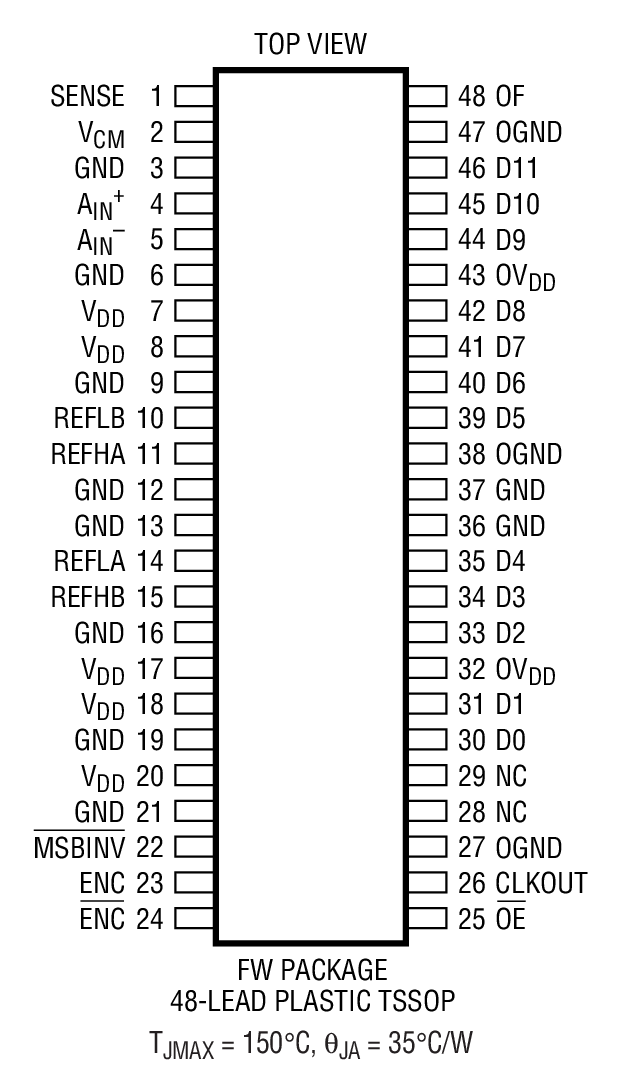

LTC1741 - 封装图解：
LTC1741封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1741介绍

LTC1741 - LTC1741是12-Bit, 65Msps Low Noise ADC

LTC1741是LINEAR凌力尔特公司的一款高速 ADC产品，LTC1741是LTC1741是12-Bit, 65Msps Low Noise ADC，本站介绍了LTC1741的封装应用图解、特点和优点、功能等，并给出了与LTC1741相关的LINEAR元器件型号供参考。

LTC1741 - LTC1741是12-Bit, 65Msps Low Noise ADC - 高速 ADC - 数据转换 - 凌力尔特

LTC1741 - 12-Bit, 65Msps Low Noise ADC

LTC1741 - 12-Bit, 65Msps Low Noise ADC - Linear Technology（凌力尔特）

功能描述

The LTC1741 is an 65Msps, sampling 12-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. Pin selectable input ranges of ±1V and ±1.6V along with a resistor programmable mode allow the LTC1741’s input range to be optimized for a wide variety of applications.

The LTC1741 is perfect for demanding communications applications with AC performance that includes 72dB SNR and 85dB spurious free dynamic range. Ultralow jitter of 0.15psRMS allows undersampling of IF frequencies of up to 70MHz with excellent noise performance. DC specs include ±1 LSB INL and ±0.8LSB DNL over temperature.

The digital interface is compatible with 5V, 3V, 2V and LVDS logic systems. The ENC and ENC inputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gain ENC and ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate output power supply can be operated from 0.5V to 5V, making it easy to connect directly to any low voltage DSPs or FIFOs.

The TSSOP package with a flow-through pinout simplifies the board layout.

特点
  • Sample Rate: 65Msps
  • 72dB SNR and 85dB SFDR (3.2V Range)
  • 70.5dB SNR and 87dB SFDR (2V Range)
  • No Missing Codes
  • Single 5V Supply
  • Power Dissipation: 1.275W
  • Selectable Input Ranges: ±1V or ±1.6V
  • 240MHz Full Power Bandwidth S/H
  • Pin Compatible Family25Msps: LTC1746 (14-Bit), LTC1745(12-Bit)50Msps: LTC1744 (14-Bit), LTC1743(12-Bit)65Msps: LTC1742 (14-Bit), LTC1741(12-Bit)80Msps: LTC1748 (14-Bit), LTC1747(12-Bit)
  • 48-Pin TSSOP Package
    • 应用
  • Telecommunications
  • Receivers
  • Cellular Base Stations
  • Spectrum Analysis
  • Imaging Systems
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1741CFW TSSOP-48 C $16.70 $12.75
    LTC1741CFW#PBF TSSOP-48 C $16.70 $12.75
    LTC1741CFW#TR TSSOP-48 C $12.85
    LTC1741CFW#TRPBF TSSOP-48 C $12.85
    LTC1741IFW TSSOP-48 I $19.60 $15.00
    LTC1741IFW#PBF TSSOP-48 I $19.60 $15.00
    LTC1741IFW#TR TSSOP-48 I $15.10
    LTC1741IFW#TRPBF TSSOP-48 I $15.10
