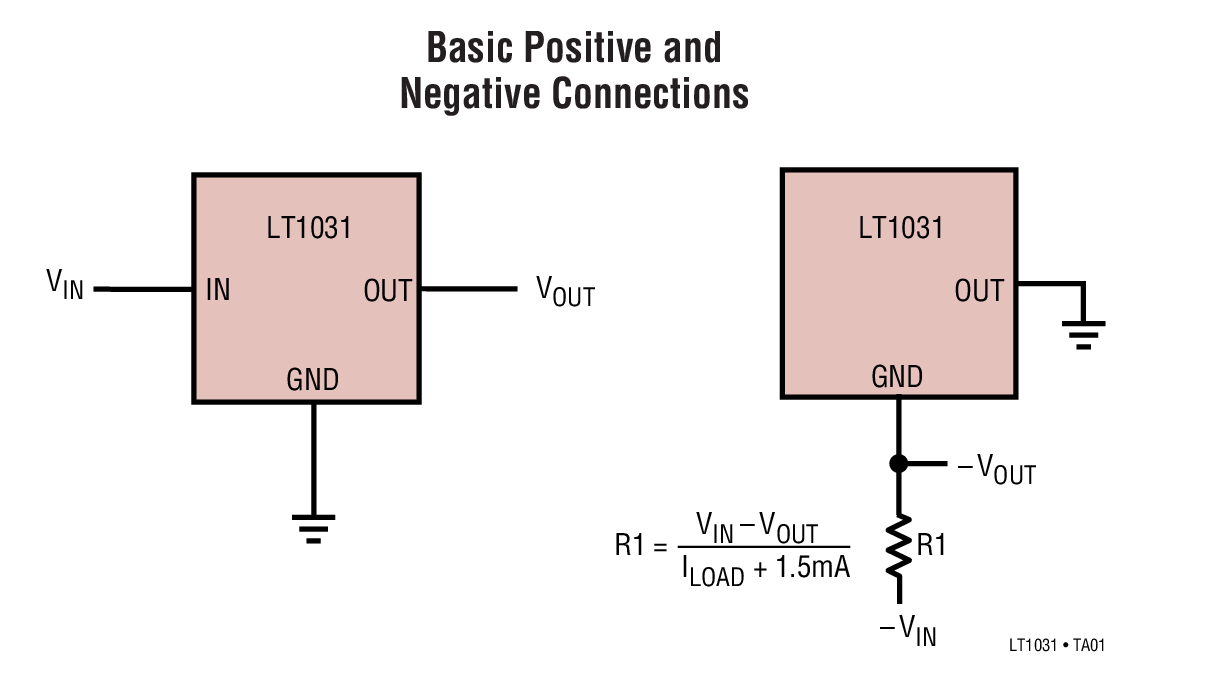

5962-8688203XA典型应用图例一

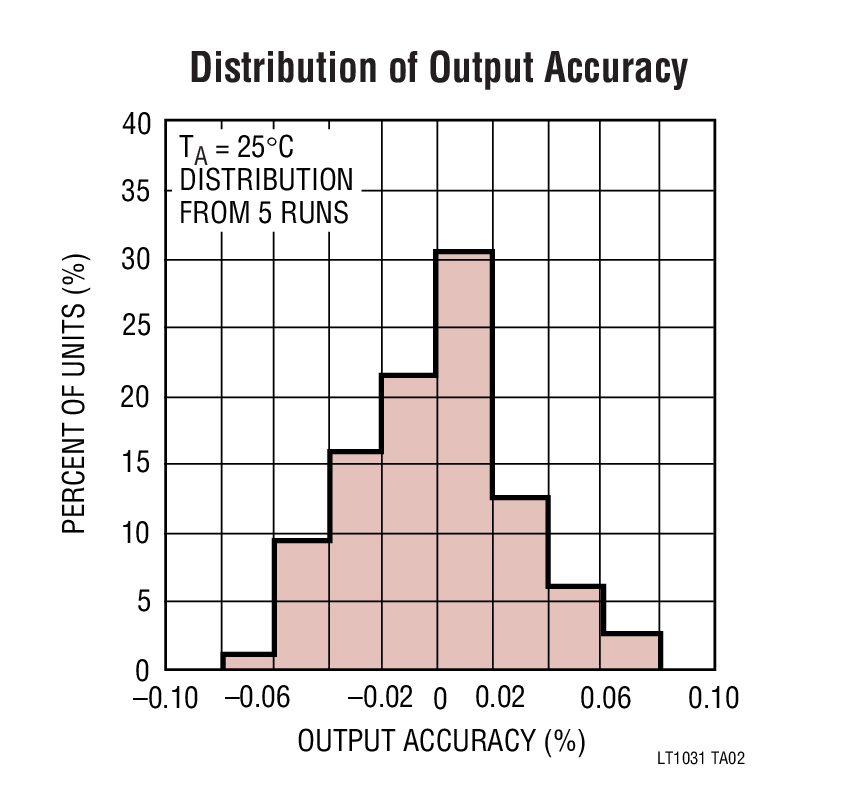

5962-8688203XA典型应用图例二
5962-8688203XA - 封装图解:

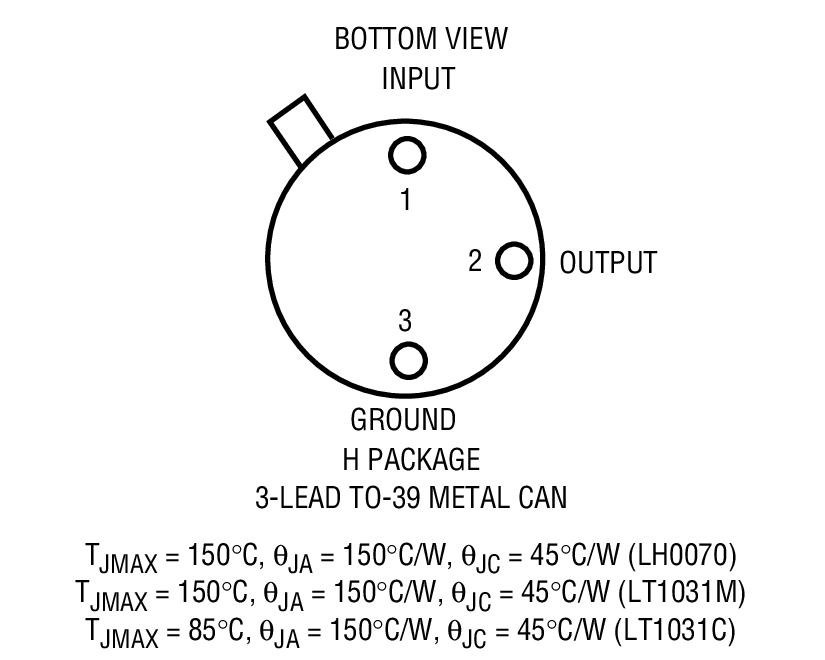

5962-8688203XA封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - 5962-8688203XA介绍
5962-8688203XA - 5962-8688203XA是Precision 10V Reference

5962-8688203XA是Linear公司的一款军用密封产品 (M)产品,5962-8688203XA是Precision 10V Reference,本站介绍了5962-8688203XA的封装应用图解、特点和优点、功能等,并给出了与5962-8688203XA相关的凌力尔特元器件型号供参考。

5962-8688203XA - Precision 10V Reference

LH0070 - Precision 10V Reference - Linear Technology(凌力尔特)

功能描述
The LT1031 is a precision 10V reference with ultralow drift and noise, extremely good long term stability, and almost total immunity to input voltage variations. The reference output will both source and sink up to 10mA and can be used as a shunt regulator (two terminal Zener) with the same precision characteristics as the three terminal connection. Special care has been taken to minimize thermal regulation effects and temperature induced hysteresis.

The LT1031 reference is based on a buried Zener diode structure which eliminates noise and stability problems associated with surface breakdown devices. Further, a subsurface Zener exhibits better temperature drift and time stability than even the best band-gap references.

Unique circuit design makes the LT1031 the first three terminal IC reference to offer ultralow drift without the use of high power on-chip heaters. Output voltage is pretrimmed to 0.05% accuracy.

The LT1031 can be used as a plug-in replacement for the AD581 and LH0070*, with improved electrical and thermal performance.

特点
  • Pin Compatible with LH0070 and AD581*
  • Ultralow Drift—5ppm/°C Max Slope
  • Trimmed Output Voltage
  • Operates in Series or Shunt Mode
  • Output Sinks and Sources in Series Mode
  • Very Low Noise < 1ppmP-P 0.1Hz to 10Hz
  • > 100dB Ripple Rejection
  • Minimum Input Voltage of 11V
  • 应用
  • A-to-D and D-to-A Converters
  • Precision Regulators
  • Digital Voltmeters
  • lnertial Navigation Systems
  • Precision Scales
  • Portable Reference Standard
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LH0070-0H C $6.50 $5.35
    LH0070-1H M $8.35 $6.85
    LH0070-2H M $10.65 $8.75
    LH0070-2H/883 M
