    当前位置：Linear公司 > > 凌力尔特芯片 >> LTP5900-WHM
    LTP5900-WHM技术文档下载：
    LTP5900-WHM技术文档产品手册下载
    LTP5900-WHM - 典型应用图例：

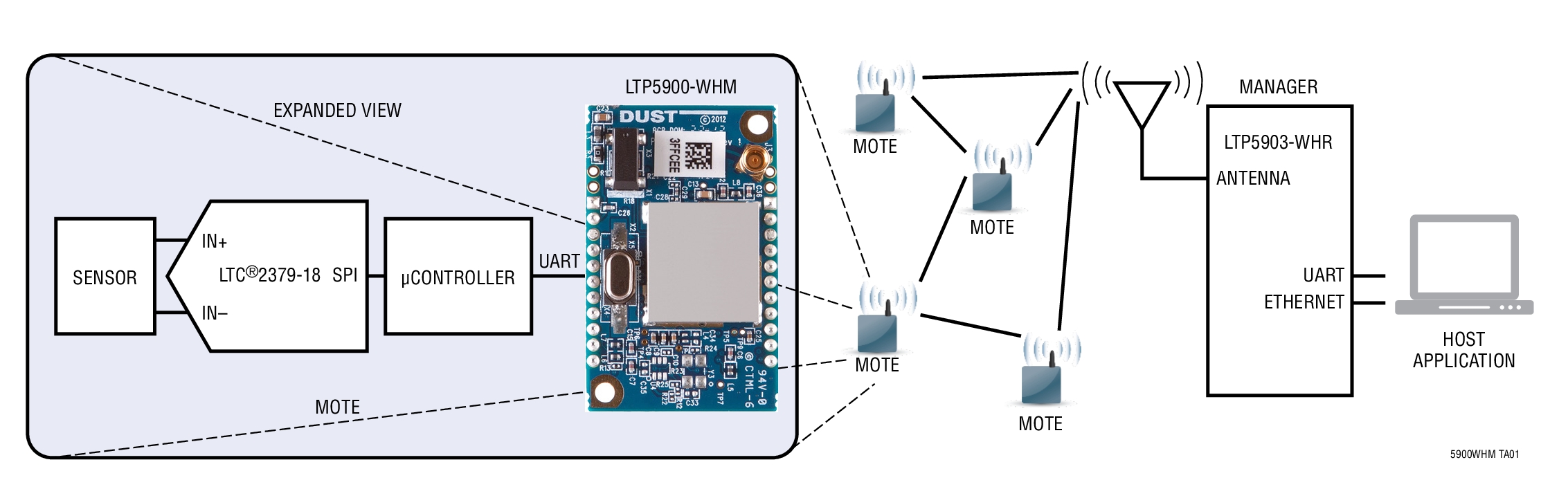

    LTP5900-WHM典型应用图例一
    LTP5900-WHM - 封装图解：

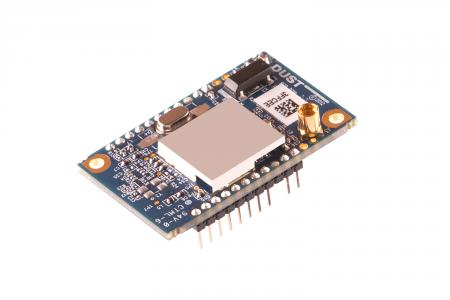

    LTP5900-WHM封装图解一
    承诺原装正品
    专营Linear，真正优化您的供应链
    Linear产品 - LTP5900-WHM介绍
    LTP5900-WHM - LTP5900-WHM是SmartMesh IP Mote Modules (PCBAs)

    LTP5900-WHM是Linear公司的一款SmartMesh WirelessHART产品，LTP5900-WHM是SmartMesh IP Mote Modules (PCBAs)，本站介绍了LTP5900-WHM的封装应用图解、特点和优点、功能等，并给出了与LTP5900-WHM相关的凌力尔特元器件型号供参考。

    LTP5900-WHM - SmartMesh IP Mote Modules (PCBAs)

    LTP5900-WHM - SmartMesh IP Mote Modules (PCBAs) - Linear Technology（凌力尔特）

    功能描述

    SmartMesh WirelessHART wireless sensor networks are self managing, low power networks built from wireless nodes called motes. The LTP5900™-WHM is the 22-pin SmartMesh WirelessHART mote product in the Eterna family of IEEE 802.15.4 printed circuit board assembly solutions, featuring a highly-integrated, low power radio design by Dust Networks as well as an ARM Cortex-M3 32-bit microprocessor running Dust’s embedded SmartMesh WirelessHART networking software.

    The LTP5900-WHM provides a forward compatible solution for customers using Dust Networks M2510 PCB module. Also available are theLTP5901-WHMmodule with chip antenna and the LTP5902-WHM module with MMCX antenna connector.

    With Dust’s time-synchronized WirelessHART networks, all motes in the network may route, source or terminate data, while providing many years of battery powered operation. The SmartMesh WirelessHART software provided with the LTP5900-WHM is fully tested and validated, and is readily configured via a software Application Programming Interface (API).

    Network Features

    Feature

    Benefit

    Time Synchronized, Channel Hopping Communications

    >99.999% network reliability in even the most challenging RF environments

    Sub 50 µA Routers

    Can build out a network without any line powered devices. Flexibility to be line powered or energy harvested if desired.

    Secure Mesh with 128-bit AES Encryption

    NIST Certified Security. Compromise of one node does not compromise network.

    Standards-based

    Compliant to international standard IEC 62591 (WirelessHART)

    Highly Accurate Time Stamping

    Time stamping on every node is available to applications with millisecond accuracy

    Device Features

    Feature

    Benefit

    Industry-Leading Low Power Radio Technology

    • 4.5mA to Receive a Packet
    • 5.4mA to Transmit at 0dBm
    • 9.7mA to Transmit at 8dBm

    Pre-engineered RF

    RF elements include an on-chip power amplifier and are pre-tuned for optimized performance, including temperature compensation, saving development time.

    RF Modular Certifications

    Pre-certified in USA, Canada, and EU

    Energy Harvesting Support

    Very low power design enables motes to be powered by a wide variety of energy harvesters

    特点
  • Serves as a Wireless Node, or Mote, in a SmartMesh WirelessHART network with:
