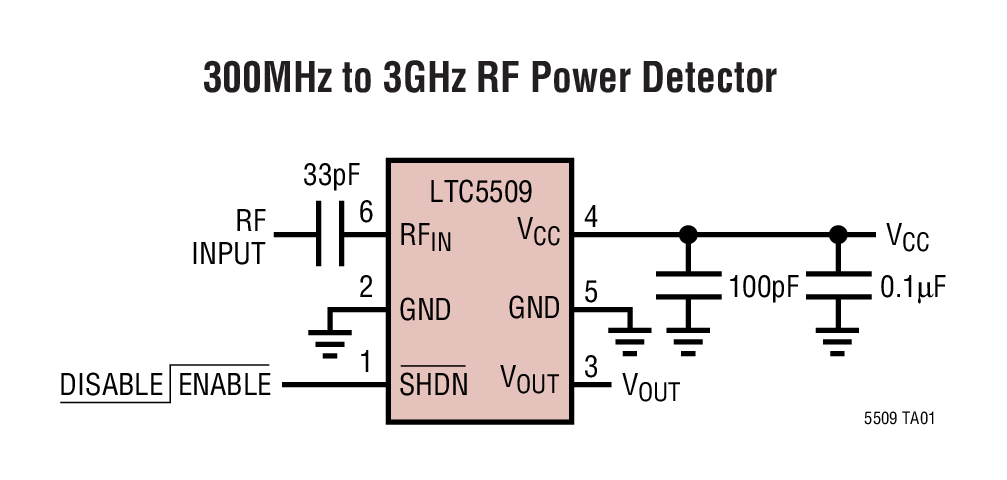

LTC5509是Linear公司的一款RF 肖特基峰值检波器产品，LTC5509是300MHz to 3GHz RF Power Detector in SC70 Package，本站介绍了LTC5509的封装应用图解、特点和优点、功能等，并给出了与LTC5509相关的凌力尔特元器件型号供参考。
LTC5509 - 300MHz to 3GHz RF Power Detector in SC70 Package
LTC5509 - 300MHz to 3GHz RF Power Detector in SC70 Package - Linear Technology（凌力尔特）
The LTC?5509 is an RF power detector for RF applicationsoperating in the 300MHz to 3GHz range. A temperaturecompensated Schottky diode peak detector and bufferamplifier are combined in a small SC70 package. Thesupply voltage range is optimized for operation from asingle lithium-ion cell or 3xNiMH.
The RF input voltage is peak detected using an on-chipSchottky diode. The detected voltage is buffered andsupplied to the VOUT pin without gain compression. Consequently,the output voltage is linearly proportional to theRF input voltage. A power saving shutdown mode reducessupply current to less than 2μA.

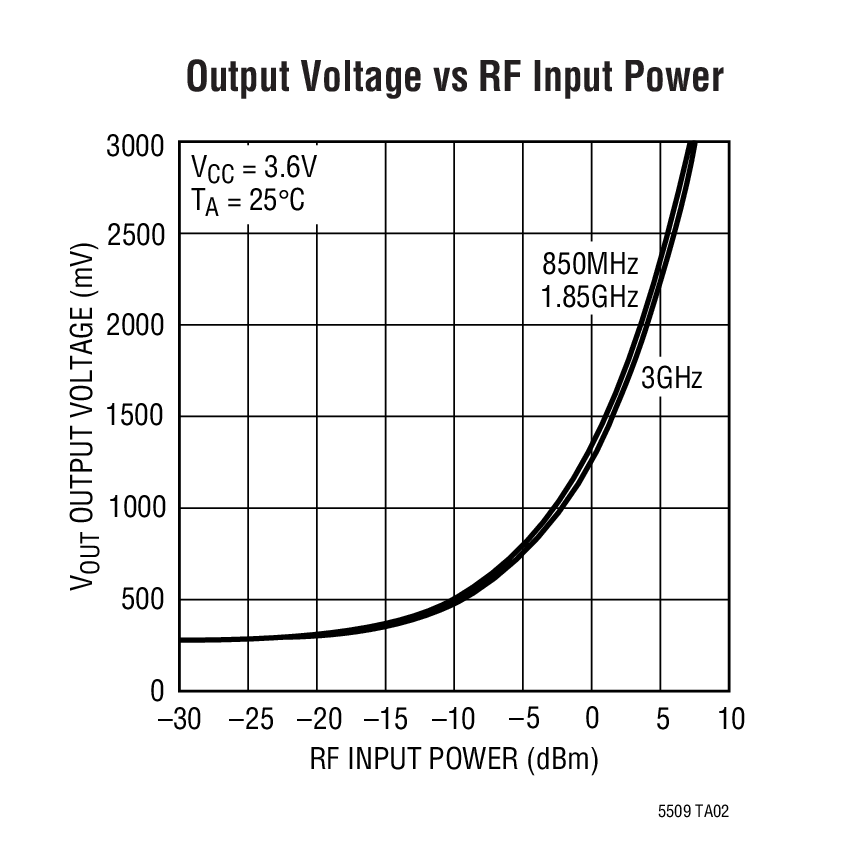

The LTC5509 operates with input power levels from?30dBm to 6dBm.

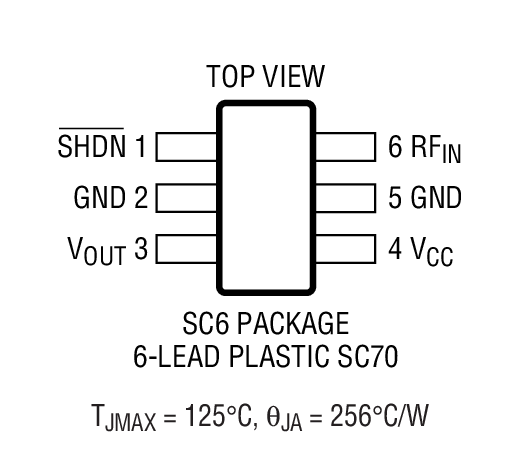

| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LTC5509ESC6 | SC-70 | E | $2.00 | |
| LTC5509ESC6#PBF | SC-70 | E | $2.00 | |
| LTC5509ESC6#TR | SC-70 | E | $2.00 | $1.41 |
| LTC5509ESC6#TRM | SC-70 | E | $2.00 | $1.43 |
| LTC5509ESC6#TRMPBF | SC-70 | E | $2.00 | $1.43 |
| LTC5509ESC6#TRPBF | SC-70 | E | $2.00 | $1.41 |
