当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC2907

LTC2907技术文档下载：

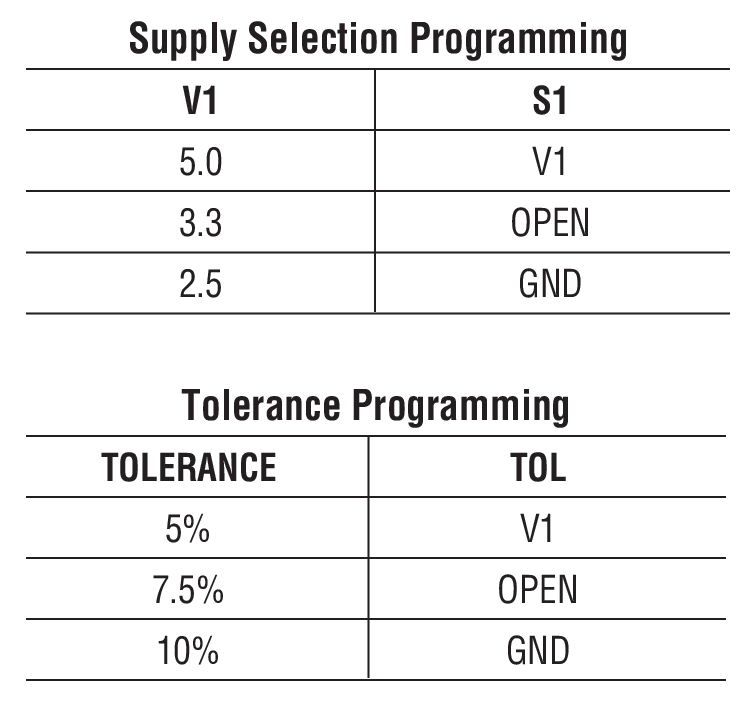

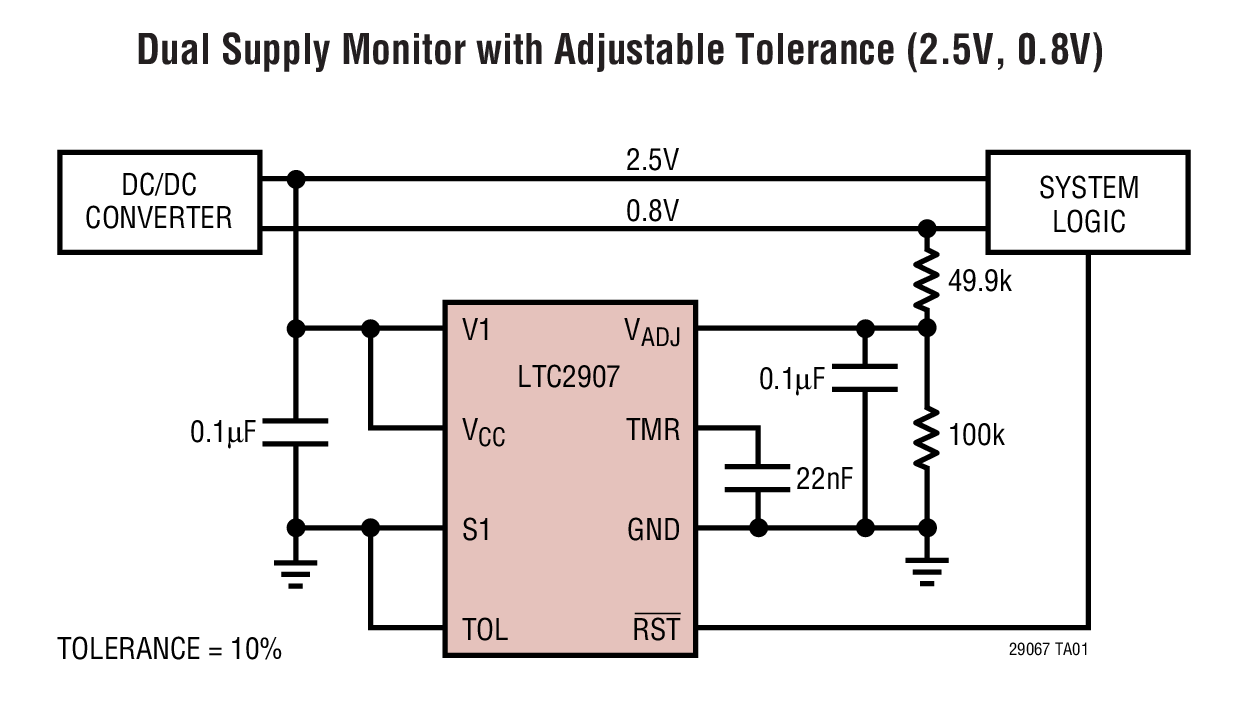

LTC2907 - 典型应用图例：

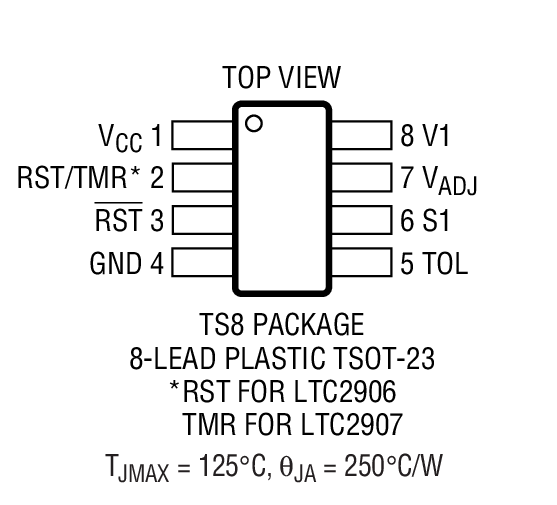

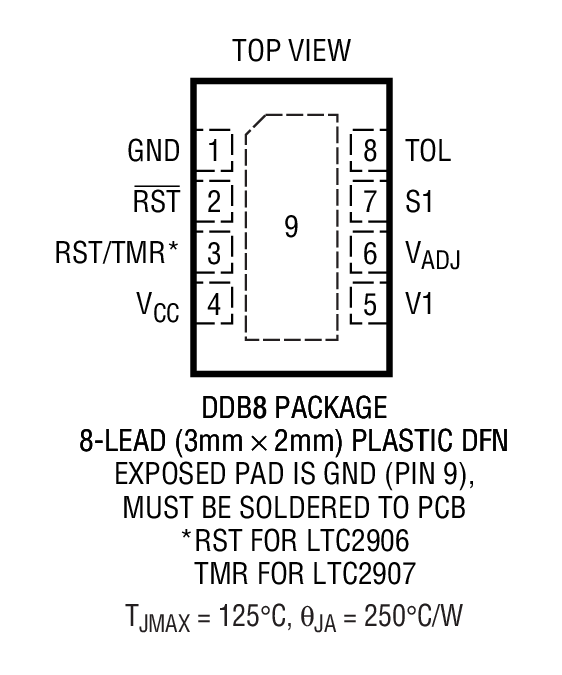

LTC2907 - 封装图解：

LINEAR凌力尔特芯片：

LTC2907 - LTC2907是Precision Dual Supply Monitors with One Pin-Selectable Threshold and One Adjustable Input

LTC2907是LINEAR凌力尔特公司的一款双电源监视器产品，LTC2907是LTC2907是Precision Dual Supply Monitors with One Pin-Selectable Threshold and One Adjustable Input，本站介绍了LTC2907的封装应用图解、特点和优点、功能等，并给出了与LTC2907相关的LINEAR元器件型号供参考。

LTC2907 - LTC2907是Precision Dual Supply Monitors with One Pin-Selectable Threshold and One Adjustable Input - 双电源监视器 - 监视、控制和保护 - 凌力尔特

LTC2907 - Precision Dual Supply Monitors with One Pin-Selectable Threshold and One Adjustable Input

LTC2907 - Precision Dual Supply Monitors with One Pin-Selectable Threshold and One Adjustable Input - Linear Technology（凌力尔特）

功能描述

The LTC2906/LTC2907 are dual supply monitors intended for systems with multiple supply voltages. The dual supply monitors have a common reset output with delay (200ms for the LTC2906 and adjustable using an external capacitor for the LTC2907). These products provide a precise, space-conscious and micropower solution for supply monitoring.

The LTC2906/LTC2907 feature a tight 1.5% threshold accuracy over the whole operating temperature range and glitch immunity to ensure reliable reset operation without false triggering. The open drain RST output state is guaranteed to be in the correct state for V1 and/or VCC down to 1V.

The LTC2906/LTC2907 also feature one adjustable input with a nominal threshold level at 0.5V, another input with three possible input threshold levels, and three supply tolerances for possible margining. These features provide versatility for any kind of system requiring dual supply monitors. Two three-state input pins program the threshold and tolerance level without requiring any external components.

特点

Monitors Two Inputs Simultaneously

Three Threshold Selections for 5V, 3.3V or 2.5V Supplies

Low Voltage Adjustable Input (0.5V)

Three Supply Tolerances (5%, 7.5%, 10%)

Guaranteed Threshold Accuracy: ±1.5% of Monitored Voltage Over Temperature

Internal VCC Auto Select

Power Supply Glitch Immunity

200ms Reset Time Delay (LTC2906 Only)

Adjustable Reset Time Delay (LTC2907 Only)

Open Drain RST Output

Guaranteed RST for V1 >= 1V or VCC >=1V

Low Profile (1mm) SOT-23 (ThinSOT™) and Plastic (3mm x 2mm) DFN Packages

应用

Desktop and Notebook Computers

Handheld Devices

Network Servers

Core, I/O Monitor

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC2907CDDB	3x2 DFN-8	C	$1.97
LTC2907CDDB#PBF	3x2 DFN-8	C	$1.97
LTC2907CDDB#TR	3x2 DFN-8	C	$1.97	$1.41
LTC2907CDDB#TRM	3x2 DFN-8	C	$1.97	$1.43
LTC2907CDDB#TRMPBF	3x2 DFN-8	C	$1.97	$1.43
LTC2907CDDB#TRPBF	3x2 DFN-8	C	$1.97	$1.41
LTC2907CTS8	SOT-23	C	$1.97
LTC2907CTS8#PBF	SOT-23	C	$1.97
LTC2907CTS8#TR	SOT-23	C	$1.97	$1.41
LTC2907CTS8#TRM	SOT-23	C	$1.97	$1.43
LTC2907CTS8#TRMPBF	SOT-23	C	$1.97	$1.43
LTC2907CTS8#TRPBF	SOT-23	C	$1.97	$1.41
LTC2907IDDB	3x2 DFN-8	I	$2.23
LTC2907IDDB#PBF	3x2 DFN-8	I	$2.23
LTC2907IDDB#TR	3x2 DFN-8	I	$2.23	$1.56
LTC2907IDDB#TRM	3x2 DFN-8	I	$2.23	$1.58
LTC2907IDDB#TRMPBF	3x2 DFN-8	I	$2.23	$1.58
LTC2907IDDB#TRPBF	3x2 DFN-8	I	$2.23	$1.56
LTC2907ITS8	SOT-23	I	$2.23
LTC2907ITS8#PBF	SOT-23	I	$2.23
LTC2907ITS8#TR	SOT-23	I	$2.23	$1.56
LTC2907ITS8#TRM	SOT-23	I	$2.23	$1.58
LTC2907ITS8#TRMPBF	SOT-23	I	$2.23	$1.58
LTC2907ITS8#TRPBF	SOT-23	I	$2.23	$1.56
