LTC202是Micropower, Low Charge Injection, Quad CMOS Analog Switches

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC202

LTC202技术文档下载：

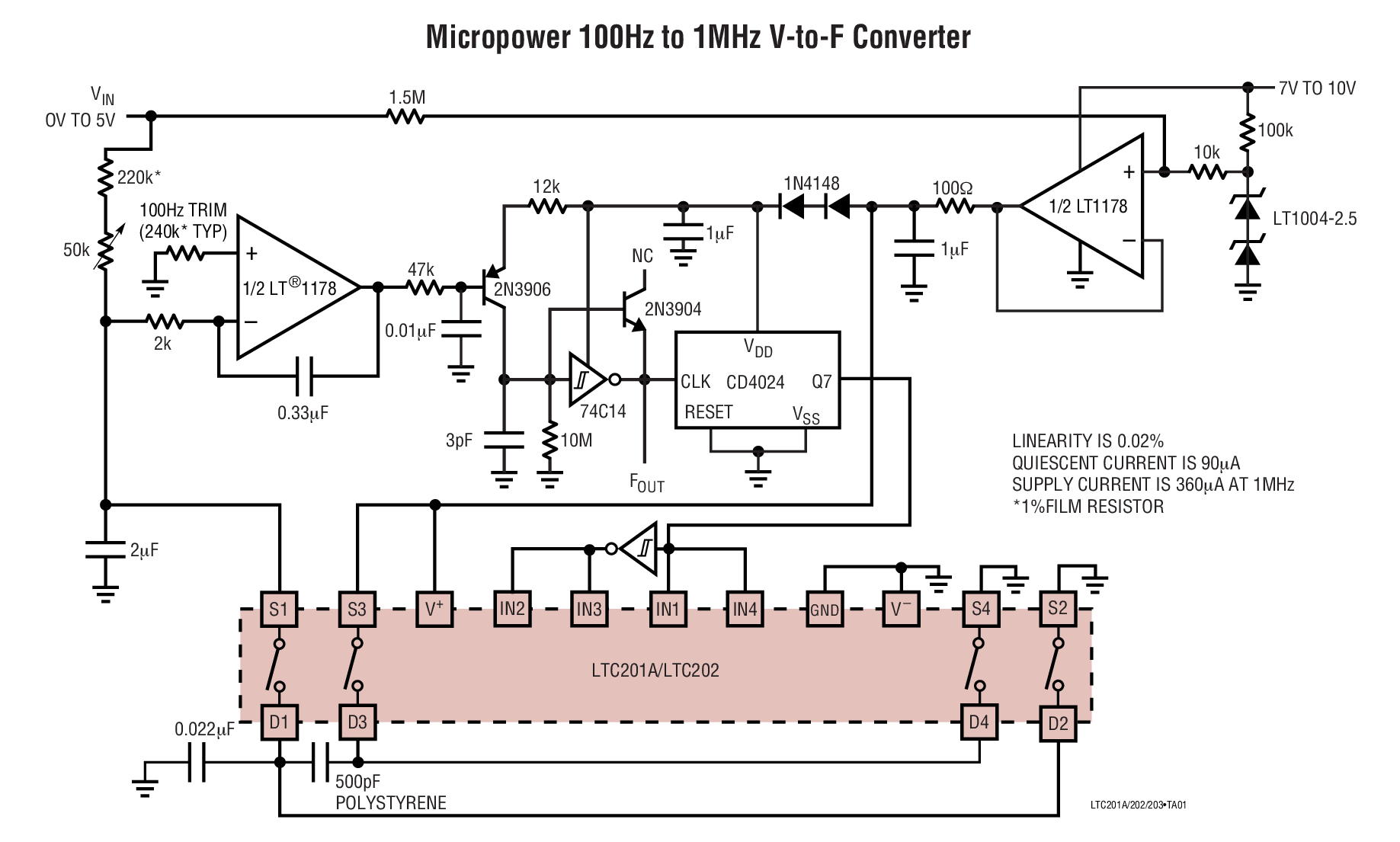

LTC202 - 典型应用图例：

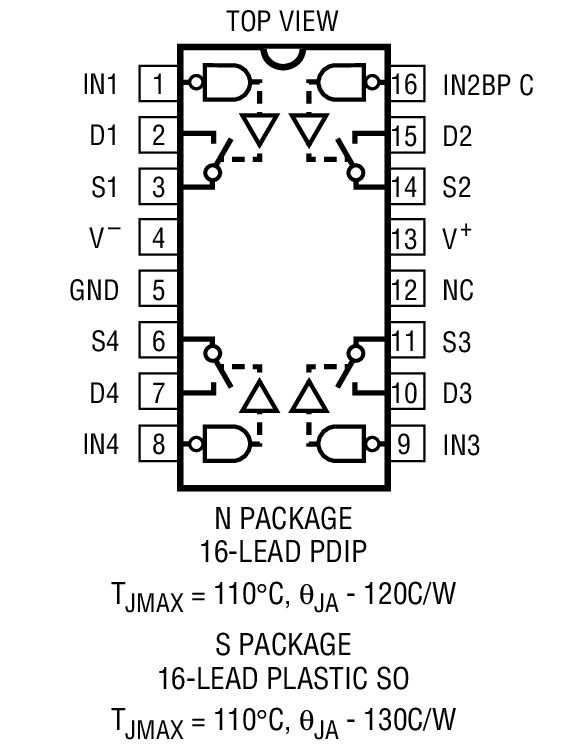

LTC202 - 封装图解：

LTC202 - LTC202是Micropower, Low Charge Injection, Quad CMOS Analog Switches

LTC202是Linear公司的一款开关和多工器产品，LTC202是Micropower, Low Charge Injection, Quad CMOS Analog Switches，本站介绍了LTC202的封装应用图解、特点和优点、功能等，并给出了与LTC202相关的凌力尔特元器件型号供参考。

LTC202 - Micropower, Low Charge Injection, Quad CMOS Analog Switches

LTC202 - Micropower, Low Charge Injection, Quad CMOS Analog Switches - Linear Technology（凌力尔特）

功能描述

The LTC?201A, LTC202, and LTC203 are micropower, quad CMOS analog switches which typically dissipate only 250μW from ±15V supplies and 40μW from a single 5V supply. The switches have 65 Ohm typical on resistance and a very high off resistance. A break-before-make characteristic, inherent in these switches, prevents the shorting of two channels. With a supply voltage of ±15V, the signal range is ±15V. These switches have special charge compensation circuitry which greatly reduces charge injection to a maximum of ?25pC (±15V supplies).

The LTC201A, LTC202, and LTC203 are designed for applications such as programmable gain amplifiers,analog multiplexers, sample-and-hold circuits, precision charge switching and remote switching. These threedevices are differentiated by the type of switch action, as shown in the logic table.

特点

Micropower Operation

Single 5V or ±15V Supply Operation

Low Charge Injection

Low RON

Low Leakage

Guaranteed Break Before Make

Latch Resistant Design

TTL/CMOS Compatible

Improved Second Source for DG201A/DG202

应用

Supply Current: 1+=40µA, 1-=5µA Max.
