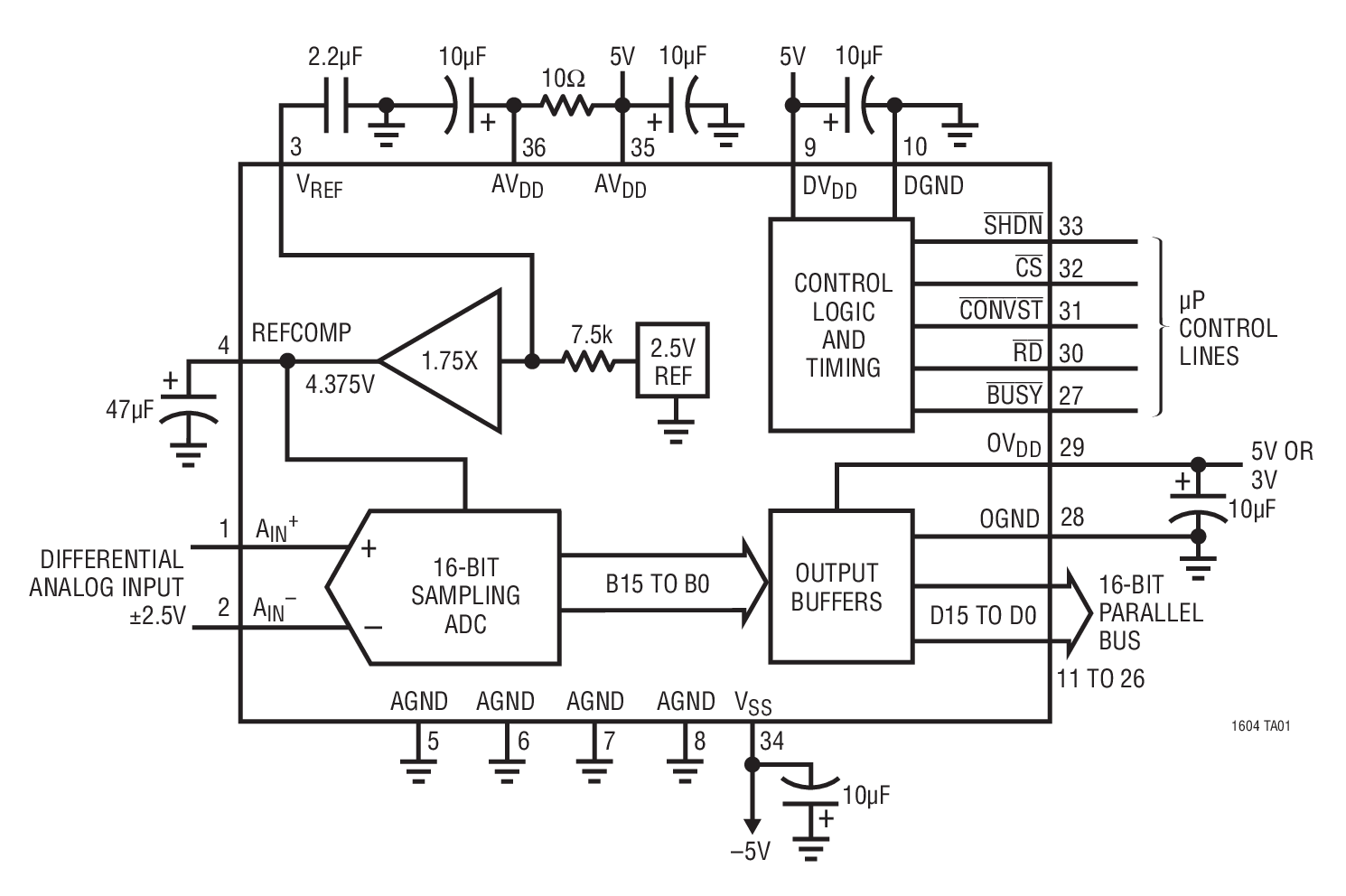

LTC1604典型应用图例一

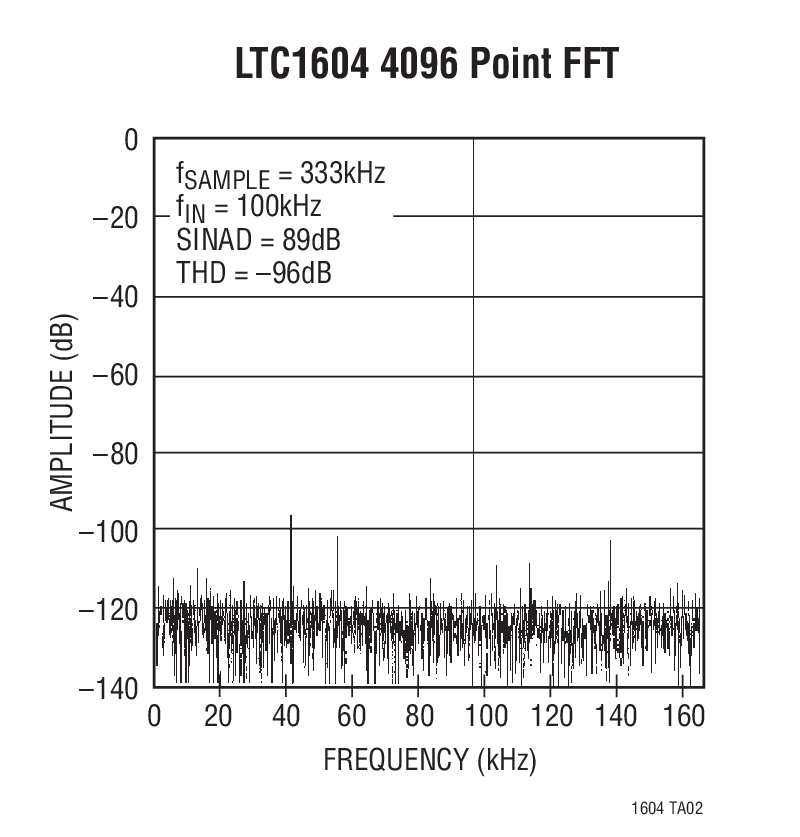

LTC1604典型应用图例二
LTC1604 - 封装图解:

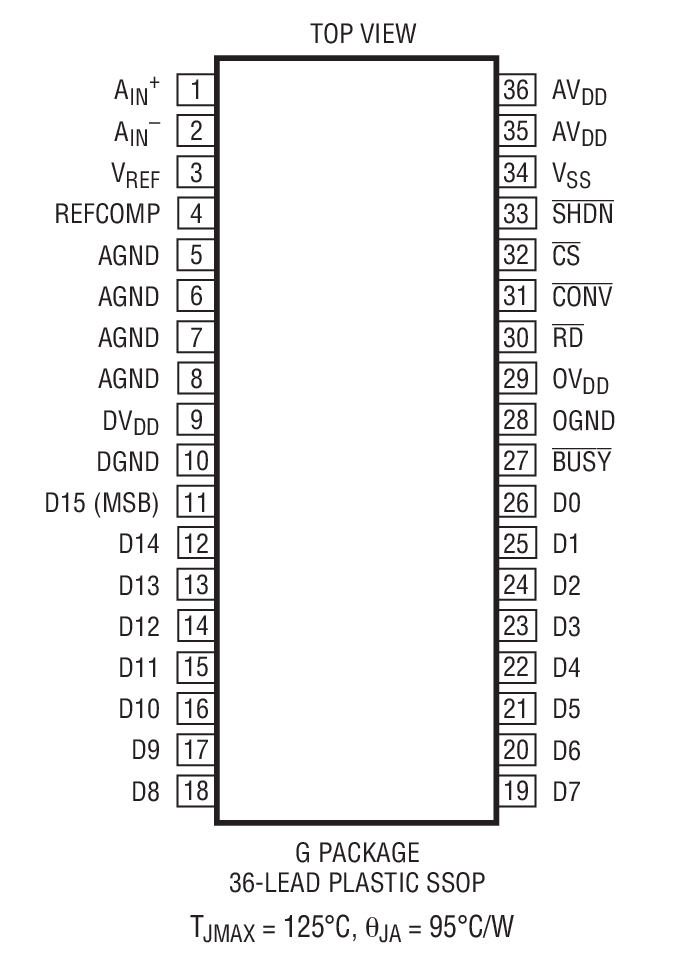

LTC1604封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC1604介绍
LTC1604 - LTC1604是High Speed, 16-Bit, 333ksps Sampling A/D Converter with Shutdown

LTC1604是Linear公司的一款通用型 SAR ADC产品,LTC1604是High Speed, 16-Bit, 333ksps Sampling A/D Converter with Shutdown,本站介绍了LTC1604的封装应用图解、特点和优点、功能等,并给出了与LTC1604相关的凌力尔特元器件型号供参考。

LTC1604 - High Speed, 16-Bit, 333ksps Sampling A/D Converter with Shutdown

LTC1604 - High Speed, 16-Bit, 333ksps Sampling A/D Converter with Shutdown - Linear Technology(凌力尔特)

功能描述

The LTC1604 is a 333ksps, 16-bit sampling A/D converter that draws only 220mW from ±5V supplies. This high performance device includes a high dynamic range sample-and-hold, a precision reference and a high speed parallel output. Two digitally selectable power shutdown modes provide power savings for low power systems. The LTC1604's full-scale input range is ±2.5V. Outstanding AC performance includes 90dB S/(N+D) and -100dB THD at a sample rate of 333ksps. The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 15MHz bandwidth. The 68dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source. The ADC has μP compatible,16-bit parallel output port. There is no pipeline delay in conversion results. A separate convert start input and a data ready signal (BUSY) ease connections to FlFOs, DSPs and microprocessors.

特点
  • A Complete, 333ksps 16-Bit ADC
  • 90dB S/(N+D) and -100dB THD (Typ)
  • Power Dissipation: 220mW (Typ)
  • No Pipeline Delay
  • No Missing Codes over Temperature
  • Nap (7mW) and Sleep (10μW) Shutdown Modes
  • Operates with Internal 15ppm/°C Reference or External Reference
  • True Differential Inputs Reject Common Mode Noise
  • 5MHz Full Power Bandwidth
  • ±2.5V Bipolar Input Range
  • 36-Pin SSOP Package
  • 应用
  • Telecommunications
  • Digital Signal Processing
  • Multiplexed Data Acquisition Systems
  • High Speed Data Acquisition
  • Spectrum Analysis
  • Imaging Systems
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1604ACG SSOP-24 C $31.33 $27.00
    LTC1604ACG#PBF SSOP-24 C $31.33 $27.00
    LTC1604ACG#TR SSOP-24 C $27.10
    LTC1604ACG#TRPBF SSOP-24 C $27.10
    LTC1604AIG SSOP-24 I $33.67 $29.00
    LTC1604AIG#PBF SSOP-24 I $33.67 $29.00
    LTC1604AIG#TR SSOP-24 I $29.10
    LTC1604AIG#TRPBF SSOP-24 I $29.10
    LTC1604CG SSOP-24 C $23.73 $20.50
    LTC1604CG#PBF SSOP-24 C $23.73 $20.50
    LTC1604CG#TR SSOP-24 C $20.60
    LTC1604CG#TRPBF SSOP-24 C $20.60
    LTC1604IG SSOP-24 I $25.53 $22.00
    LTC1604IG#PBF SSOP-24 I $25.53 $22.00
    LTC1604IG#TR SSOP-24 I $22.10
    LTC1604IG#TRPBF SSOP-24 I $22.10
