LTC1412是12-Bit, 3Msps, Sampling A/D Converter

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1412

LTC1412技术文档下载：

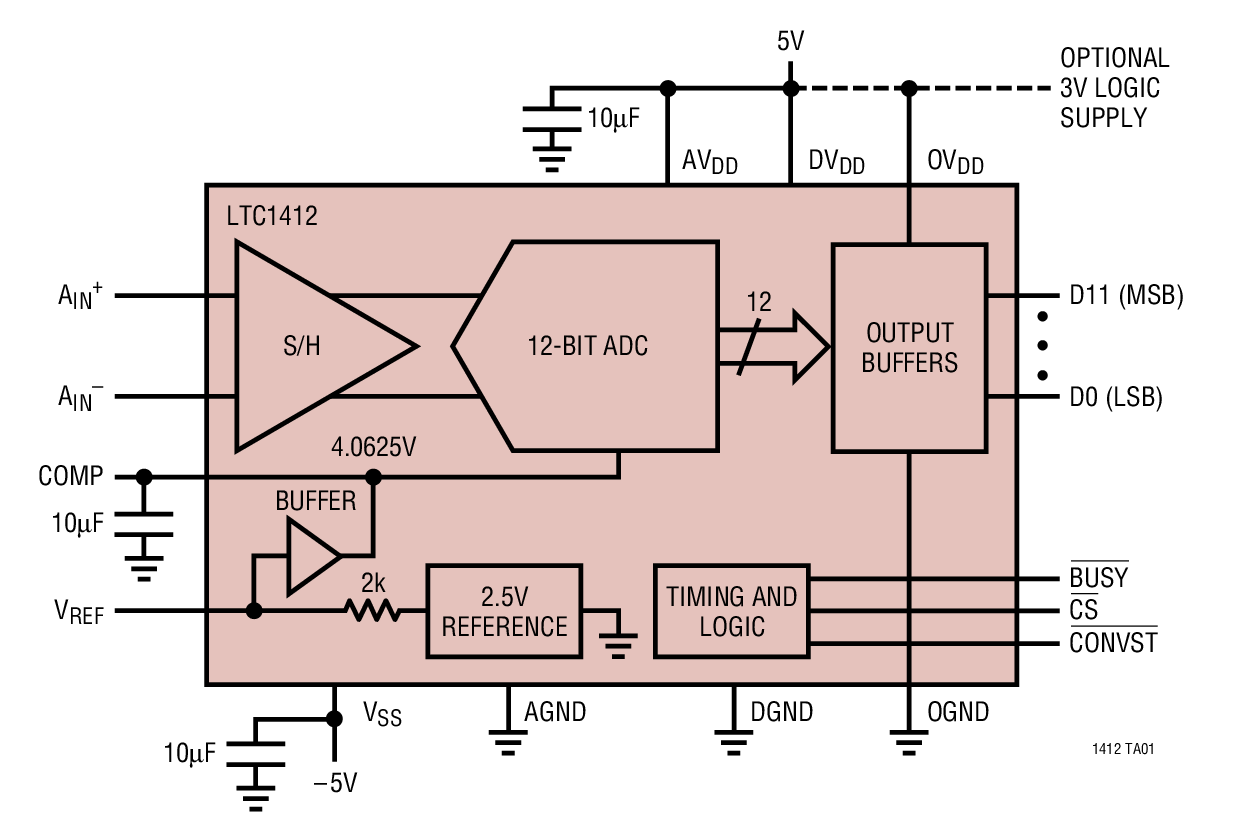

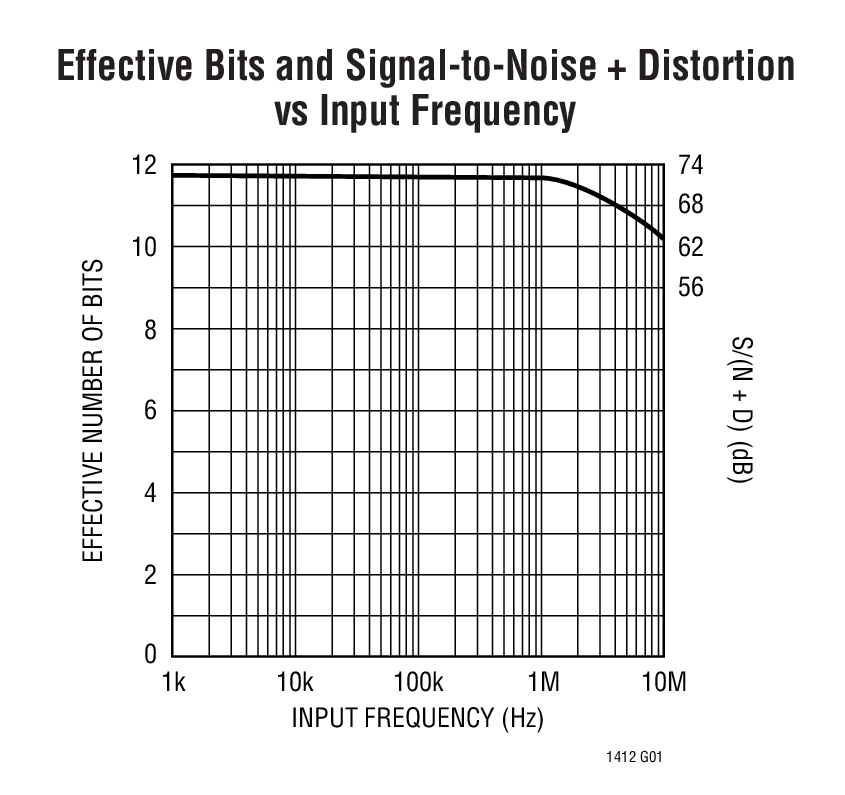

LTC1412 - 典型应用图例：

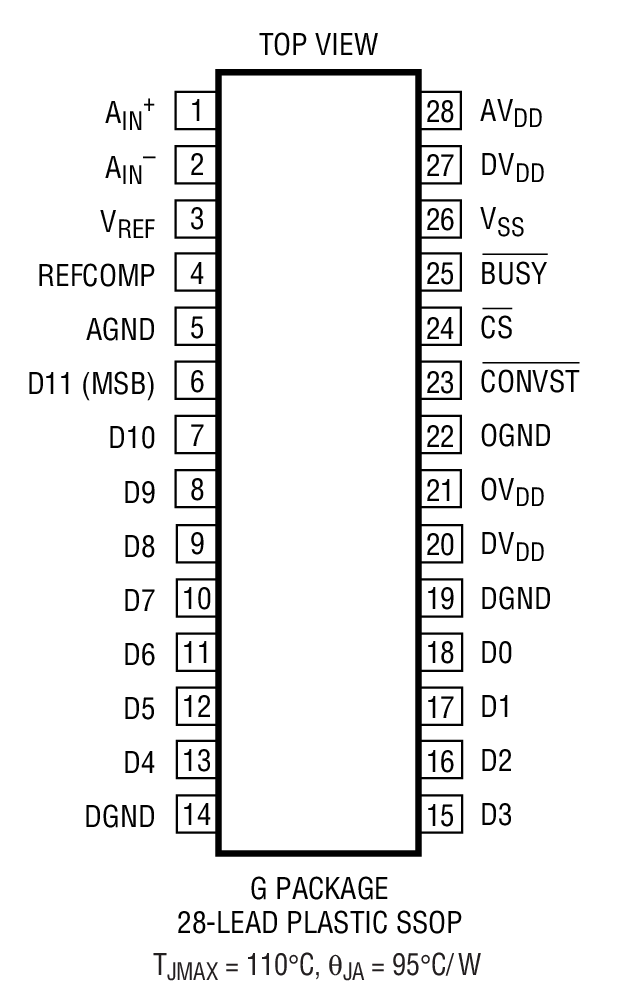

LTC1412 - 封装图解：

LTC1412 - LTC1412是12-Bit, 3Msps, Sampling A/D Converter

LTC1412是Linear公司的一款高速 ADC产品，LTC1412是12-Bit, 3Msps, Sampling A/D Converter，本站介绍了LTC1412的封装应用图解、特点和优点、功能等，并给出了与LTC1412相关的凌力尔特元器件型号供参考。

LTC1412 - 12-Bit, 3Msps, Sampling A/D Converter

LTC1412 - 12-Bit, 3Msps, Sampling A/D Converter - Linear Technology（凌力尔特）

功能描述

The LTC1412 is a 12-bit, 3Msps, sampling A/D converter. This high performance device includes a high dynamic range sample-and-hold and a precision reference. Operating from ±5V supplies it draws only 150mW. The ±2.5V input range is optimized for low noise and low distortion. Most high performance op amps also perform best over this range, allowing direct coupling to the analog inputs and eliminating the need for special translation circuitry. Outstanding AC performance includes 72dB S/(N + D) and 82dB SFDR at the Nyquist input frequency of 1.5MHz. The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 40MHz bandwidth. The 60dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source. The ADC has a high speed 12-bit parallel output port. There is no pipeline delay in the conversion results. A separate convert start input and converter status signal (BUSY) ease connections to FIFOs, DSPs and microprocessors. A digital output driver power supply pin allows direct connection to 3V logic.

特点

Sample Rate: 3Msps

72dB S/(N + D) and 82dB SFDR at Nyquist

±0.35LSB INL and ±0.25LSB DNL (Typ)

Power Dissipation: 150mW

External or Internal Reference Operation

True Differential Inputs Reject Common Mode Noise

40MHz Full Power Bandwidth Sampling

±2.5V Bipolar Input Range

No Pipeline Delay

28-Pin SSOP Package

应用

Telecommunications

Digital Signal Processing

Mulitplexed Data Acquisition Systems

High Speed Data Acquisition

Spectrum Analysis

Imaging Systems

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1412CG	SSOP-28	C	$11.55	$9.95
LTC1412CG#PBF	SSOP-28	C	$11.55	$9.95
LTC1412CG#TR	SSOP-28	C		$10.05
LTC1412CG#TRPBF	SSOP-28	C		$10.05
LTC1412IG	SSOP-28	I	$12.65	$10.95
LTC1412IG#PBF	SSOP-28	I	$12.65	$10.95
LTC1412IG#TR	SSOP-28	I		$11.05
LTC1412IG#TRPBF	SSOP-28	I		$11.05
