LT1169 - Dual Low Noise, Picoampere Bias Current, JFET Input Op Amp

LT1169 - Dual Low Noise, Picoampere Bias Current, JFET Input Op Amp - Linear Technology（凌力尔特）

功能描述

The LT1169 achieves a new standard of excellence in noise performance for a dual JFET op amp. For the first time low voltage noise (6nV/rtHz) is simultaneously offered with extremely low current noise (1fA/rtHz), providing the lowest total noise for high impedance transducer applications. Unlike most JFET op amps, the very low input bias current (5pA Typ) is maintained over the entire common mode range which results in an extremely high input resistance (1013ohms). When combined with a very low input capacitance (1.5pF) an extremely high input impedance results, making the LT1169 the first choice for amplifying low level signals from high impedance transducers. The low input capacitance also assures high gain linearity when buffering AC signals from high impedance transducers.The LT1169 is unconditionally stable for gains of 1 or more, even with 1000pF capacitive loads. Other key features are 0.6mV VOS and a voltage gain over 4 million. Each individual amplifier is 100% tested for voltage noise, slew rate (4.2V/µs), and gain-bandwidth product (5.3MHz).The LT1169 is offered in the S8 and N8 packages.A full set of matching specifications are provided for precision instrumentation amplifier front ends. Specifications at ±5V supply operation are also provided. For an even lower voltage noise please see the LT1113 data sheet.

特点

Input Bias Current, Warmed Up: 20pA Max

100% Tested Low Voltage Noise: 8nV/rtHz Max

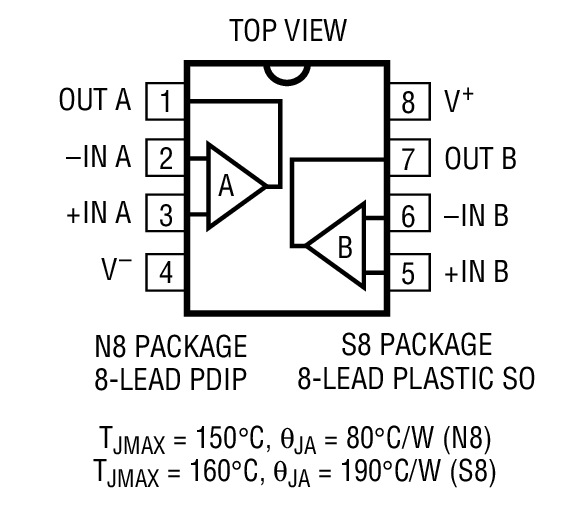

S8 and N8 Package Standard Pinout

Very Low Input Capacitance: 1.5pF

Voltage Gain: 1.2 Million Min

Offset Voltage: 2mV Max

Input Resistance: 1013ohms

Gain-Bandwidth Product: 5.3MHz Typ

Guaranteed Specifications with ±5V Supplies

Guaranteed Matching Specifications

应用
