LT3461 - LT3461是1.3MHz/3MHz Step-Up DC/DC Converters with Integrated Schottky in ThinSOT
LT3461是Linear公司的一款内部电源开关产品，LT3461是1.3MHz/3MHz Step-Up DC/DC Converters with Integrated Schottky in ThinSOT，本站介绍了LT3461的封装应用图解、特点和优点、功能等，并给出了与LT3461相关的凌力尔特元器件型号供参考。
LT3461 - 1.3MHz/3MHz Step-Up DC/DC Converters with Integrated Schottky in ThinSOT
LT3461 - 1.3MHz/3MHz Step-Up DC/DC Converters with Integrated Schottky in ThinSOT - Linear Technology（凌力尔特）
功能描述
The LT3461/LT3461A are general purpose fixed frequency current mode step-up DC/DC converters. Both devices feature an integrated Schottky and a low VCESAT switch allowing a small converter footprint and lower parts cost. The LT3461 switches at 1.3MHz while the LT3461A switches at 3MHz. These high switching frequencies enable the use of tiny, low cost and low height capacitors and inductors. The constant switching frequency results in predictable output noise that is easy to filter, and the inductor based topology ensures an input free from switching noise typically present with charge pump solutions. The high voltage switch in the LT3461/LT3461A is rated at 40V making the device ideal for boost converters up to 38V.

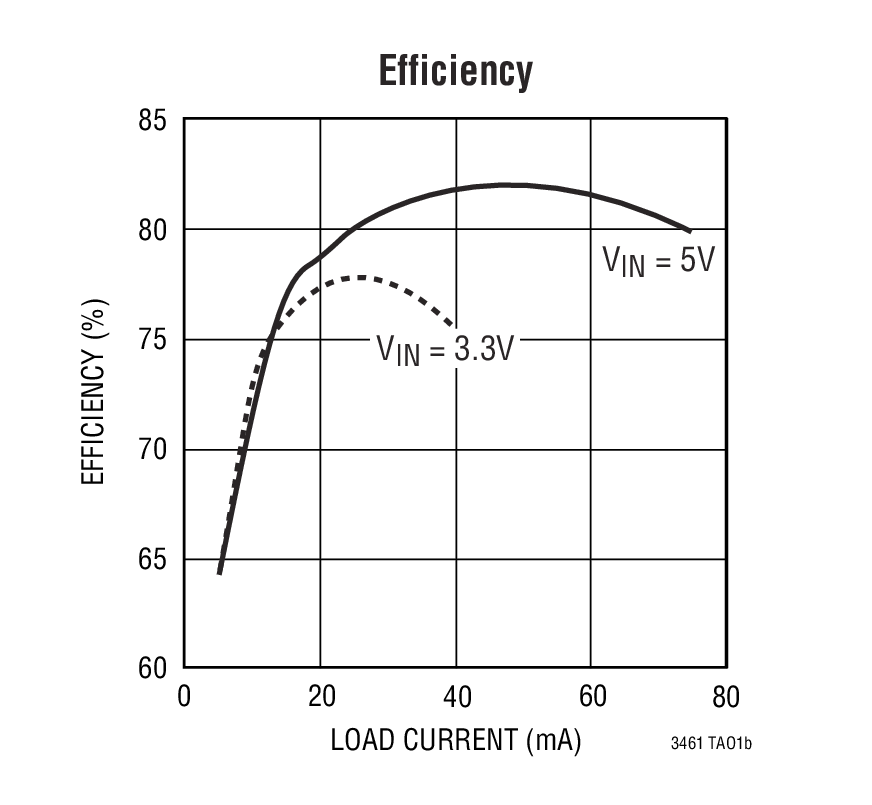

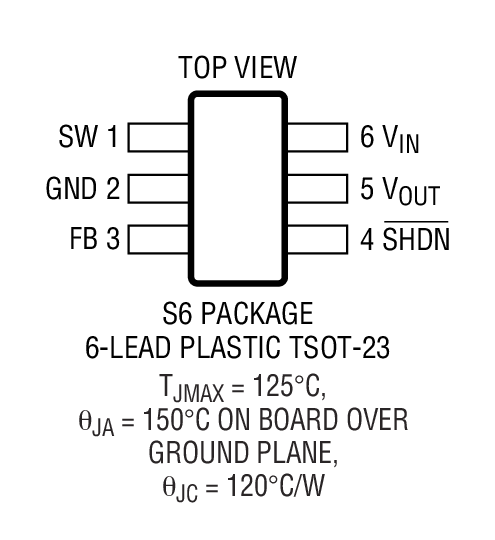

The LT3461/LT3461A are available in a low profile (1mm) SOT-23 package.
特点

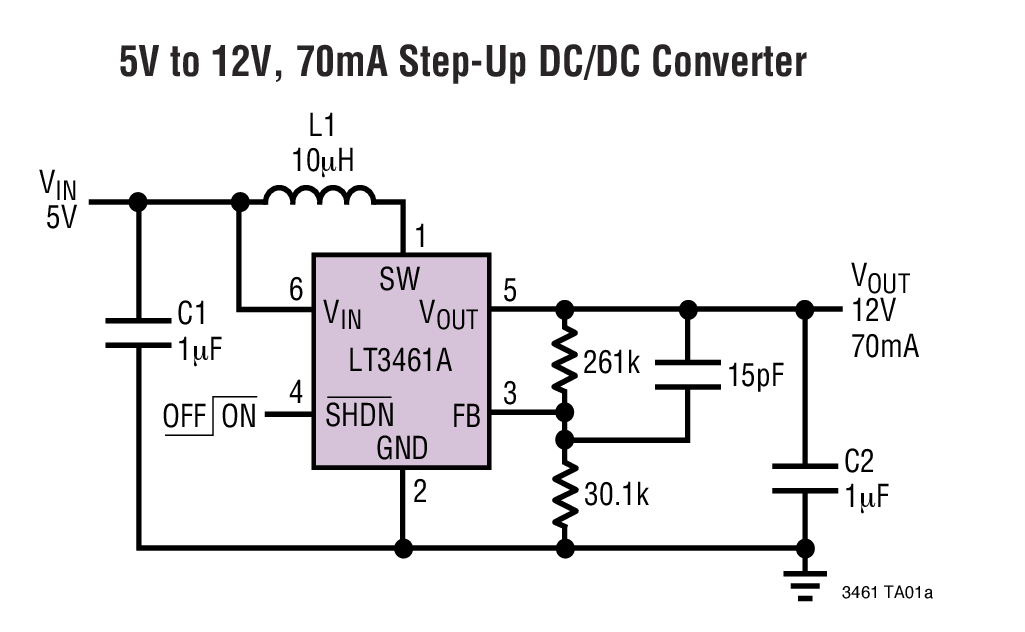

Integrated Schottky Rectifier Fixed Frequency 1.3MHz/3MHz Operation High Output Voltage: Up to 38V Low VCESAT Switch: 260mV at 250mA 12V at 70mA from 5V Input 5V at 115mA from 3.3V Input Wide Input Range: 2.5V to 16V Uses Small Surface Mount Components Low Shutdown Current: <1µA Soft-Start Low Profile (1mm) SOT-23 (ThinSOTTM) Package应用
Digital Cameras CCD Bias Supply XDSL Power Supply TFT-LCD Bias Supply Local 5V or 12V Supply Medical Diagnostic Equipment Battery Backup以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LT3461ES6 | SOT-23 | E | $2.43 | |
| LT3461ES6#PBF | SOT-23 | E | $2.43 | |
| LT3461ES6#TR | SOT-23 | E | $2.43 | $1.71 |
| LT3461ES6#TRM | SOT-23 | E | $2.43 | $1.73 |
| LT3461ES6#TRMPBF | SOT-23 | E | $2.43 | $1.73 |
| LT3461ES6#TRPBF | SOT-23 | E | $2.43 | $1.71 |
