LT3150 - Fast Transient Response, Low Input Voltage, Very Low Dropout Linear Regulator Controller

LT3150 - Fast Transient Response, Low Input Voltage, Very Low Dropout Linear Regulator Controller - Linear Technology（凌力尔特）

功能描述

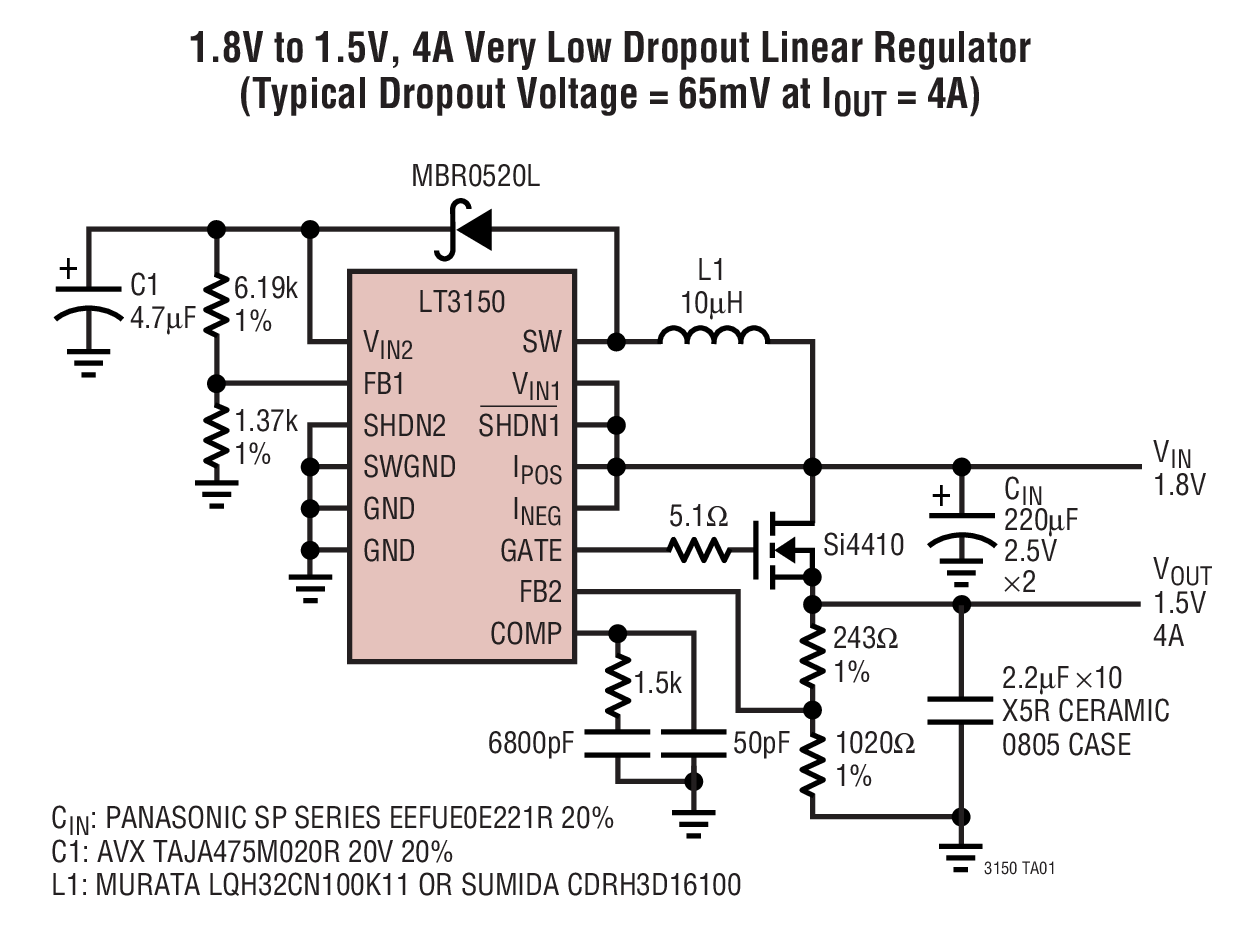

The LT3150 drives a low cost external N-channel MOSFET as a source follower to produce a fast transient response, very low dropout voltage linear regulator. Selection of the N-channel MOSFET RDS(ON) allows dropout voltages below 300mV for low VIN to low VOUT applications.

The LT3150 includes a fixed frequency boost regulator that generates gate drive for the N-channel MOSFET. The internally compensated current mode PWM architecture combined with the 1.4MHz switching frequency permits the use of tiny, low cost capacitors and inductors.

The LT3150’s transient load performance is optimized with ceramic output capacitors. A precision 1.21V reference accommodates low voltage supplies.

Protection includes a high side current limit amplifier that activates a fault timer circuit. A multifunction shutdown pin provides either current limit time-out with latchoff, overvoltage protection or thermal shutdown. Independent shutdown control of the boost converter provides on/off and sequencing control of the LDO output voltage.

特点

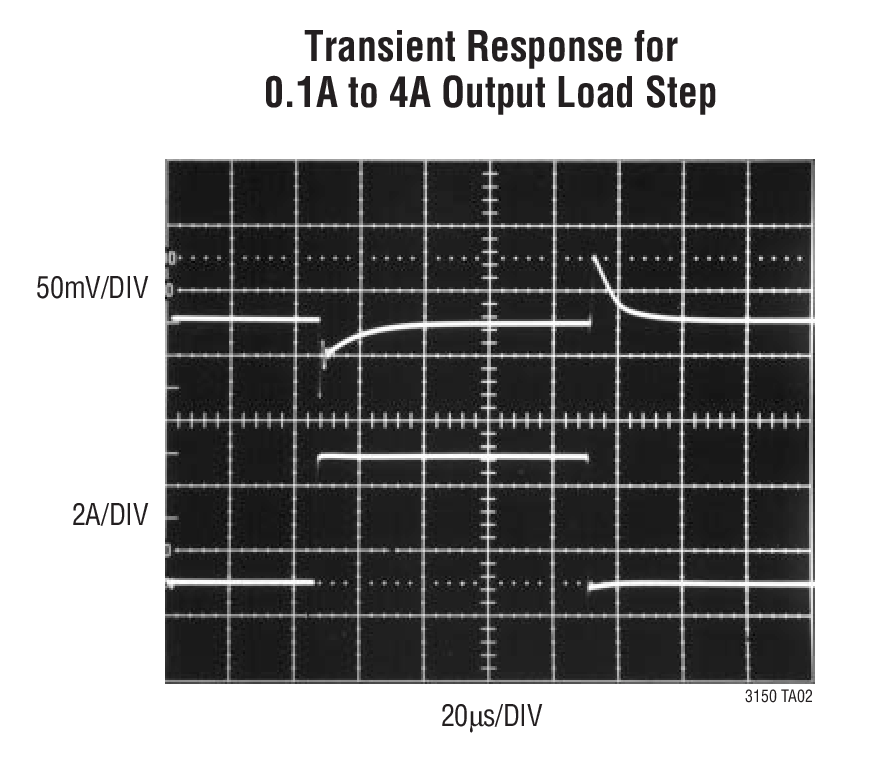

Fast Transient Response Optimized with Ceramic Output Capacitors

FET RDS(ON) Defines Dropout Voltage

±1% Reference Tolerance Over Temperature

Multifunction LDO Shutdown Pin with Latchoff

Fixed Frequency 1.4MHz Boost Converter Generates MOSFET Gate Drive

Internally Compensated Current Mode PWM

Boost Converter Uses Tiny Capacitors and Inductor

Independent Boost Converter Shutdown Control Permits LDO Output Voltage Supply Sequencing

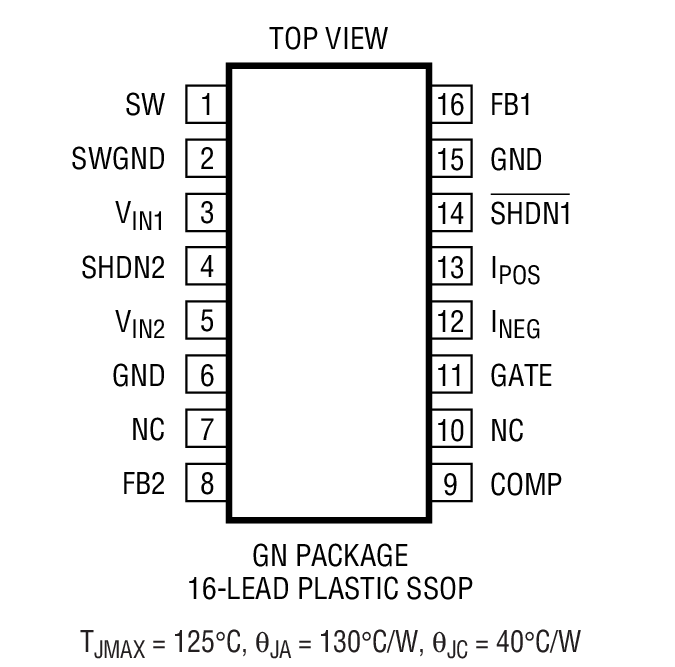

16-Lead SSOP Package

应用

Microprocessor, ASIC and I/O Supplies
