VRG8660 - VRG8660是Positive Adjustable Regulator

VRG8660是LINEAR凌力尔特公司的一款合乎航天使用要求的线性稳压器产品，VRG8660是VRG8660是Positive Adjustable Regulator，本站介绍了VRG8660的封装应用图解、特点和优点、功能等，并给出了与VRG8660相关的LINEAR元器件型号供参考。

VRG8660 - VRG8660是Positive Adjustable Regulator - 合乎航天使用要求的线性稳压器 - 航天和严酷环境 - 凌力尔特

VRG8660 - Positive Adjustable Regulator

RH117 - Positive Adjustable Regulator - Linear Technology（凌力尔特）

功能描述

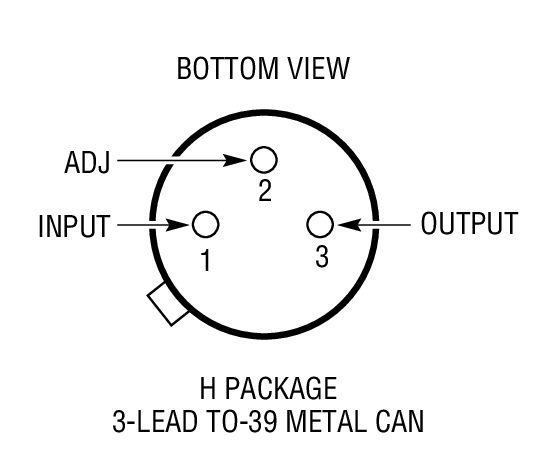

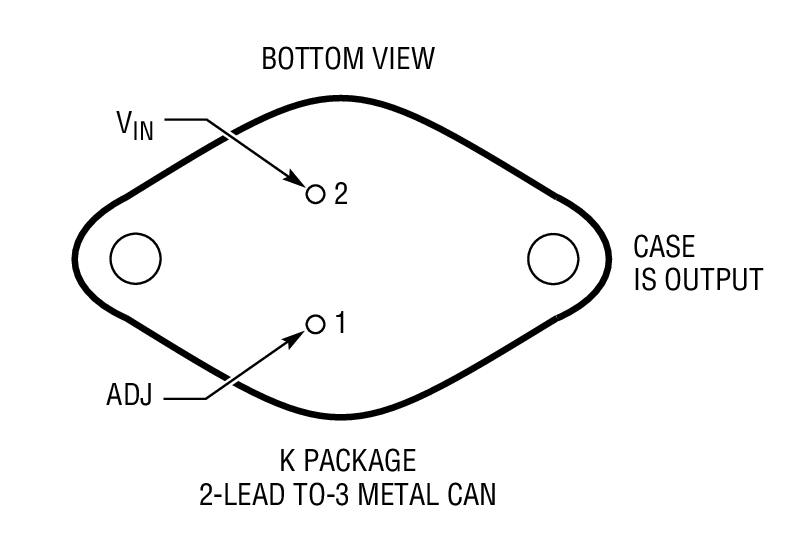

The RH117 is a 3-terminal positive adjustable regulator capable of supplying up to 0.5A (H package) or 1.5A (K package). The output is adjusted using two external resistors for a range of 1.2V to 37V. The devices have full current limit thermal overload safe area protection, all of which remain functional even if the adjustment terminal is disconnected.

The wafer lots are processed to LTC?s in-house Class S flow to yield circuits usable in stringent military applications. In addition to 883 processing, the RH117 is subjected to 100% burn-in in thermal limit.

特点

ABSOLUTE MAXIMUM RATINGS

Power Dissipation...... Internally Limited

Input-to-Output Voltage Differential........ 40V

Operating JunctionTemperature Range ?55°C to 150°C

Storage Temperature Range ?65°C to 150°C

Lead Temperature (Soldering, 10 sec).......300°C

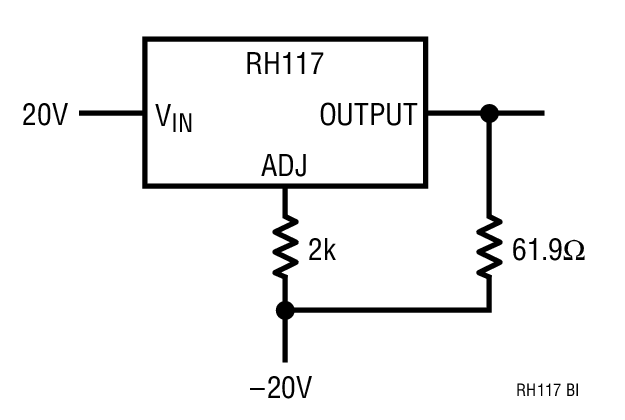

应用

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
