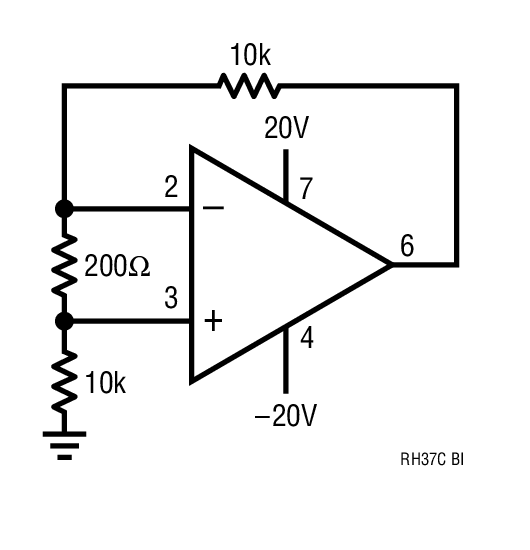

RH37CJ8 - 典型应用图例：

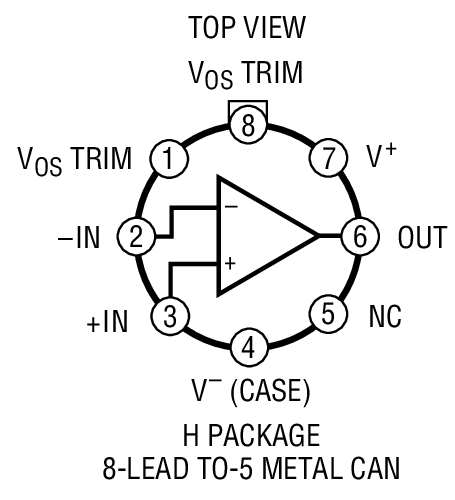

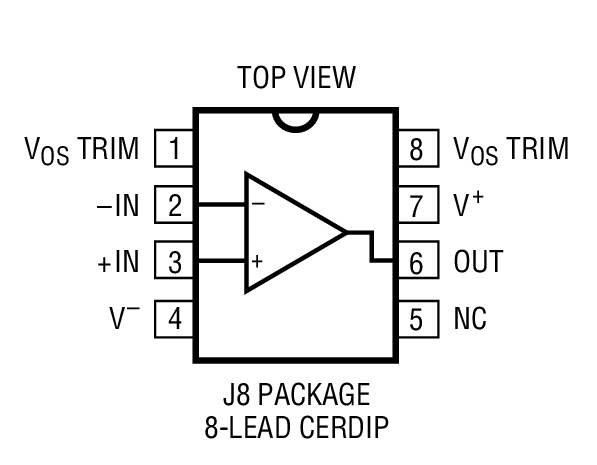

RH37CJ8 - 封装图解：

RH37CJ8RH37CJ8

RH37CJ8 - RH37CJ8是Precision Operational Amplifier

RH37CJ8是Linear公司的一款合乎航天使用要求的放大器产品，RH37CJ8是Precision Operational Amplifier，本站介绍了RH37CJ8的封装应用图解、特点和优点、功能等，并给出了与RH37CJ8相关的凌力尔特元器件型号供参考。

RH37CJ8 - Precision Operational Amplifier

RH37C - Precision Operational Amplifier - Linear Technology（凌力尔特）

功能描述

The RH37C combines very low noise with excellent precision and high speed specifications. The low 1/f noise corner frequency of 2.7Hz combined with 3.5nVrtHz 10Hz noise and low offset voltage make the RH37C an excellent choice for low frequency military instrumentation applications. The wafer lots are processed to LTC?s in-house Class S flow to yield circuits usable in stringent military applications.

For complete electrical specifications and performance curves see the OP-27/OP-37 data sheet.

特点

ABSOLUTE MAXIMUM RATINGS

Supply Voltage ?22V

Internal Power Dissipation 500mW

Input Voltage Equal to Supply Voltage

Output Short-Circuit Duration Indefinite

Differential Input Voltage (Note 8) ?25mA

Operating Temperature Range ?55°C to 125°C

Junction Temperature Range ?55°C to 150°C

Storage Temperature Range ?65°C to 150°C

Lead Temperature (Soldering, 10 sec) 300°C
