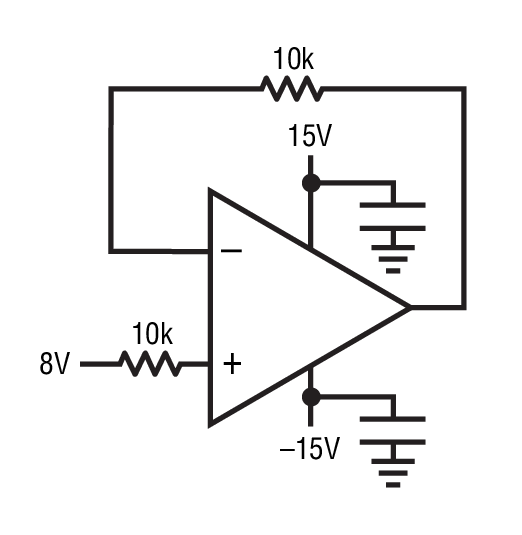

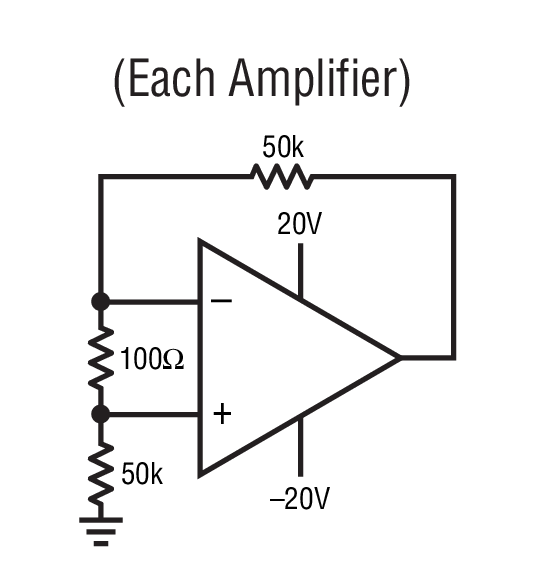

RH1078MH - 典型应用图例：

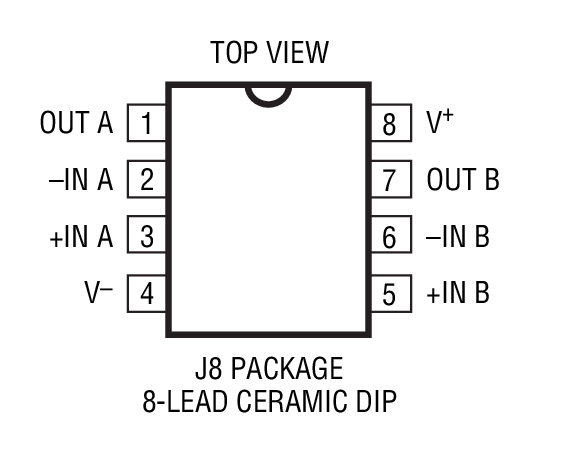

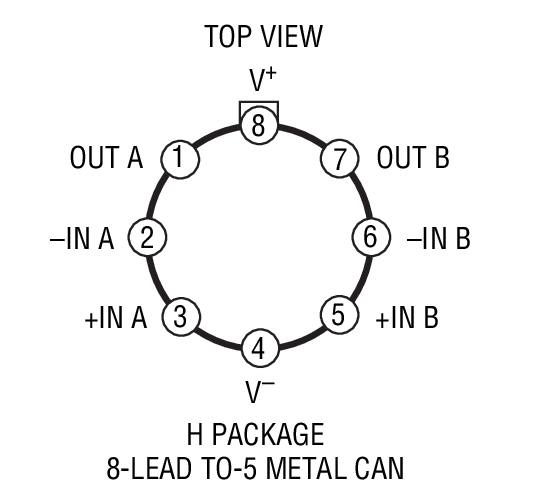

RH1078MH - 封装图解：

RH1078MHRH1078MH

RH1078MH - RH1078MH是Micropower, Dual, Single Supply Precision Op Amp

RH1078MH是Linear公司的一款合乎航天使用要求的放大器产品，RH1078MH是Micropower, Dual, Single Supply Precision Op Amp，本站介绍了RH1078MH的封装应用图解、特点和优点、功能等，并给出了与RH1078MH相关的凌力尔特元器件型号供参考。

RH1078MH - Micropower, Dual, Single Supply Precision Op Amp

RH1078M - Micropower, Dual, Single Supply Precision Op Amp - Linear Technology（凌力尔特）

功能描述

The RH1078M is a micropower dual op amp in the standard 8-pin configuration. This device is optimized for single supply operation at 5V. Specifications for ±15V are also provided.

The wafer lots are processed to LTC's in-house Class S flow to yield circuits usable in stringent military applications.

特点

ABSOLUTE MAXIMUM RATINGS

Supply Voltage.....±22V

Differential Input Voltage.....±30V

Input VoltageEqual to Positive Supply Voltage 0.5V Below Negative Supply Voltage

Output Short-Circuit Duration.....Indefinite

Operating Temperature Range.....–55°C to 125°C

Storage Temperature Range.....–55°C to 150±C

Lead Temperature (Soldering, 10 sec).....300°C

应用
