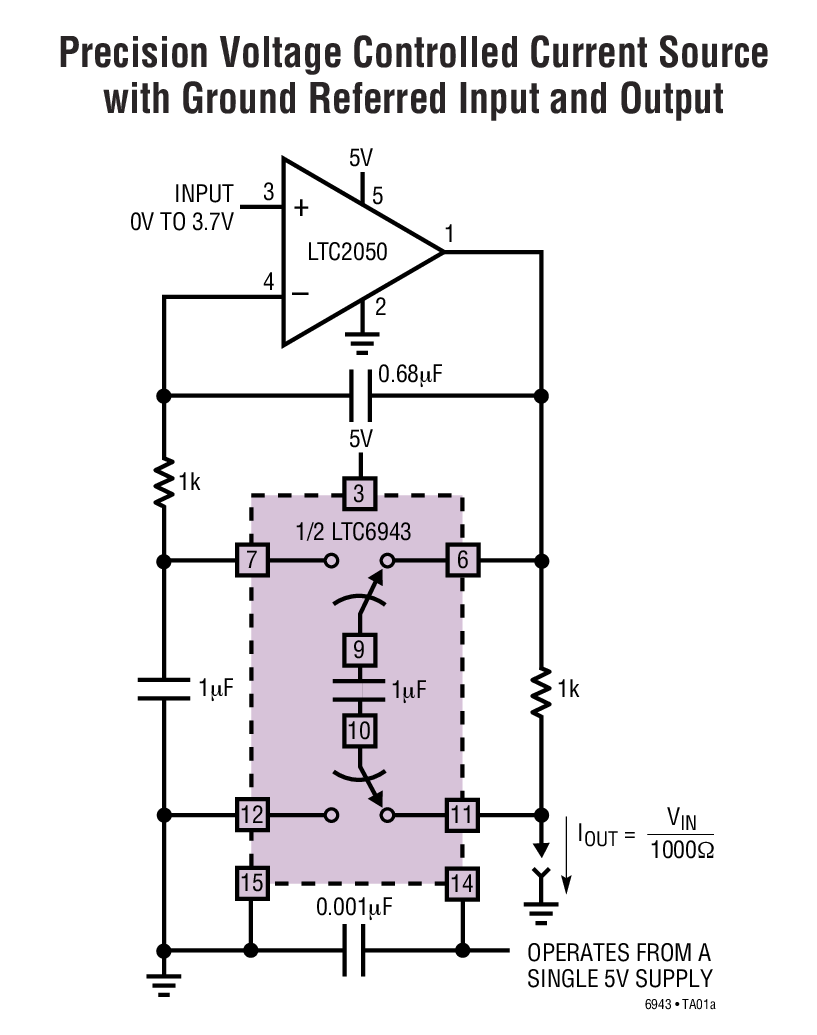

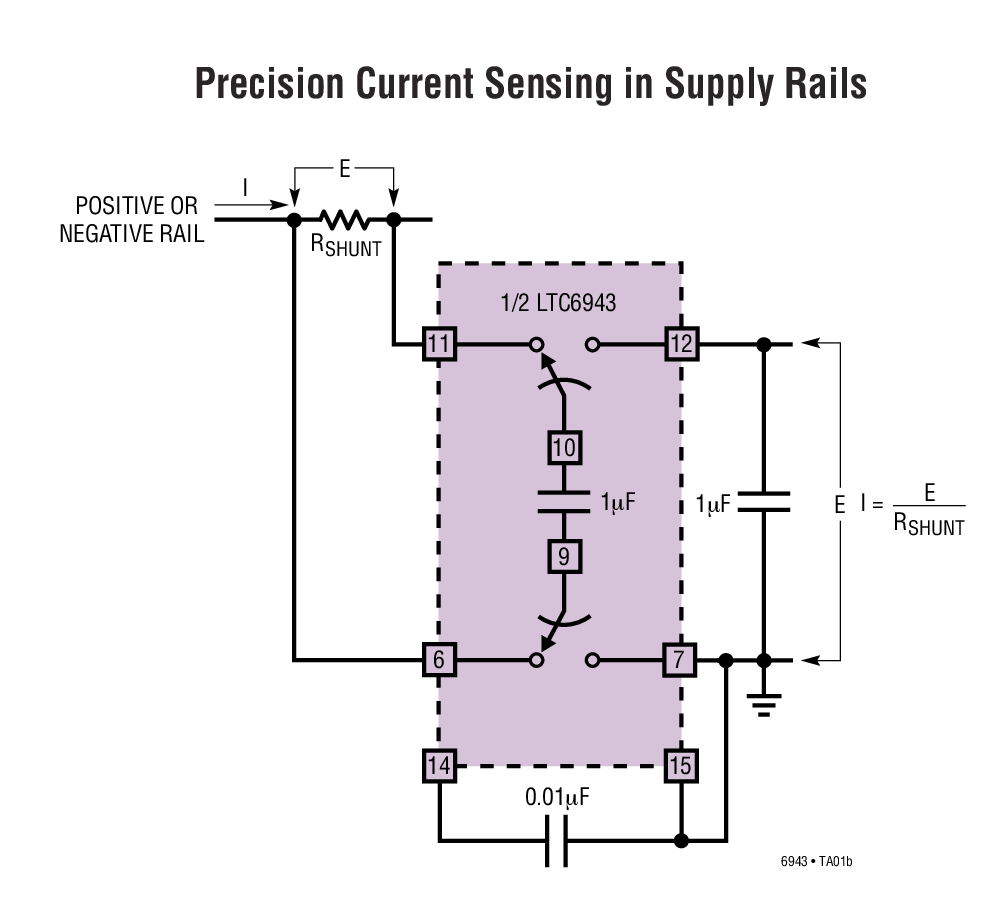

LTC6943 - 典型应用图例：

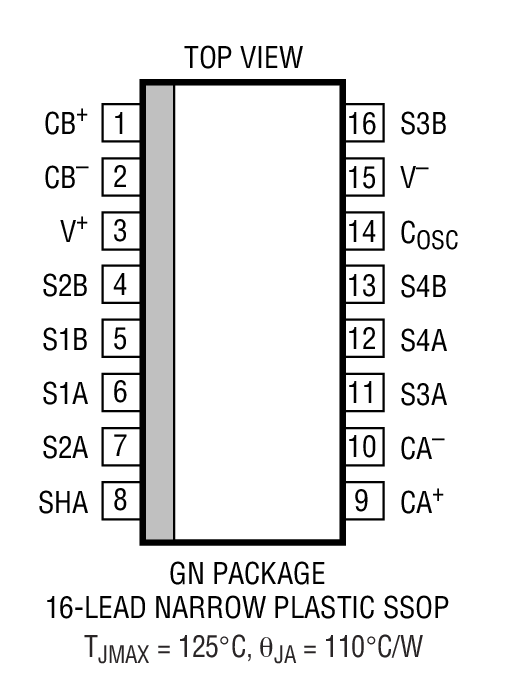

LTC6943 - 封装图解：

LTC6943 - LTC6943是微功率、精准仪表双开关电容器单元式部件

LTC6943是Linear公司的一款开关电容构件产品，LTC6943是微功率、精准仪表双开关电容器单元式部件，本站介绍了LTC6943的封装应用图解、特点和优点、功能等，并给出了与LTC6943相关的凌力尔特元器件型号供参考。

LTC6943 - 微功率、精准仪表双开关电容器单元式部件

LTC6943 - 微功率、精准仪表双开关电容器单元式部件 - Linear Technology（凌力尔特）

功能描述

The LTC6943 is a monolithic, charge-balanced, dual switched capacitor instrumentation building block. A pair of switches alternately connects an external capacitor to an input voltage and then connects the charged capacitor across an output port. The internal switches have a break-before-make action. An internal clock is provided and its frequency can be adjusted with an external capacitor. The LTC6943 can also be driven with an external CMOS clock.

The LTC6943, when used with low clock frequencies, provides ultra precision DC functions without requiring precise external components. Such functions are differential voltage to single-ended conversion, voltage inversion, voltage multiplication and division by 2, 3, 4, 5, etc.

The LTC6943 is manufactured using Linear Technology’s enhanced LTCMOSTM silicon gate process, and it is functionally compatible with the LTC1043.

特点

Low Power, IS = 60μA(Max)

Robust, Latch Up Proof

Instrumentation Front End with 120dB CMRR

Precise, Charge-Balanced Switching

Operates from 5V to 18V

Internal or External Clock

Operates up to 5MHz Clock Rate

Two Independent Sections with One Clock

Tiny SSOP-16 Package

应用

Ultra Precision Voltage Inverters, Multipliers and Dividers

V–F and F–V Converters

Sample-and-Hold

Current Sources

Precision Instrumentation Amplifiers

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC6943CGN	SSOP-16	C	$4.29	$3.00
LTC6943CGN#PBF	SSOP-16	C	$4.29	$3.00
LTC6943CGN#TR	SSOP-16	C		$3.06
LTC6943CGN#TRPBF	SSOP-16	C		$3.06
LTC6943HGN	SSOP-16	H	$4.91	$3.45
LTC6943HGN#PBF	SSOP-16	H	$4.91	$3.45
LTC6943HGN#TR	SSOP-16	H		$3.51
LTC6943HGN#TRPBF	SSOP-16	H		$3.51
LTC6943IGN	SSOP-16	I	$4.91	$3.45
LTC6943IGN#PBF	SSOP-16	I	$4.91	$3.45
LTC6943IGN#TR	SSOP-16	I		$3.51
LTC6943IGN#TRPBF	SSOP-16	I		$3.51
