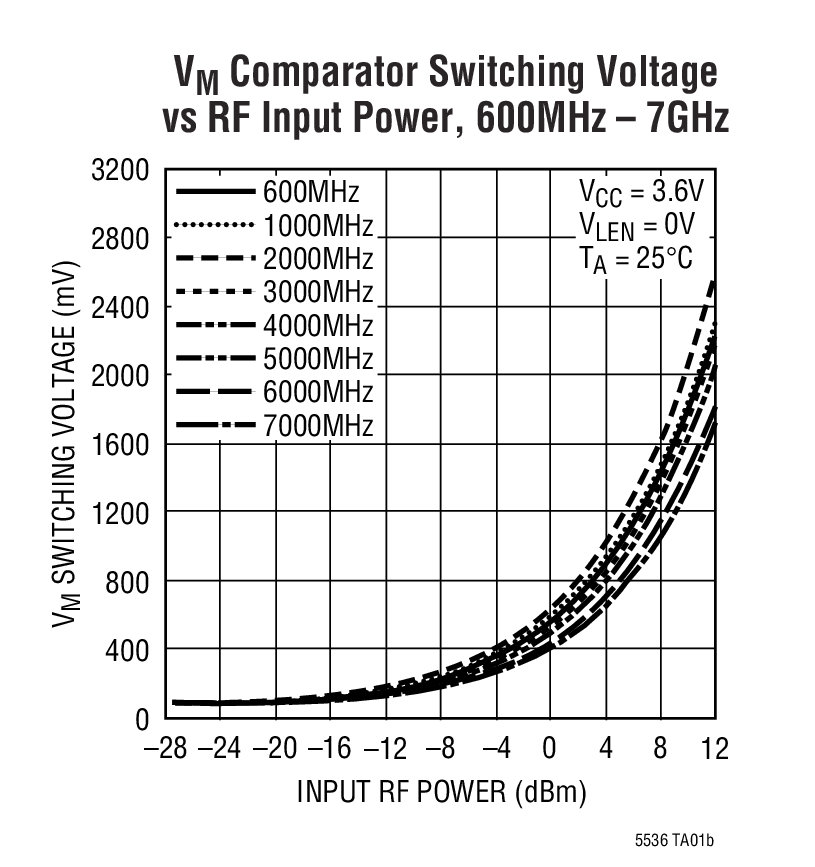

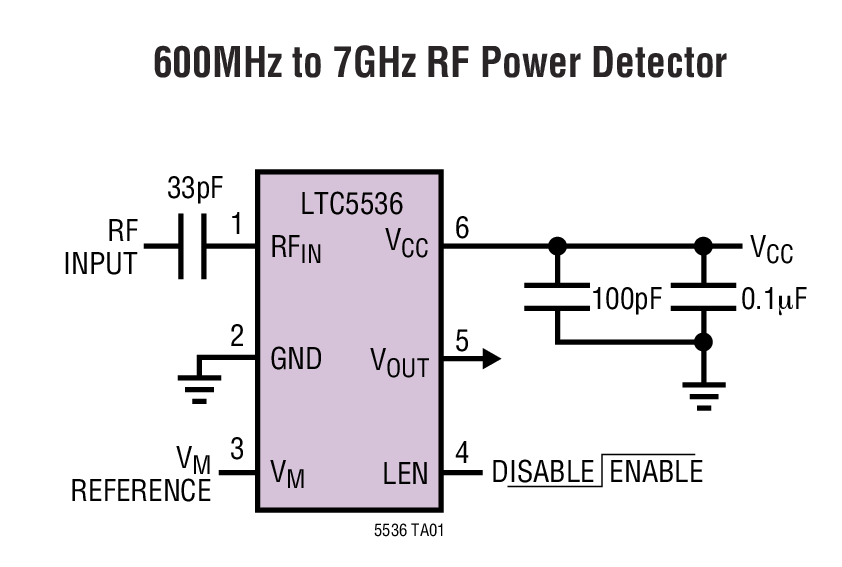

LTC5536 - 典型应用图例：

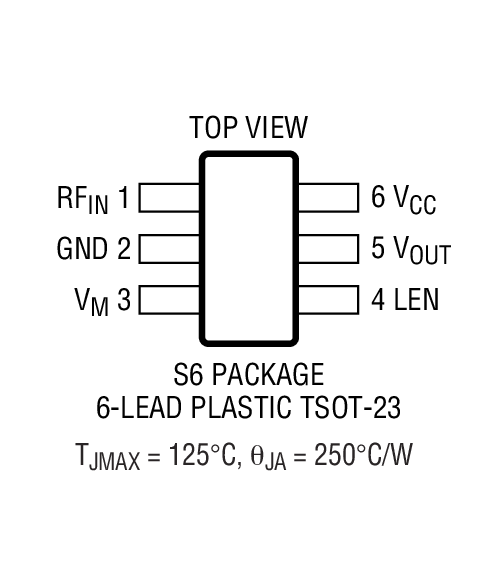

LTC5536 - 封装图解：

LTC5536 - LTC5536是600MHz to 7GHz Precision RF Detector with Fast Comparator Output

LTC5536是Linear公司的一款RF 肖特基峰值检波器产品，LTC5536是600MHz to 7GHz Precision RF Detector with Fast Comparator Output，本站介绍了LTC5536的封装应用图解、特点和优点、功能等，并给出了与LTC5536相关的凌力尔特元器件型号供参考。

LTC5536 - 600MHz to 7GHz Precision RF Detector with Fast Comparator Output

LTC5536 - 600MHz to 7GHz Precision RF Detector with Fast Comparator Output - Linear Technology（凌力尔特）

功能描述

The LTC5536 is an RF power detector for RF applications operating in the 600MHz to 7GHz range. A temperature compensated Schottky diode peak detector and fast comparator are combined in a small ThinSOTTM package. The supply voltage range is optimized for operation from a single cell lithium-ion or three cell NiMH battery.

The RF input voltage is peak detected using an on-chip Schottky diode. The detected voltage is compared against a reference voltage at VM.

The response time from the RF input to VOUT can be as little as 20ns. The comparator output is latched when LEN is high or is transparent when LEN is low.

The LTC5536 operates with RF input power levels from –26dBm to 12dBm.

特点

Temperature Compensated Internal Schottky Diode RF Detector

Wide Input Frequency Range: 600MHz to 7GHz*

Wide Input Power Range: –26dBm to 12dBm

Fast Comparator Output with Latch Enable

25ns Response Time with 0dBm RF Input Level

Rail-to-Rail Output Swing

Comparator Output Current: ±20mA

Wide VCC Range of 2.7V to 5.5V

Low Operating Current: 2mA

Available in a Low Profile (1mm) SOT-23 Package

应用

RF Signal Presence Detectors for:802.11a, 802.11b, 802.11g, 802.15Optical Data LinksWireless Data ModemsWireless and Cable Infrastructure

RF Power Alarm

Envelope Detector

RF ID Tag Reader

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC5536ES6	SOT-23	E	$3.28
LTC5536ES6#PBF	SOT-23	E	$3.28
LTC5536ES6#TR	SOT-23	E	$3.28	$2.31
LTC5536ES6#TRM	SOT-23	E	$3.28	$2.33
LTC5536ES6#TRMPBF	SOT-23	E	$3.28	$2.33
LTC5536ES6#TRPBF	SOT-23	E	$3.28	$2.31
