LTC3717-1 - Wide Operating Range, No RSENSE? Step-Down Controller for DDR/QDR Memory Termination

LTC3717-1 - Wide Operating Range, No RSENSE? Step-Down Controller for DDR/QDR Memory Termination - Linear Technology（凌力尔特）

功能描述

The LTC3717-1 is a synchronous step-down switching regulator controller for double data rate (DDR) and Quad Data Rate? (QDR?) memory termination. The controller uses a valley current control architecture to deliver very low duty cycles with or without a sense resistor. Operating frequency is selected by an external resistor and is compensated for variations in VIN and VOUT.

Forced continuous operation reduces noise and RF interference. Output voltage is internally set to half of VREF, which is user programmable.

Fault protection is provided by an output overvoltage comparator and optional short-circuit shutdown timer. Soft-start capability for supply sequencing is accomplished using an external timing capacitor. The regulator current limit level is symmetrical and user programmable. Wide supply range allows operation from 4V to 36V at the VCC input.

特点

VOUT = 1/2 VREF

Adjustable and Symmetrical Sink/Source Current Limit up to 20A

True Current Mode Control with Optional Use of Sense Resistor

VON and ION Pins Allow Constant Frequency Operation During Input and Output Voltage Changes

±0.65% Output Voltage Accuracy

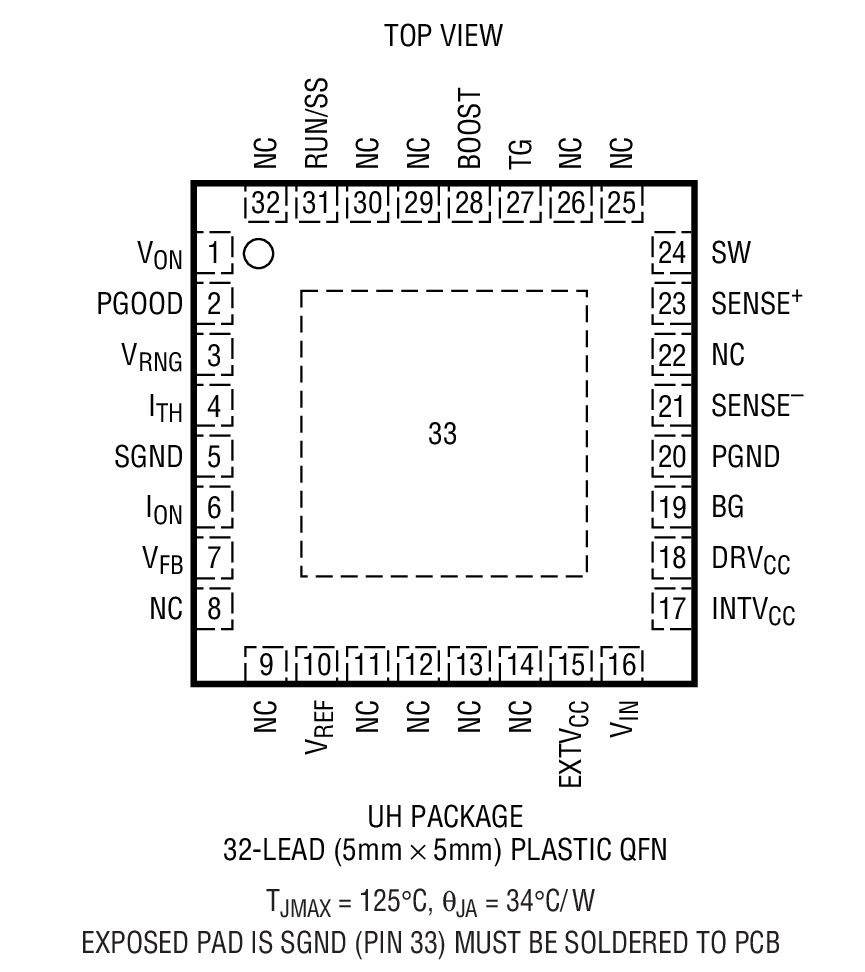

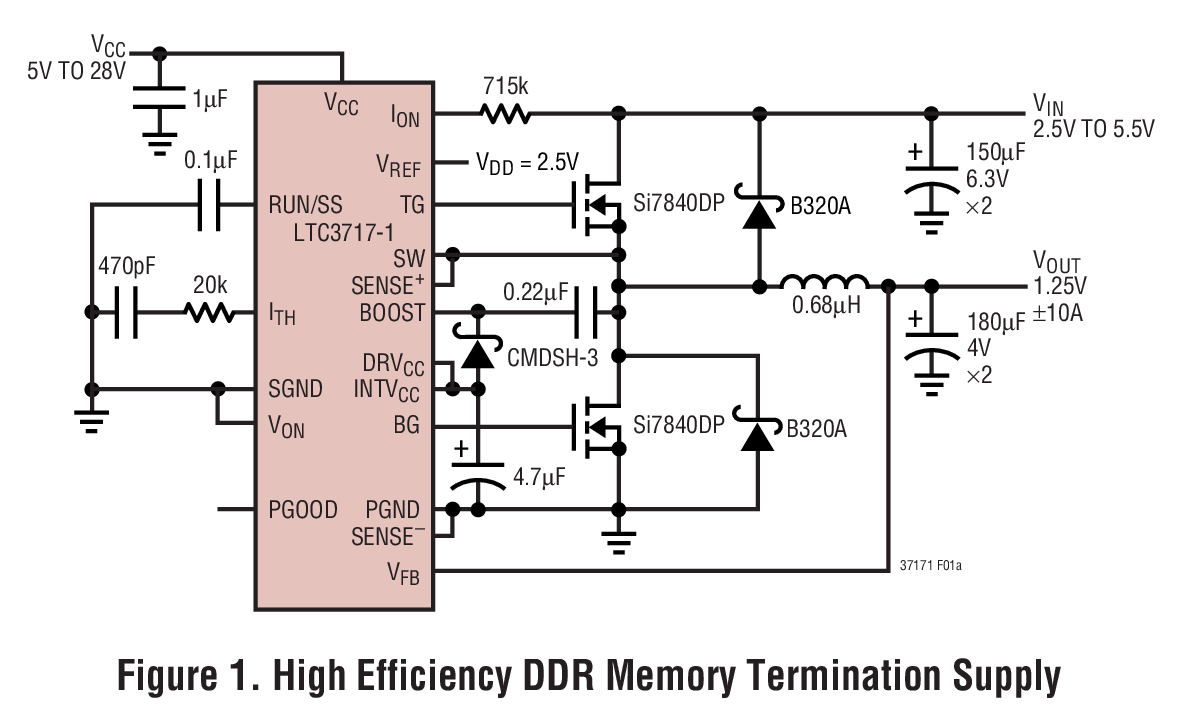

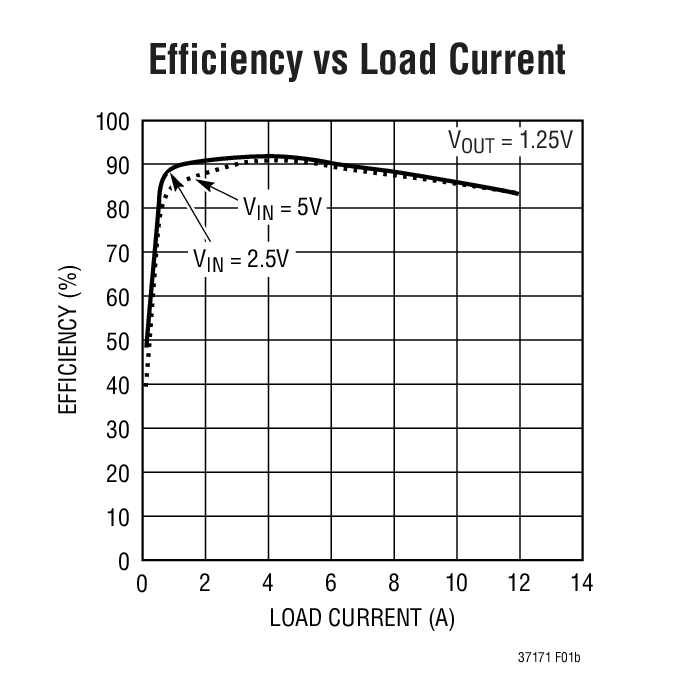

Up to 97% Efficiency

Ultrafast Transient Response

2% to 90% Duty Cycle at 200kHz

tON(MIN) </= 100ns

Stable with Ceramic COUT

Power Good Output Voltage Monitor
