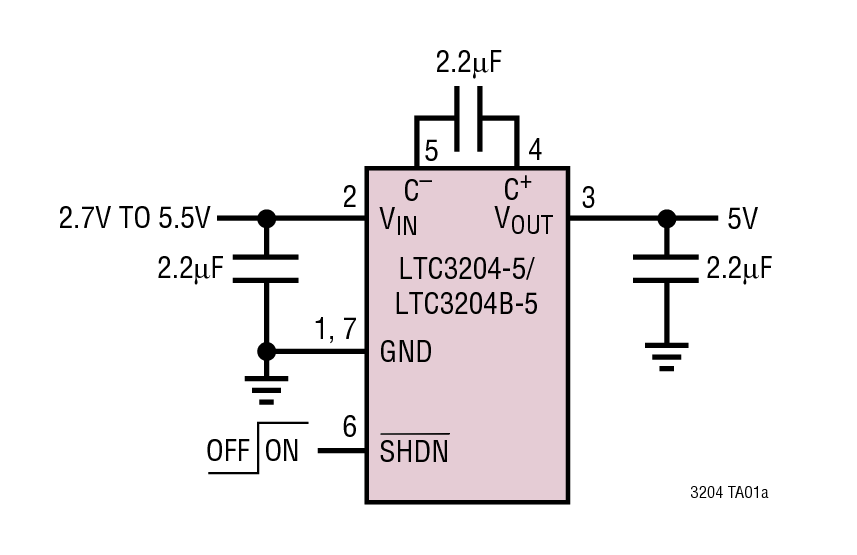

LTC3204B-5典型应用图例一

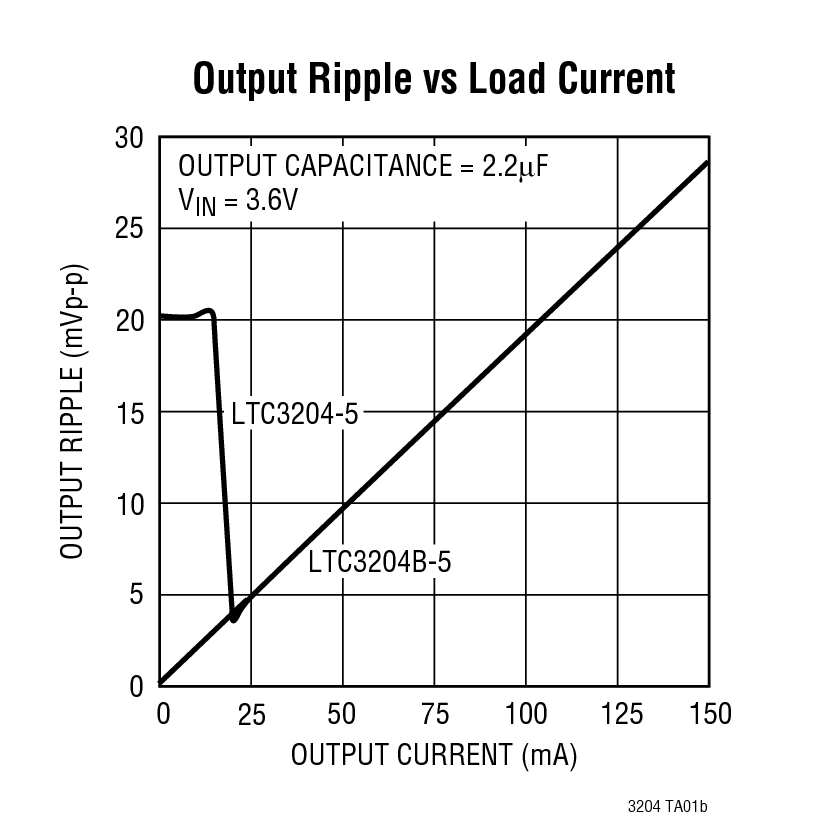

LTC3204B-5典型应用图例二
LTC3204B-5 - 封装图解:

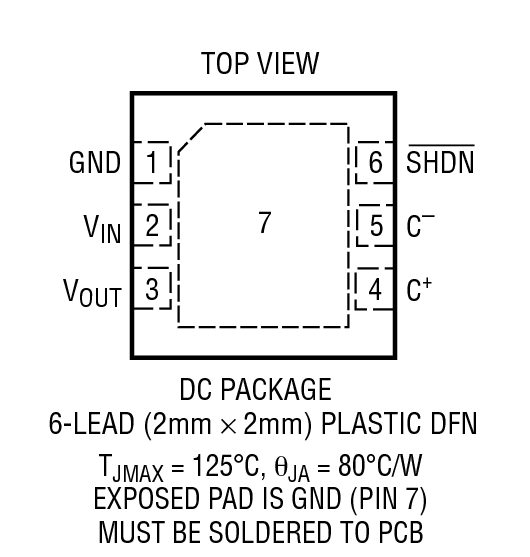

LTC3204B-5封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC3204B-5介绍
LTC3204B-5 - LTC3204B-5是Low Noise Regulated Charge Pump in 2 × 2 DFN

LTC3204B-5是Linear公司的一款稳压降压-升压型充电泵产品,LTC3204B-5是Low Noise Regulated Charge Pump in 2 × 2 DFN,本站介绍了LTC3204B-5的封装应用图解、特点和优点、功能等,并给出了与LTC3204B-5相关的凌力尔特元器件型号供参考。

LTC3204B-5 - Low Noise Regulated Charge Pump in 2 × 2 DFN

LTC3204-3.3/LTC3204B-3.3 - Low Noise Regulated Charge Pump in 2 × 2 DFN - Linear Technology(凌力尔特)

功能描述

The LTC3204-3.3/LTC3204-5/LTC3204B-3.3/LTC3204B-5 are low noise, constant frequency (1.2MHz) switched ca-pacitor voltage doublers. The LTC3204-3.3/LTC3204B-3.3 can produce a regulated output voltage of 3.3V from a minimum input voltage of 1.8V (2 alkaline cells) whereas the LTC3204-5/LTC3204B-5 can produce 5V from a minimum of 2.7V (Li-Ion battery) input.

LTC3204-3.3/LTC3204-5 feature automatic Burst Mode operation at light loads to maintain low supply current whereas LTC3204B-3.3/LTC3204B-5 feature constant frequency operation at any load. Built-in soft-start circuitry prevents excessive inrush current during start-up. Thermal shutdown and current-limit circuitry allow the parts to survive a continuous short-circuit from VOUT to GND.

High switching frequency minimizes overall solution footprint by allowing the use of tiny ceramic capaci-tors. In shutdown, the load is disconnected from the input and the quiescent current is reduced to <1μA.

The LTC3204-3.3/LTC3204-5/LTC3204B-3.3/LTC3204B-5 are available in a low pro?le (0.75mm) 6-lead 2mm × 2mm DFN package.

*Protected by U.S. Patents including 6411531.

?

特点
  • Fixed 3.3V or 5V Outputs
  • VIN Range:1.8V to 4.5V (LTC3204-3.3/LTC3204B-3.3)2.7V to 5.5V (LTC3204-5/LTC3204B-5)
  • Output Current:Up to 150mA (LTC3204-5/LTC3204B-5)Up to 50mA (LTC3204-3.3/LTC3204B-3.3)
  • Automatic Burst Mode Operation with IQ = 48μA (LTC3204-3.3/LTC3204-5)
  • Constant Frequency Operation at All Loads (LTC3204B-3.3/LTC3204B-5)
  • Low Noise Constant Frequency (1.2MHz) Operation*
  • Built-In Soft-Start Reduces Inrush Current
  • Shutdown Disconnects Load from Input
  • Shutdown Current <1μA
  • Short-Circuit/Thermal Protection
  • Available in Low Profile 6-Lead DFN Package
  • 应用
  • 2 AA Cell to 3.3V
  • Li-Ion to 5V
  • USB On-The-Go Devices
  • White LED Drivers
  • Handheld Devices
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC3204BEDC-3.3 2x2 DFN-6 E $1.91
    LTC3204BEDC-3.3#PBF 2x2 DFN-6 E $1.91
    LTC3204BEDC-3.3#TR 2x2 DFN-6 E $1.91 $1.60
    LTC3204BEDC-3.3#TRM 2x2 DFN-6 E $1.91 $1.62
    LTC3204BEDC-3.3#TRMPBF 2x2 DFN-6 E $1.91 $1.62
    LTC3204BEDC-3.3#TRPBF 2x2 DFN-6 E $1.91 $1.60
    LTC3204BEDC-5 2x2 DFN-6 E $1.91
    LTC3204BEDC-5#PBF 2x2 DFN-6 E $1.91
    LTC3204BEDC-5#TR 2x2 DFN-6 E $1.91 $1.60
    LTC3204BEDC-5#TRM 2x2 DFN-6 E $1.91 $1.62
    LTC3204BEDC-5#TRMPBF 2x2 DFN-6 E $1.91 $1.62
    LTC3204BEDC-5#TRPBF 2x2 DFN-6 E $1.91 $1.60
    LTC3204EDC-3.3 2x2 DFN-6 E $1.91
    LTC3204EDC-3.3#PBF 2x2 DFN-6 E $1.91
    LTC3204EDC-3.3#TR 2x2 DFN-6 E $1.91 $1.60
    LTC3204EDC-3.3#TRM 2x2 DFN-6 E $1.91 $1.62
    LTC3204EDC-3.3#TRMPBF 2x2 DFN-6 E $1.91 $1.62
    LTC3204EDC-3.3#TRPBF 2x2 DFN-6 E $1.91 $1.60
    LTC3204EDC-5 2x2 DFN-6 E $1.91
    LTC3204EDC-5#PBF 2x2 DFN-6 E $1.91
    LTC3204EDC-5#TR 2x2 DFN-6 E $1.91 $1.60
    LTC3204EDC-5#TRM 2x2 DFN-6 E $1.91 $1.62
    LTC3204EDC-5#TRMPBF 2x2 DFN-6 E $1.91 $1.62
    LTC3204EDC-5#TRPBF 2x2 DFN-6 E $1.91 $1.60
