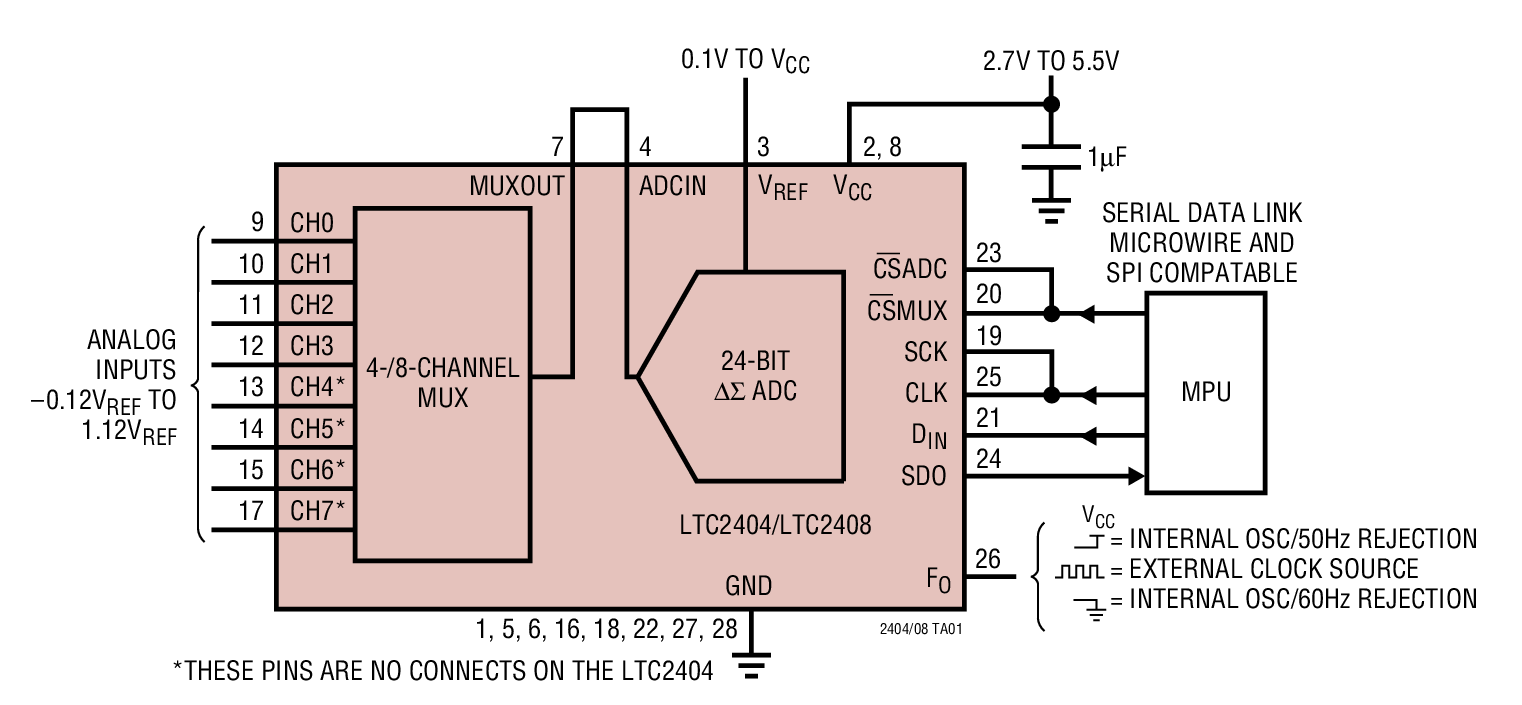

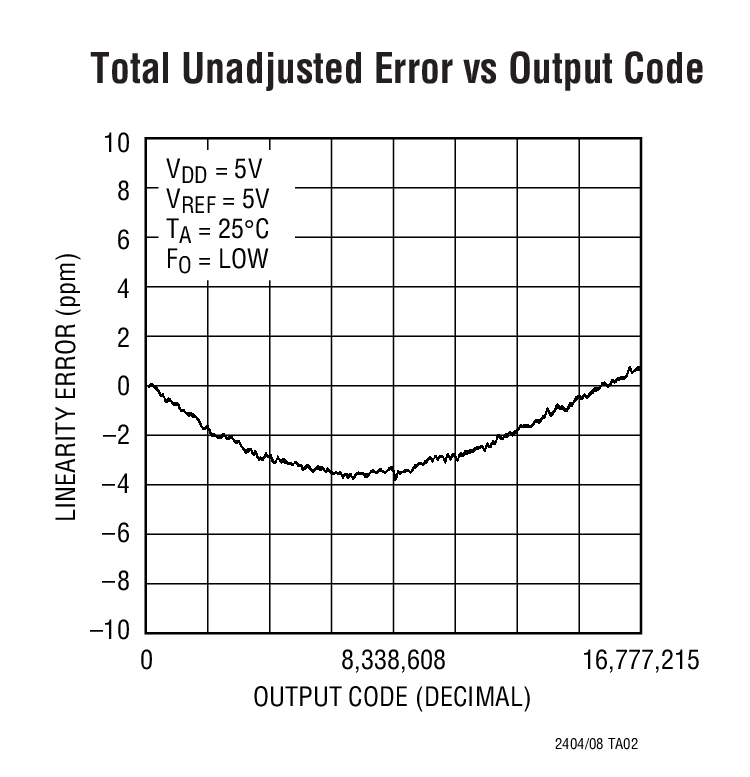

LTC2404 - 典型应用图例：

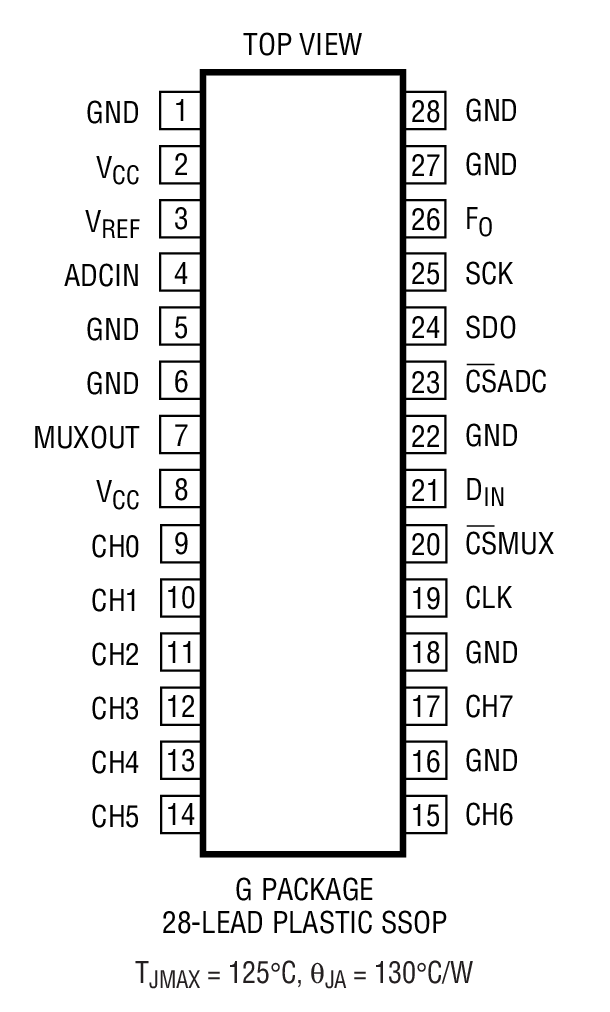

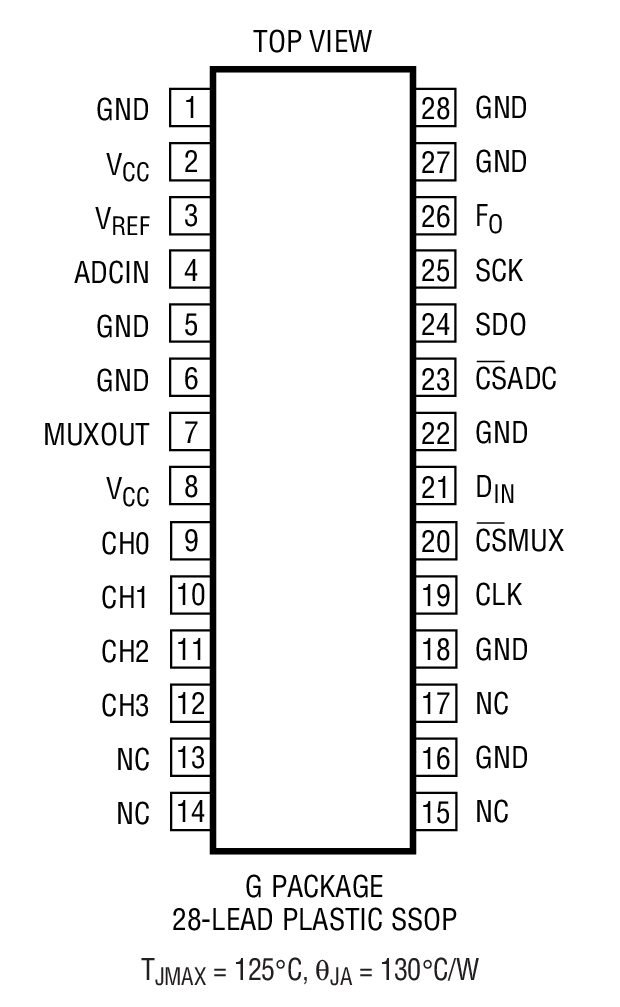

LTC2404 - 封装图解：

LTC2404 - LTC2404是4-/8-Channel 24-Bit μPowerNo Latency Delta-Sigma? ADC

LTC2404是Linear公司的一款无延迟增量累加 ADC产品，LTC2404是4-/8-Channel 24-Bit μPowerNo Latency Delta-Sigma? ADC，本站介绍了LTC2404的封装应用图解、特点和优点、功能等，并给出了与LTC2404相关的凌力尔特元器件型号供参考。

LTC2404 - 4-/8-Channel 24-Bit μPowerNo Latency Delta-Sigma? ADC

LTC2404 - 4-/8-Channel 24-Bit μPowerNo Latency Delta-Sigma? ADC - Linear Technology（凌力尔特）

功能描述

The LTC2404/LTC2408 are 4-/8-channel 2.7V to 5.5V micropower 24-bit A/D converters with an integrated oscillator, 4ppm INL and 0.3ppm RMS noise. They use delta-sigma technology and provide single cycle digital filter settling time (no latency delay) for multiplexed applications. The first conversion after the channel is changed is always valid. Through a single pin the LTC2404/LTC2408 can be configured for better than 110dB rejection at 50Hz or 60Hz ±2%, or can be driven by an external oscillator for a user defined rejection frequency in the range 1Hz to 120Hz. The internal oscillator requires no external frequency setting components. The converters accept any external reference voltage from 0.1V to VCC. With their extended input conversion range of –12.5% VREF to 112.5% VREF the LTC2404/LTC2408 smoothly resolve the offset and overrange problems of preceding sensors or signal conditioning circuits. The LTC2404/LTC2408 communicate through a flexible 4-wire digital interface which is compatible with SPI and MICROWIRE? protocols.

特点

Pin Compatible 4-/8-Channel 24-Bit ADCs

Single Conversion Digital Filter Settling Time Simplifies Multiplexing

4ppm INL, No Missing Codes

4ppm Full-Scale Error

0.5ppm Offset

0.3ppm Noise

Internal Oscillator—No External Components Required

110dB Min, 50Hz/60Hz Notch Filter

Reference Input Voltage: 0.1V to VCC

Live Zero—Extended Input Range Accommodates 12.5% Overrange and Underrange

Single Supply 2.7V to 5.5V Operation

Low Supply Current (200μA) and Auto Shutdown

应用

Weight Scales

Direct Temperature Measurement

Gas Analyzers

Strain-Gage Transducers

Instrumentation

Data Acquisition

Industrial Process Control

6-Digit DVMs

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC2404CG	SSOP-28	C	$7.75	$6.00
LTC2404CG#PBF	SSOP-28	C	$7.75	$6.00
LTC2404CG#TR	SSOP-28	C		$6.10
LTC2404CG#TRPBF	SSOP-28	C		$6.10
LTC2404IG	SSOP-28	I	$8.75	$6.75
LTC2404IG#PBF	SSOP-28	I	$8.75	$6.75
LTC2404IG#TR	SSOP-28	I		$6.85
LTC2404IG#TRPBF	SSOP-28	I		$6.85
