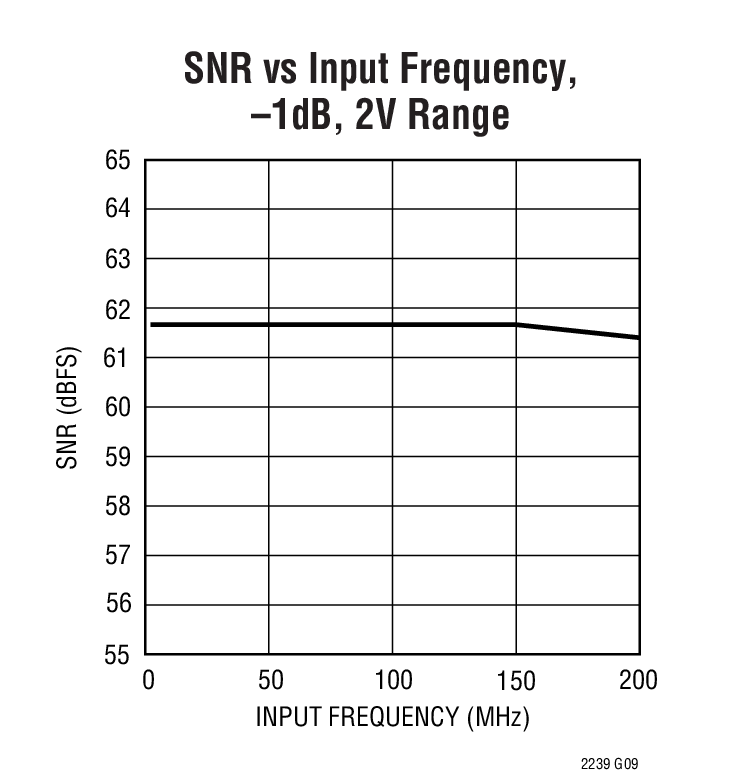

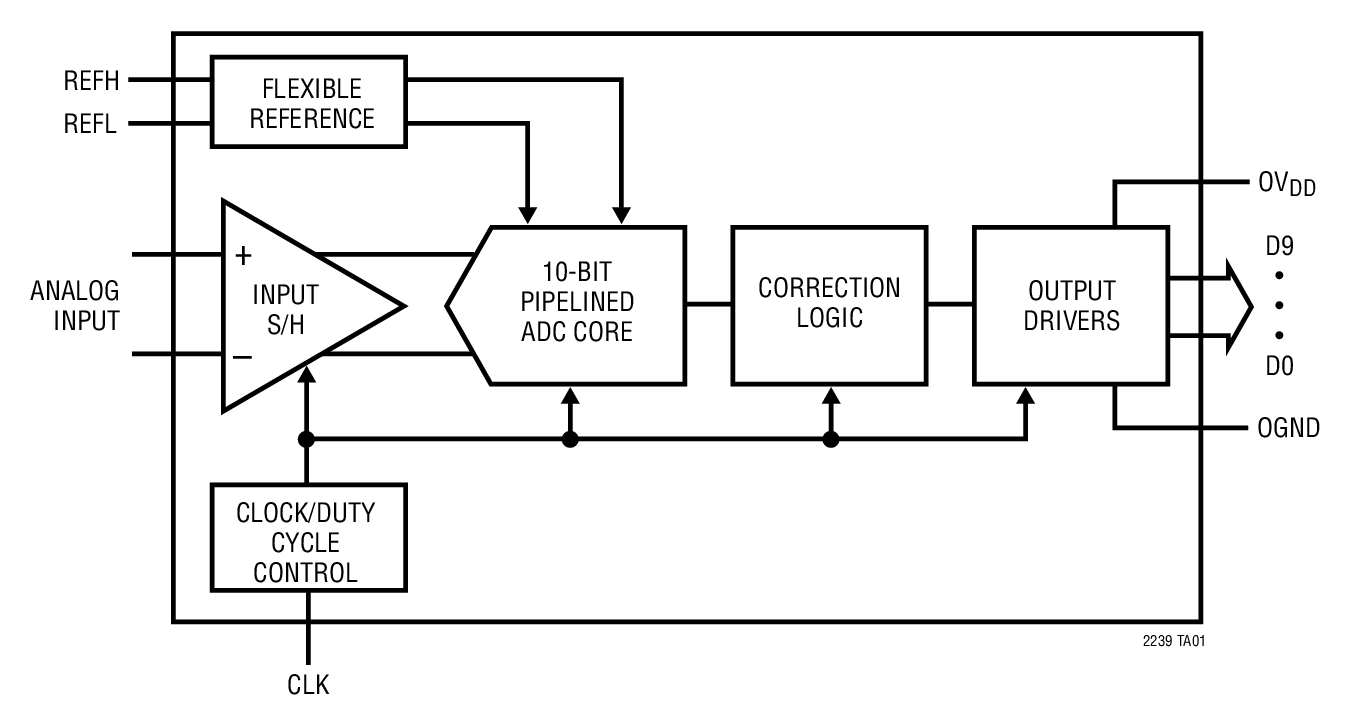

LTC2239 - 典型应用图例：
LTC2239典型应用图例一
LTC2239典型应用图例二

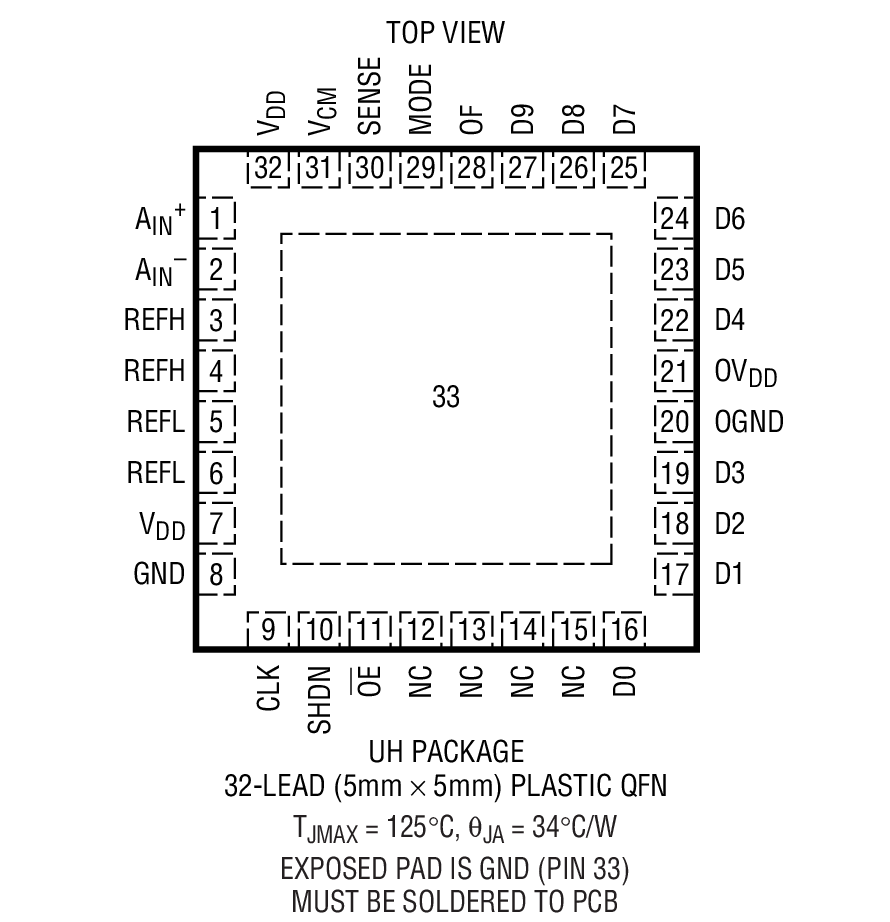

LTC2239 - 封装图解：
LTC2239封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC2239介绍

LTC2239 - LTC2239是10-Bit, 80Msps Low Noise 3V ADC

LTC2239是LINEAR凌力尔特公司的一款高速 ADC产品，LTC2239是LTC2239是10-Bit, 80Msps Low Noise 3V ADC，本站介绍了LTC2239的封装应用图解、特点和优点、功能等，并给出了与LTC2239相关的LINEAR元器件型号供参考。

LTC2239 - LTC2239是10-Bit, 80Msps Low Noise 3V ADC - 高速 ADC - 数据转换 - 凌力尔特

LTC2239 - 10-Bit, 80Msps Low Noise 3V ADC

LTC2239 - 10-Bit, 80Msps Low Noise 3V ADC - Linear Technology（凌力尔特）

功能描述

The LTC2239 is a 10-bit 80Msps, low power 3V A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2239 is perfect for demanding imaging and communications applications with AC performance that includes 61.6dB SNR and 85dB SFDR for signals well beyond the Nyquist frequency.

DC specs include ±0.1LSB INL (typ), ±0.1LSB DNL (typ) and ±0.5LSB INL, ±0.5LSB DNL over temperature. The transition noise is a low 0.08LSBRMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.3V logic.

A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

特点
  • Sample Rate: 80Msps
  • Single 3V Supply (2.7V to 3.4V)
  • Low Power: 211mW
  • 61.6dB SNR at 70MHz Input
  • 85dB SFDR at 70MHz Input
  • No Missing Codes
  • Flexible Input: 1VP-P to 2VP-P Range
  • 575MHz Full Power Bandwidth S/H
  • Clock Duty Cycle Stabilizer
  • Shutdown and Nap Modes
  • Pin Compatible Family125Msps: LTC2253 (12-Bit), LTC2251 (10-Bit)105Msps: LTC2252 (12-Bit), LTC2250 (10-Bit)80Msps: LTC2229 (12-Bit), LTC2239 (10-Bit)65Msps: LTC2228 (12-Bit), LTC2238 (10-Bit)40Msps: LTC2227 (12-Bit), LTC2237 (10-Bit)25Msps: LTC2226 (12-Bit), LTC2236 (10-Bit)
  • 10Msps: LTC2225 (12-Bit)
  • 32-Pin (5mm × 5mm) QFN Package
    • 应用
  • Wireless and Wired Broadband Communication
  • Imaging Systems
  • Ultrasound
  • Spectral Analysis
  • Portable Instrumentation
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC2239CUH 5x5 QFN-32 C $9.15 $6.70
    LTC2239CUH#PBF 5x5 QFN-32 C $9.15 $6.70
    LTC2239CUH#TR 5x5 QFN-32 C $6.80
    LTC2239CUH#TRPBF 5x5 QFN-32 C $6.80
    LTC2239IUH 5x5 QFN-32 I $10.93 $8.00
    LTC2239IUH#PBF 5x5 QFN-32 I $10.93 $8.00
    LTC2239IUH#TR 5x5 QFN-32 I $8.10
    LTC2239IUH#TRPBF 5x5 QFN-32 I $8.10
