当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC1861L
LTC1861L技术文档下载：
LTC1861L技术文档产品手册下载
LTC1861L - 典型应用图例：

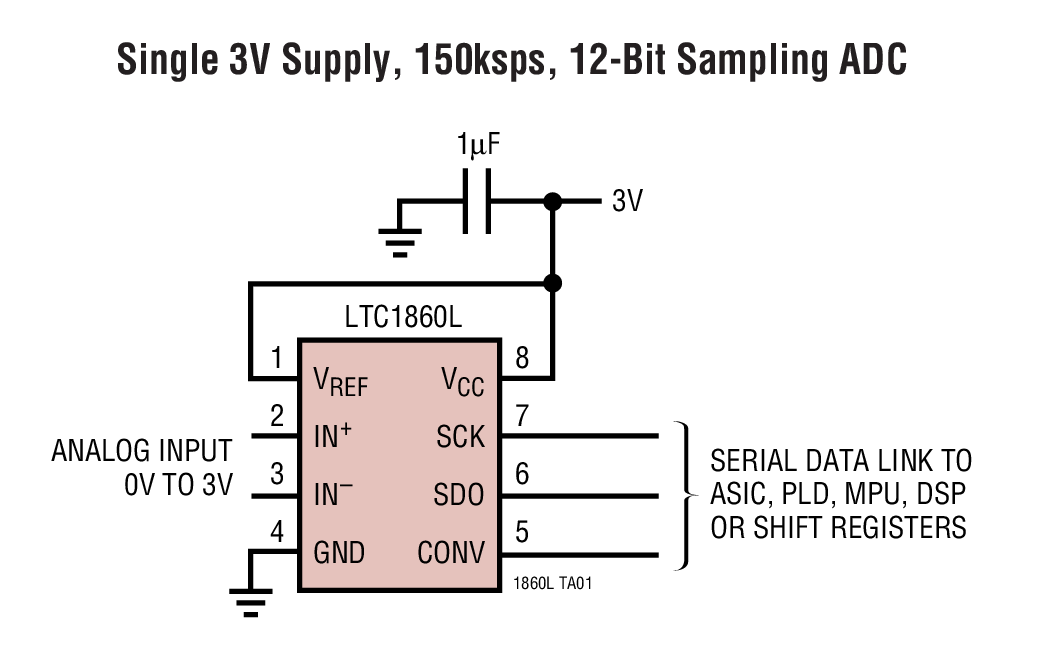

LTC1861L典型应用图例一

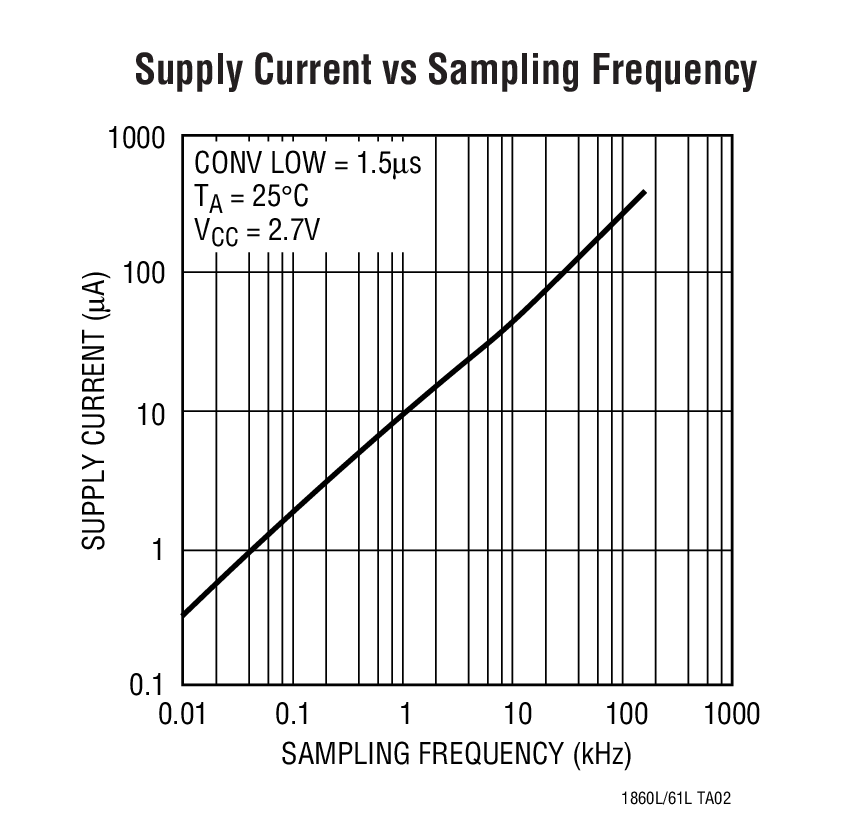

LTC1861L典型应用图例二
LTC1861L - 封装图解：

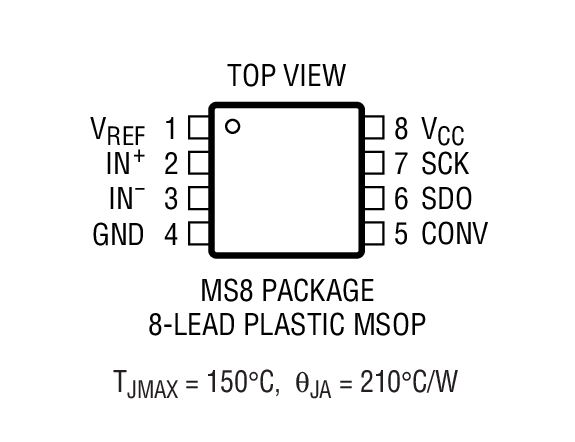

LTC1861L封装图解一

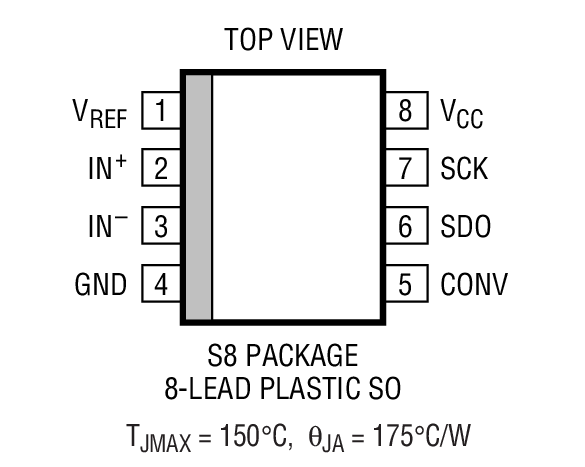

LTC1861L封装图解二

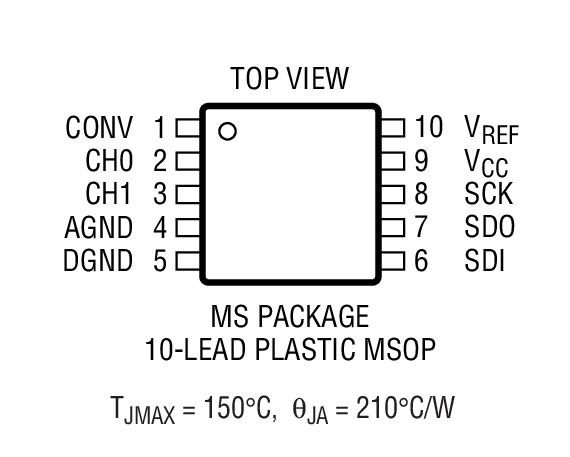

LTC1861L封装图解三

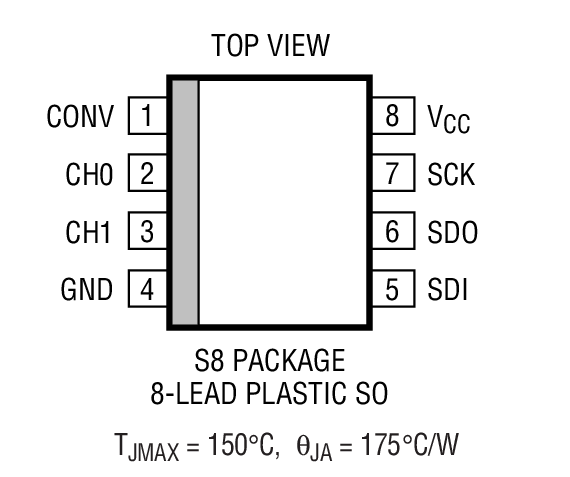

LTC1861L封装图解四
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1861L介绍

LTC1861L - LTC1861L是μPower, 3V, 12-Bit, 150ksps 1- and 2-Channel ADCs in MSOP

LTC1861L是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1861L是LTC1861L是μPower, 3V, 12-Bit, 150ksps 1- and 2-Channel ADCs in MSOP，本站介绍了LTC1861L的封装应用图解、特点和优点、功能等，并给出了与LTC1861L相关的LINEAR元器件型号供参考。

LTC1861L - LTC1861L是μPower, 3V, 12-Bit, 150ksps 1- and 2-Channel ADCs in MSOP - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1861L - μPower, 3V, 12-Bit, 150ksps 1- and 2-Channel ADCs in MSOP

LTC1861L - μPower, 3V, 12-Bit, 150ksps 1- and 2-Channel ADCs in MSOP - Linear Technology（凌力尔特）

功能描述

The LTC?1860L/LTC1861L are 12-bit A/D converters that are offered in MSOP and SO-8 packages and operate on a single 3V supply. At 150ksps, the supply current is only 450μA. The supply current drops at lower speeds because the LTC1860L/LTC1861L automatically power down between conversions. These 12-bit switched capacitor successive approximation ADCs include sample-and-holds. The LTC1860L has a differential analog input with an external reference pin. The LTC1861L offers a software selectable 2-channel MUX and an external reference pin on the MSOP version.

The 3-wire, serial I/O, MSOP or SO-8 package and extremely high sample rate-to-power ratio make theseADCs ideal choices for compact, low power, high speed systems.

These ADCs can be used in ratiometric applications or with external references. The high impedance analog inputs and the ability to operate with reduced spans down to 1V full scale allow direct connection to signal sources in many applications, eliminating the need for external gain stages.

特点
  • 12-Bit 150ksps ADC in MSOP Package
  • Single 3V Supply
  • Low Supply Current: 450µA (Typ)
  • Auto Shutdown Reduces Supply Current to 10µA at 1ksps
  • True Differential Inputs
  • 1-Channel (LTC1860L) or 2-Channel (LTC1861L) Versions
  • SPI/MICROWIRE™ Compatible Serial I/O
  • High Speed Upgrade to LTC1285/LTC1288
  • Pin Compatible with 16-Bit LTC1864L/LTC1865L
  • No Minimum Data Transfer Rate
    • 应用
  • High Speed Data Acquisition
  • Portable or Compact Instrumentation
  • Low Power Battery-Operated Instrumentation
  • Isolated and/or Remote Data Acquisition
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1861LCMS MS-10 C $3.45 $2.80
    LTC1861LCMS#PBF MS-10 C $3.45 $2.80
    LTC1861LCMS#TR MS-10 C $2.86
    LTC1861LCMS#TRPBF MS-10 C $2.86
    LTC1861LCS8 SO-8 C $3.40 $2.75
    LTC1861LCS8#PBF SO-8 C $3.40 $2.75
    LTC1861LCS8#TR SO-8 C $2.81
    LTC1861LCS8#TRPBF SO-8 C $2.81
    LTC1861LIMS MS-10 I $4.00 $3.25
    LTC1861LIMS#PBF MS-10 I $4.00 $3.25
    LTC1861LIMS#TR MS-10 I $3.31
    LTC1861LIMS#TRPBF MS-10 I $3.31
    LTC1861LIS8 SO-8 I $3.95 $3.20
    LTC1861LIS8#PBF SO-8 I $3.95 $3.20
    LTC1861LIS8#TR SO-8 I $3.26
    LTC1861LIS8#TRPBF SO-8 I $3.26
