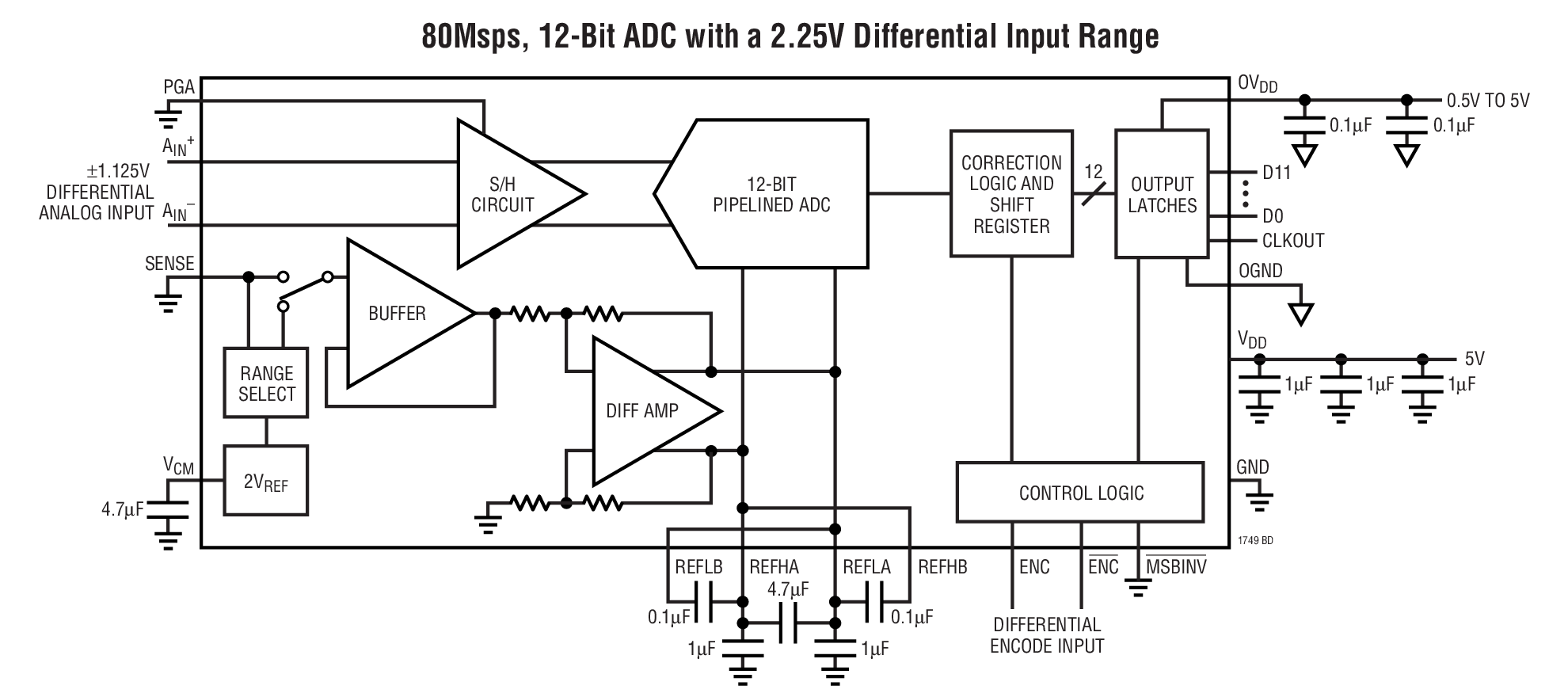

LTC1749 - 典型应用图例：
LTC1749典型应用图例一

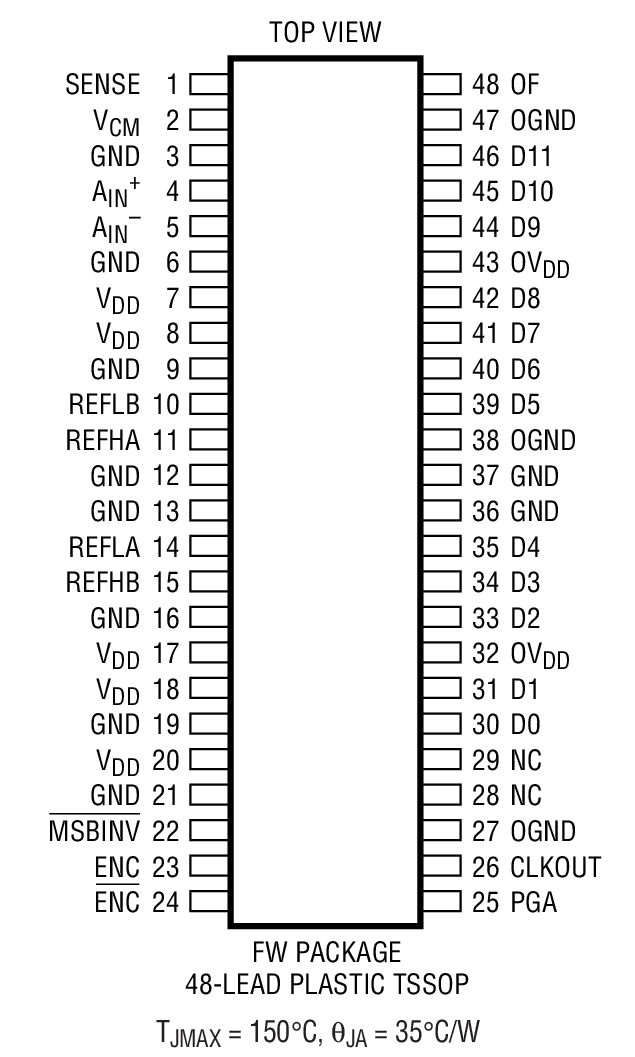

LTC1749 - 封装图解：
LTC1749封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1749介绍

LTC1749 - LTC1749是12-Bit, 80Msps Wide Bandwidth ADC

LTC1749是LINEAR凌力尔特公司的一款高速 ADC产品，LTC1749是LTC1749是12-Bit, 80Msps Wide Bandwidth ADC，本站介绍了LTC1749的封装应用图解、特点和优点、功能等，并给出了与LTC1749相关的LINEAR元器件型号供参考。

LTC1749 - LTC1749是12-Bit, 80Msps Wide Bandwidth ADC - 高速 ADC - 数据转换 - 凌力尔特

LTC1749 - 12-Bit, 80Msps Wide Bandwidth ADC

LTC1749 - 12-Bit, 80Msps Wide Bandwidth ADC - Linear Technology（凌力尔特）

功能描述

The LTC1749 is an 80Msps, 12-bit A/D converter designed for digitizing wide dynamic range signals up to frequencies of 500MHz. The input range of the ADC can be optimized with the on-chip PGA sample-and-hold circuit and flexible reference circuitry.

The LTC1749 has a highly linear sample-and-hold circuit with a bandwidth of 500MHz. The SFDR is 80dB with an input frequency of 250MHz. Ultralow jitter of 0.15psRMS allows undersampling of IF frequencies with minimal degradation in SNR. DC specs include ±1LSB INL and no missing codes.

The digital interface is compatible with 5V, 3V, 2V and LVDS logic systems. The ENC and ENC inputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gain ENC and ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate output power supply can be operated from 0.5V to 5V, making it easy to connect directly to low voltage DSPs or FIFOs.

The 48-pin TSSOP package with a flow-through pinout simplifies the board layout.

特点
  • Sample Rate: 80Msps
  • PGA Front End (2.25VP-P or 1.35VP-P Input Range)
  • 71.8dB SNR and 87dB SFDR (PGA = 0)
  • 70.2dB SNR and 87dB SFDR (PGA = 1)
  • 500MHz Full Power Bandwidth S/H
  • No Missing Codes
  • Single 5V Supply
  • Power Dissipation: 1.45W
  • Two Pin Selectable Reference Values
  • Data Ready Output Clock
  • Pin Compatible 14-Bit 80Msps Device (LTC1750)
  • 48-Pin TSSOP Package
    • 应用
  • Direct IF Sampling
  • Telecommunications
  • Receivers
  • Cellular Base Stations
  • Spectrum Analysis
  • Communications Test Equipment
  • Undersampling
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1749CFW TSSOP-48 C $25.55 $19.55
    LTC1749CFW#PBF TSSOP-48 C $25.55 $19.55
    LTC1749CFW#TR TSSOP-48 C $19.65
    LTC1749CFW#TRPBF TSSOP-48 C $19.65
    LTC1749IFW TSSOP-48 I $30.10 $23.00
    LTC1749IFW#PBF TSSOP-48 I $30.10 $23.00
    LTC1749IFW#TR TSSOP-48 I $23.10
    LTC1749IFW#TRPBF TSSOP-48 I $23.10
