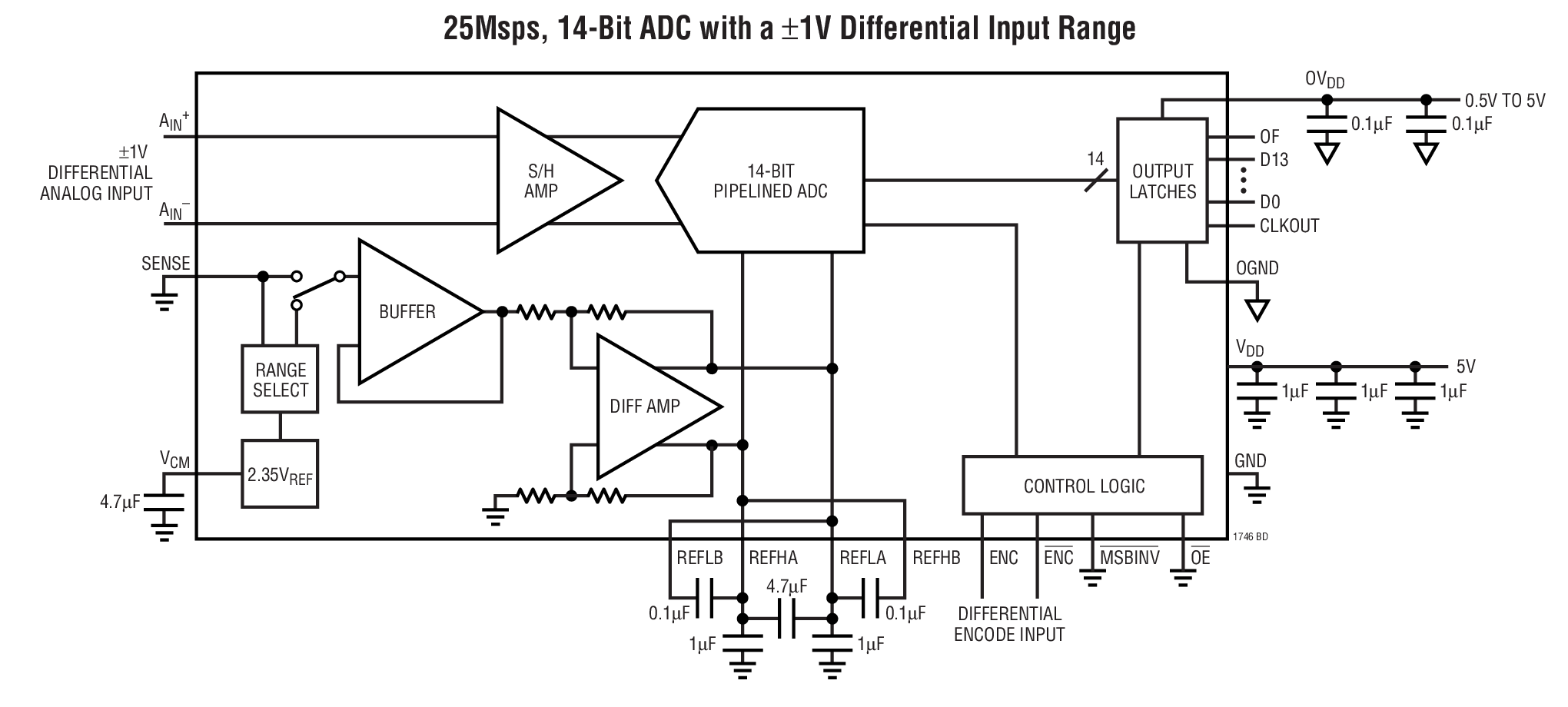

LTC1746 - 典型应用图例：
LTC1746典型应用图例一

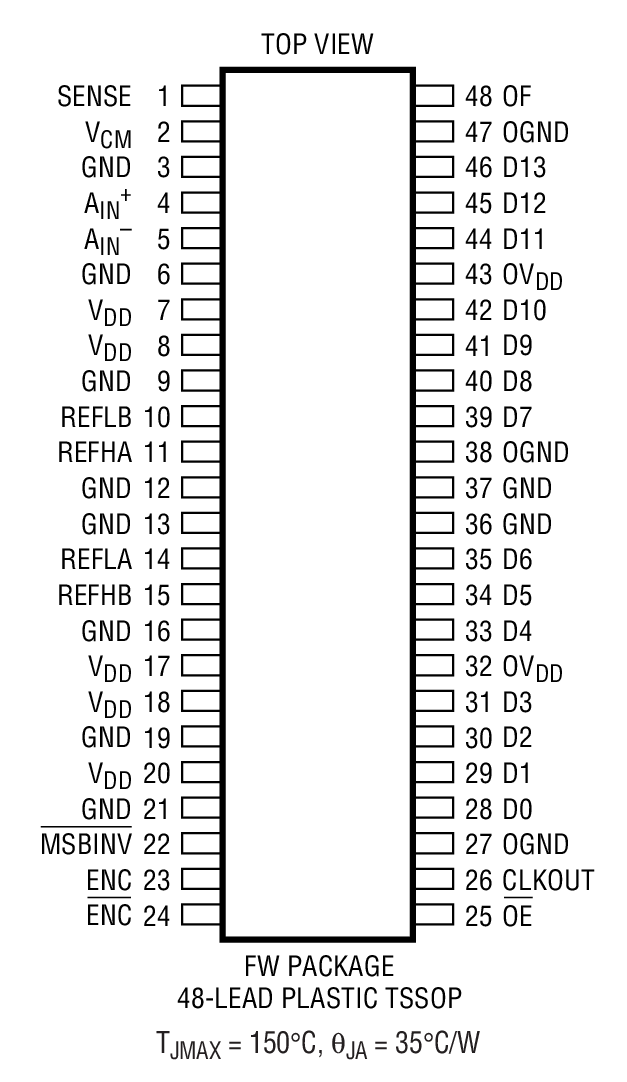

LTC1746 - 封装图解：
LTC1746封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1746介绍

LTC1746 - LTC1746是Low Power,14-Bit, 25Msps ADC

LTC1746是LINEAR凌力尔特公司的一款高速 ADC产品，LTC1746是LTC1746是Low Power,14-Bit, 25Msps ADC，本站介绍了LTC1746的封装应用图解、特点和优点、功能等，并给出了与LTC1746相关的LINEAR元器件型号供参考。

LTC1746 - LTC1746是Low Power,14-Bit, 25Msps ADC - 高速 ADC - 数据转换 - 凌力尔特

LTC1746 - Low Power,14-Bit, 25Msps ADC

LTC1746 - Low Power,14-Bit, 25Msps ADC - Linear Technology（凌力尔特）

功能描述

The LTC1746 is a 25Msps, sampling 14-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. Pin selectable input ranges of ±1V and ±1.6V along with a resistor programmable mode allow the LTC1746’s input range to be optimized for a wide variety of applications.

The LTC1746 is perfect for demanding communications applications with AC performance that includes 77.5dB SNR and 91dB spurious free dynamic range. Ultralow jitter of 0.3psRMS allows undersampling with excellent noise performance. DC specs include ±3LSB INL maximum and no missing codes over temperature.

The digital interface is compatible with 5V, 3V and 2V logic systems. The ENC and ENC inputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gain ENC and ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate digital output power supply can be operated from 0.5V to 5V, making it easy to connect directly to low voltage DSPs or FIFOs.

The TSSOP package with a flow-through pinout simplifies the board layout.

特点
  • Sample Rate: 25Msps
  • 77.5dB SNR and 91dB SFDR (3.2V Range)
  • 74dB SNR and 96dB SFDR (2V Range)
  • No Missing Codes
  • Single 5V Supply
  • Low Power Dissipation: 390mW
  • Selectable Input Ranges: ±1V or ±1.6V
  • 240MHz Full Power Bandwidth S/H
  • Pin Compatible Family25 Msps: LTC1746 (14-Bit), LTC1745 (12-Bit)50 Msps: LTC1744 (14-Bit), LTC1743 (12-Bit)65 Msps: LTC1742 (14-Bit), LTC1741 (12-Bit)80 Msps: LTC1748 (14-Bit), LTC1747 (12-Bit)
    • 应用
  • Telecommunications
  • Medical Imaging
  • Receivers
  • Cellular Base Stations
  • Spectrum Analysis
  • Imaging Systems
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1746CFW TSSOP-48 C $14.80 $12.75
    LTC1746CFW#PBF TSSOP-48 C $14.80 $12.75
    LTC1746CFW#TR TSSOP-48 C $12.85
    LTC1746CFW#TRPBF TSSOP-48 C $12.85
    LTC1746IFW#PBF TSSOP-48 I $17.40 $15.00
    LTC1746IFW#TRPBF TSSOP-48 I $15.10
