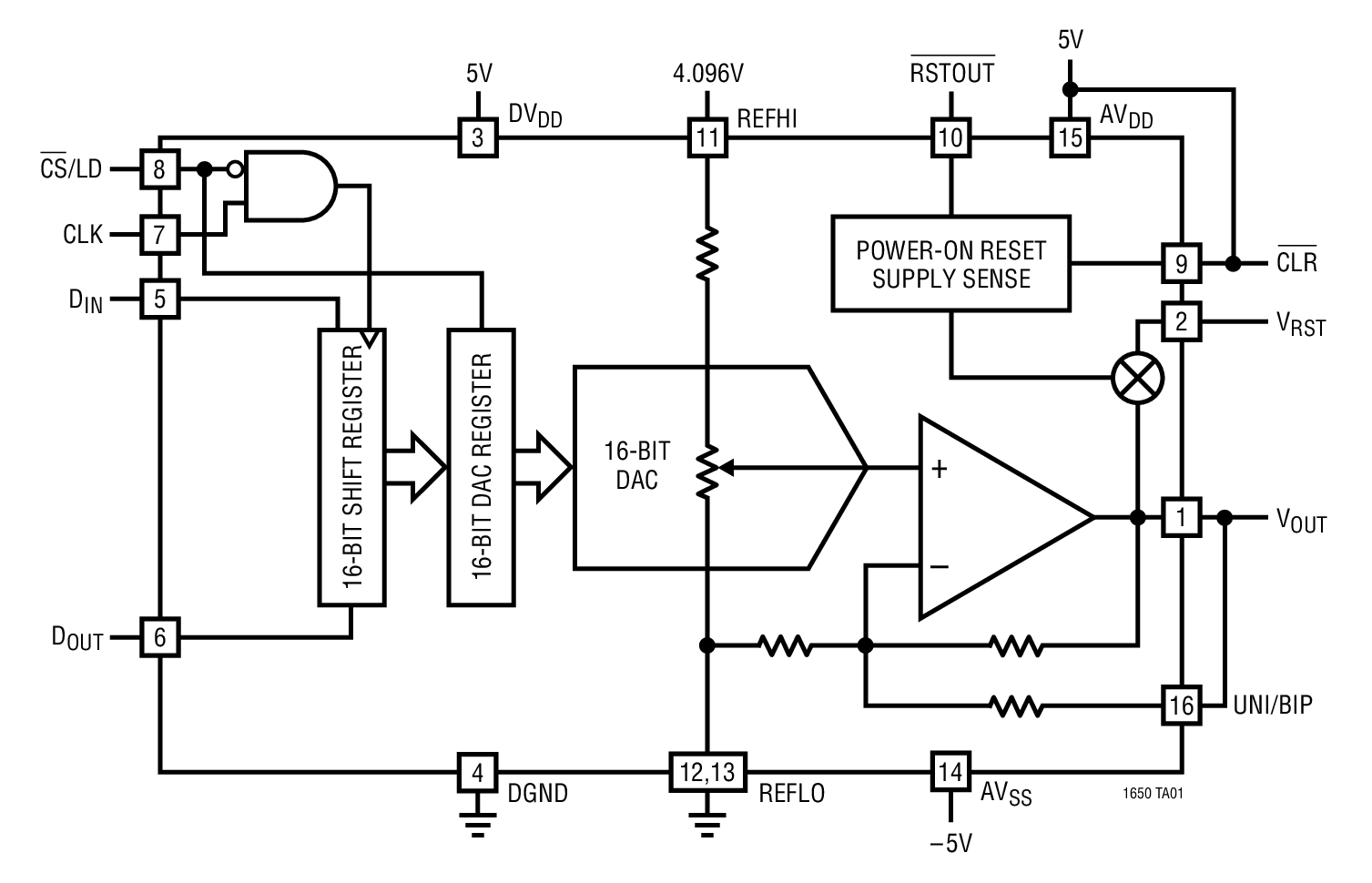

LTC1650典型应用图例一

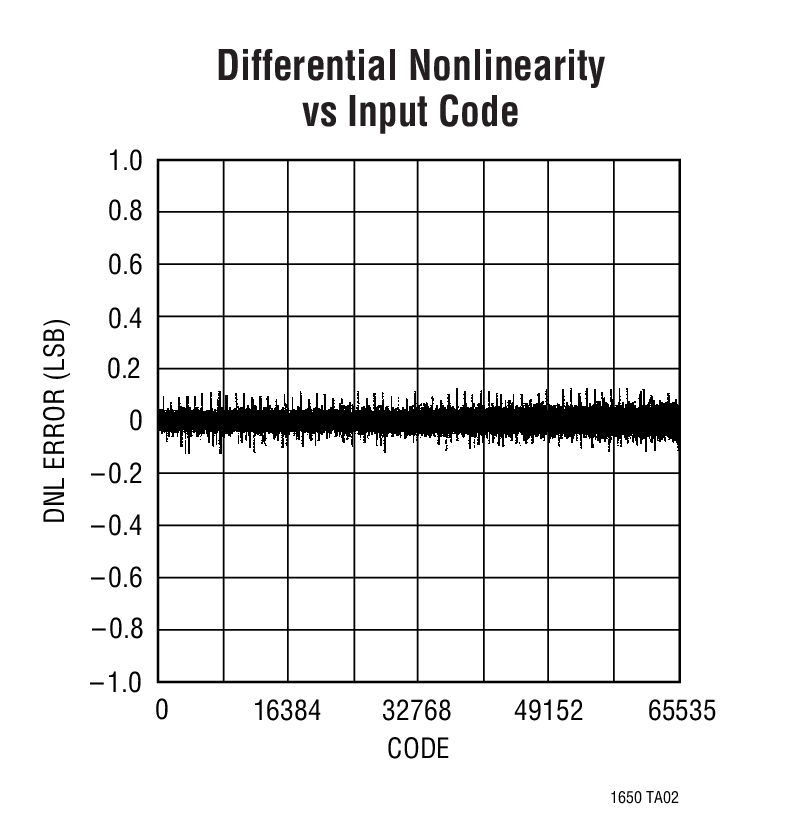

LTC1650典型应用图例二
LTC1650 - 封装图解：

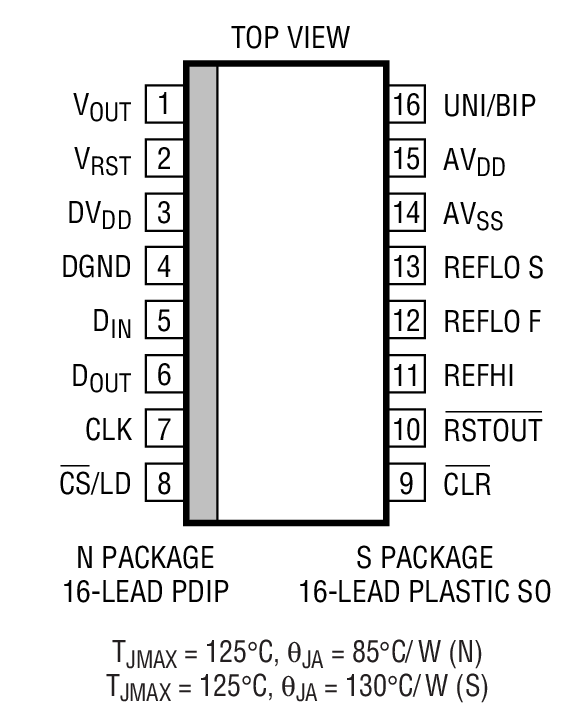

LTC1650封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1650介绍

LTC1650 - LTC1650是Low Glitch 16-Bit Voltage Output DAC

LTC1650是LINEAR凌力尔特公司的一款电压输出 DAC产品，LTC1650是LTC1650是Low Glitch 16-Bit Voltage Output DAC，本站介绍了LTC1650的封装应用图解、特点和优点、功能等，并给出了与LTC1650相关的LINEAR元器件型号供参考。

LTC1650 - LTC1650是Low Glitch 16-Bit Voltage Output DAC - 电压输出 DAC - 数据转换 - 凌力尔特

LTC1650 - Low Glitch 16-Bit Voltage Output DAC

LTC1650 - Low Glitch 16-Bit Voltage Output DAC - Linear Technology（凌力尔特）

功能描述
The LTC1650 is a deglitched rail-to-rail voltage output 16-bit digital-to-analog converter (DAC) available in a 16-pin narrow SO package. It has 16-bit monotonicity over temperature and includes a rail-to-rail output buffer amplifier and an easy to use three-wire cascadable serial interface. The LTC1650 operates with dual ±5V supplies. With REFLO = 0V and REFHI = VREF, the output will swing from 0V to VREF in unipolar mode or ±VREF in bipolar mode.

The LTC1650 has excellent accuracy over its full operating temperature range along with very low power dissipation of 50mW with dual ±5V supplies. This, along with the small outline package, makes it the most flexible high resolution digital-to-analog converter available today.

The LTC1650 has a fast settling time of 4µs to 16 bits and a low midscale glitch of under 2nV-s. This makes the LTC1650 ideal for waveform generation or other applications where output dynamic performance is important.

特点
  • 16-Bit Monotonic Over Temperature
  • Low Glitch Impulse: 2nV-s
  • Low Noise: 30nV/rtHz
  • Buffered Rail-to-Rail Voltage Output
  • Low Power: 50mW from ±5V Supplies
  • Unipolar or Bipolar Output (0V to VREF or ±VREF)
  • 4-Quadrant Multiplying Capability
  • Asynchronous Clear to User-Defined Voltage
  • Power-On Reset
  • Three-Wire SPI and MICROWIRE™ Compatible Serial Interface
  • Schmitt Trigger On CLK Input Allows Direct Optocoupler Interface
  • 16-Pin Narrow SO Package
    • 应用
  • Industrial Process Control
  • Precision Industrial Equipment
  • Waveform Generation
  • Automatic Test Equipment
  • High Resolution Offset and Gain Adjustment
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1650ACN N-16 C $19.05 $15.75
    LTC1650ACN#PBF N-16 C $19.05 $15.75
    LTC1650ACS SO-16 C $19.40 $15.90
    LTC1650ACS#PBF SO-16 C $19.40 $15.90
    LTC1650ACS#TR SO-16 C $15.96
    LTC1650ACS#TRPBF SO-16 C $15.96
    LTC1650AIN N-16 I $20.70 $17.70
    LTC1650AIN#PBF N-16 I $20.70 $17.70
    LTC1650AIS SO-16 I $22.00 $18.00
    LTC1650AIS#PBF SO-16 I $22.00 $18.00
    LTC1650AIS#TR SO-16 I $18.06
    LTC1650AIS#TRPBF SO-16 I $18.06
    LTC1650CN N-16 C $13.10 $11.20
    LTC1650CN#PBF N-16 C $13.10 $11.20
    LTC1650CS SO-16 C $13.45 $11.50
    LTC1650CS#PBF SO-16 C $13.45 $11.50
    LTC1650CS#TR SO-16 C $11.56
    LTC1650CS#TRPBF SO-16 C $11.56
    LTC1650IN N-16 I $14.85 $12.70
    LTC1650IN#PBF N-16 I $14.85 $12.70
    LTC1650IS SO-16 I $15.20 $13.00
    LTC1650IS#PBF SO-16 I $15.20 $13.00
    LTC1650IS#TR SO-16 I $13.06
    LTC1650IS#TRPBF SO-16 I $13.06
