LTC1623是SMBus Dual High-SideSwitch Controller

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1623

LTC1623技术文档下载：

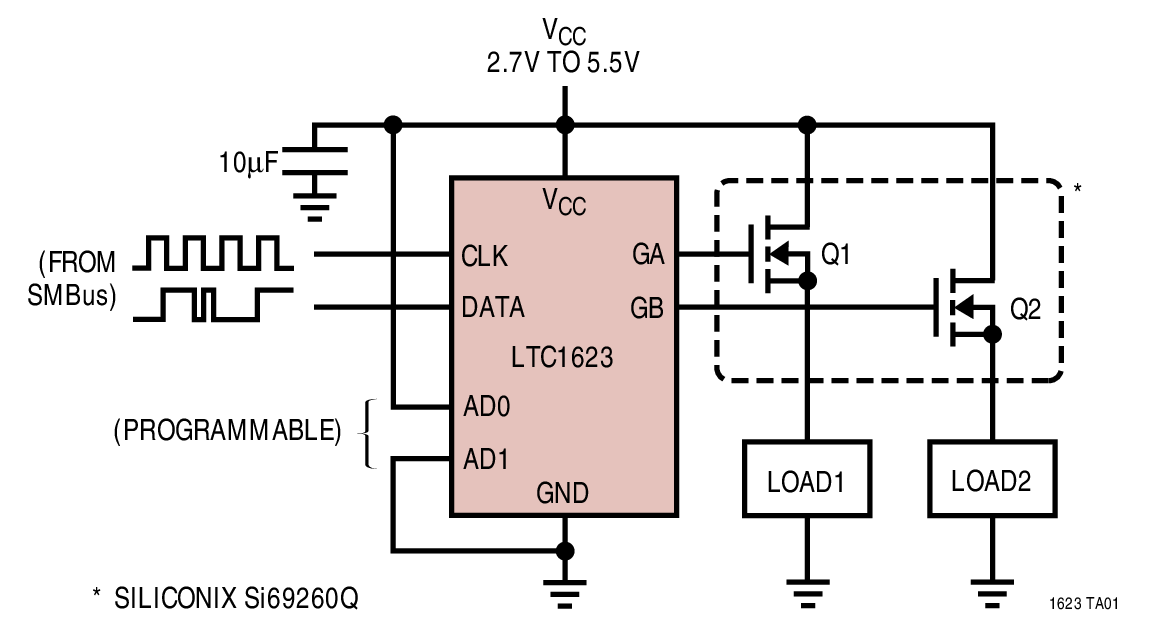

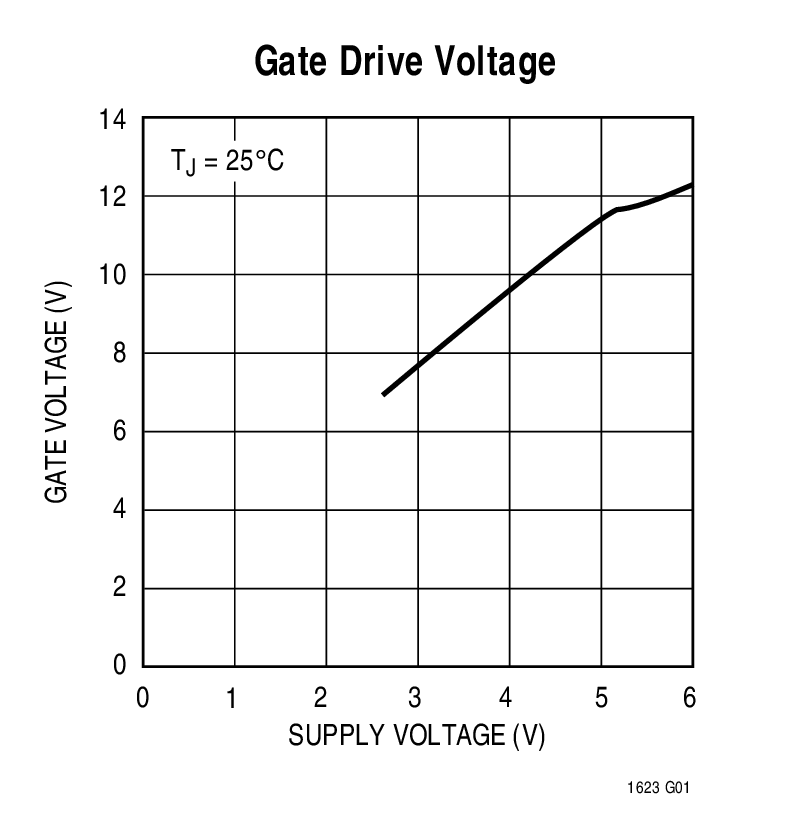

LTC1623 - 典型应用图例：

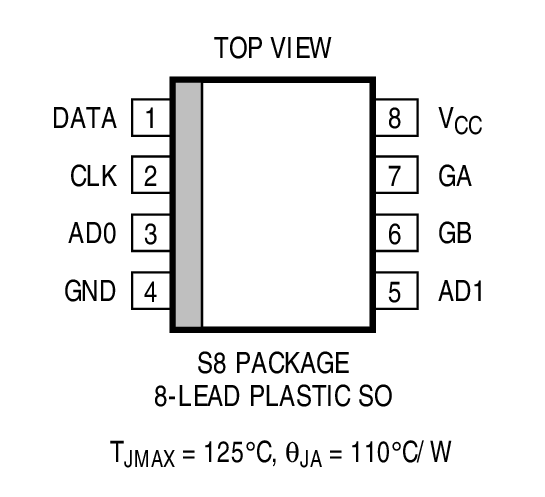

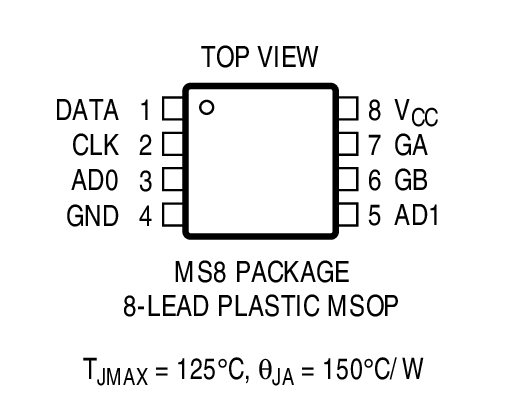

LTC1623 - 封装图解：

LTC1623 - LTC1623是SMBus Dual High-SideSwitch Controller

LTC1623是Linear公司的一款高压侧开关和 MOSFET 驱动器产品，LTC1623是SMBus Dual High-SideSwitch Controller，本站介绍了LTC1623的封装应用图解、特点和优点、功能等，并给出了与LTC1623相关的凌力尔特元器件型号供参考。

LTC1623 - SMBus Dual High-SideSwitch Controller

LTC1623 - SMBus Dual High-SideSwitch Controller - Linear Technology（凌力尔特）

功能描述

The LTC1623 SMBus switch controller is a slave device that controls two high-side N-channel MOSFETs on either the SMBus or the I²C bus. The LTC1623 operates with an input voltage from 2.7V to 5.5V with a low standby current of 14µA (at 3.3V). In accordance with the SMBus specification, the LTC1623 maintains the 0.6V VIL and 1.4V VIH input thresholds throughout the supply voltage range. Using the 2-wire interface, CLK and DATA, the LTC1623 monitors the bus for a start condition (DATA going from high to low while CLK is high). Once detected, the LTC1623 compares its address with the first (address) byte sent over the bus from the master. If matched, the LTC1623 will execute the second (command) byte from the master and independently control the built-in charge pumps to drive two external switches. The LTC1623 has two three-state programmable address pins, thus allowing eight different addresses and a total of sixteen available switches on the same bus.

特点

SMBus and I²C Compatible

Built-In Charge Pumps Drive N-Channel Switches

16 Available Switches on the Same Bus

0.6V VIL and 1.4V VIH for DATA and CLK

Available in 8-Lead MSOP and S0 Packages

Low Standby Current: 14µA

Eight Addresses from Two Three-State Address Pins

Internal Power-On Reset Timer

Internal Undervoltage Lockout

No Need for External Pull-Up Resistors at Output

No Need for Secondary Power Source

应用

Computer Peripheral Control

Laptop Computer Power Plane Switching

Portable Equipment Power Control

Industrial Control Systems

Handheld Equipment

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1623CMS8	MS-8	C	$2.15	$1.85
LTC1623CMS8#PBF	MS-8	C	$2.15	$1.85
LTC1623CMS8#TR	MS-8	C		$1.91
LTC1623CMS8#TRPBF	MS-8	C		$1.91
LTC1623CS8	SO-8	C	$1.85	$1.60
LTC1623CS8#PBF	SO-8	C	$1.85	$1.60
LTC1623CS8#TR	SO-8	C		$1.66
LTC1623CS8#TRPBF	SO-8	C		$1.66
LTC1623IS8	SO-8	I	$2.25	$1.95
LTC1623IS8#PBF	SO-8	I	$2.25	$1.95
LTC1623IS8#TR	SO-8	I		$2.01
LTC1623IS8#TRPBF	SO-8	I		$2.01
