LTC1599A是16-Bit Byte Wide, Low Glitch Multiplying DAC with 4-Quadrant Resistors

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1599A

LTC1599A技术文档下载：

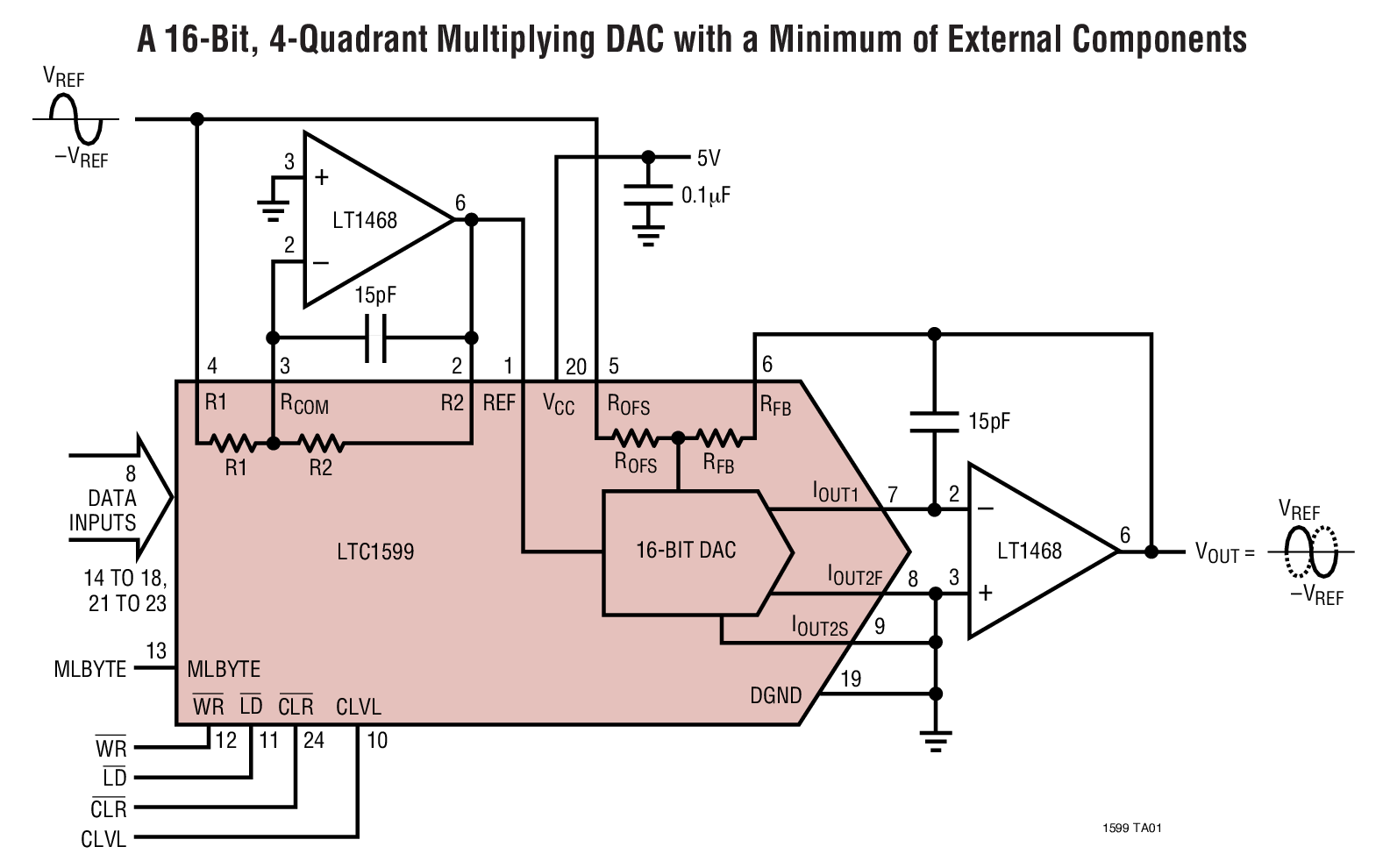

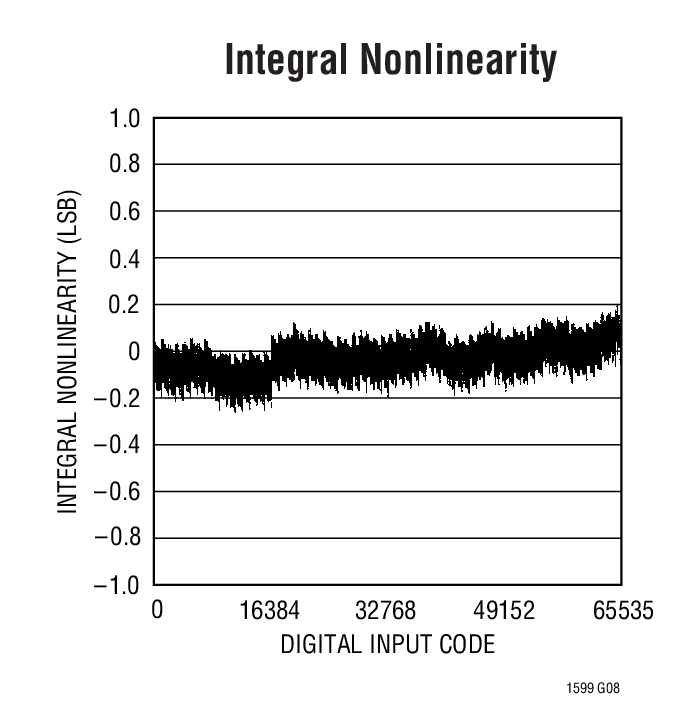

LTC1599A - 典型应用图例：

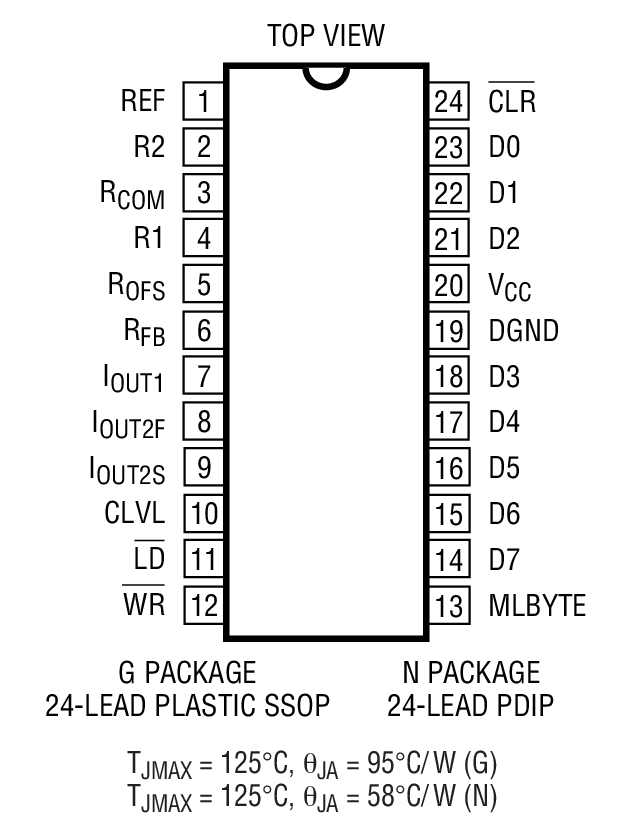

LTC1599A - 封装图解：

LTC1599A - LTC1599A是16-Bit Byte Wide, Low Glitch Multiplying DAC with 4-Quadrant Resistors

LTC1599A是Linear公司的一款电流输出 DAC产品，LTC1599A是16-Bit Byte Wide, Low Glitch Multiplying DAC with 4-Quadrant Resistors，本站介绍了LTC1599A的封装应用图解、特点和优点、功能等，并给出了与LTC1599A相关的凌力尔特元器件型号供参考。

LTC1599A - 16-Bit Byte Wide, Low Glitch Multiplying DAC with 4-Quadrant Resistors

LTC1599 - 16-Bit Byte Wide, Low Glitch Multiplying DAC with 4-Quadrant Resistors - Linear Technology（凌力尔特）

功能描述

The LTC?1599 is a 2-byte parallel input 16-bit multiplying current output DAC that operates from a single 5V supply. INL and DNL are accurate to 1LSB over the industrial temperature range in both 2- and 4-quadrant multiplying modes. True 16-bit 4-quadrant multiplication is achieved with on-chip 4-quadrant multiplication resistors.The LTC1599 is available in 24-pin PDIP and SSOP packages and is specified over the commercial and industrial temperature ranges. The device includes an internal deglitcher circuit that reduces the glitch impulse to 1.5nV-s (typ). The asynchronous CLR pin resets the LTC1599 to zero scale when the CLVL pin is at a logic low and to midscale when the CLVL pin is at a logic high.For a full 16-bit wide parallel interface current output DAC, refer to the LTC1597 data sheet. For serial interface 16-bit current output DACs, refer to the LTC1595/LTC1596 data sheet.

特点

True 16-Bit Performance over Industrial Temperature Range

DNL and INL: 1LSB Max

On-Chip 4-Quadrant Resistors Allow Precise 0V to 10V, 0V to ?10V or ±10V Outputs

2µs Settling Time to 0.0015% (with LT®1468)

Asynchronous Clear Pin Resets to Zero-Scale or Mid-Scale

Glitch Impulse: 1.5nV-s

24-Lead SSOP Package

Low Power Consumption: 10µW Typ

Power-On Reset to Zero-Scale or Mid-Scale

2-Byte Parallel Digital Interface

应用

Process Control and Industrial Automation

Direct Digital Waveform Generation

Software-Controlled Gain Adjustment

Automatic Test Equipment
