LTC1350 - LTC1350是3.3V Low Power EIA/TIA-562 3-Driver/5-Receiver Transceiver

LTC1350是LINEAR凌力尔特公司的一款RS232 / RS562 收发器产品，LTC1350是LTC1350是3.3V Low Power EIA/TIA-562 3-Driver/5-Receiver Transceiver，本站介绍了LTC1350的封装应用图解、特点和优点、功能等，并给出了与LTC1350相关的LINEAR元器件型号供参考。

LTC1350 - LTC1350是3.3V Low Power EIA/TIA-562 3-Driver/5-Receiver Transceiver - RS232 / RS562 收发器 - 接口器件 - 凌力尔特

LTC1350 - 3.3V Low Power EIA/TIA-562 3-Driver/5-Receiver Transceiver

LTC1350 - 3.3V Low Power EIA/TIA-562 3-Driver/5-Receiver Transceiver - Linear Technology（凌力尔特）

功能描述

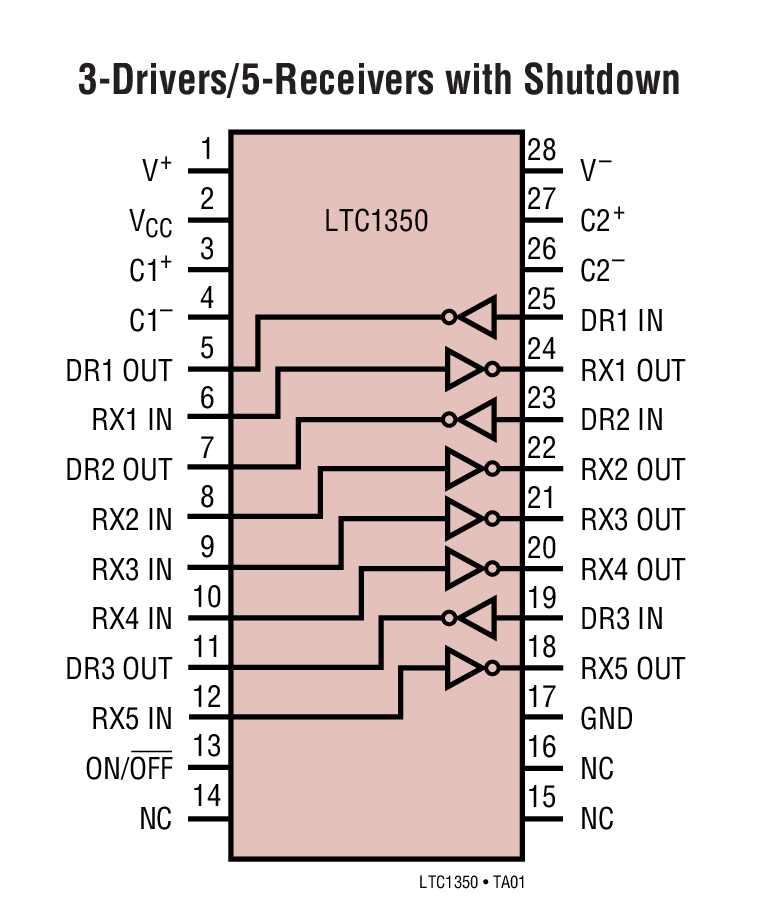

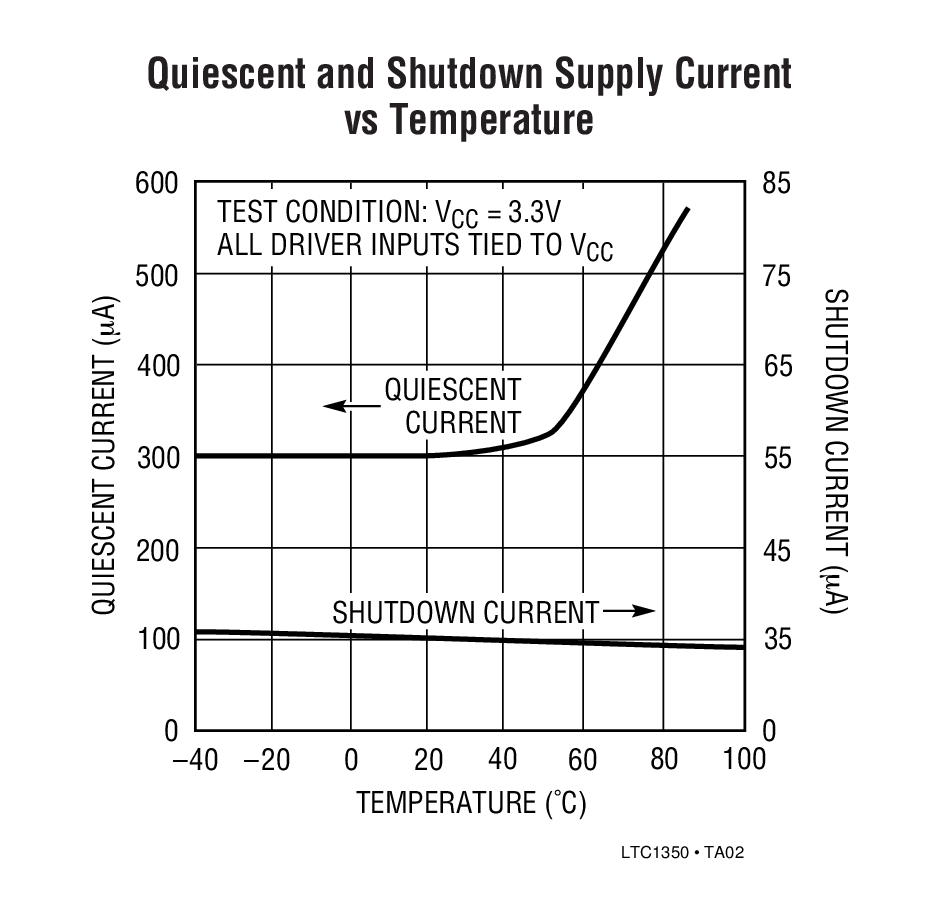

The LTC?1350 is a 3-driver/5-receiver EIA/TIA-562 transceiver with very low supply current. In the no load condition, the supply current is only 300μA. The charge pump only requires four 0.1μF capacitors.

In Shutdown mode, two receivers are kept alive and the supply current is only 35μA. All RS232 outputs assume a high impedance state in Shutdown or with the power off.

The LTC1350 is fully compliant with all data rate and overvoltage EIA/TIA-562 specifications. The transceiver can operate up to 120kbaud with a 1000pF and 3kOhm load. Both driver outputs and receiver inputs can be forced to ?25V without damage and can survive multiple ±10kV ESD strikes.

特点

Low Supply Current 300μA

Receivers 4 and 5 Kept Alive in SHUTDOWN: 35μA

ESD Protection ±10kV

Operates from a Single 3.3V Supply

Uses Small Capacitors 0.1µF

Operates to 120k Baud

Three-State Outputs are High Impedance When Off

Output Overvoltage Does Not Force Current Back into Supplies

EIA/TIA-562 I/O Lines Can Be Forced to ±25V Without Damage

Flowthrough Architecture

应用

Notebook Computers

Palmtop Computers

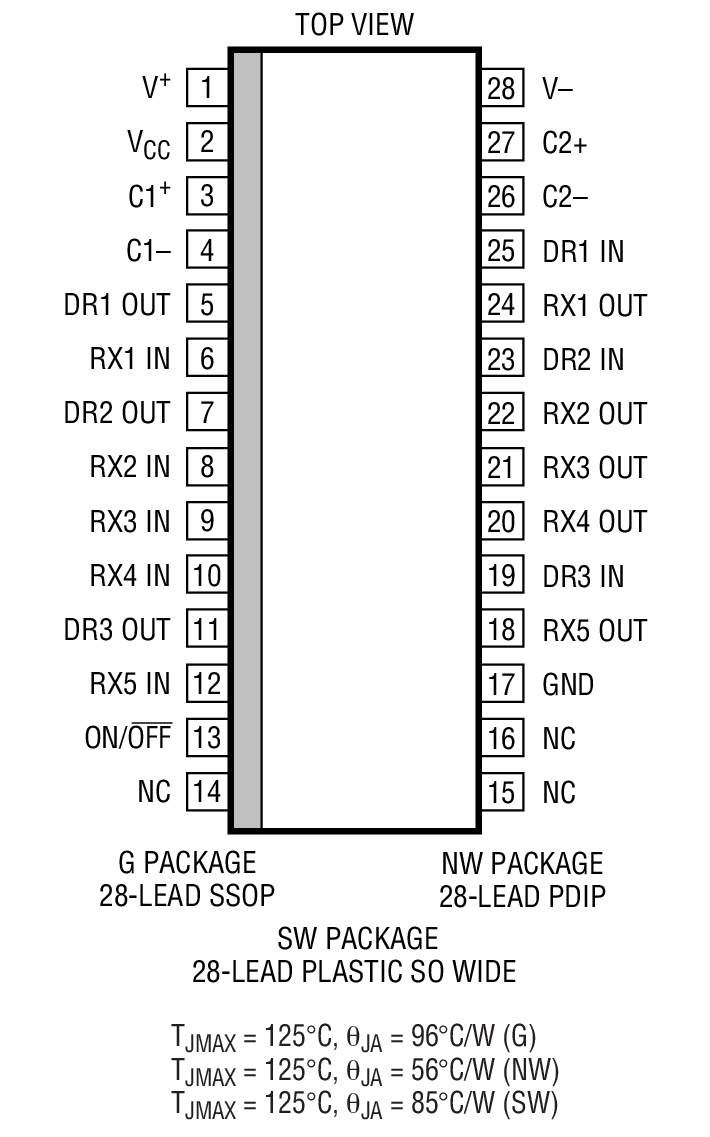

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1350CG	SSOP-28	C	$6.35	$4.95
LTC1350CG#PBF	SSOP-28	C	$6.35	$4.95
LTC1350CG#TR	SSOP-28	C		$5.05
LTC1350CG#TRPBF	SSOP-28	C		$5.05
LTC1350CNW	NW-28	C	$5.85	$4.60
LTC1350CNW#PBF	NW-28	C	$5.85	$4.60
LTC1350CSW	SW-28	C	$5.85	$4.60
LTC1350CSW#PBF	SW-28	C	$5.85	$4.60
LTC1350CSW#TR	SW-28	C		$4.70
LTC1350CSW#TRPBF	SW-28	C		$4.70
LTC1350IG	SSOP-28	I	$6.90	$5.45
LTC1350IG#PBF	SSOP-28	I	$6.90	$5.45
LTC1350IG#TR	SSOP-28	I		$5.55
LTC1350IG#TRPBF	SSOP-28	I		$5.55
LTC1350INW	NW-28	I	$6.40	$5.05
LTC1350ISW	SW-28	I	$6.40	$5.05
LTC1350ISW#PBF	SW-28	I	$6.40	$5.05
LTC1350ISW#TR	SW-28	I		$5.15
LTC1350ISW#TRPBF	SW-28	I		$5.15
