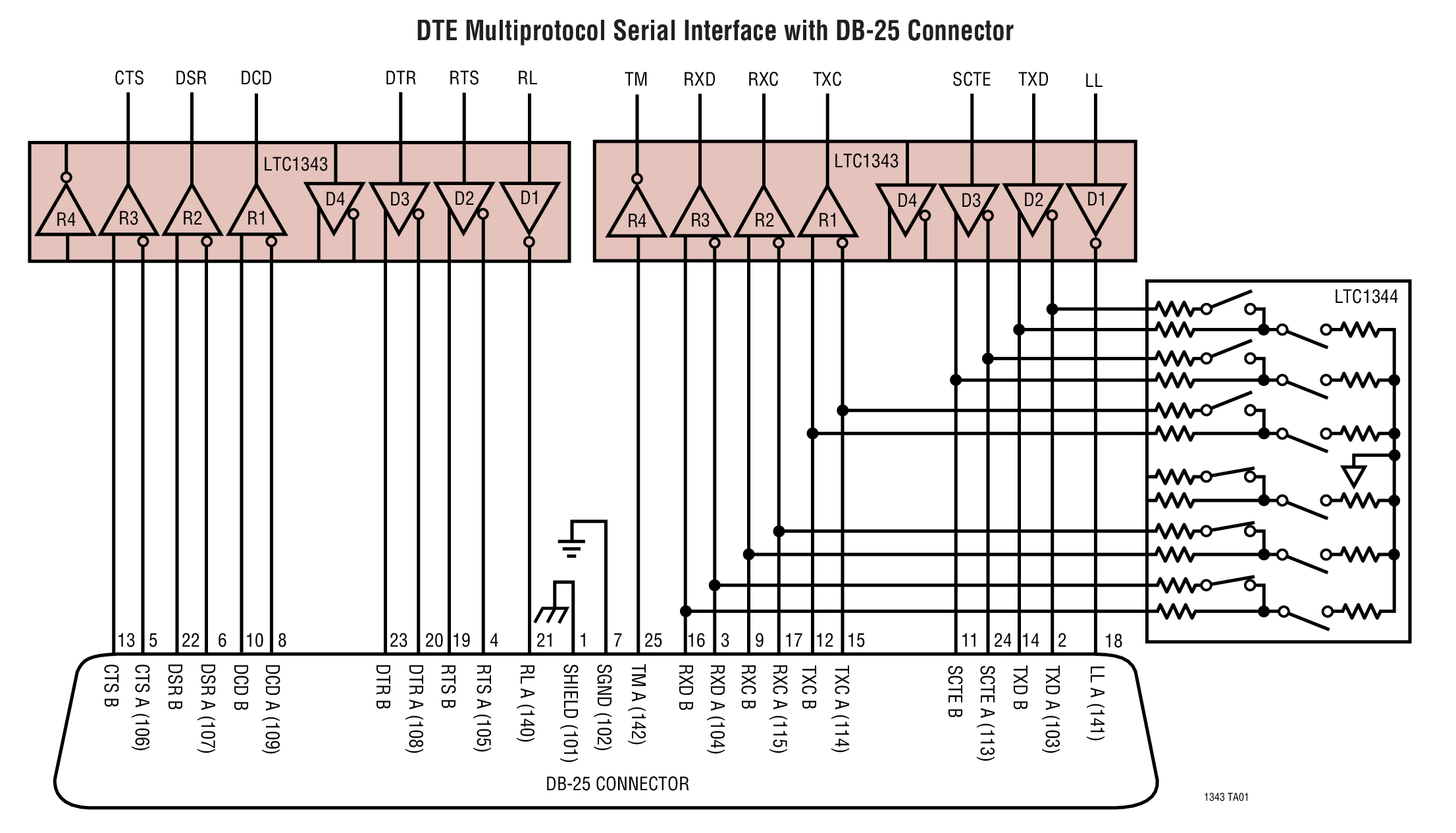

LTC1343 - 典型应用图例：

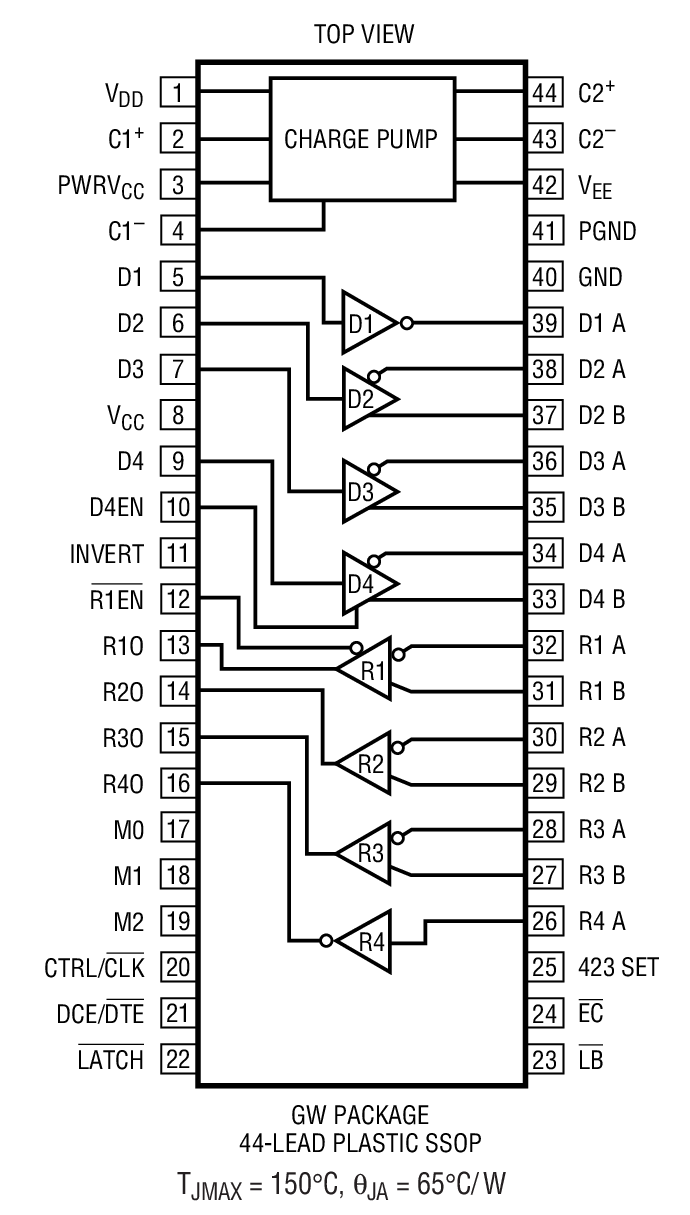

LTC1343 - 封装图解：

LTC1343 - LTC1343是Software-Selectable Multiprotocol Transceiver

LTC1343是Linear公司的一款多协议收发器产品，LTC1343是Software-Selectable Multiprotocol Transceiver，本站介绍了LTC1343的封装应用图解、特点和优点、功能等，并给出了与LTC1343相关的凌力尔特元器件型号供参考。

LTC1343 - Software-Selectable Multiprotocol Transceiver

LTC1343 - Software-Selectable Multiprotocol Transceiver - Linear Technology（凌力尔特）

功能描述

The LTC1343 is a 4-driver/4-receiver multiprotocol transceiver that operates from a single 5V supply. Two LTC1343s form the core of a complete software-selectable DTE or DCE interface port that supports the RS232, RS449, EIA-530,EIA-530-A, V.35, V.36 or X.21 protocols. Cable termination may be implemented using the LTC1344 software-selectable cable termination chip or by using existing discrete designs. The LTC1343 runs from a single 5V supply using an internal charge pump that requires only five space saving surface mount capacitors. The mode pins are latched internally to allow sharing of the select lines between multiple interface ports. Software-selectable echoed clock and loop-back modes help eliminate the need for external glue logic between the serial controller and line transceiver. The part features a flow-through architecture to simplify EMI shielding and is available in the 44-lead SSOP surface mount package.

特点

Software-Selectable Transceiver Supports: RS232, RS449, EIA-530, EIA-530-A, V.35, V.36, X.21

NET1 and NET2 Compliant

Software-Selectable Cable Termination Using the LTC1344

4-Driver/4-Receiver Configuration Provides a Complete 2-Chip DTE or DCE Port

Operates from Single 5V Supply

Internal Echoed Clock andLoop-Back Logic

应用

Data Networking

CSU and DSU

Data Routers

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1343CGW	SSOP-44	C	$15.65	$12.60
LTC1343CGW#PBF	SSOP-44	C	$15.65	$12.60
LTC1343CGW#TR	SSOP-44	C		$12.70
LTC1343CGW#TRPBF	SSOP-44	C		$12.70
LTC1343IGW	SSOP-44	I	$16.60	$13.50
LTC1343IGW#PBF	SSOP-44	I	$16.60	$13.50
LTC1343IGW#TR	SSOP-44	I		$13.60
LTC1343IGW#TRPBF	SSOP-44	I		$13.60
